EON615
Descontinuado

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

EON615
Imagens maiores

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



Características

  • Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
  • JBL Waveguide Technology
  • Bluetooth integration


Análises

“We can’t speak highly enough of the new EON 615. They sound phenomenal, they’re built like Soviet tanks, and they offer up a wide array of versatile options. Throw in a street price under $500 and we’re sold.” —Performer Magazine

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

Descarregamentos

Data Sheets
  Tamanho Carregado
file type icon EON615 Deluxe Cover
atualizado: out 2020
90 KB out 2020
file type icon EON615 WR Deluxe Cover
atualizado: out 2020
100 KB out 2020
file type icon EON 615 Spec Sheet
atualizado: out 2019
6 MB out 2019
file type icon EON615 DataSheet
atualizado: jul 2019
2 MB jul 2019
Specifications
  Tamanho Carregado
file type icon EON615 Spec Sheet
atualizado: jul 2019
6 MB jul 2019
Brochures
  Tamanho Carregado
3 MB out 2020
CAD Drawings
  Tamanho Carregado
file type icon EON615 2D DWG drawing
atualizado: out 2019
1 MB out 2019
file type icon EON615 2D DWG Drawing
atualizado: out 2019
1 MB out 2019
file type icon EON615 CAD Drawing
atualizado: jul 2019
1 MB jul 2019
file type icon EON615 PDF Drawing
atualizado: jul 2019
200 KB jul 2019
Compliances
  Tamanho Carregado
200 KB out 2020
700 KB jan 2020
Software
  Tamanho Carregado
iOS download icon EON Connect
publicado: ago 2023
ago 2023
Android download icon EON Connect
publicado: ago 2023
ago 2023
Simulation Data
  Tamanho Carregado
20 MB mai 2024
Images
  Tamanho Carregado
300 KB out 2020
100 KB out 2020
300 KB out 2020
file type icon EON615 Deluxe Cover Front
atualizado: out 2020
500 KB out 2020
file type icon EON615 WR Deluxe Cover Back
atualizado: out 2020
200 KB out 2020
file type icon EON615 WR Deluxe Cover Front
atualizado: out 2020
100 KB out 2020
file type icon EON615 WR Deluxe Cover Front Open
atualizado: out 2020
200 KB out 2020
300 KB out 2020
200 KB out 2020
300 KB out 2020
file type icon EON615 Hero Front Back
atualizado: jul 2019
6 MB jul 2019
file type icon EON615 Hero noGrill
atualizado: jul 2019
4 MB jul 2019
file type icon EON615 Back Panel
atualizado: jul 2019
7 MB jul 2019
file type icon EON615 Back Panel Closeup
atualizado: jul 2019
9 MB jul 2019
file type icon EON615 Front Beauty
atualizado: jul 2019
4 MB jul 2019
file type icon EON615 Handle
atualizado: jul 2019
10 MB jul 2019
file type icon EON615 Hero Front Back
atualizado: out 2020
10 MB out 2020
User Guides
  Versão Idioma Tamanho Carregado
file type icon EON600 Users Guide
versão B, atualizado: nov 2020
  4 MB nov 2020
file type icon EON600 Connect User Guide
atualizado: out 2020
    800 KB out 2020
  es  4 MB out 2020
file type icon EON600 Connect User Guide - German
de atualizado: out 2020
  de  4 MB out 2020
file type icon EON600 Connect User Guide - French
fr atualizado: out 2020
  fr  4 MB out 2020

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

System Type Self powered 15", two-way, bass-reflex
Max SPL Output 127 dB
Frequency Range (-10dB) 39 Hz - 20 kHz
Frequency Response (±3 dB) 50 Hz - 20 kHz
Coverage Pattern 90° x 60°
Amplifier Design Class D
Power Rating 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D) 707mm x 439mm x 365mm (27.8in x 17.3in x 14.4in)
Net Weight 17.69 kg (39 lbs)
Mic Inputs 2
Phantom Power No
EQ 3 Parametric EQs + Hi & Lo Shelf
Effects DSP Presets
Inputs 2 x Balanced XLR-1/4” combination inputs
Outputs 1 x male XLR loop thru out
Enclosure Polypropylene

Acessórios

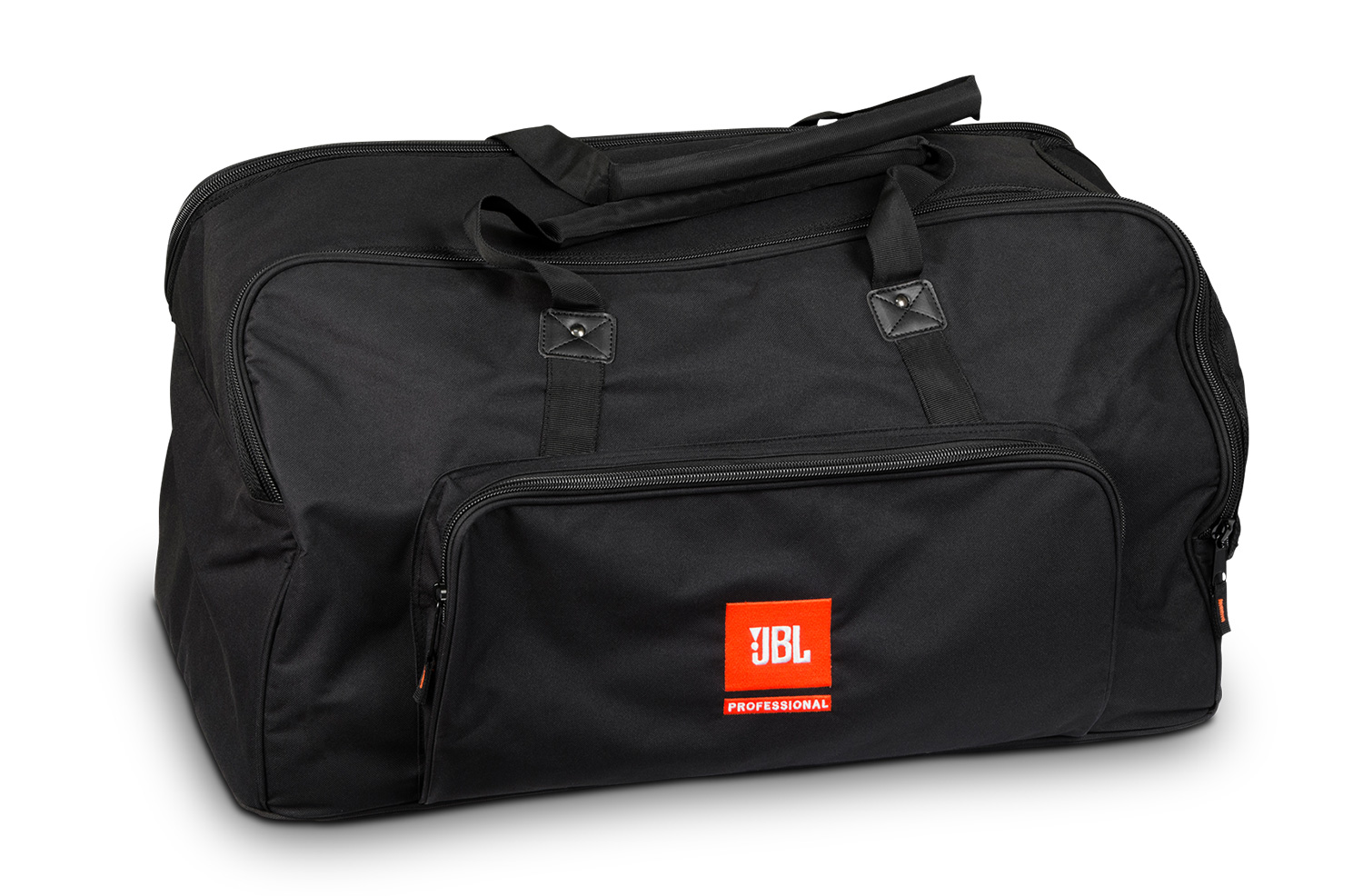

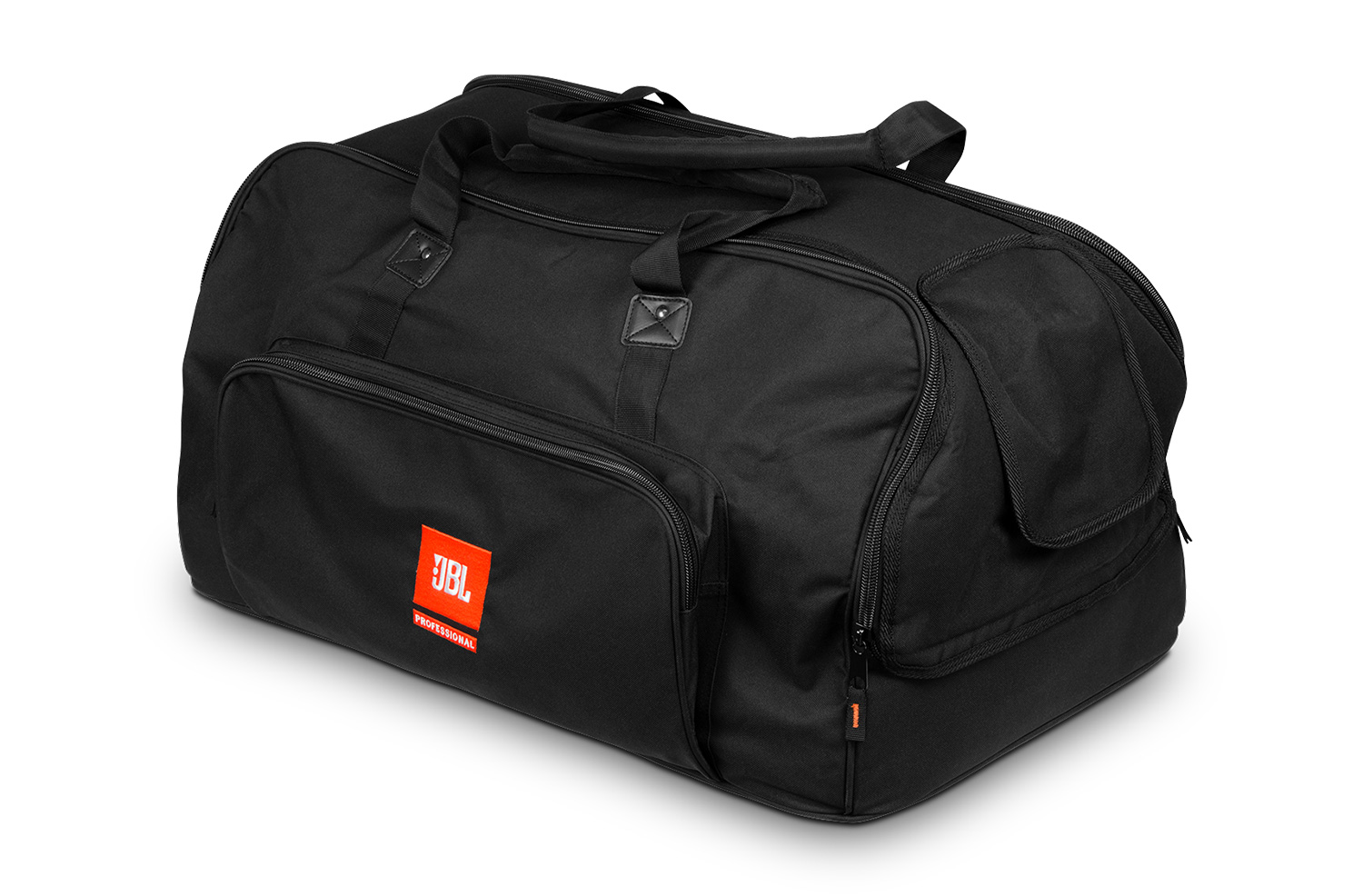

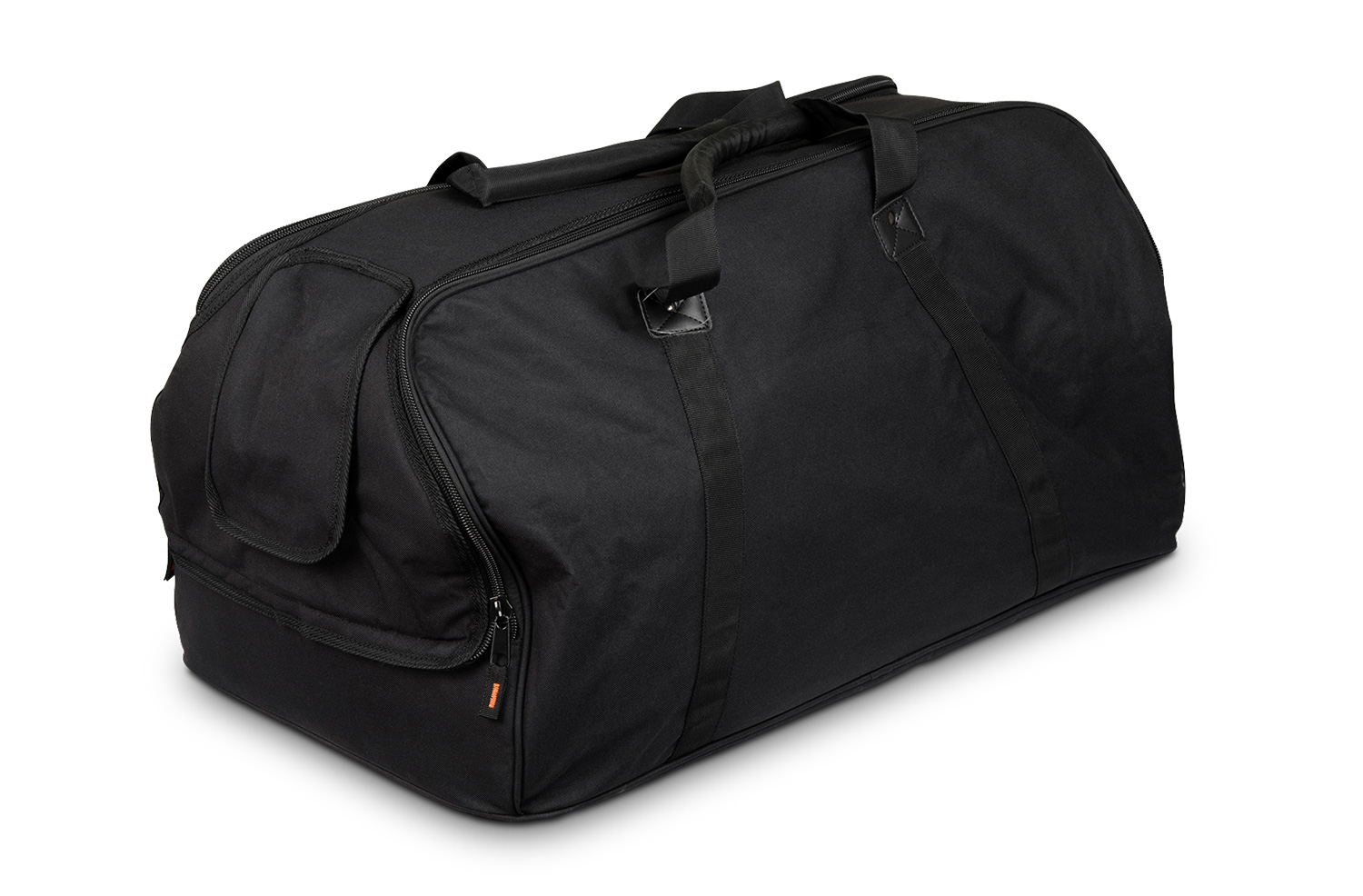

EON615-BAG | Deluxe Padded Cover for the EON615
EON615-BAG Main photo
Imagens maiores
EON615-BAG detail thumbnail #1 EON615-BAG detail thumbnail #2

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.

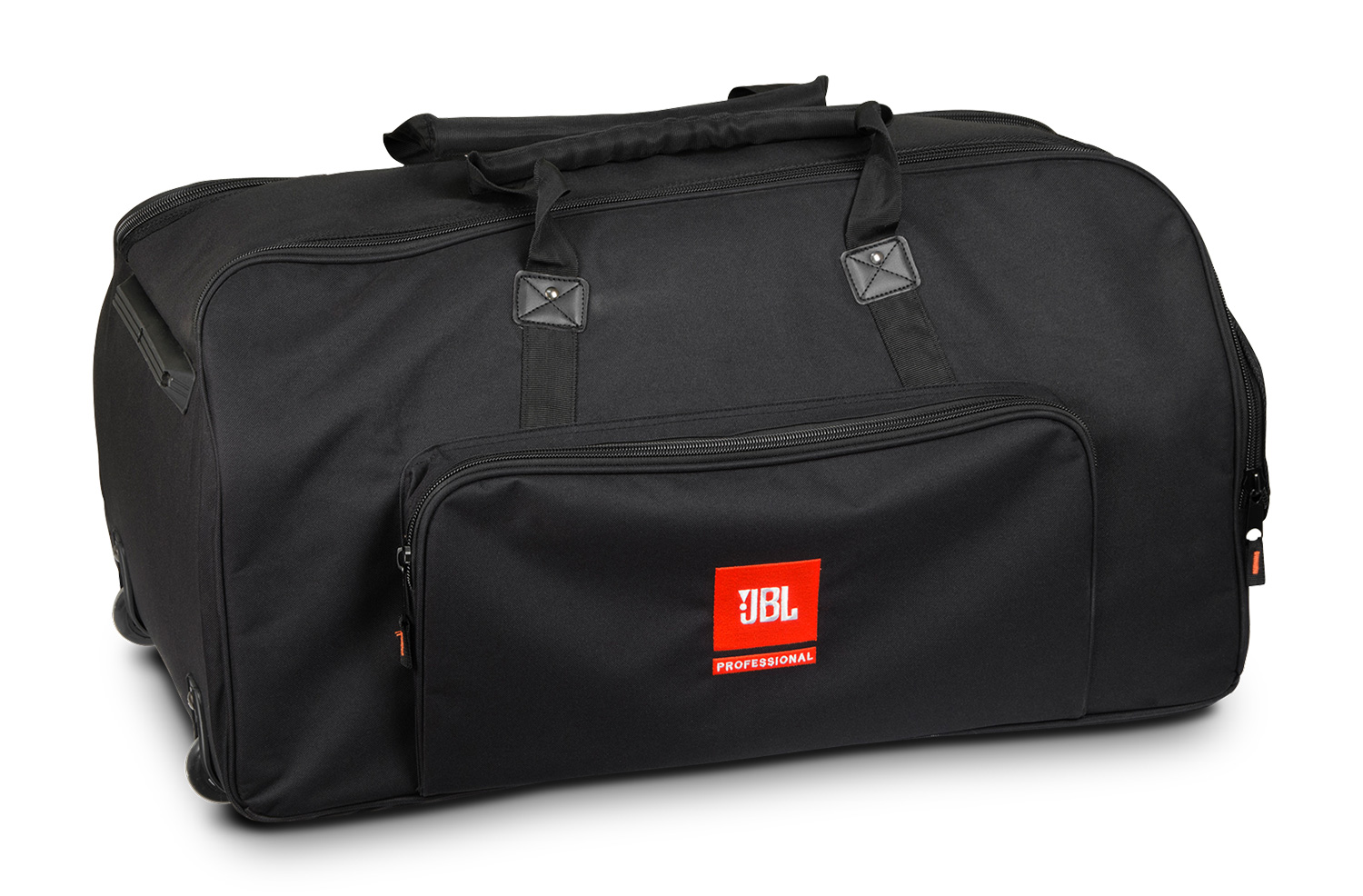

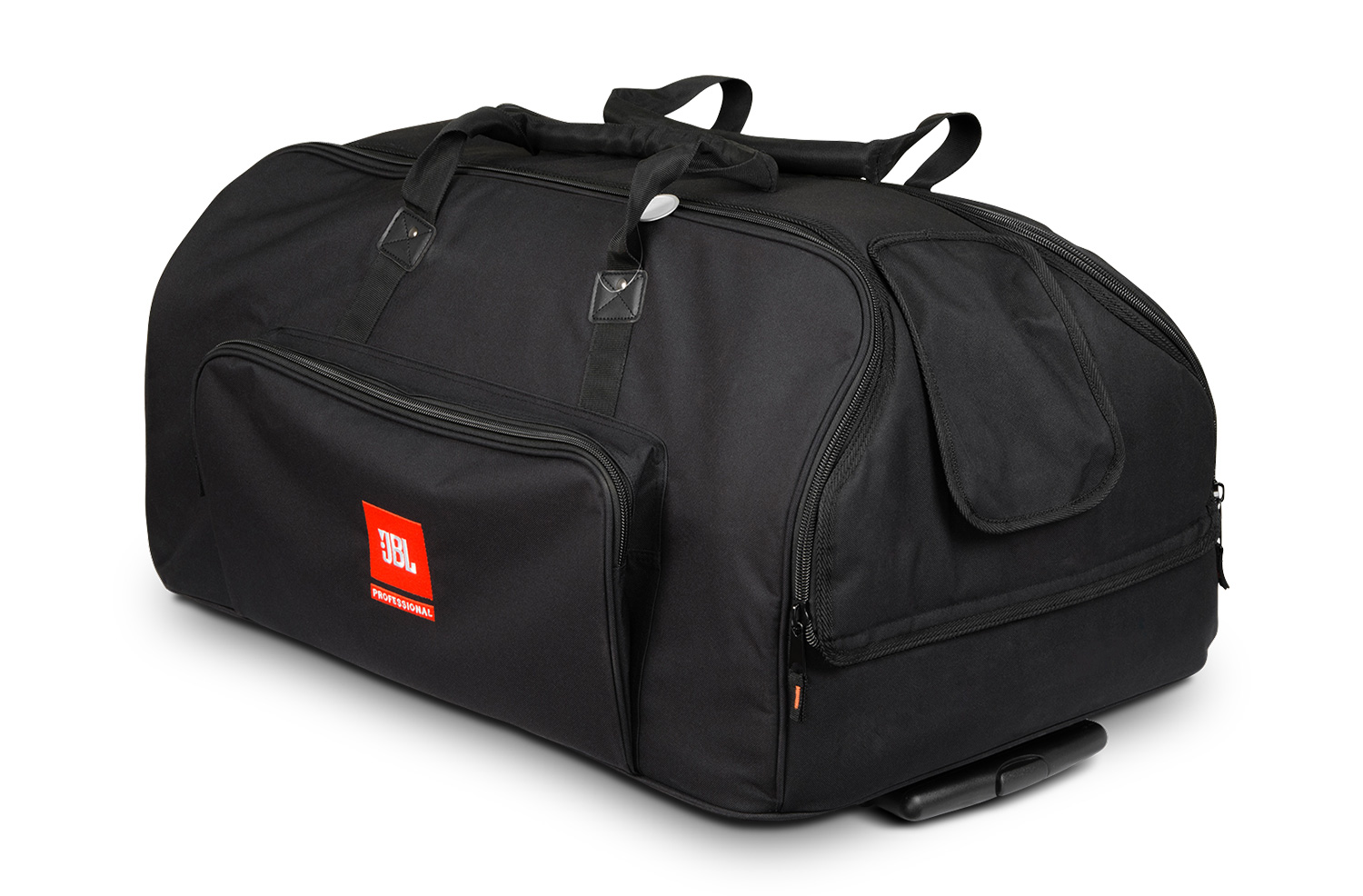

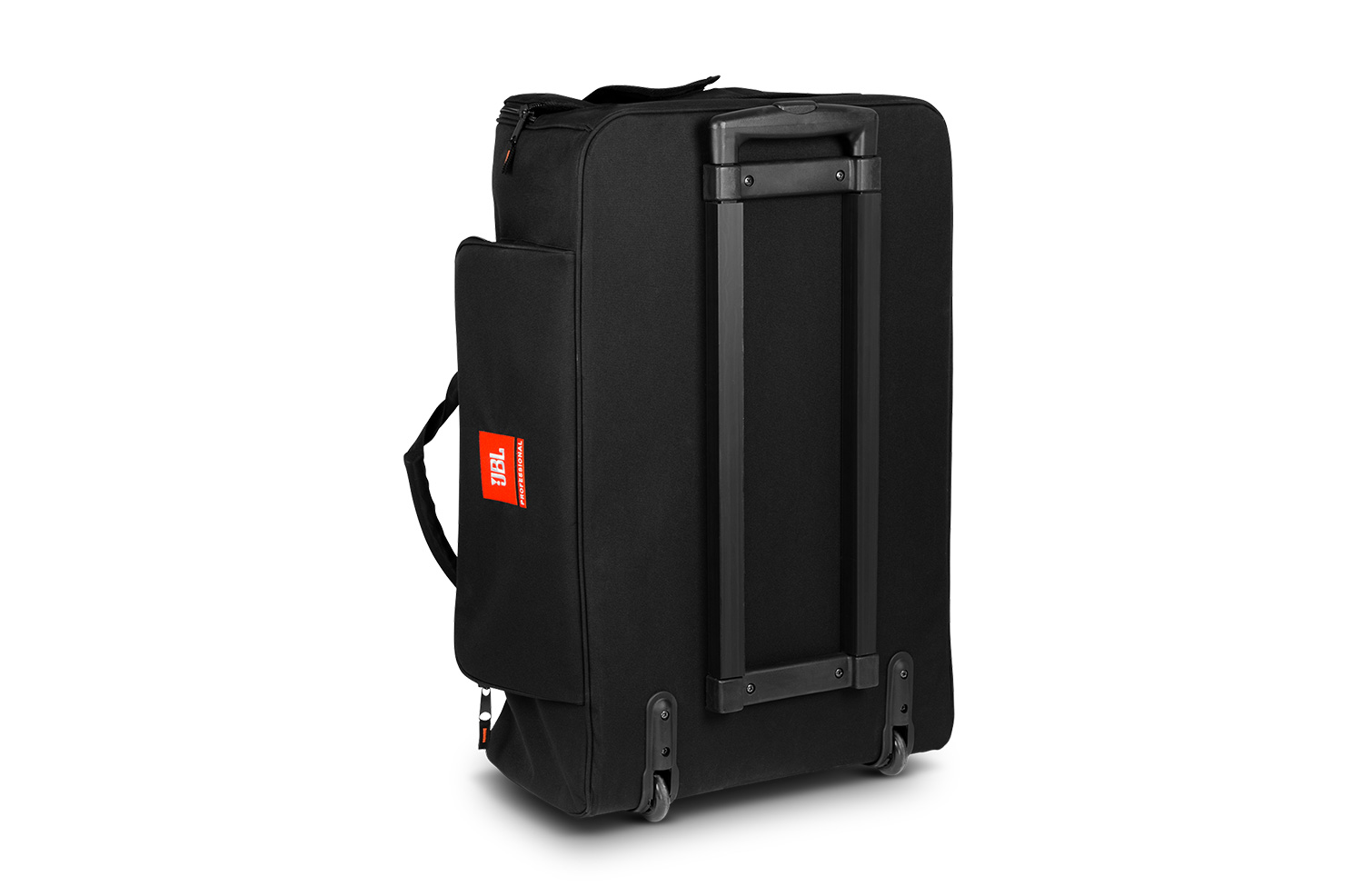

EON615-BAG-W | EON615 Roller Bag
EON615-BAG-W Main photo
Imagens maiores
EON615-BAG-W detail thumbnail #1 EON615-BAG-W detail thumbnail #2 EON615-BAG-W detail thumbnail #3

Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON 615

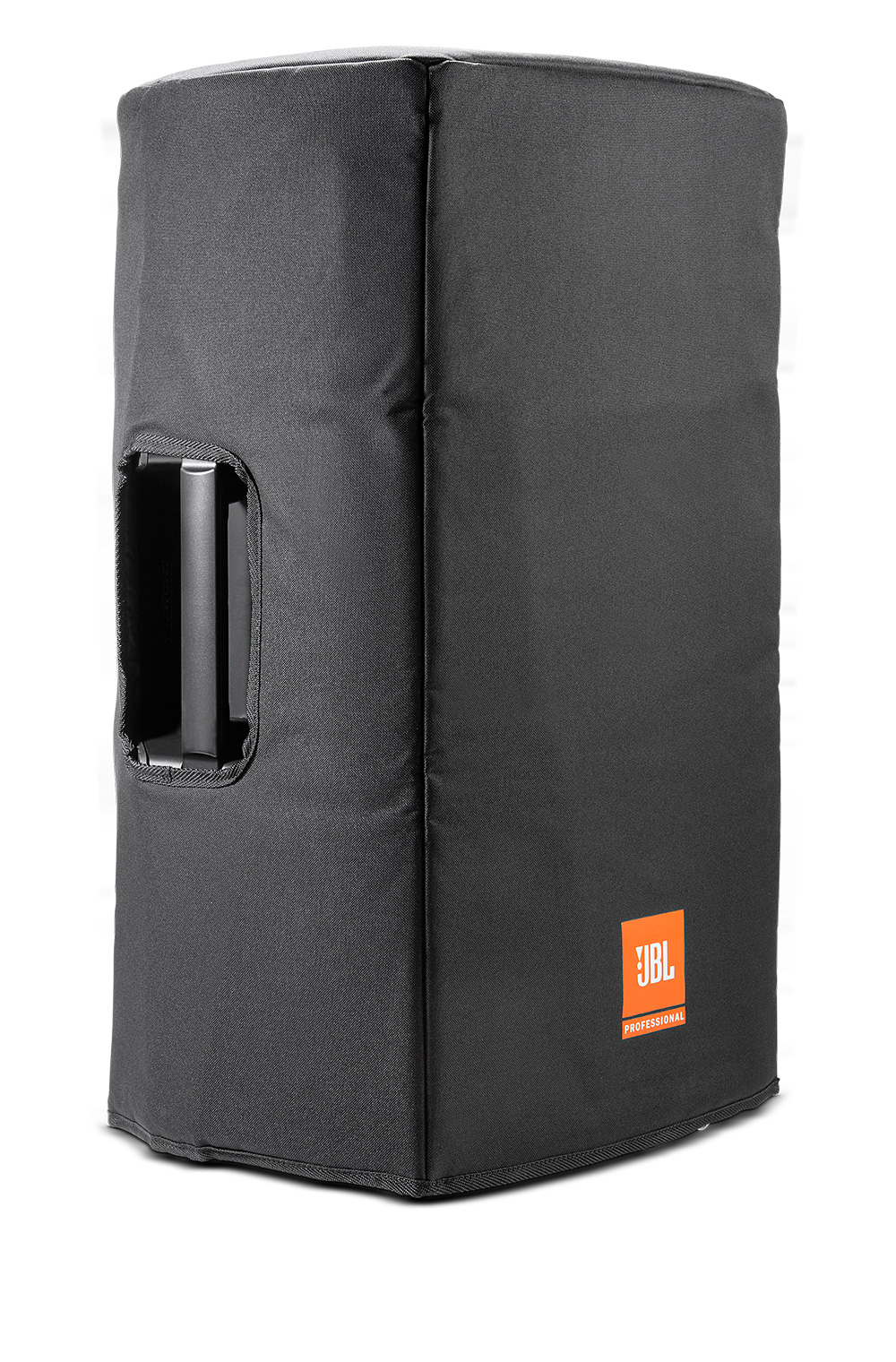

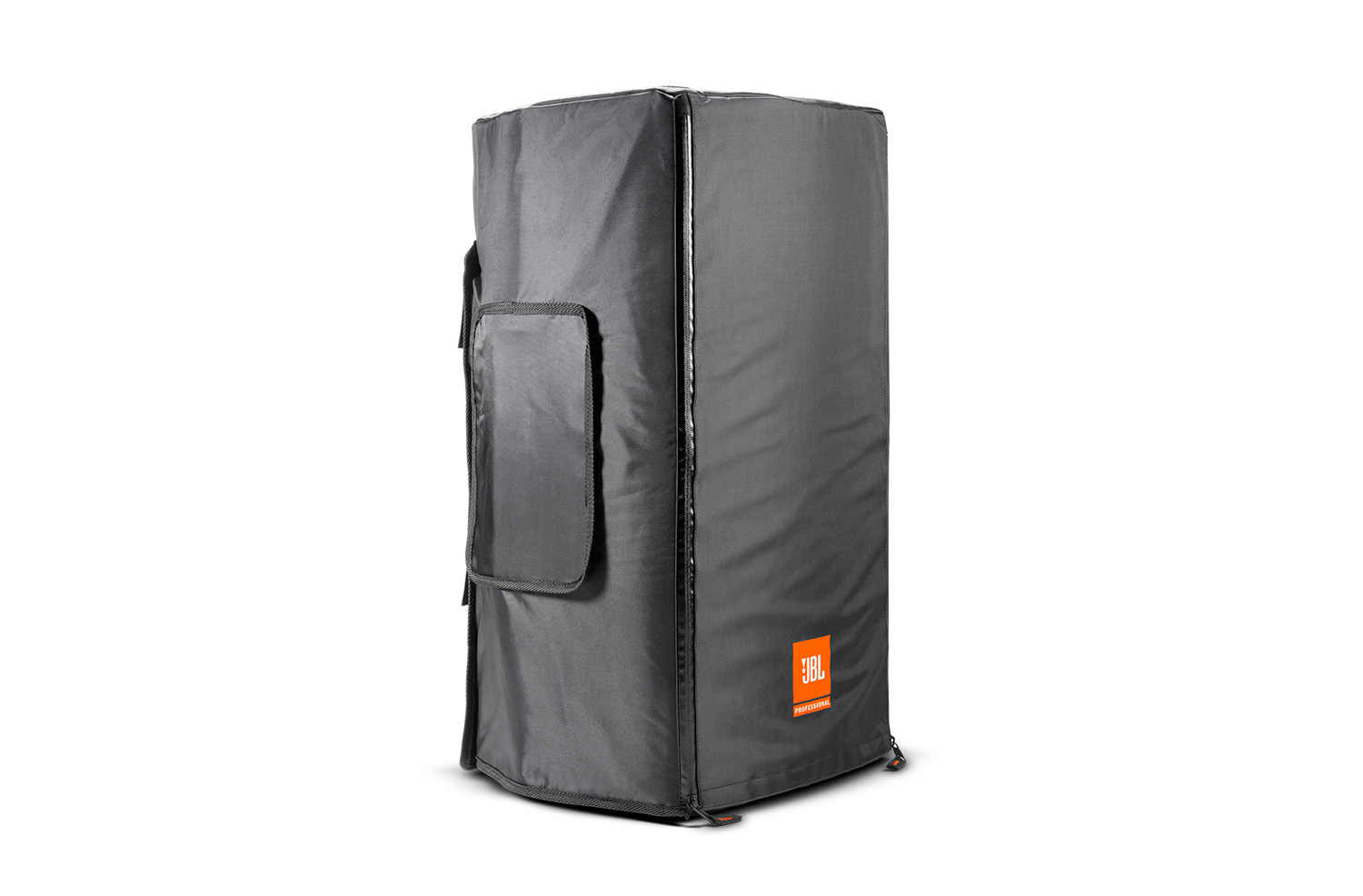

EON615-CVR | Deluxe Padded Protective Cover for EON615
EON615-CVR Main photo
Imagens maiores
EON615-CVR detail thumbnail #1

Deluxe padded cover for EON615. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.


EON15-STRETCH-COVER-BK | Stretchy Black Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-BK Main photo
Imagens maiores
EON15-STRETCH-COVER-BK detail thumbnail #1 EON15-STRETCH-COVER-BK detail thumbnail #2 EON15-STRETCH-COVER-BK detail thumbnail #3 EON15-STRETCH-COVER-BK detail thumbnail #4

Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.


EON15-STRETCH-COVER-WH | Stretchy White Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-WH Main photo
Imagens maiores
EON15-STRETCH-COVER-WH detail thumbnail #1 EON15-STRETCH-COVER-WH detail thumbnail #2 EON15-STRETCH-COVER-WH detail thumbnail #3

Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

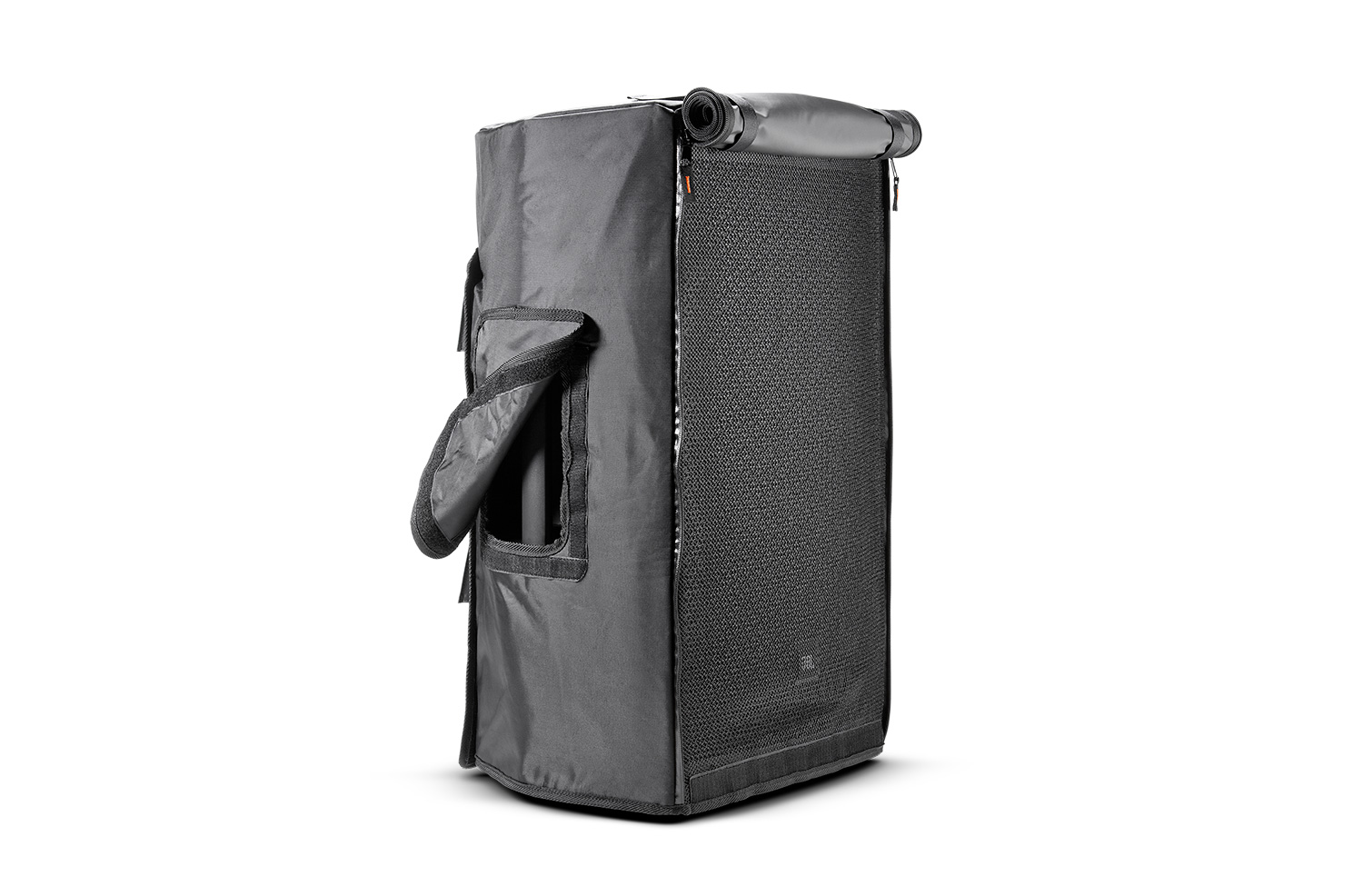

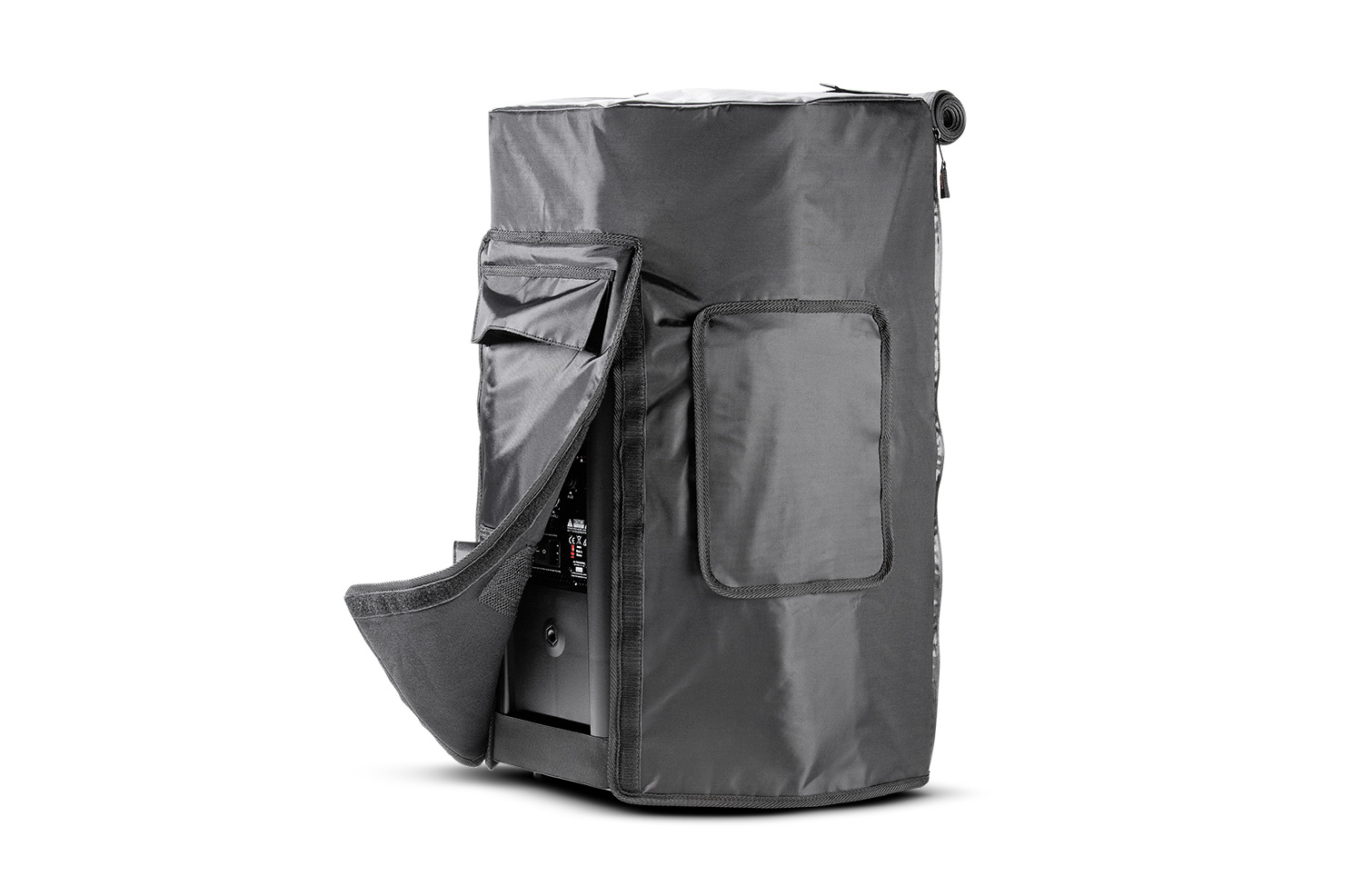

EON615-CVR-WX | Convertible Cover for EON615
EON615-CVR-WX Main photo
Imagens maiores
EON615-CVR-WX detail thumbnail #1 EON615-CVR-WX detail thumbnail #2 EON615-CVR-WX detail thumbnail #3 EON615-CVR-WX detail thumbnail #4

Convertible Cover for EON615. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.

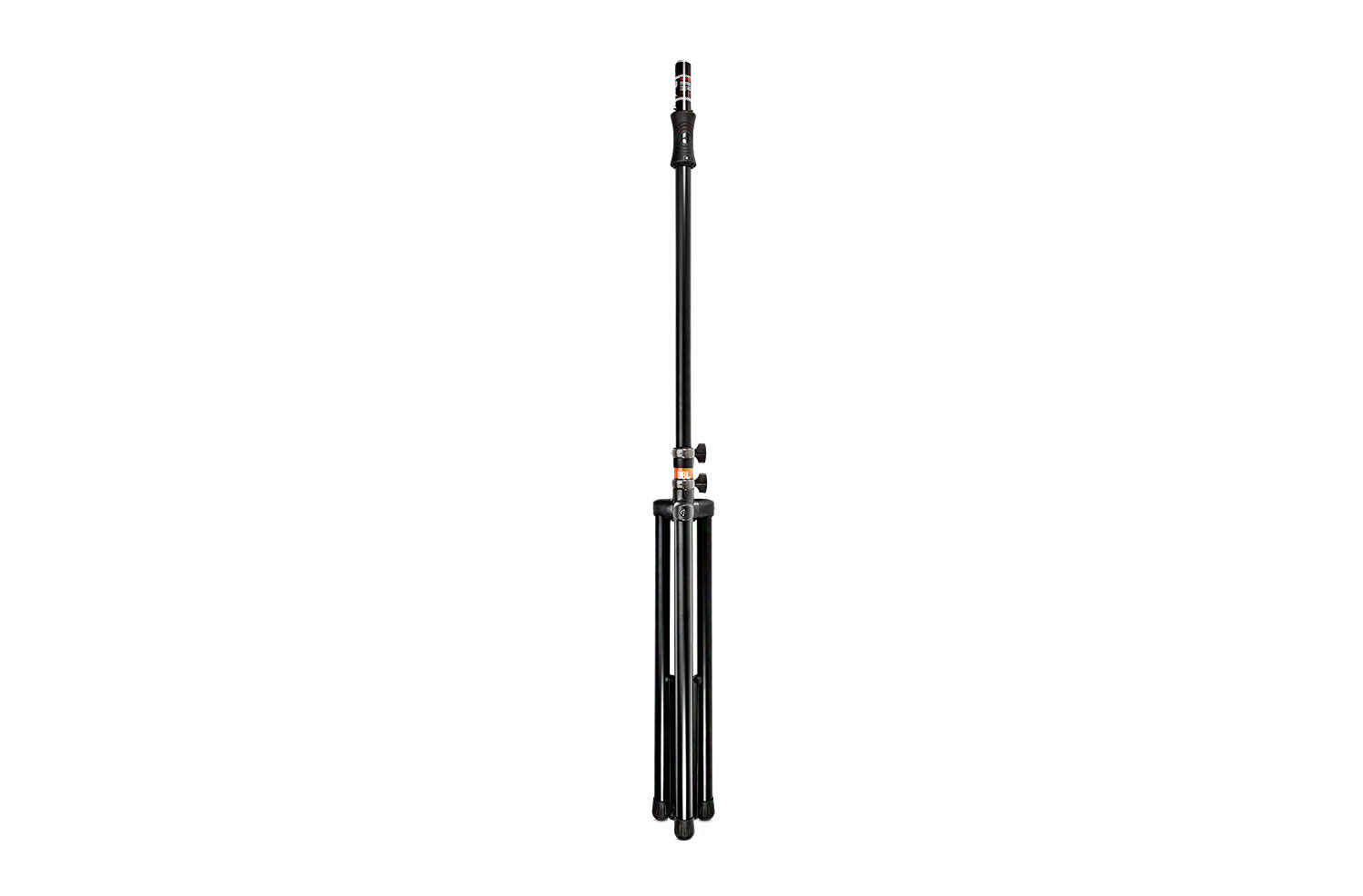

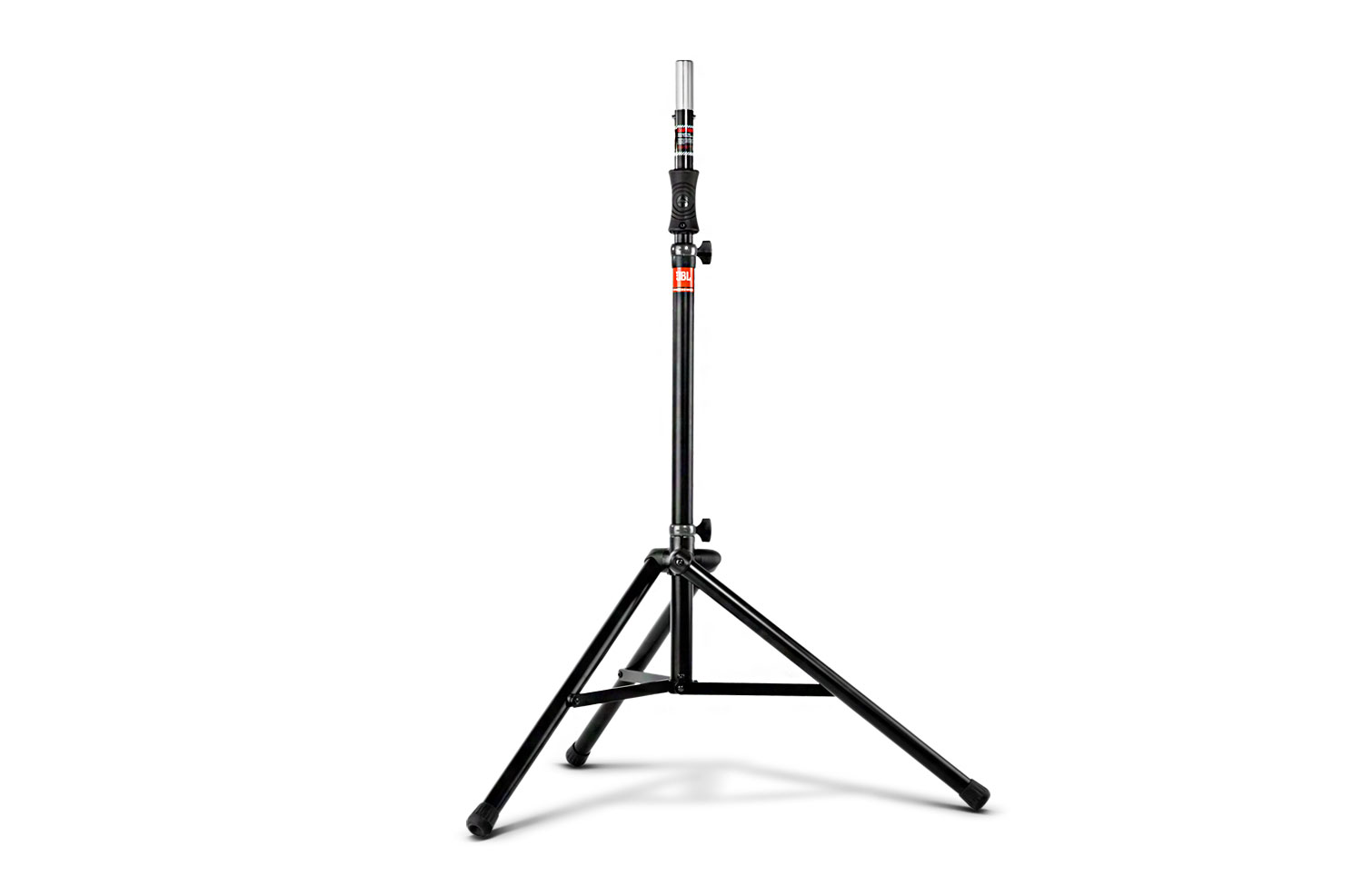

JBLTRIPOD-GA | Trípode para Coluna JBL com Assistência de Gás
JBLTRIPOD-GA Main photo
Imagens maiores
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Suporte de Coluna em Tripé de Alumínio com Assistência de Elevação e Adaptador de Coluna Integrado. O JBLTRIPOD-GA é um suporte de coluna incrivelmente fácil de usar graças ao amortecedor pneumático interno que literalmente eleva a coluna por si. O amortecedor interno do suporte eleva facilmente colunas com peso até 35 lbs sem qualquer esforço do utilizador.
  • Assistência a gás ajustável de 3'8" (1118MM) a 6'7" (2007MM)
  • Tripé com assistência a gás que levanta o coluna para si utilizando um amortecedor pneumático interno
  • Concebido para utilização com os seguintes modelos JBL; JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentação
JBLTRIPOD-MA | Tripé de Suporte para Altifalante JBL com Ajuste Manual
JBLTRIPOD-MA Main photo
Imagens maiores
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Suporte de Coluna em Tripé de Alumínio com Pino de Bloqueio Seguro e Capacidade de Carga de 150 lbs. Para o ajudar a elevar a sua coluna, adicionámos um Anel de Elevação durável no tubo telescópico para lhe dar um apoio onde pode fazer força ao levantar a coluna até à altura desejada.

  • Ajustável de 4'2" (1270MM) a 6'5" (1956MM)
  • Tripé para altifalante com ajuste manual
  • Concebido para utilização com os seguintes modelos JBL; JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentação
JBLPOLE-GA | Poste de Altifalante com Assistência Pneumática JBL
JBLPOLE-GA Main photo
Imagens maiores
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Coluna de Suporte com Assistência Pneumática e Extremidade Inferior com Rosca M20, Coluna de 38mm e Adaptador de 35mm. O JBLPOLE-GA é o suporte de coluna mais fácil de utilizar graças ao amortecedor pneumático interno que literalmente levanta a coluna para si. O amortecedor interno do suporte levanta facilmente colunas com peso até 35 kg sem qualquer esforço do utilizador.

  • Levante e Baixe o Coluna com Facilidade!
  • Botão "Z" Forte e Fácil de Utilizar
  • Poste Incrivelmente Robusto
  • Suporte de Poste Roscado M20
  • Compatível com a maioria dos subwoofers com rosca de poste M20 padrão (JBL PRX, VRX, STX e SRX818) - Consulte os produtos individuais

Documentação

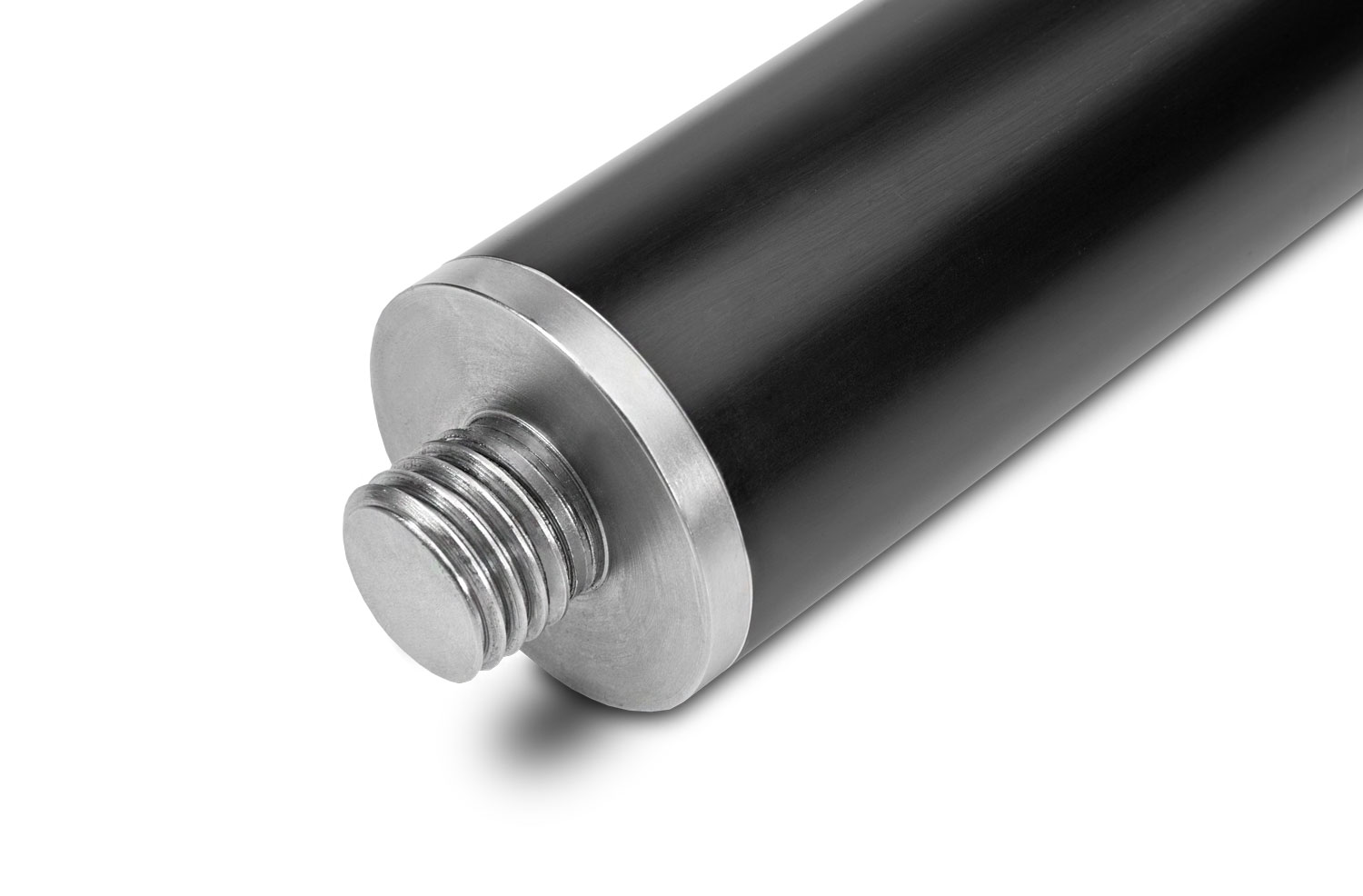

JBLPOLE-MA | Pólo de Coluna Ajustável Manual JBL
JBLPOLE-MA Main photo
Imagens maiores
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Suporte Manual Ajustável para Coluna com Extremidade Inferior Roscada M20, Coluna de 38mm & 35mm. O JBLPOLE-MA apresenta um excelente colar de ajuste de altura que dispõe de um botão "Z" ergonómico que proporciona um ajuste confortável. O encaixe mais resistente disponível, o colar de ajuste de altura previne o aperto excessivo e os problemas de rotura associados aos designs totalmente em plástico.

  • Leve
  • Colares de liga metálica injetada
  • Rosca M20
  • Compatível com todos os subwoofers com rosca de poste M20 padrão (JBL PRX, VRX, STX e SRX818) - Consulte os produtos individuais para confirmar

Documentação
