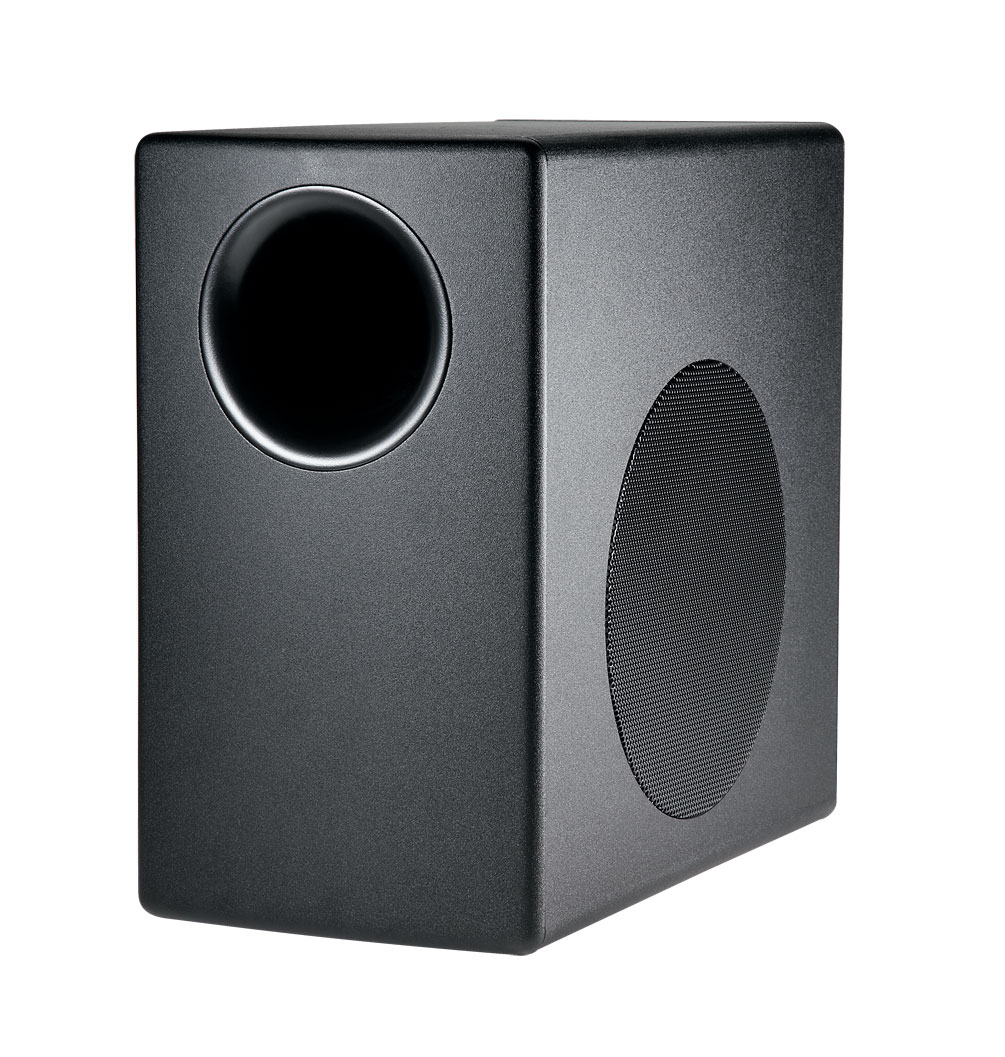

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.
| Tamanho | |
|
|
1 MB |
| Tamanho | |
|
|
20 MB |
|
|
10 MB |
|
|
20 MB |
| Tamanho | |
|
|
| Tamanho | |
|
|
200 KB |
|
|
90 KB |
| Tamanho | |
|
|
600 KB |
| Tamanho | |
|
|
200 KB |
| Tamanho | |
|
|
200 KB |
| Tamanho | |
|
|
400 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| Frequency Range (-10dB) | 32 Hz – 200 Hz |
| Frequency Response (±3 dB) | 50 Hz – 150 Hz |
| Power Capacity | 300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs) |
| Sensitivity | 95 dB (near corner), 89 dB (center of wall) |
| Maximum SPL (1m) | 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall) |
| Impedance | 8 ohms (in bypass/thru mode) |
| Transformer Taps | 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru |
| Drivers | 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former |
| Input Connectors | Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2) |
| Enclosure | Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal. |
| Dimensions (H x W x D) | Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep |
| Mounting Hardware | 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel |
| Net Weight (each) | 9.0 kg (20 lbs) |
| Shipping Weight | 10.2 kg (23 lbs) |
| Included Accessories | Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment. |
| Grille | Zinc-plated steel |
| Coverage Angle | Omnidirectional |
