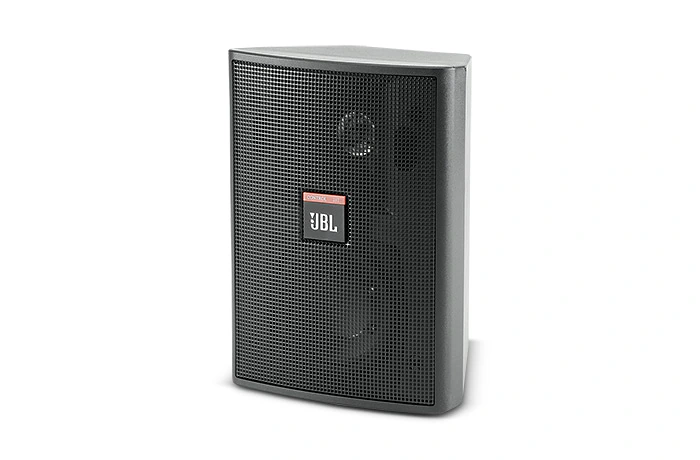

The Control® 23 is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/ background music and paging are required, with minimum aesthetic impact.
| Tamanho | |
Control Contractor Brochure
atualizado: abr 2026
|
2 MB |
|
Control 23 Spec Sheet
atualizado: abr 2026
|
700 KB |
|
Control Contractor Surface Mount Owners Manual
atualizado: abr 2026
|
2 MB |
| Tamanho | |
|
|
700 KB |
| Tamanho | |
|
|
200 KB |
|
|
70 KB |
| Tamanho | |
|
|
20 MB |
|
|
20 MB |
| Tamanho | |
|
|
100 KB |
|
|
2 MB |
| Tamanho | |
|
|
200 KB |
|
|
100 KB |
| Tamanho | |
|
|
600 KB |
| Tamanho | |
|
|
20 MB |
| Tamanho | |
|
|
60 KB |
|
|
50 KB |
|
|
5 MB |
|
|
80 KB |
|
|
200 KB |
|
|
40 KB |
|
|
30 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| Frequency Range | 85 Hz to 22 kHz (-10 dB) |
| Power Capacity | 50 W Continuous Program Power; 25 W Continuous Pink Noise |
| Sensitivity | 86 dB SPL, 1W, 1m |
| Directivity Factor (Q) | 4.8 dB |
| Directivity Index (DI) | 6.8 dB |
| Nominal Impedance | 8 ohms |
| Crossover Frequency | 3.5 kHz |
| LF Driver | 88 mm (3.5 in) Polypropylene cone w/ WeatherEdge |
| HF Driver | 13 mm (.5 in) Titanium coated polycarbonate |
| Enclosure Material | THIPS (High Impact Polystyrene) |
| Overload Protection | Full-Range power limiting to protect network and transducers |
| Terminations | Spring terminals, accepts banana plug |
| Environmental | Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating |
| Dimensions (H x W x D) | 193 x 140 x 111 mm (7.6 x 5.5 x 4.4 in) |
| Net Weight (each) | 1.8 kg (4 lb) |
| Shipping Weight (pair) | 4.1 kg (9 lb) |
| Included Accessories | Invisiball Assembly 4 mm x 80 mm hex key) |
| Optional Accessories | MTC-23V: For vertical columnar orientation of up to 3 loudspeakersMTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. Weather resistance is maximized by MTC-23CM: Ceiling-mount adapter. MTC-23SSG: Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH)MTC-PC2: Input panel cover protects input terminals in outdoor environments |
