JBL Professional Control 16C-VA

Imagens maiores

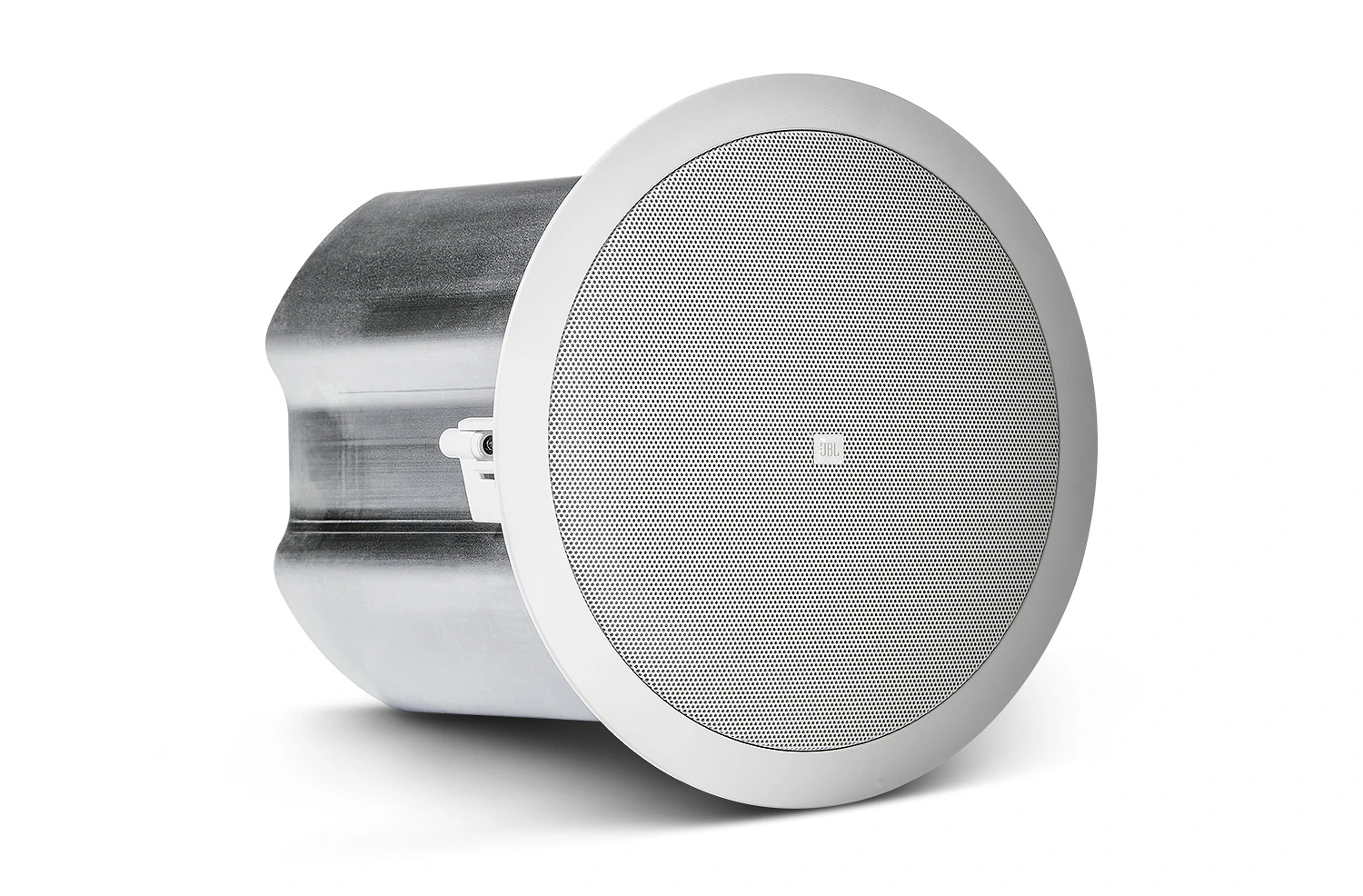

Two-Way 6.5" Co-axial Ceiling Loudspeaker for EN54-24 Applications

Control 16C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5VB flammability-rated material, with an integrated backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/ waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more. The speaker delivers consistent sound quality for listeners located both off and on axis. This loudspeaker is EN 54-24 Compliant for life safety applications.

Características

Components:
• 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter
EN 54-24 Compliant for Life Safety Applications
Integrated backcan for quick and easy install
Combined 70V/100V and low impedance direct operation
• 50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V
62 Hz – 20 kHz bandwidth with wide 110° coverage
High 91 dB sensitivity for high maximum SPL

Descarregamentos

Specifications

	Versão	Tamanho	Carregado
Control 16C-VA Spec Sheet versão D, atualizado: set 2025	D	300 KB	set 2025

Brochures

	Versão	Idioma	Tamanho	Carregado
Control Contractor Brochure (2025) versão A, atualizado: mar 2026	A		20 MB	mar 2026
Control Contractor Brochure (2026) atualizado: mar 2026			20 MB	mar 2026

Compliances

	Tamanho	Carregado
JBL Control Series Passive Speakers DoC atualizado: dez 2019	200 KB	dez 2019
Control 10 Series EN54-24 - Declaration of Conformity atualizado: out 2019	200 KB	out 2019

Simulation Data

	Versão	Tamanho	Carregado
JBL Pro ALL CLF Files versão 12-10-21, atualizado: mai 2023	12-10-21	20 MB	mai 2023

Speaker Tunings

	Versão	Tamanho	Carregado
Commercial, CBT, and AWC Tunings 220616 versão A, atualizado: mai 2023	A	600 KB	mai 2023

Owner's Manuals

	Versão	Tamanho	Carregado
Control 10C-VA Series Owners Manual versão B, atualizado: fev 2025	B	1 MB	fev 2025

Accessories

	Tamanho	Carregado
MTC-CS-Teth1 Press-In Grille Safety Tether atualizado: set 2021	200 KB	set 2021

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB)

62 Hz – 20 kHz

Frequency Response (±3 dB)

96 Hz – 15 kHz

Power Rating

IEC System Long-Term Ratings (low-Z direct):
100 Watts Continuous Program Power
50 Watts Continuous Pink Noise (200W peak), 100 hrs

Rated Noise Power

30W (30W tap)

Sensitivity

91 dB (1kHz - 16 kHz)

EN54 Sensitivity (@ 4m)

77 dB (per EN54-24 spectrum and measurement conditions at 4 meters).

Coverage Pattern

Frequency (kHz)	Horizontal Coverage°	Vertical Coverage°
0.5 kHz	175°	174°
1 kHz	154°	157°
2 kHz	148°	149°
4 kHz	70°	72°

Reference Axis

Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane

Directivity Factor (Q)

7.8

Directivity Index (DI)

8.2 dB

Maximum SPL (1m)

108 dB (low-impedance, 116 dB peak)
106 dB (top 70V/100 tap)
EN54: 91 dB (4m, top 70/100V tap)

EN54 Max SPL (@ 4m)

91 dB (per EN54-24 spectrum and measurement conditions, 30W tap, at 4 meters)

Impedance

8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) 3.8W@70V; 7.5W@100V Tap: 1333Ω 7.5W@70V; 15W@100V Tap: 667Ω 15W@70V; 30W@100V Tap: 333Ω 30W@70V; N/C@100V Tap: 166Ω

Transformer Taps

30W, 15W, 7.5W @ 70V or 100V (plus 3.8W @ 70V only)

Crossover Network

12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver

Fuse

Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC

Drivers

LF Driver: 165 mm (6.5 in)
HF Driver: 19 mm (3/4 in)

Connections

Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire.

Gland Nut/Strain Relief

Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in)

Materials

ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan

Safety Agency

EN54-24:2008 certified Type A; Transformer UL registered per UL1876

Dimensions

253 mm diameter x 262 mm from back of baffle to back of gland nut (10.0 in diameter x 10.3 in in depth)

Ceiling Cutout Size

Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)

Ceiling Thickness Range

Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses

Safety Seismic Attachment

One point, top surface

Net Weight

3.4 kg (7.4 lbs, one speaker)

Shipping Weight

11.2 kg (24.7 lbs, pair in master carton)

Included Accessories

C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille

Optional Accessories

MTC-16WG high humidity grille MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dogears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans

Input Connectors

Ceramic block with brass inserts

Color

White

Backcan

formed steel (integrated backcan)

Plenum Usage

Yes, backcan included
