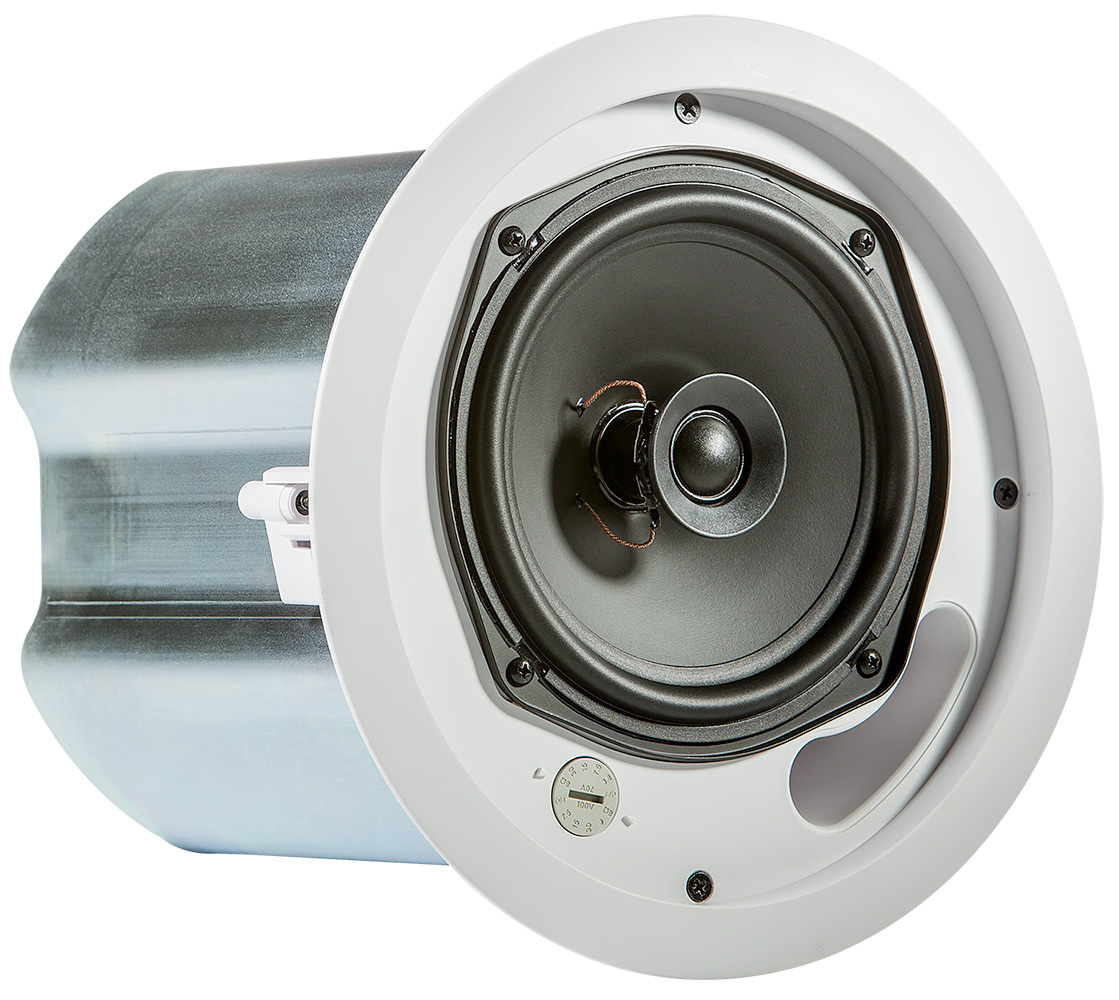

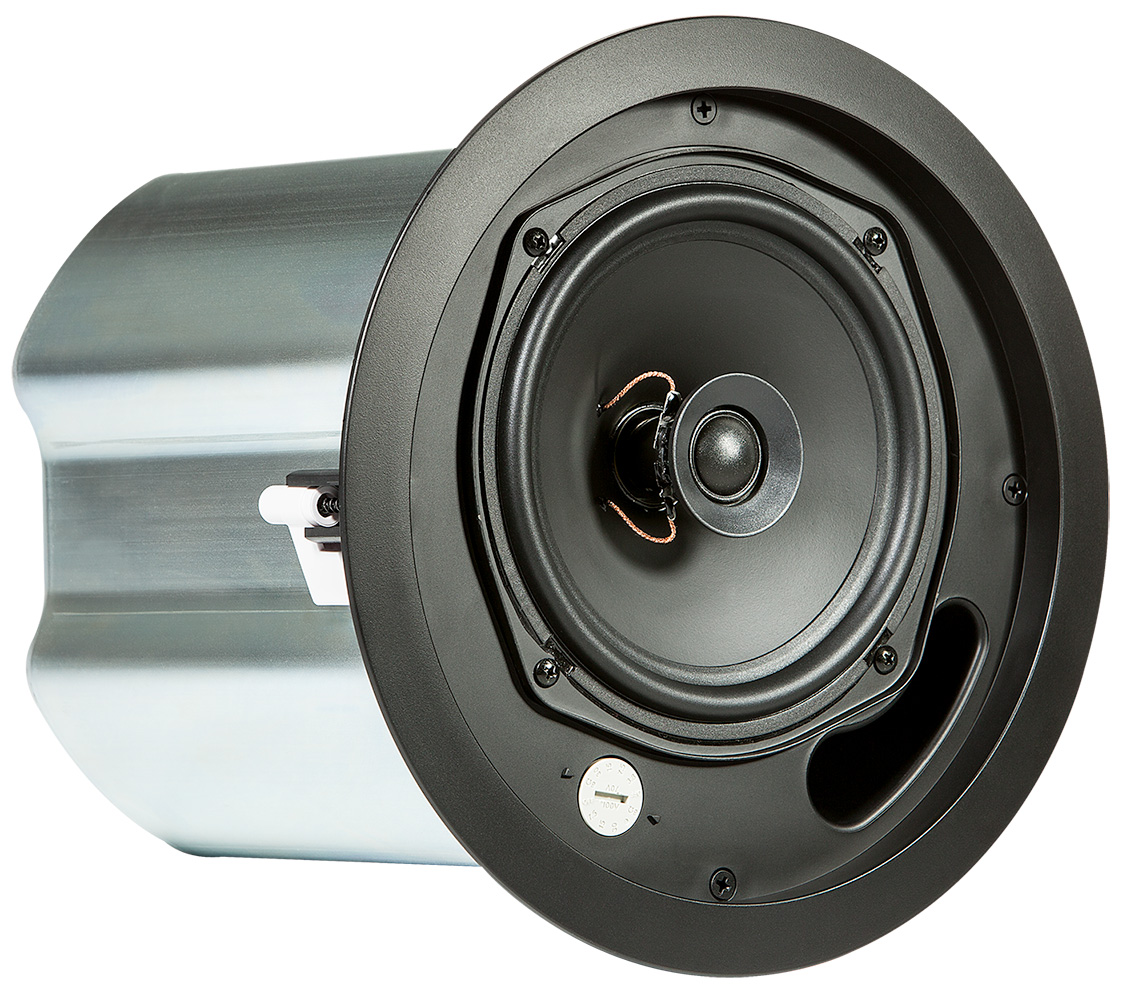

O Control 16C/T é um altifalante de teto de gama completa constituído por um condutor de cone de alta tecnologia de 165 mm (6,5 polegadas) e um tweeter de cúpula mole arrefecido a líquido de 19 mm montados numa bainha ventilada e pintável feita de material UL94-V0 e UL94-5HB resistente aos raios UV, com uma câmara traseira integrada para uma instalação rápida e fácil.
| Tamanho | |
|
|
300 KB |
| Tamanho | |
|
|
100 KB |
| Tamanho | |
|
|
20 MB |
|
|
20 MB |
|
|
10 MB |
| Tamanho | |
|
|
1 MB |
| Tamanho | |
|
|
| Tamanho | |
|
|
100 KB |
|
|
200 KB |
| Tamanho | |
|
|
600 KB |
| Tamanho | |
|
|
20 MB |
|
|
20 MB |
| Tamanho | |
|
|
400 KB |
| Tamanho | |
|
|
200 KB |
|
|
800 KB |
| Tamanho | |
|
|
1 MB |
|
|
10 MB |
|
|
300 KB |
| Tamanho | |
|
|
300 KB |
|
|
400 KB |
|
|
90 KB |
| Tamanho | |
|
|
600 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| Frequency Range (-10dB) | 62 Hz – 20 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise (200W peak), 100 hr |
| Transformer Taps | 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only) |
| Frequency Response (±3 dB) | 96 Hz – 15 kHz |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| Coverage Angle | 110° conical |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.2 dB |
| Maximum SPL (1m) | 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100V tap) |
| Impedance | 8 ohms (in direct/bypass setting) |
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in) |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth) |
| Ceiling Cutout Size | Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 3.4 kg (7.4 lbs, one speaker) |
| Shipping Weight | 11.2 kg (24.7 lbs, pair in master carton) |
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille |
| Optional Accessories | MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |

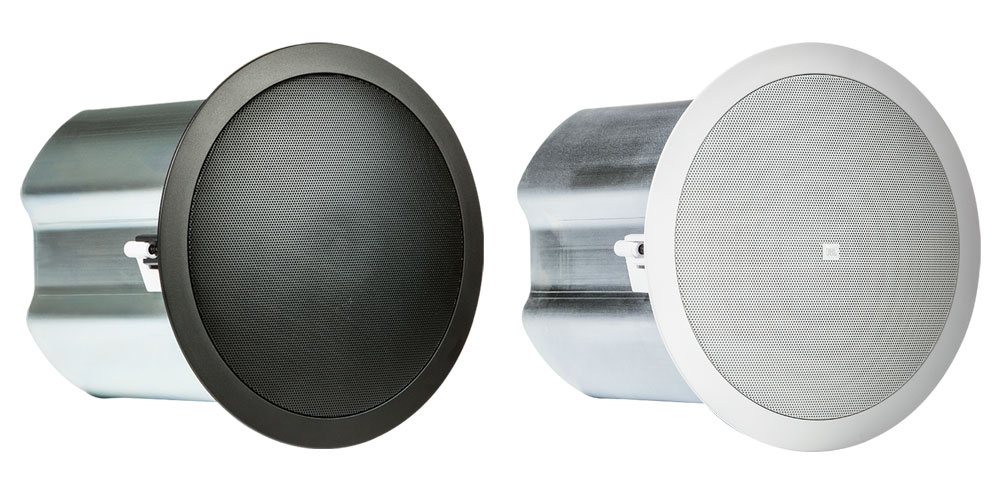

| Color | White or Black |
| Backcan | formed steel (included backcan) |
| Baffle/Rim | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. |
| Plenum Usage | Yes, backcan included |
Commercial audio designers and consultants have many choices when selecting the right manufacturer, product and solution to fulfill the unique requirements of each client’s particular installed audio application. The JBL Control Contactor Series was developed specifically to target these users with purpose-built ceiling, pendant, in-wall,
