AC115S

Subwoofer de 15 polegadas

AC115S
Imagens maiores

Subwoofer de 15 polegadas

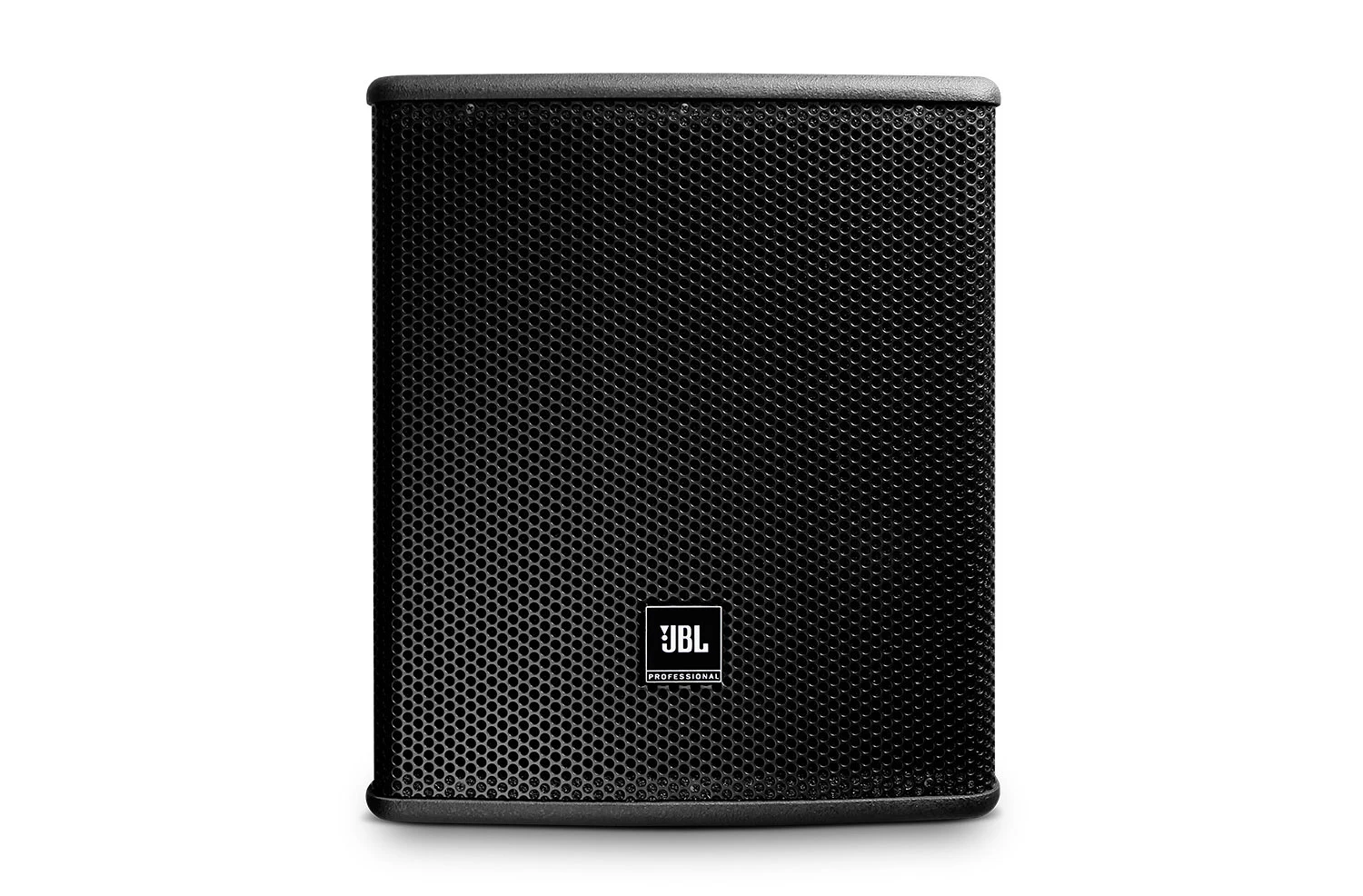

O AC115S é um sistema de subwoofer de alta potência constituído por um altifalante de baixa frequência de 385 mm (15 pol.) num enclosure ventilado com carregamento frontal para largura de banda estendida. O cabinet rectangular está equipado com pontos de suspensão roscados M10 para máxima flexibilidade.

Como parte da Série JBL AE Application Engineered, uma família versátil de altifalantes para uma grande variedade de aplicações de instalação fixa, o AC115S oferece uma qualidade de som de baixa frequência natural.



Características

  • High power and long excursion driver for lower frequency reproduction
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 18 mm multiply hardwood with textured black finish

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities


Descarregamentos

Specifications
  Tamanho Carregado
file type icon AC115S Spec Sheet
atualizado: abr 2019
400 KB abr 2019
Brochures
  Idioma Tamanho Carregado
file type icon Loudspeakers for Sports Facilities
en atualizado: jul 2024
en  6 MB jul 2024
CAD Drawings
  Versão Tamanho Carregado
file type icon AE Expansion Series Customer Drawings
versão 1.0, atualizado: mar 2025
1.0  6 MB mar 2025
file type icon AE Expansion Series Brackets Customer Drawings
versão 1.0, atualizado: mar 2025
1.0  400 KB mar 2025
Simulation Data
  Versão Tamanho Carregado
file type icon AE Expansion Series - EASE GLL
versão 1.0, atualizado: mar 2025
1.0  300 KB mar 2025
file type icon AE Expansion Series - CLF Files
versão 1.0, atualizado: mar 2025
1.0  800 KB mar 2025
Declaration of Conformity
  Versão Idioma Tamanho Carregado
file type icon AE Expansion Series - EU Declaration of Conformity
en versão 1.0, atualizado: mar 2025
1.0  en  80 KB mar 2025

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB) 32 Hz - 250 Hz
Frequency Response (±3 dB) 40 Hz - 250 Hz
System Sensitivity (1w @ 1m) 94 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 120 dB (126 dB peak)
System Power Rating 500W (2000W peak), 2 hrs (AES rated)
400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated)
LF Driver 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 18 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 12 x M10 threaded suspension points
Dimensions (H x W x D) 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in
Net Weight (each) 24 kg (52.9 lbs)
Nominal LF Driver Impedance 8 ohms
