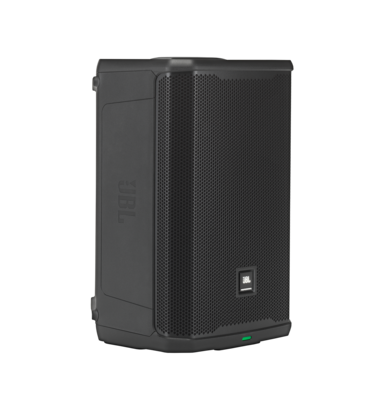

PRX908

Alto-falante PA de Duas Vias Profissional Alimentado de 8 polegadas

PRX908
Imagens Grandes

Professional Powered Two-Way 8-inch PA Loudspeaker
The JBL PRX908, part of the PRX900 Series of powered loudspeakers and subwoofers, takes professional portable PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability and complete BLE control via the JBL Pro Connect app. The PRX900 Series is a versatile solution for professional DJs and bands, music venues, rental houses, corporate A/V providers, or anyone who needs durable professional systems that deliver powerful, room-filling sound in any portable or installed scenario.

This powered two-way 8-inch loudspeaker is built entirely from the ground up to leverage JBL’s most advanced acoustic innovations. A next-generation driver system—powered by an ultra-efficient Class D amplifier—delivers clarity and definition at maximum volume, with improved dispersion and smooth low-frequency extension.

PRX908’s class-leading DSP package, accessible via an onboard color LCD or the JBL Pro Connect app, features 12-band parametric EQ for system tuning and nuanced tonal control; integrated dbx DriveRack technology includes live and fixed Automatic Feedback Suppression, soft system limiter with Soundcraft Overeasy option and speaker delay settings and presets.

The JBL Pro Connect app provides complete hardware and DSP control of up to 10 speakers; integrate PRX900 Series models with JBL EON ONE MK2, PRX ONE and EON700 systems and access app-exclusive functions including speaker snapshots and grouping.

The PRX908 is designed to withstand the rigors of the road. Its composite cabinet features a computer-modeled internal ribbing design that increases overall cabinet rigidity, which improves acoustic performance and durability. Like with every JBL product, everything is reinforced by industry-leading test and validation protocols.

Recursos

  • Transducers:
    • 908G 8" ferrite magnet woofer
    • JBL 2408H-2 1.5” poly-annular diaphragm compression driver
  • Updated JBL image control waveguide improves dispersion
  • Low-noise, low-distortion gain staging design
  • Lightweight, efficient Class D amplification
  • Power: 2,000 watts peak/1,000 watts RMS
  • Frequency response: 55 Hz–20 kHz @4pi (-10 dB); 65 Hz–20 kHz@4pi (-3 dB)
  • Dispersion: 105° x 60°
  • Max SPL: 126 dB
  • Crossover frequency: 1,930 Hz
  • Onboard color LCD screen provides access to mixing and DSP
  • DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
  • Optimized presets for pairing full-range speakers and subwoofers
  • JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems
  • G-Sensor Automatic Position Detect optimizes tuning based on main or monitor orientation
  • Polypropylene/talcum composite cabinet is optimized for rigidity and durability
  • I/Os:
    • 2 XLR balanced Combo jacks
    • 1 3.5mm aux, 2 XLR-M loop-through
    • 1 XLR-M mix out
  • Integrated handle (top)
  • Suspension/mounting: dual 36mm pole socket, six M10 suspension points
  • Ultra-low system latency: <1 ms="" li="">
  • Quiet fanless operation
  • Net weight: 13.7 kg (30.2 lbs); gross weight: 16.5 kg (36.4 lbs)
  • Dimensions: 479 mm x 312 mm x 285 mm (18.9 in 12.3 in x 11.2 in) (H x W x D)
  • Shipping dimensions: 515 mm x 424 mm x 397 mm (20.3 in 16.7 in x 15.6 in) (H x W x D)

Downloads

Brochures
  Versão Idioma Tamanho Enviado
file type icon JBL 2025 PPA Brochure
en versão B, atualizado: ago 2025
en  8,45 MB ago 2025
BIM Objects
  Tamanho Enviado
file type icon PRX908 BIM Object
atualizado: dez 2022
dez 2022
Software
  Versão Tamanho Enviado
iOS download icon Pro Connect
versão 2.4, lançado: nov 2025
2.4   nov 2025
Android download icon Pro Connect
versão 2.4, lançado: nov 2025
2.4   nov 2025
download icon for Pro Connect Pro Connect
versão 2.4, atualizado: mai 2026
2.4   59,5 MB mai 2026
Ease Data
  Tamanho Enviado
file type icon PRX908 EASE DLL
atualizado: out 2022
2,03 MB out 2022
Quick Start Guides
  Idioma Tamanho Enviado
file type icon Quick Start Guide PRX900
en atualizado: abr 2024
en  368 KB abr 2024
file type icon PRX900 Quick Start Guide
it atualizado: out 2022
it  301 KB out 2022
file type icon PRX900 Quick Start Guide
de atualizado: out 2022
de  304 KB out 2022
file type icon PRX900 Quick Start Guide
es atualizado: out 2022
es  302 KB out 2022
file type icon PRX900 Quick Start Guide
fr atualizado: out 2022
fr  302 KB out 2022
file type icon PRX900 Quick Start Guide
pt atualizado: out 2022
pt  302 KB out 2022
Spec Sheets
  Versão Idioma Tamanho Enviado
file type icon PRX908 Spec Sheet
zh atualizado: fev 2023
  zh  2,7 MB fev 2023
file type icon PRX908 Spec Sheet
en versão A, atualizado: nov 2022
en  601 KB nov 2022
User Guides
  Versão Idioma Tamanho Enviado
file type icon PRX900 User Guide
it atualizado: out 2022
  it  3,45 MB out 2022
file type icon PRX900 User Guide
fr atualizado: out 2022
  fr  3,45 MB out 2022
file type icon PRX900 User Guide
es atualizado: out 2022
  es  3,37 MB out 2022
file type icon PRX900 User Guide
de atualizado: out 2022
  de  3,38 MB out 2022
file type icon PRX900 User Guide
en versão C, atualizado: mar 2026
en  5,26 MB mar 2026

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Frequency Range (-10dB) 67 Hz - 20 kHz (4π)
Frequency Range (-3 dB) 65 Hz - 15 kHz (4π)
PADRÃO DE COBERTURA 105° x 60°
Transducer Impedence Rated: Woofer: 4 Ω
           Tweeter: 8 Ω
SPL MÁXIMO 126 dB
Power Rating 2000W peak / 1000W RMS
Cooling Natural Convection
No Fan
Frequência de Crossover 1930 Hz
I/O x2 Combo Inputs and x1 3.5 mm Stereo Jack
x2 XLR Through Out and x1 Mix Out
Suspension/Mounting 6x M10 Suspension Point and Pole Mount
Product Dimensions (H x W x D) 479 x 312 x 285 mm (18.9 x 12.3 x 11.2 in)
PESO LÍQUIDO 13.7 kg (30.2 lbs)

Acessórios

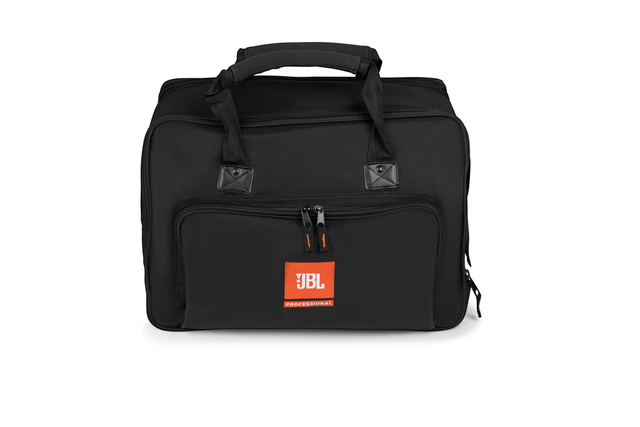

PRX908-BAG | Speaker Tote Bag Designed for JBL PRX908 Powered 8-Inch Loudspeaker
PRX908-BAG Main photo
Imagens Grandes
PRX908-BAG detail thumbnail #1 PRX908-BAG detail thumbnail #2 PRX908-BAG detail thumbnail #3 PRX908-BAG detail thumbnail #4 PRX908-BAG detail thumbnail #5 PRX908-BAG detail thumbnail #6 PRX908-BAG detail thumbnail #7 PRX908-BAG detail thumbnail #8

Tote Bag for PRX908 Speaker

  • Tough, Water-Resistant 600D Black Polyester Exterior Fabric with Rubber Feet on Bottom of Bag
  • Soft, 420D Polyester Interior Fabric with Protective Padding
  • Heavy-Duty Dual Zipper System Opens Entire Top of Bag for Easy Loading & Unloading
  • Large Exterior Pocket for Storing Cables & Accessories
  • Top Handle Cutout with Hook-and-Loop Flap Closure
  • Secure-Wrap Reinforced Dual Handles for Easy Transport
  • Exterior Dimensions: 13.25”/337mm (L) x 14.5”/368mm (W) x 20.5”/521mm (H), Net Weight: 2.8 lbs./1.3 kg
  • Interior Dimensions: 12.5”/318mm (L) x 12.5”/318mm (W) x 19”/483mm (H)

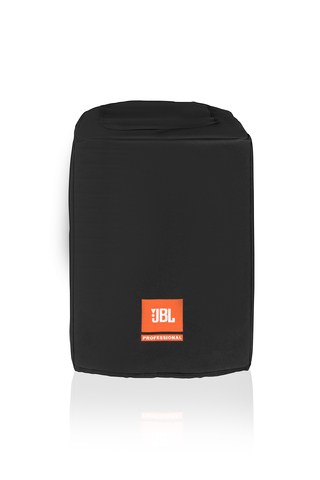

PRX908-CVR | Speaker Slipcover Designed for JBL PRX908 Powered 8-Inch Loudspeaker
PRX908-CVR Main photo
Imagens Grandes
PRX908-CVR detail thumbnail #1 PRX908-CVR detail thumbnail #2 PRX908-CVR detail thumbnail #3 PRX908-CVR detail thumbnail #4 PRX908-CVR detail thumbnail #5

Slip On Cover for PRX908 Speaker

  • Tough, Water-Resistant 600D Black Polyester Exterior Fabric
  • Soft, 210D Polyester Interior Fabric with Protective Padding
  • Top Handle Cutout with Hook-and-Loop Flap Closure
  • Exterior Dimensions: 12”/305mm (L) x 13”/330mm (W) x 19.5”/495mm (H), Net Weight: 1 lbs./0.5 kg
  • Interior Dimensions: 11”/279mm (L) x 12.5”/318mm (W) x 18.5”/470mm (H)

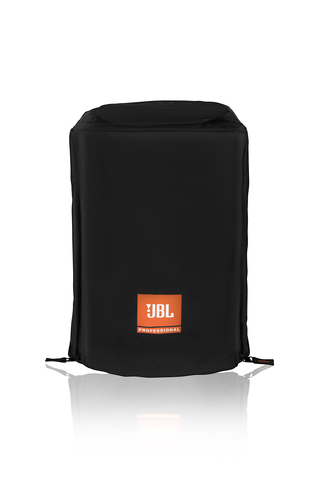

PRX908-CVR-WX | Weather-Resistant Speaker Cover Designed for JBL PRX 908 Powered 8-Inch Loudspeaker
PRX908-CVR-WX Main photo
Imagens Grandes
PRX908-CVR-WX detail thumbnail #1 PRX908-CVR-WX detail thumbnail #2 PRX908-CVR-WX detail thumbnail #3 PRX908-CVR-WX detail thumbnail #4 PRX908-CVR-WX detail thumbnail #5 PRX908-CVR-WX detail thumbnail #6 PRX908-CVR-WX detail thumbnail #7 PRX908-CVR-WX detail thumbnail #8

Weather-Resistant Cover for PRX908 Speaker

  • Live-In Design Permits Full Functionality & Access to Controls While Speaker Remains Inside Cover
  • Tough, Water-Resistant 600D Black Polyester Exterior Fabric
  • Soft, 210D Polyester Interior Fabric
  • Top Handle Cutout for Easy Transport
  • Exterior Dimensions: 11.5”/292mm (L) x 12.5”/318mm (W) x 19”/483mm (H), Net Weight: 1 lbs./0.5 kg
  • Interior Dimensions: 11”/280mm (L) x 12”/305mm (W) x 18.75”/476mm (H)
