PRX835
Descontinuado

15” Three-Way Full-Range Main System with Wi-Fi

PRX835
Imagens Grandes

15” Three-Way Full-Range Main System with Wi-Fi

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor.



Recursos

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Integrated 12 x M10 Suspension Points
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.
  • The PRX835 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth with remote Wi-Fi control of onboard DSP EQ parameters. The PRX835 is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. The PRX835 feautres a standard 35mm pole cup that will work with most speaker poles and tripods. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. Each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.


Downloads

Data Sheets
  Versão Tamanho Enviado
file type icon PRX835 Sell Sheet
atualizado: out 2020
  765 KB out 2020
file type icon PRX835 Spec Sheet
versão 12_16_19, atualizado: dez 2019
12_16_19  1010 KB dez 2019
Manuals
  Tamanho Enviado
file type icon PRX800 Quick Start Guide
atualizado: out 2020
1,3 MB out 2020
Compliances
  Tamanho Enviado
file type icon PRX800 Compliance
atualizado: out 2020
143 KB out 2020
Software
  Tamanho Enviado
iOS download icon PRX Connect - iOS
lançado: dez 2023
dez 2023
Android download icon PRX Connect - Android
lançado: nov 2020
nov 2020
User Guides
  Tamanho Enviado
file type icon PRX800 User Guide
atualizado: out 2020
1,79 MB out 2020
HI-RES IMAGEs
  Tamanho Enviado
file type icon PRX835 Back
atualizado: out 2020
2,3 MB out 2020

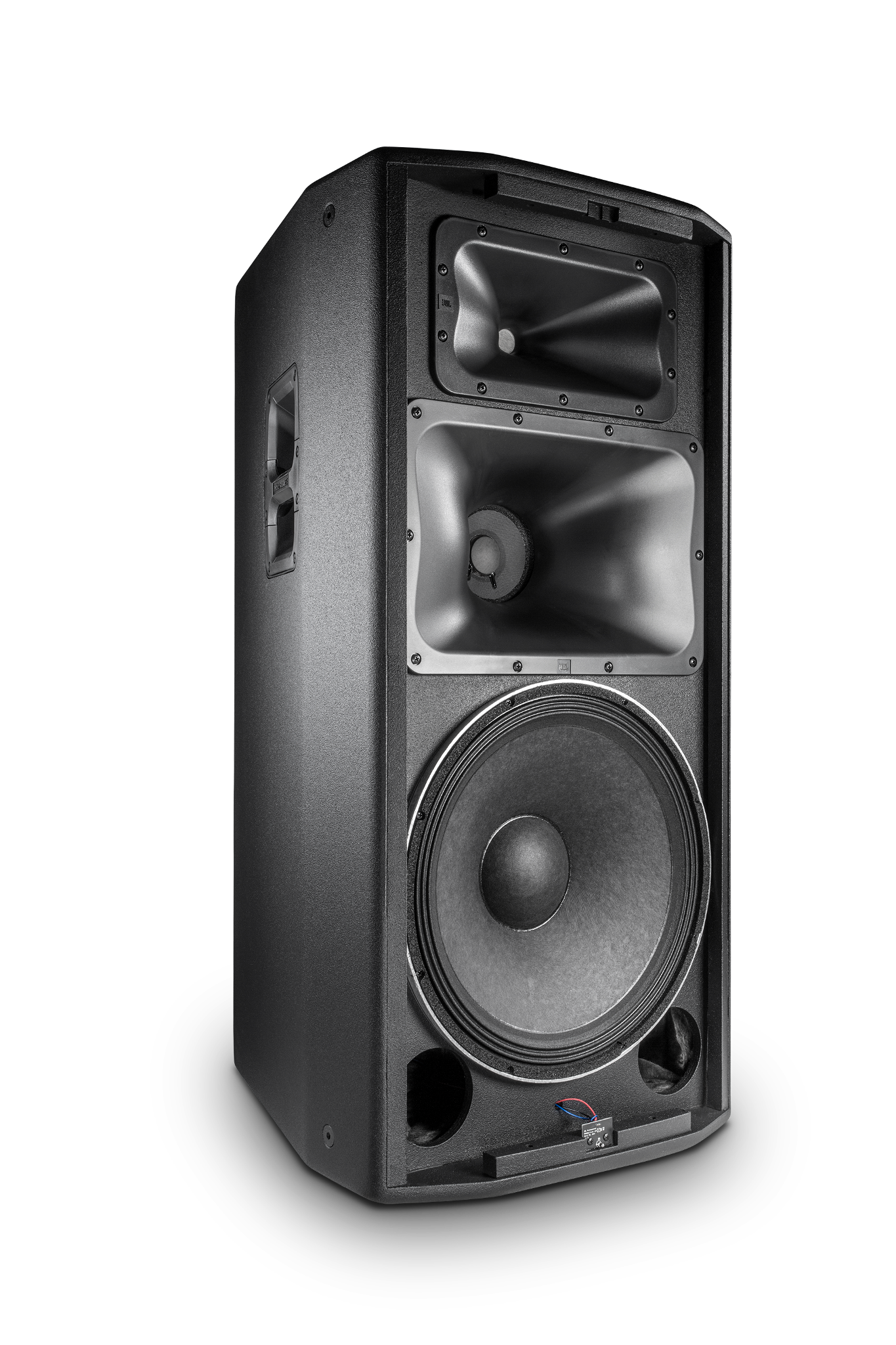

file type icon PRX835 Front No Grille
atualizado: out 2020
2,43 MB out 2020
file type icon PRX835 Front
atualizado: out 2020
2,87 MB out 2020
Install Guides
  Tamanho Enviado
file type icon PRX800 WiFi Setup Guide
atualizado: out 2020
445 KB out 2020

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

TIPO DE SISTEMA Self Powered 15”, three-way, bass-reflex
Maximum SPL Output 138 dB peak
Frequency Range (-10dB) Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz
RESPOSTA EM FREQUÊNCIA (±3 dB) Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz
Inputs 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Impedância de Entrada 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
Dynamic Control (Input) dbx Type IV™ limiter circuit
Frequência de Crossover 580 Hz, 2.1 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 275G 380 mm (15 in) woofer
MF Driver 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
PADRÃO DE COBERTURA 90° x 50° nominal
Directivity Index (DI) 10.5 dB
Directivity Factor (Q) 11.2
Enclosure Trapezoidal, 18 mm, Duraflex coated plywood
Suspension / Mounting 12 M10
Transport 2 x integrated handles with injection molded backing cup
Acabamento Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
DIMENSÕES (AxLxP) 938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in)
PESO LÍQUIDO 32.38 kg (71.4 lb)
PESO BRUTO 38.6 kg (85.0 lb)
Mic Inputs 2
Phantom Power No
Efeitos 25 parametric EQ's and speaker delay
Outputs 1 x XLR (mix out)
