Música Ambiente

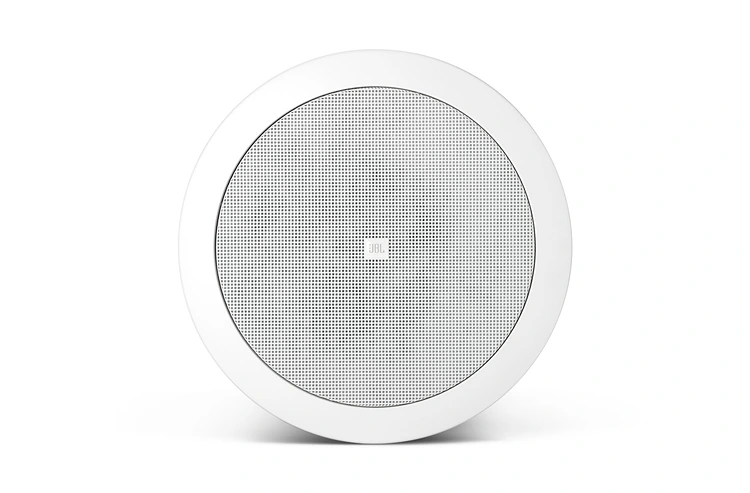

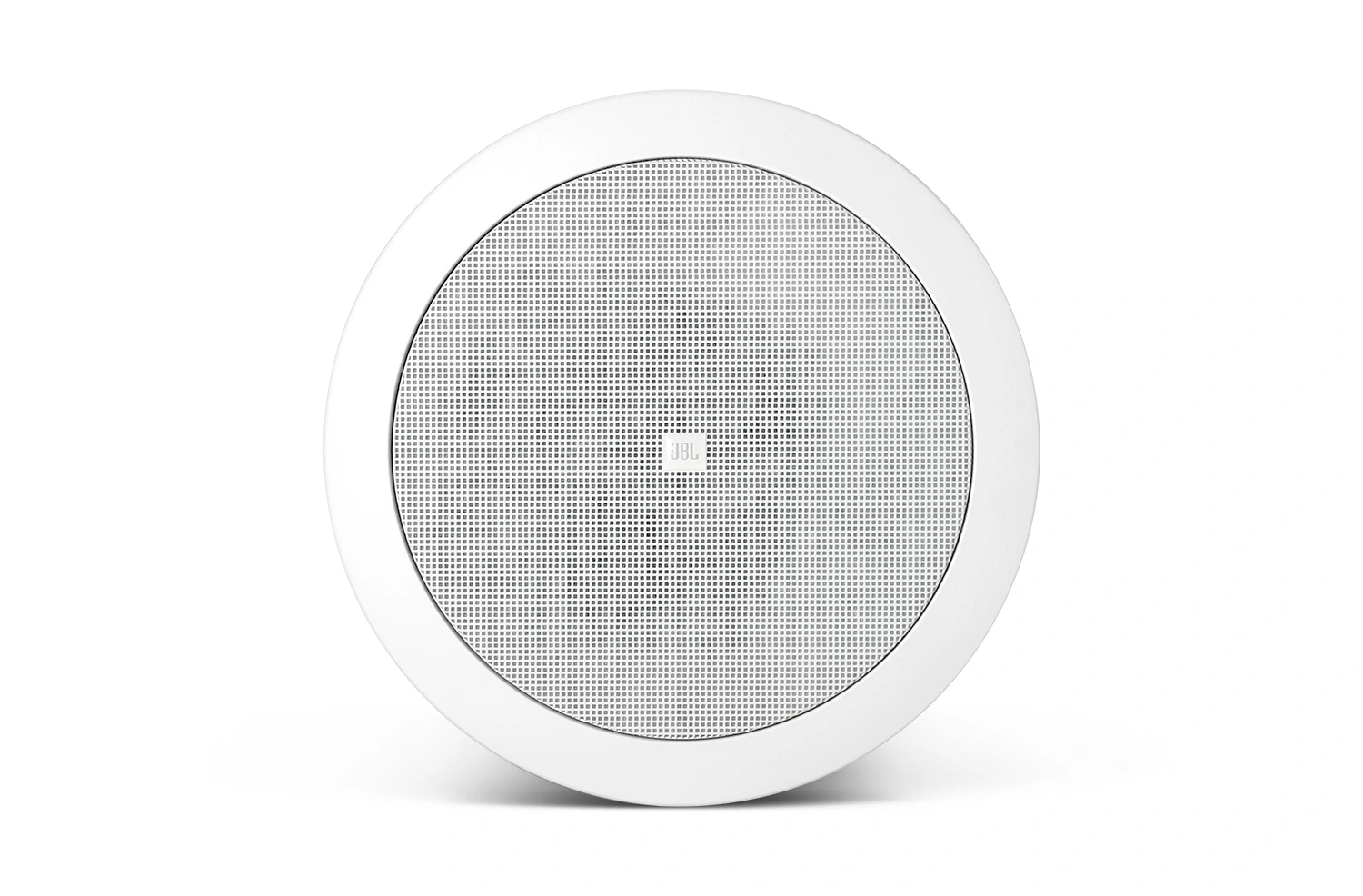

O Control 24CT Micro é uma caixa acústica compacta embutida no teto, oferecendo som pleno e de alta qualidade para sistemas de música ambiente e de música com chamadas (paging).
Imagens Grandes
Música Ambiente
Recursos
- Cobertura extremamente ampla de 150°.
- Resposta de frequência suave.
- Inclui transformador multitap de 9 W para
- Profundidade reduzida de 4 pol (100 mm).
- Fornecido com grade, caixa traseira e suportes para trilhos de forro para rápida
Downloads
Data Sheets
| Tamanho | |
|
|
1,48 MB |
Manuals
| Tamanho | |
|
|
380 KB |
|
|
41,7 KB |
|
|
160 KB |
|
|
127 KB |
Brochures
| Tamanho | |
|
|
23 MB |
|
|
21 MB |
versão A,
atualizado: mar 2026
CAD Drawings
| Tamanho | |
|
|
674 KB |
|
|
3,42 MB |
BIM Objects
| Tamanho | |
|
|
Compliances
| Tamanho | |
|
|
179 KB |
|
|
131 KB |
Software
| Tamanho | |
|
|
11,3 KB |
|
|
13,4 KB |
Simulation Data
| Tamanho | |
|
|
24 MB |
Accessories
| Tamanho | |
|
|
204 KB |
Speaker Tunings
| Tamanho | |
|
|
557 KB |
Install Guides
| Tamanho | |
|
|
52,4 KB |
|
|
23,9 KB |
|
|
13,7 KB |
Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.
Peças e Serviços
Especificações
| Frequency Range | 85 Hz - 25 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 9W, 4W, 2W, 1W (& 0.5 W taps @ 70V) |
| Frequência de Crossover | 3.5 kHz |
| Maximum SPL (1m) | 94 dB (top 70V/100V tap) |
| Sensibilidade | 86 dB (100 Hz - 10 kHz) |
| Coverage Angle | 150° conical |
| CONEXÕES DE ENTRADA | Screw-down terminals. |
| Drivers | LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in) |
| Cor | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-O |
| Ceiling Cutout Size | 167 mm (6.6 in) diameter (cardboard cutout template included) |
| Acessórios Inclusos | C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard |
| Optional Accessories | MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket |
| Plenum Usage | Yes, backcan included |
Acessórios
MTC-48TRx12 | Tile Rail for 4' x 4' Ceiling Tiles
Imagens Grandes
Tile Rail for 4' x 4' Ceiling Tiles
MTC-48TRx12 is an accessory tile rail for installing many of
JBL’s ceiling loudspeakers into 4 ft by 4
ft
(1200 x 1200 mm; 48 x 48 inch)
ceiling tiles in suspended ceiling
applications.
- Can be used with any JBL ceiling
speakers having the C-ring/tile-rail
mounting system.
Includes (at product release):
• Control 24C/CT Micro & 24CT MicroPlus
• Control 24C/CT, 26C/CT, 19CS/CST
• Control 47C/T, 47LP, 47HC, 40CS/T, 42C
• Control 226C/T
• 8124/8128
• Not for JBL speakers that install with tile bridges (such as CSS Series, 8138, C227C/CT, C300 Series models). Check with JBL Professional Customer Service for most up-to-date compatibility list. - Inverted V-groove provides support to the tile rail grid in case of tile failure while reducing vibration transfer to – and rattling from – ceiling tile grid system.
- 1.2 mm (0.05 in) metal thickness provides the additional support required by the long span.
- Multiple C-ring mounting holes. Additional hole locations drillable by installer.
- One MTC-48TRx12 is a pack of 12 tile rails, enough for 6 speakers (2 per speaker).
Documentação
-
MTC-48TRx12 Spec Sheet (revB)
[77,2 KB]
