EON615
Wycofany

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

EON615
Większe obrazy

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



Funkcje

  • Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
  • JBL Waveguide Technology
  • Bluetooth integration


Recenzje

“We can’t speak highly enough of the new EON 615. They sound phenomenal, they’re built like Soviet tanks, and they offer up a wide array of versatile options. Throw in a street price under $500 and we’re sold.” —Performer Magazine

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

Pobrania

Data Sheets
  Rozmiar Przesłano
file type icon EON615 Deluxe Cover
zaktualizowano: paź 2020
88,1 KB paź 2020
file type icon EON615 WR Deluxe Cover
zaktualizowano: paź 2020
101 KB paź 2020
file type icon EON 615 Spec Sheet
zaktualizowano: paź 2019
6,14 MB paź 2019
file type icon EON615 DataSheet
zaktualizowano: lip 2019
1,97 MB lip 2019
Specifications
  Rozmiar Przesłano
file type icon EON615 Spec Sheet
zaktualizowano: lip 2019
6,14 MB lip 2019
Brochures
  Rozmiar Przesłano
file type icon Portable Sound Full Line 2015 Catalog
zaktualizowano: paź 2020
2,54 MB paź 2020
CAD Drawings
  Rozmiar Przesłano
file type icon EON615 2D DWG drawing
zaktualizowano: paź 2019
1,46 MB paź 2019
file type icon EON615 2D DWG Drawing
zaktualizowano: paź 2019
1,46 MB paź 2019
file type icon EON615 CAD Drawing
zaktualizowano: lip 2019
1,46 MB lip 2019
file type icon EON615 PDF Drawing
zaktualizowano: lip 2019
183 KB lip 2019
Compliances
  Rozmiar Przesłano
file type icon EON G4 Series - Declaration of Conformity
zaktualizowano: paź 2020
154 KB paź 2020
file type icon EON G4 Series - EU-Declaration of Conformity (DoC)
zaktualizowano: sty 2020
699 KB sty 2020
Software
  Rozmiar Przesłano
iOS download icon EON Connect
wydano: sie 2023
sie 2023
Android download icon EON Connect
wydano: sie 2023
sie 2023
Simulation Data
  Rozmiar Przesłano
file type icon Ease SPK/DLL Files - Full JBL Pro Line
zaktualizowano: maj 2024
21 MB maj 2024
Images
  Rozmiar Przesłano
file type icon EON615 Carry Bag with Wheels Angle Hi Res Image
zaktualizowano: paź 2020
263 KB paź 2020

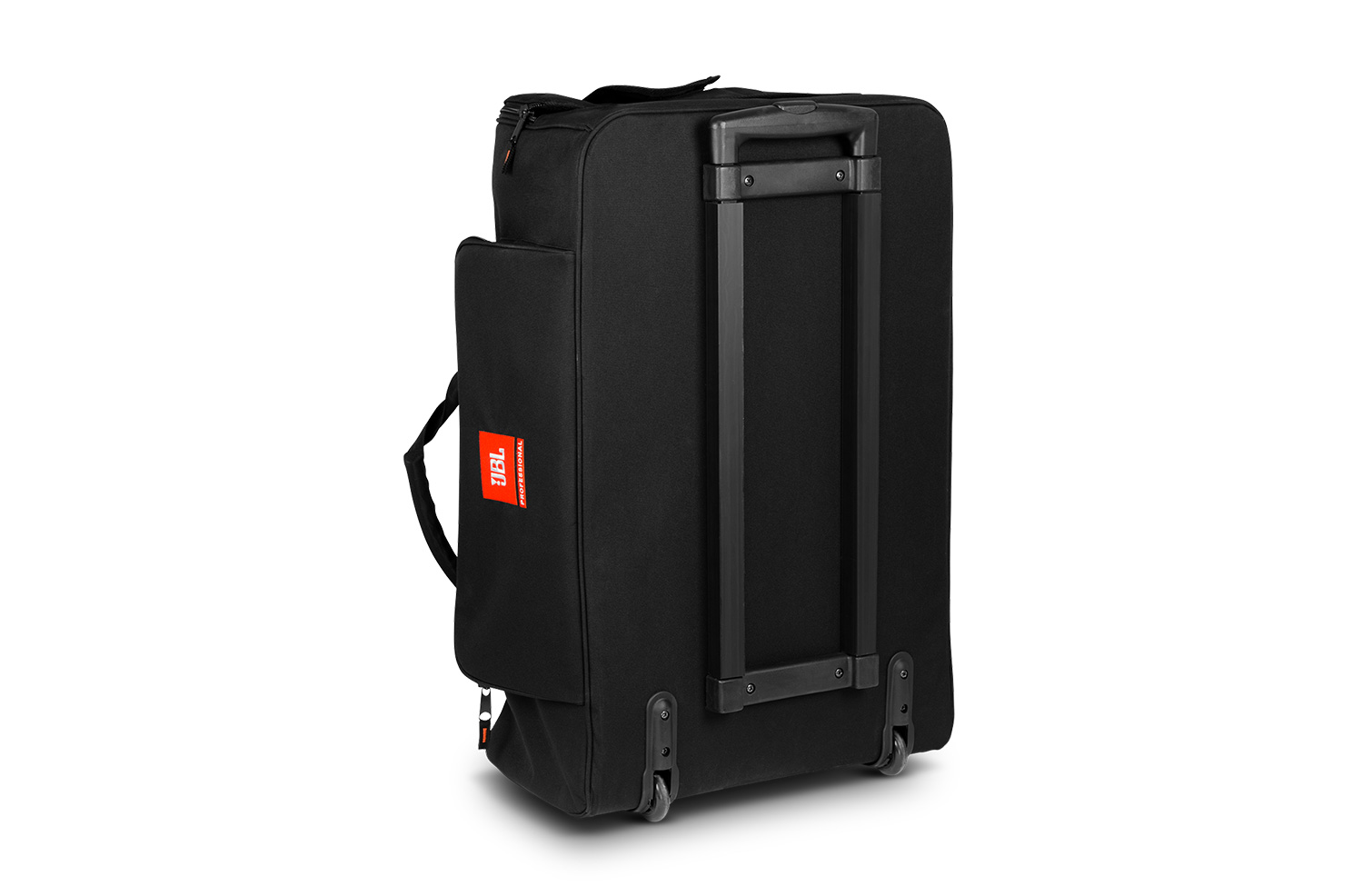

file type icon EON615 Carry Bag with Wheels Back Hi Res Image
zaktualizowano: paź 2020
125 KB paź 2020

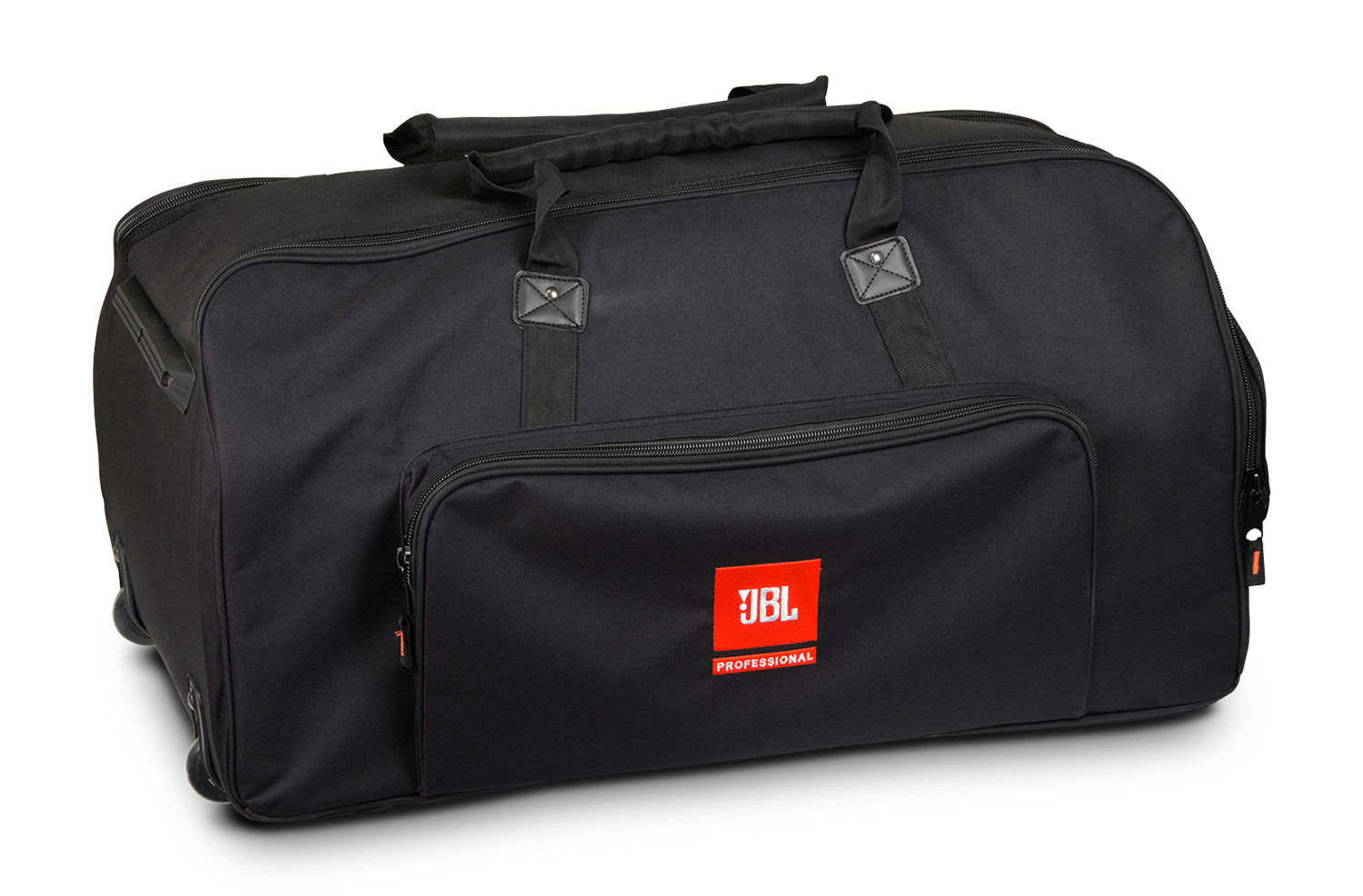

file type icon EON615 Carry Bag with Wheels Front Hi Res Image
zaktualizowano: paź 2020
300 KB paź 2020
file type icon EON615 Deluxe Cover Front
zaktualizowano: paź 2020
468 KB paź 2020
file type icon EON615 WR Deluxe Cover Back
zaktualizowano: paź 2020
182 KB paź 2020
file type icon EON615 WR Deluxe Cover Front
zaktualizowano: paź 2020
136 KB paź 2020
file type icon EON615 WR Deluxe Cover Front Open
zaktualizowano: paź 2020
213 KB paź 2020
file type icon EON615 Carry Bag Front Hi Res Image
zaktualizowano: paź 2020
308 KB paź 2020

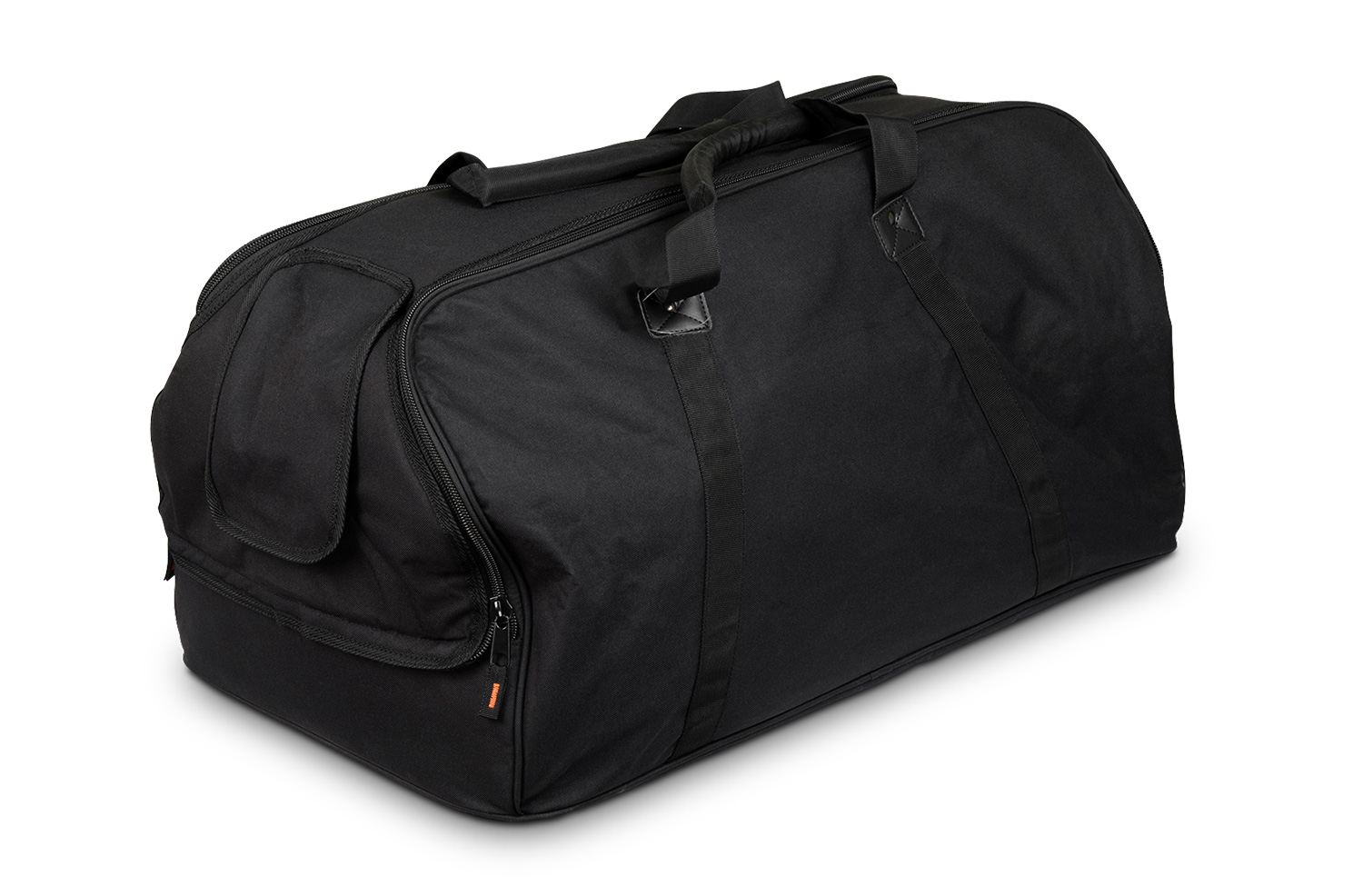

file type icon EON615 Carry Bag Back Hi Res Image
zaktualizowano: paź 2020
238 KB paź 2020

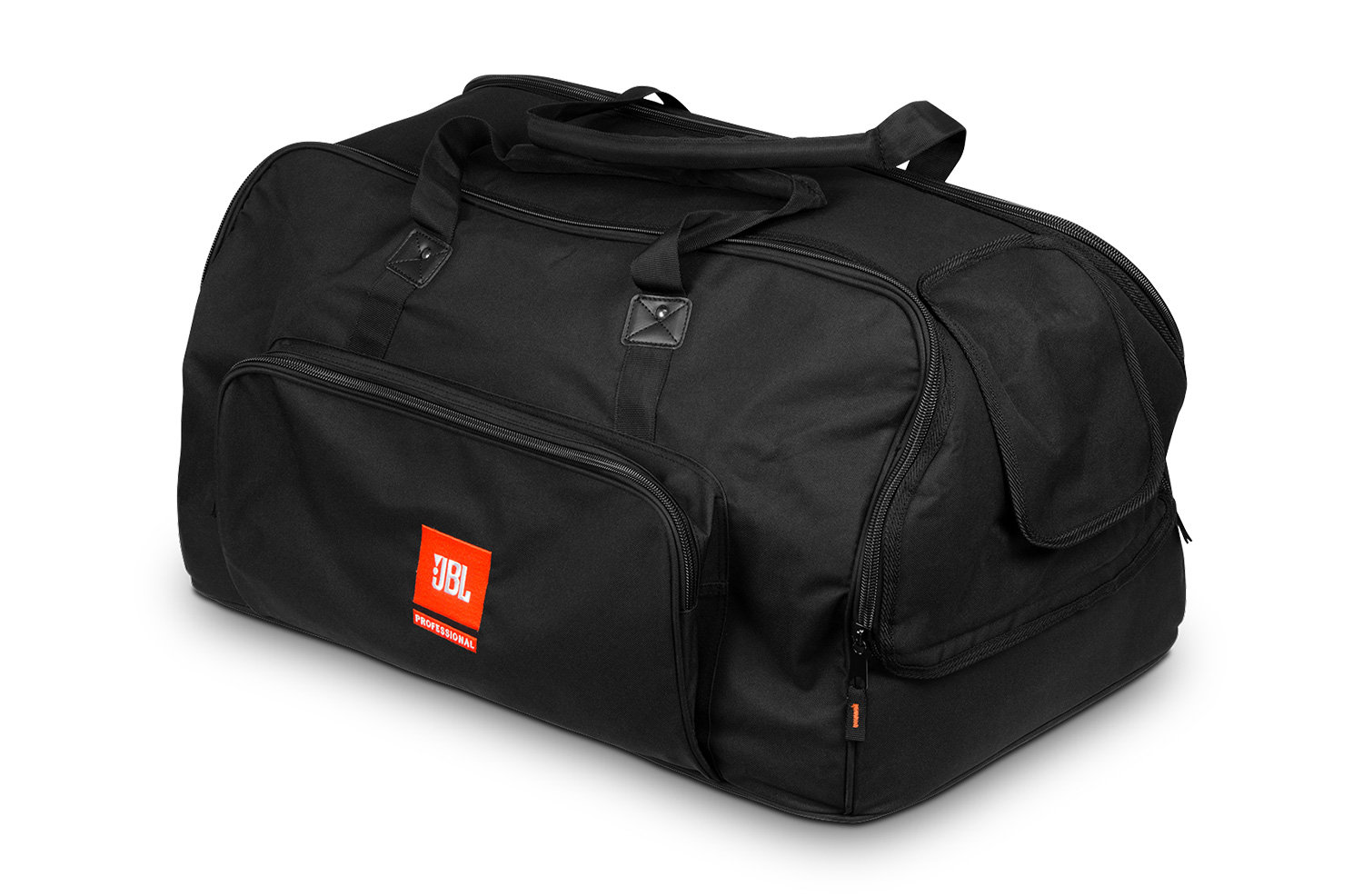

file type icon EON615 Carry Bag Angle Hi Res Image
zaktualizowano: paź 2020
254 KB paź 2020
file type icon EON615 Hero Front Back
zaktualizowano: lip 2019
6,18 MB lip 2019
file type icon EON615 Hero noGrill
zaktualizowano: lip 2019
4,41 MB lip 2019
file type icon EON615 Back Panel
zaktualizowano: lip 2019
6,67 MB lip 2019
file type icon EON615 Back Panel Closeup
zaktualizowano: lip 2019
8,67 MB lip 2019
file type icon EON615 Front Beauty
zaktualizowano: lip 2019
4,35 MB lip 2019
file type icon EON615 Handle
zaktualizowano: lip 2019
10,1 MB lip 2019
file type icon EON615 Hero Front Back
zaktualizowano: paź 2020
11,3 MB paź 2020
User Guides
  Wersja Język Rozmiar Przesłano
file type icon EON600 Users Guide
wersja B, zaktualizowano: lis 2020
B    3,85 MB lis 2020
file type icon EON600 Connect User Guide
zaktualizowano: paź 2020
    829 KB paź 2020
file type icon EON600 Connect User Guide - Spanish
es zaktualizowano: paź 2020
  es  3,52 MB paź 2020
file type icon EON600 Connect User Guide - German
de zaktualizowano: paź 2020
  de  3,52 MB paź 2020
file type icon EON600 Connect User Guide - French
fr zaktualizowano: paź 2020
  fr  3,52 MB paź 2020

Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.

Części i serwis

Specyfikacje

System Type Self powered 15", two-way, bass-reflex
Max SPL Output 127 dB
Frequency Range (-10dB) 39 Hz - 20 kHz
Frequency Response (±3 dB) 50 Hz - 20 kHz
Coverage Pattern 90° x 60°
Amplifier Design Class D
Power Rating 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D) 707mm x 439mm x 365mm (27.8in x 17.3in x 14.4in)
Net Weight 17.69 kg (39 lbs)
Mic Inputs 2
Phantom Power No
EQ 3 Parametric EQs + Hi & Lo Shelf
Effects DSP Presets
Inputs 2 x Balanced XLR-1/4” combination inputs
Outputs 1 x male XLR loop thru out
Enclosure Polypropylene

Akcesoria

EON615-BAG | Deluxe Padded Cover for the EON615
EON615-BAG Main photo
Większe obrazy
EON615-BAG detail thumbnail #1 EON615-BAG detail thumbnail #2

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.

EON615-BAG-W | EON615 Roller Bag
EON615-BAG-W Main photo
Większe obrazy
EON615-BAG-W detail thumbnail #1 EON615-BAG-W detail thumbnail #2 EON615-BAG-W detail thumbnail #3

Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON 615

EON615-CVR | Deluxe Padded Protective Cover for EON615
EON615-CVR Main photo
Większe obrazy
EON615-CVR detail thumbnail #1

Deluxe padded cover for EON615. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.

EON15-STRETCH-COVER-BK | Stretchy Black Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-BK Main photo
Większe obrazy
EON15-STRETCH-COVER-BK detail thumbnail #1 EON15-STRETCH-COVER-BK detail thumbnail #2 EON15-STRETCH-COVER-BK detail thumbnail #3 EON15-STRETCH-COVER-BK detail thumbnail #4

Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

EON15-STRETCH-COVER-WH | Stretchy White Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-WH Main photo
Większe obrazy
EON15-STRETCH-COVER-WH detail thumbnail #1 EON15-STRETCH-COVER-WH detail thumbnail #2 EON15-STRETCH-COVER-WH detail thumbnail #3

Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

EON615-CVR-WX | Convertible Cover for EON615
EON615-CVR-WX Main photo
Większe obrazy
EON615-CVR-WX detail thumbnail #1 EON615-CVR-WX detail thumbnail #2 EON615-CVR-WX detail thumbnail #3 EON615-CVR-WX detail thumbnail #4

Convertible Cover for EON615. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Większe obrazy
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentacja
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Większe obrazy
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentacja
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Większe obrazy
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentacja
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Większe obrazy
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentacja
