EON612
Wycofany

12" Two-Way Multipurpose Self-Powered Sound Reinforcement

EON612
Większe obrazy

12" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



Funkcje

  • Purposeful Product Design
  • JBL Waveguide Technology
  • Bluetooth Integration


Recenzje

“Given the performance of the 612, if you’re in the market for a high-quality portable PA for small to medium venues at around this price point, the new JBL EON 600 series are loudspeakers that you really should be auditioning.” —Guitar Interactive Magazine/p>

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

Pobrania

Data Sheets
  Rozmiar Przesłano
file type icon EON 612 Spec Sheet
zaktualizowano: paź 2019
2,86 MB paź 2019
file type icon EON612 DataSheet
zaktualizowano: lip 2019
2,04 MB lip 2019
Specifications
  Rozmiar Przesłano
file type icon EON612 Spec Sheet
zaktualizowano: lip 2019
2,86 MB lip 2019
Brochures
  Rozmiar Przesłano
file type icon Portable Sound Full Line 2015 Catalog
zaktualizowano: paź 2020
2,54 MB paź 2020
Compliances
  Rozmiar Przesłano
file type icon EON G4 Series - EU-Declaration of Conformity (DoC)
zaktualizowano: sty 2020
699 KB sty 2020
file type icon EON G4 Series - Declaration of Conformity
zaktualizowano: paź 2020
154 KB paź 2020
Software
  Rozmiar Przesłano
iOS download icon EON Connect
wydano: sie 2023
sie 2023
Android download icon EON Connect
wydano: sie 2023
sie 2023
Simulation Data
  Rozmiar Przesłano
file type icon Ease SPK/DLL Files - Full JBL Pro Line
zaktualizowano: maj 2024
21 MB maj 2024
Images
  Rozmiar Przesłano
file type icon EON612 Carry Bag Open Hi Res Image
zaktualizowano: paź 2020
239 KB paź 2020
file type icon EON612 Cover Angle Hi Res Image
zaktualizowano: paź 2020
102 KB paź 2020
file type icon EON612 Cover Back Hi Res Image
zaktualizowano: paź 2020
111 KB paź 2020
file type icon EON612 Cover Front Hi Res Image
zaktualizowano: paź 2020
96,9 KB paź 2020
file type icon EON612 WR Cover Angle Hi Res Image
zaktualizowano: paź 2020
143 KB paź 2020
file type icon EON612 WR Cover Open Hi Res Image
zaktualizowano: paź 2020
217 KB paź 2020
file type icon EON612 Carry Bag On End Open Hi Res Image
zaktualizowano: paź 2020
170 KB paź 2020
file type icon EON612 Carry Bag Angle Hi Res Image
zaktualizowano: paź 2020
237 KB paź 2020
file type icon EON612 Hero Back Front
zaktualizowano: lip 2019
209 KB lip 2019
file type icon EON612 Hero No Grill
zaktualizowano: lip 2019
95,6 KB lip 2019
file type icon EON612 Back
zaktualizowano: lip 2019
125 KB lip 2019

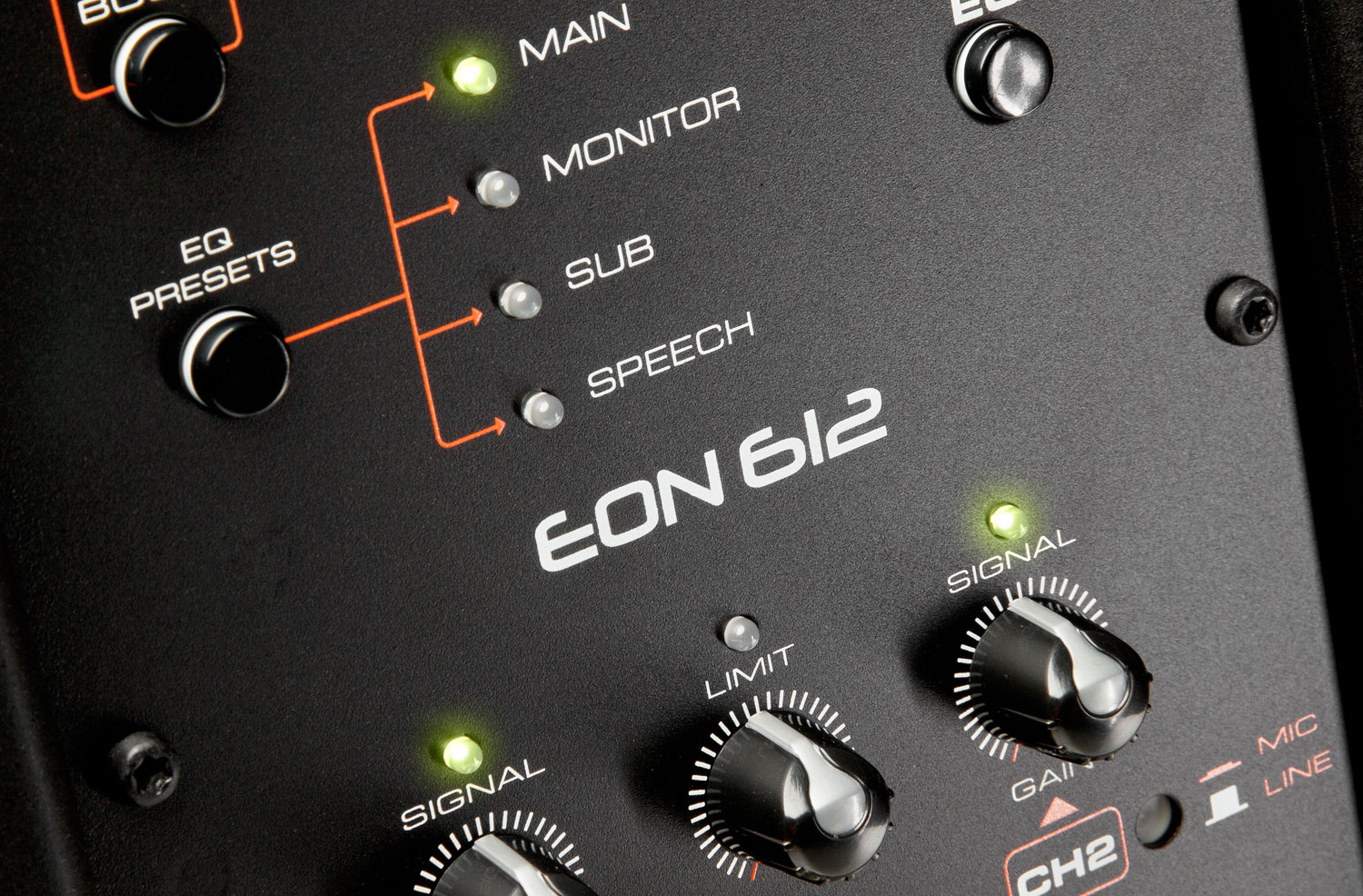

file type icon EON612 Back Panel
zaktualizowano: lip 2019
377 KB lip 2019
file type icon EON612 Handle
zaktualizowano: lip 2019
214 KB lip 2019
User Guides
  Wersja Język Rozmiar Przesłano
file type icon EON600 Connect User Guide
zaktualizowano: paź 2020
    829 KB paź 2020
file type icon EON600 Connect User Guide - Spanish
es zaktualizowano: paź 2020
  es  3,52 MB paź 2020
file type icon EON600 Connect User Guide - German
de zaktualizowano: paź 2020
  de  3,52 MB paź 2020
file type icon EON600 Connect User Guide - French
fr zaktualizowano: paź 2020
  fr  3,52 MB paź 2020
file type icon EON600 Users Guide
wersja B, zaktualizowano: lis 2020
B    3,85 MB lis 2020

Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.

Części i serwis

Specyfikacje

System Type Self powered 12", two-way, bass-reflex
Max SPL Output 126 dB
Frequency Range (-10dB) 48 Hz - 20 kHz
Frequency Response (±3 dB) 57 Hz - 20 kHz
Coverage Pattern 100° x 60°
Amplifier Design Class D
Power Rating 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D) 664mm x 380mm x 316mm (26.14in x 14.96in x 12.44in)
Net Weight 14.96 kg (33 lbs)
Mic Inputs 3 Parametric EQs + Hi & Lo Shelf
Phantom Power No
EQ 3 Parametric EQs + Hi & Lo Shelf
Effects DSP Presets
Inputs 2 x Balanced XLR-1/4” combination inputs
Outputs 1 x male XLR loop thru out
Enclosure Polypropylene

Akcesoria

EON612-BAG | Deluxe Padded Cover for the EON612
EON612-BAG Main photo
Większe obrazy
EON612-BAG detail thumbnail #1 EON612-BAG detail thumbnail #2 EON612-BAG detail thumbnail #3 EON612-BAG detail thumbnail #4

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON612 Handle Access Cover, and Accessory Pocket. Fits EON612.

EON612-CVR-WX | Convertible EON612 Cover
EON612-CVR-WX Main photo
Większe obrazy
EON612-CVR-WX detail thumbnail #1 EON612-CVR-WX detail thumbnail #2 EON612-CVR-WX detail thumbnail #3 EON612-CVR-WX detail thumbnail #4

Convertible Cover for EON612. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.

EON612-CVR | Deluxe Padded Protective Cover for EON612
EON612-CVR Main photo
Większe obrazy
EON612-CVR detail thumbnail #1 EON612-CVR detail thumbnail #2 EON612-CVR detail thumbnail #3

Deluxe padded cover for EON612. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Większe obrazy
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentacja
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Większe obrazy
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentacja
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Większe obrazy
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentacja
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Większe obrazy
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentacja
