4281F

PROFESJONALNY SUBWOOFER KINOWY O WYSOKIEJ MOCY

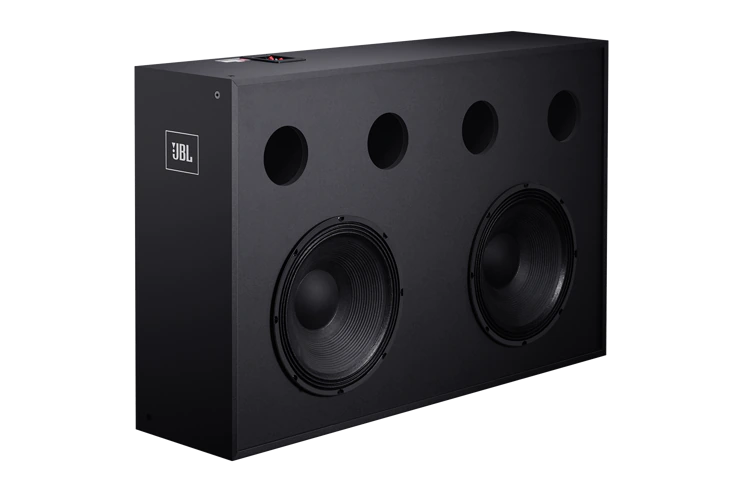

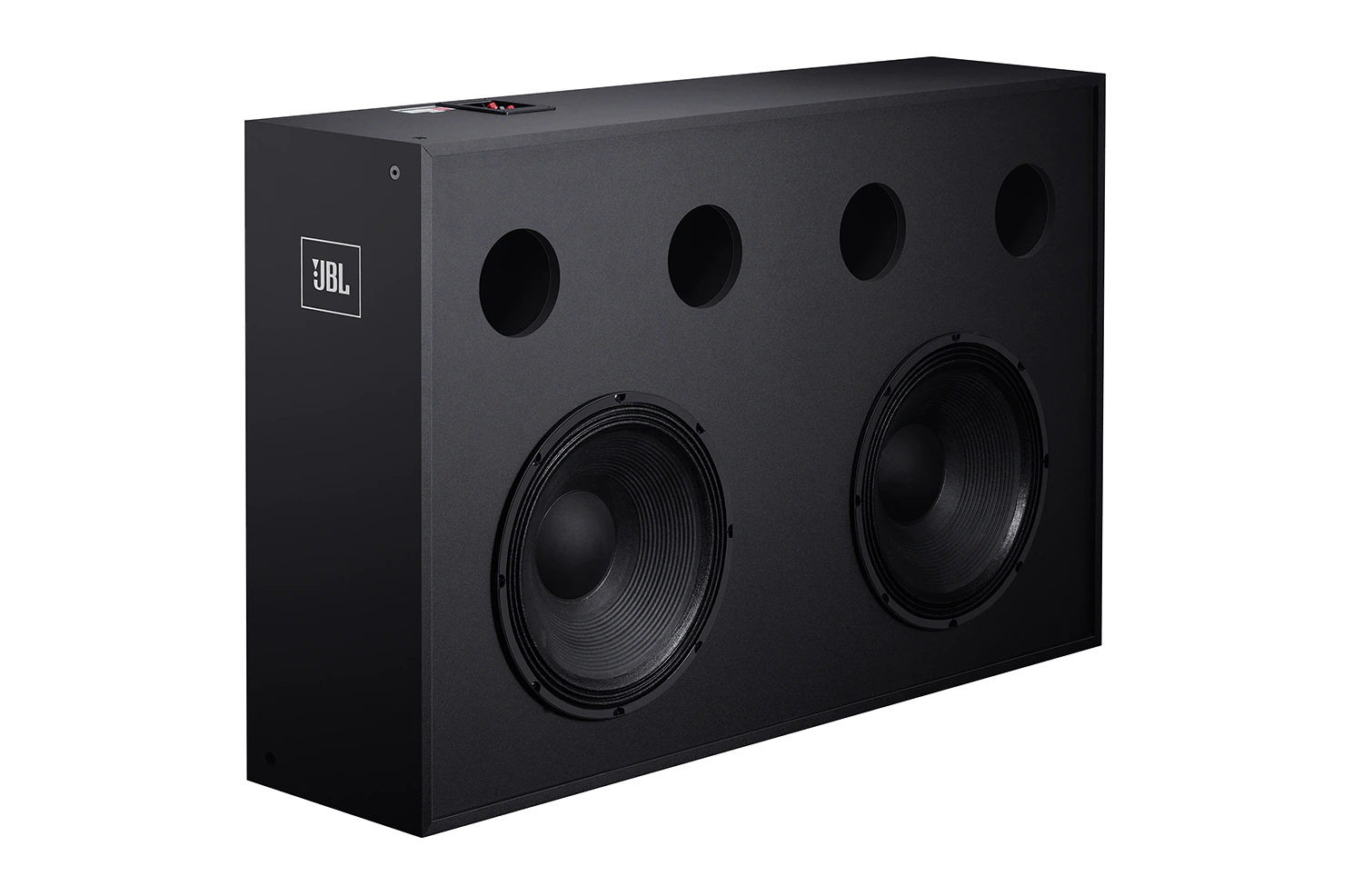

4281F
Większe obrazy

Subwoofer kinowy JBL 4281F, będący częścią serii JBL Cinema, zapewnia wierność i wydajność charakterystyczne dla marki JBL w konkurencyjnej cenie dla właścicieli kin poszukujących rozwiązań offer oferujących premium doświadczenie dźwięku.

Moc 1600 watów modelu 4281F dostarcza niskoczęstotliwościowe brzmienie poruszające salą do różnych konfiguracji kin, w tym instalacji Dolby Atmos i DTS:X. Model 4281F pracuje bezproblemowo z całą serią JBL Cinema, która obejmuje dwa głośniki ekranowe 3-drożne i głośnik otoczeniowy. Połącz głośniki serii Cinema z procesorem kinowym JBL CPi2000 i wzmacniaczami serii Crown XLC, aby zbudować w pełni zintegrowane rozwiązanie dźwięku kinowego JBL.

Funkcje

  • Shallow 14.97-inch (355mm) depth saves space behind screens
  • Connectors are mounted on enclosure top to preserve minimum depth
  • Built-in rigging points facilitate wall mounting for immersive sound installations such as Dolby Atmos and DTS:X
  • Binding-post input connectors are consistent with other JBL cinema speakers and easy to wire
  • Footprint matches both the JBL 3153 and 4253 screen speakers and the C200 cinema speaker series to build complete system solutions
  • 4-ohm impedance; can be driven with Crown XLC Series amps
  • 1,600W rated power
  • 139 dB peak SPL
  • Frequency response: 30 Hz–500 Hz (-10 dB) (4π)
  • 4-pin connectors allow driving the two transducers separately (discrete mode) or together (parallel mode)

Więcej szczegółów

Premium Sound Without the Premium Price
With the Cinema Series, it’s never been easier to step into the stunning sound of a JBL cinema system. The Cinema Series 4281F subwoofer is engineered and built to the same standards of all other JBL cinema products, providing powerful, punchy low-end coverage in the 30–500 Hz range; pair them with Cinema Series 3153 and 4253 screen speakers and 8102 surrounds for a complete solution.

Rock-Solid and Reliable
Trust JBL Cinema Series speakers and subs to provide peak performance throughout the life of your investment: Systems are designed for superior overall efficiency; transducer-protection circuitry ensures long-term stability.

Deploy With Ease, Any Way You Please
The Cinema Series is designed for streamlined system setup and operation in a range of configurations. 4281F subwoofers operate in 4-ohm mode, enabling them to be driven with Crown XLC Series amps. The 4281F’s 4-pin connectors allow driving the two transducers separately (discrete mode) or together (parallel mode). Hardware is engineered for maximum versatility, with enclosure-top input terminals and binding-post connectors.

Monitor System Health
Accurate diagnostics help keep your system running at peak performance: Crown XLC amplifiers monitor the status of amplification and speaker loads through third-party control and TMS systems when used with the JBL CPi2000 processor; front-panel indicators monitor key statistics such as signal, clip, bridged operation, power standby and fault.

Build an Integrated Sound System
Complete your JBL cinema sound system with the JBL CPi2000 cinema processor, which provides audio enhancement including DSP, room EQ tuning, volume control and system fault detection. The JBL CPi2000 processor includes Cinema Series speaker presets for better sound and performance and easier deployment, and can send amplifier and speaker status to a central TMS (Theater Management System) control system.

Pobrania

Specifications
  Rozmiar Przesłano
file type icon 4281F Dimensional Measurements
zaktualizowano: maj 2020
5,27 MB maj 2020
file type icon 4281F Spec Sheet
zaktualizowano: maj 2020
134 KB maj 2020
Drawings 2D/3Ds
  Rozmiar Przesłano
file type icon 4281F Customer Drawing 2D (DWG)
zaktualizowano: sty 2021
411 KB sty 2021
file type icon 4281F Customer Drawing 2D (PDF)
zaktualizowano: sty 2021
113 KB sty 2021
Spec Sheets
  Język Rozmiar Przesłano
file type icon JBL_4281F_Spec_Sheet_Chinese_version
zh zaktualizowano: mar 2021
zh  209 KB mar 2021

Jeśli któryś z powyższych linków wyświetla dziwne znaki w przeglądarce, kliknij plik prawym przyciskiem myszy, aby zapisać go na komputerze.

Części i serwis

Specyfikacje

Frequency Response (±3 dB) 35 Hz - 100 Hz
Frequency Range (-10dB) 30 Hz - 500 Hz
Power Handling (2Hr AES Rating) 1600 W
Sensitivity 98 dB
Maximum SPL (1m) 139 dB
Nominal Impedance 2 x 8Ω
Net Weight (each) 175 lbs (79 kg)
