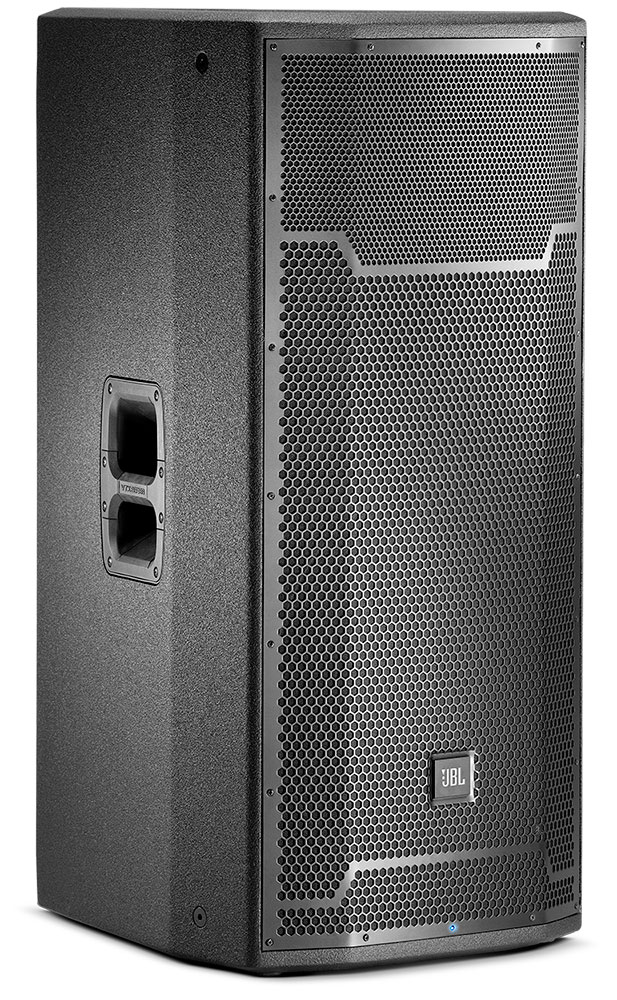

JBL Professional PRX735

Larger Images

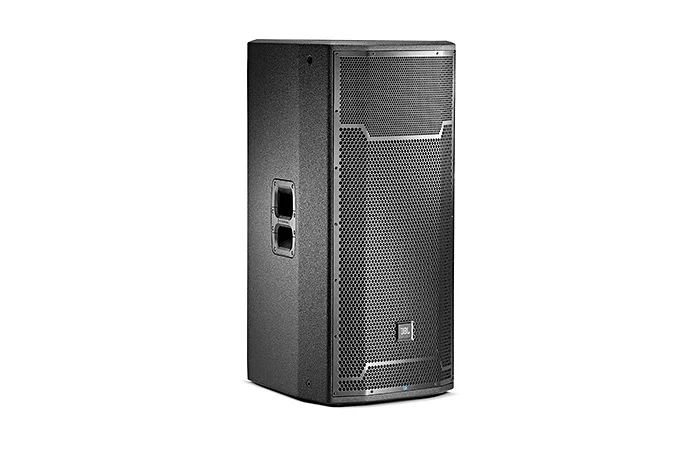

15" Three-Way Full-Range Main System

The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.

Features

136 dB peak SPL
15" Differential Drive® low-frequency driver for low-distortion and higher SPL
165 mm (6.5 in) horn loaded midrange transducer
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Normal and Boost user selectable EQ presets
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
Multiple injection molded handles with backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX718XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX700 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

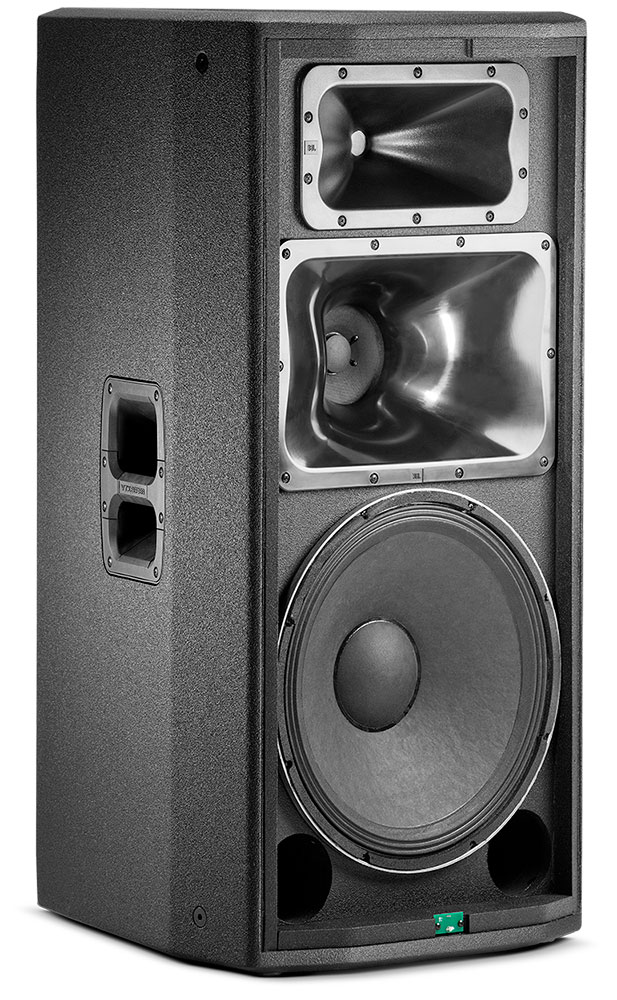

The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth. The PRX735 is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.

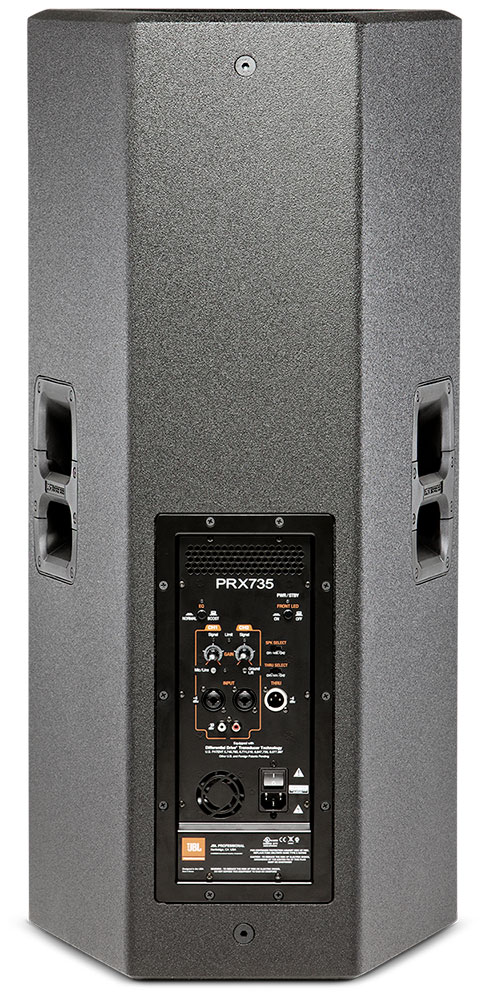

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

Downloads

	Version	Language	Size	Uploaded
PRX735 Data Sheet updated: 03월 12일			2.33MB	03월 12일
PRX735 Spec Sheet updated: 03월 12일			640KB	03월 12일
PRX735 User's Guide - English updated: 03월 12일			1.95MB	03월 12일
PRX735 User's Guide - French updated: 03월 12일			898KB	03월 12일
PRX735 User's Guide - German updated: 03월 12일			906KB	03월 12일
PRX735 User's Guide - Spanish updated: 03월 12일			780KB	03월 12일
Data Sheets
PRX735 Datasheet updated: 07월 08일			2.33MB	07월 08일
Specifications
PRX735 Spec Sheet updated: 07월 08일			640KB	07월 08일
Brochures
Portable Sound Full Line 2015 Catalog updated: 10월 22일			2.54MB	10월 22일
CAD Drawings
PRX700 2D Drawings PDF updated: 10월 22일			704KB	10월 22일
PRX700 2D Drawings CAD updated: 10월 22일			6.41MB	10월 22일
Compliances
PRX700 Declaration of Conformity updated: 10월 22일			133KB	10월 22일
User Guides
PRX700 Users Guide updated: 10월 23일			1.95MB	10월 23일
PRX700 Users Guide Spanish updated: 10월 23일			780KB	10월 23일
PRX700 Users Guide French updated: 10월 23일			898KB	10월 23일
Images
PRX735 Back updated: 07월 08일			156KB	07월 08일
PRX735 Fr Angle No Grill updated: 07월 08일			168KB	07월 08일
PRX735 Front Angle updated: 07월 08일			252KB	07월 08일
Accessories
PRX700 Users Guide German updated: 10월 23일			906KB	10월 23일
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line updated: 03월 15일			21MB	03월 15일

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Power Rating	1500 W
AC power input	100V - 240V~ 50/60 Hz
Frequency Range (-10dB)	Normal: 35 Hz – 20 kHzBoost: 34 Hz – 20 kHz
Frequency Response (±3 dB)	Normal: 42 Hz – 20 kHzBoost: 39 Hz – 20 kHz
Coverage Pattern	90° x 50° nominal
Directivity Index (DI)	10.5 dB
Directivity Factor (Q)	11.2
Crossover Frequency	480 Hz, 2.0 kHz
Maximum SPL (1m)	Normal: 136dBBoost: 136dB
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
Input Impedance	20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver	1 x JBL 275G 380mm (15 in) woofer
MF Driver	1 x JBL 196H 165mm (6.5 in) horn-loaded midrange transducer
HF Driver	1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver"
Enclosure	Trapezoidal, 18 mm, plywood
Suspension / Mounting	12 x M10 Suspension Points
Transport	2 x integrated handle with injection molded backing cup
Finish	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors	2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connector	1 male XLR balanced output
Dimensions (H x W x D)	952.5 mm x 445.0 mm x 537.97 mm(37.5 in x 17.52 in x 21.18 in)
Net Weight	34.9 kg (77 lb)
