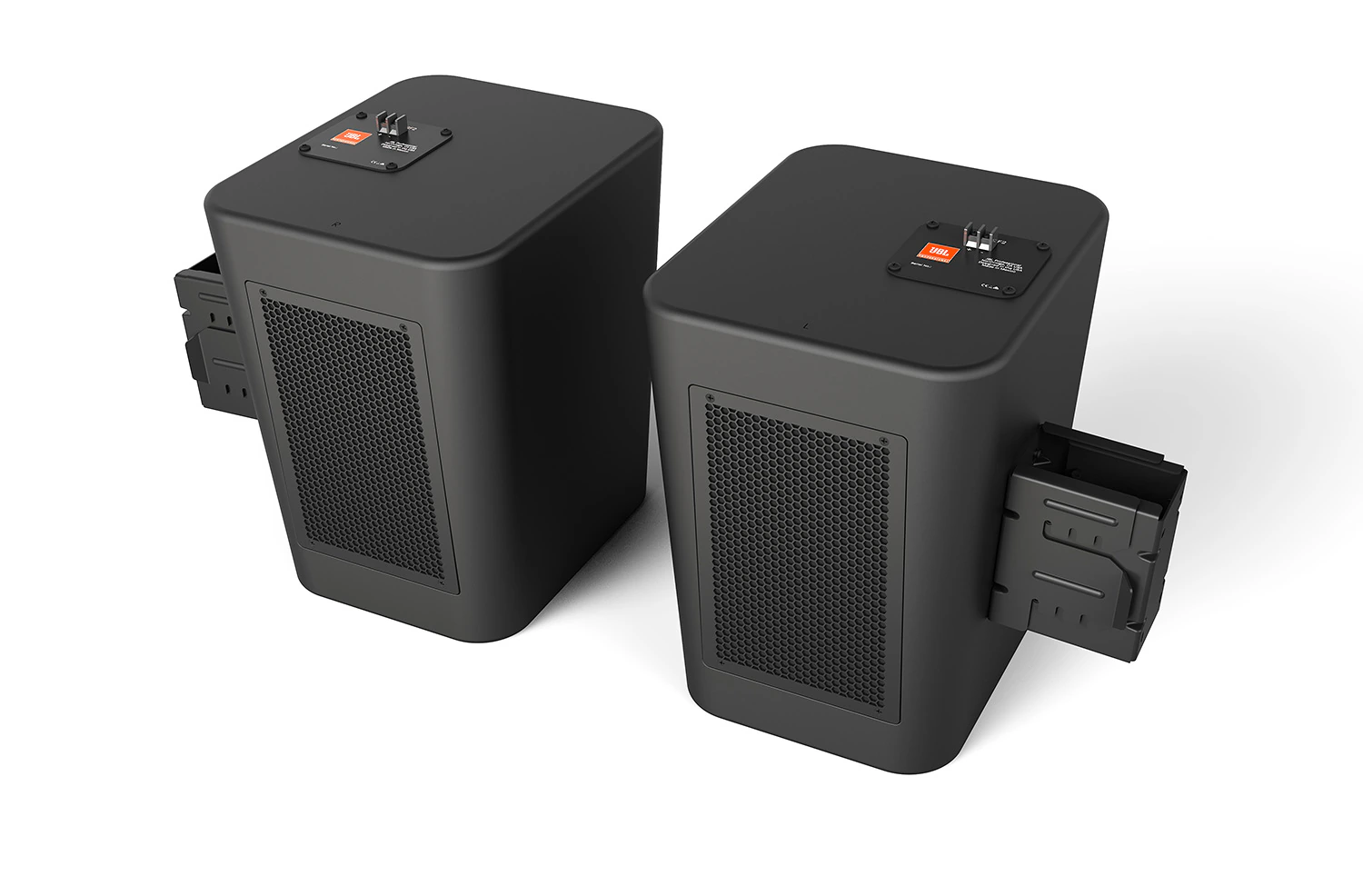

The CRF2 is designed to be used in solid screen cinemas, such as the Samsung Onyx Cinema LED Solutions. This product is designed to be mounted under the first or second surround and produces band-limited high-frequency content routed from the Left/Center/Right screen channels. The horn design in the CRF2 allows the product to be mounted flush to the wall and utilizes patented Dual Dissimilar Array technology for even distribution of high-frequency sound.
| 크기 | |
|
|
1.41MB |
| 크기 | |
|
|
2.02MB |
| 크기 | |
|
|
3.25MB |
| 크기 | |
|
|
9.22MB |
위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.
| Drivers | 2 x 2415J-XP 37.5 mm (1.5 in) compression driver |
| Rated Impedance | 8 Ohms |
| Minimum Impedance | 6.65 Ohms @ 20kHz |
| Frequency Response (±3 dB) | 2.33kHz - 11.2kHz |
| Frequency Range (-10dB) | -10dB): 2.09kHz - 23kHz |
| Input Power Rating | 150 Watts AES 100 hours; 300 Watts recommended amplifier |
| Sensitivity | 102 dB, 2.83V @ 1m (3.3 ft) |
| Max Dimensions (H x W x D) | 508 mm x 439 mm x 368 mm (20 in x 17.3 in x 14.5 in) |
| Net Weight (each) | 11.3 kg (25 lb) |
| Shipping Weight (2 units) | 27.2 kg (60 lb) |
| Nominal Impedance | 8Ω |
| Power Handling (100Hr AES Rating) | 150W |
