Control 28 (discontinued)

High Output Indoor Outdoor Background Foreground Loudspeaker

Control 28
Larger Images

High Output Indoor/Outdoor Background/Foreground Loudspeaker

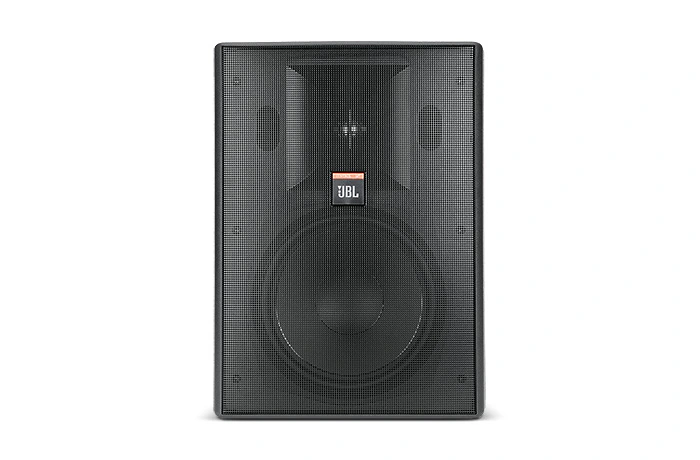

The Control® 28 is the largest of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers.

Features

  • Components: 8 in Polypropylene coated woofer, 1 in Titanium coated horn loaded tweeter.
  • Built-in InvisiBall® mounting hardware.
  • Weather resistant enclosure and transducers.
  • Readily paintable.
  • 90° x 90° high frequency horn.
  • Overload Protection Circuitry.
  • Sensitivity: 92 dB SPL, 1 W, 1m.
  • *Patents pending worldwide

Downloads

  Version Language Size Uploaded
file type icon Control Contractor Brochure
en updated: 2월 2024
  en  1.71MB 2월 2024
file type icon Control 28 Spec Sheet
en updated: 2월 2024
  en  1.28MB 2월 2024
file type icon Control Contractor Surface Mount Owners Manual
en updated: 2월 2024
  en  1.96MB 2월 2024
Specifications
file type icon Control 28 Spec Sheet
updated: 10월 2020
    1.28MB 10월 2020
Manuals
file type icon Control Contractor Series FAQ
updated: 10월 2019
    65KB 10월 2019
CAD Drawings
file type icon Utility Systems
updated: 10월 2019
    110KB 10월 2019
file type icon Control and Control Contractor Series
updated: 10월 2019
    2.36MB 10월 2019
Compliances
file type icon Control Contractor Series Declaration of Conformity
updated: 10월 2019
    131KB 10월 2019
file type icon JBL Control Series Passive Speakers DoC
updated: 12월 2019
    179KB 12월 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: 11월 2023
3.7     1.07MB 11월 2023
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3월 2022
    21MB 3월 2022
Install Guides
file type icon Guide to Business Music
updated: 10월 2020
    52.4KB 10월 2020
file type icon Subwoofer - Satellite Application Guide
updated: 10월 2020
    5.12MB 10월 2020
file type icon Attaching Control Contractor Speakers to Stands
updated: 11월 2019
    76.4KB 11월 2019
file type icon Invisiball™ Installation Instructions
updated: 9월 2019
    227KB 9월 2019
file type icon Control Contractor Weather Resistance Testing
updated: 10월 2020
    37.6KB 10월 2020
file type icon MTC-PC2 & MTC-PC3 Installation
updated: 9월 2019
    42.5KB 9월 2019
file type icon InvisiBall Threading Specifications
updated: 9월 2019
    27.4KB 9월 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 60 Hz to 16 kHz (-10 dB)
Power Capacity 175 W Continuous Program Power; 87 W Continuous Pink Noise
Sensitivity 92 dB SPL, 1W, 1m
Directivity Factor (Q) 7.5 dB
Directivity Index (DI) 8.8 dB
Nominal Impedance 8 ohms
Crossover Frequency 2.8kHz
LF Driver 200mm (8 in) Polypropylene cone w/ WeatherEdge
HF Driver 25mm (1 in) Titanium coated polycarbonate
Enclosure Material HIPS (High Impact Polystyrene)
Overload Protection Full-Range power limiting to protect network and transducers
Terminations Spring terminals, accepts banana plug
Dimensions (H x W x D) 380 x 280 x 220 mm (15.0 x 11.0 x 8.6 in)
Net Weight (each) 5.5 kg (12 lb)
Shipping Weight (ea) 11 kg (25 lb)
Included Accessories Invisiball Assembly 6mm x 180mm hex key
Optional Accessories MTC-28V: For vertical columnar orientation of up to 3 loudspeakers MTC-28H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter MTC-28SSG:Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH) MTC-28WMG:WeatherMax™ Stainless Steel Grille protects against driving precipitation. Available in black or white (-WH) MTC-PC2: Input panel cover protects input terminals in outdoor environments.
