Compact 8-inch 2-way Loudspeaker with 120° x 60° Horn

AC18/26
큰 이미지

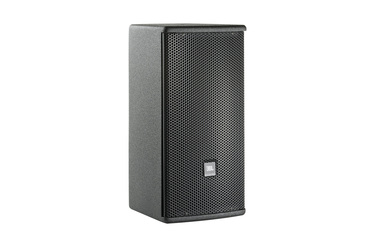

Compact 8-inch 2-way Loudspeaker with 120° x 60° Rotatable Horn

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.



특징

  • 1” Exit Compression Driver Coverage PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.

다운로드

Specifications
  크기 업로드 날짜
file type icon AC18/26 Spec Sheet
업데이트: 2019년 4월
417KB 2019년 4월
Manuals
  버전 언어 크기 업로드 날짜
file type icon AE Series Array Guide
en 업데이트: 2024년 7월
  en  1.12MB 2024년 7월
file type icon AE Series U-Bracket Handbook
en 업데이트: 2024년 7월
  en  597KB 2024년 7월
file type icon Weather Resistant Configurations
en 버전 A, 업데이트: 2023년 5월
en  86.1KB 2023년 5월
file type icon Painting AE Loudspeaker Cabinets
en 업데이트: 2025년 3월
  en  115KB 2025년 3월
Brochures
  언어 크기 업로드 날짜
file type icon AE Series Brochure
en 업데이트: 2023년 12월
en  5.71MB 2023년 12월
file type icon AE Compact Brochure
en 업데이트: 2024년 7월
en  1020KB 2024년 7월
CAD Drawings
  버전 크기 업로드 날짜
file type icon AE Compact Customer Drawings
버전 1.0, 업데이트: 2023년 12월
1.0  1.98MB 2023년 12월
file type icon AE Series - WR Models Customer Drawings
버전 3.0, 업데이트: 2026년 4월
3.0  3.8MB 2026년 4월
file type icon AE Compact Bracket Customer Drawings
버전 1.0, 업데이트: 2023년 12월
1.0  371KB 2023년 12월
file type icon AE Series - Revit/BIM Files
버전 11.0, 업데이트: 2024년 7월
11.0  730KB 2024년 7월
Compliances
  언어 크기 업로드 날짜
file type icon AE Compact - EU Declaration of Conformity
en 업데이트: 2024년 7월
en  91.6KB 2024년 7월
Software
  크기 업로드 날짜
download icon for Venue Synthesis Venue Synthesis
출시: 2025년 1월
2025년 1월
download icon for Performance Manager 3 Performance Manager 3
출시: 2024년 7월
2024년 7월
Simulation Data
  버전 크기 업로드 날짜
file type icon AE Compact EASE GLL
버전 2.0, 업데이트: 2026년 1월
2.0  15.9MB 2026년 1월
file type icon AE Compact CLF Files
버전 1.0, 업데이트: 2023년 12월
1.0  1.23MB 2023년 12월
Preset Libraries
  버전 크기 업로드 날짜
file type icon AE Compact I-Tech HD Preset Library
버전 1.2, 업데이트: 2024년 7월
1.2  812KB 2024년 7월
file type icon AE Series DCi Series Preset Library
업데이트: 2024년 5월
  471KB 2024년 5월
file type icon AE Compact CDi Series Preset Library
업데이트: 2024년 7월
  410KB 2024년 7월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

부품 및 서비스

사양

Frequency Range (-10dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 63 Hz – 19 kHz
System Power Rating 375 W (AES rated)
250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated)
Impedance 8 ohms
Coverage Pattern /26: 120° x 60°/95: 90° x 50°
Dimensions (H x W x D) 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
Net Weight (each) 12.8 kg (28.2 lb)
Crossover Modes Passive
Maximum SPL (1m) 116 dB
System Sensitivity (1w @ 1m) 92 dB SPL
LF Driver 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8 Ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
