JBL Professional 3731

큰 이미지

3731 Three-Way Triamplified ScreenArray® Cinema Loudspeaker System

Three-way Screen Array® design for maximum output, optimal coverage, and minimum distortion
One 380 mm (15") Vented Gap Cooled (VGC™) LF Transducer
Triamplified (T) or Biamplified operation
Approved for THX® certified applications (3731T)
M/HF ships fully assembled
Second Generation Optimized Aperture Waveguide technology for ultra-low distortion, and extremely uniform frequency response
SSCTM Screen Spreading Compensation
Focused Coverage Technology™
Flat-front waveguide design for easy baffle wall installation
Shallow depth for minimum behind screen requirements
Low profile design with 600W LF

Specifications

	크기	업로드 날짜
3731 Spec Sheet 업데이트: 2020년 10월	165KB	2020년 10월

CAD Drawings

Compliances

	크기	업로드 날짜
Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity 업데이트: 2019년 10월	153KB	2019년 10월

Images

	크기	업로드 날짜

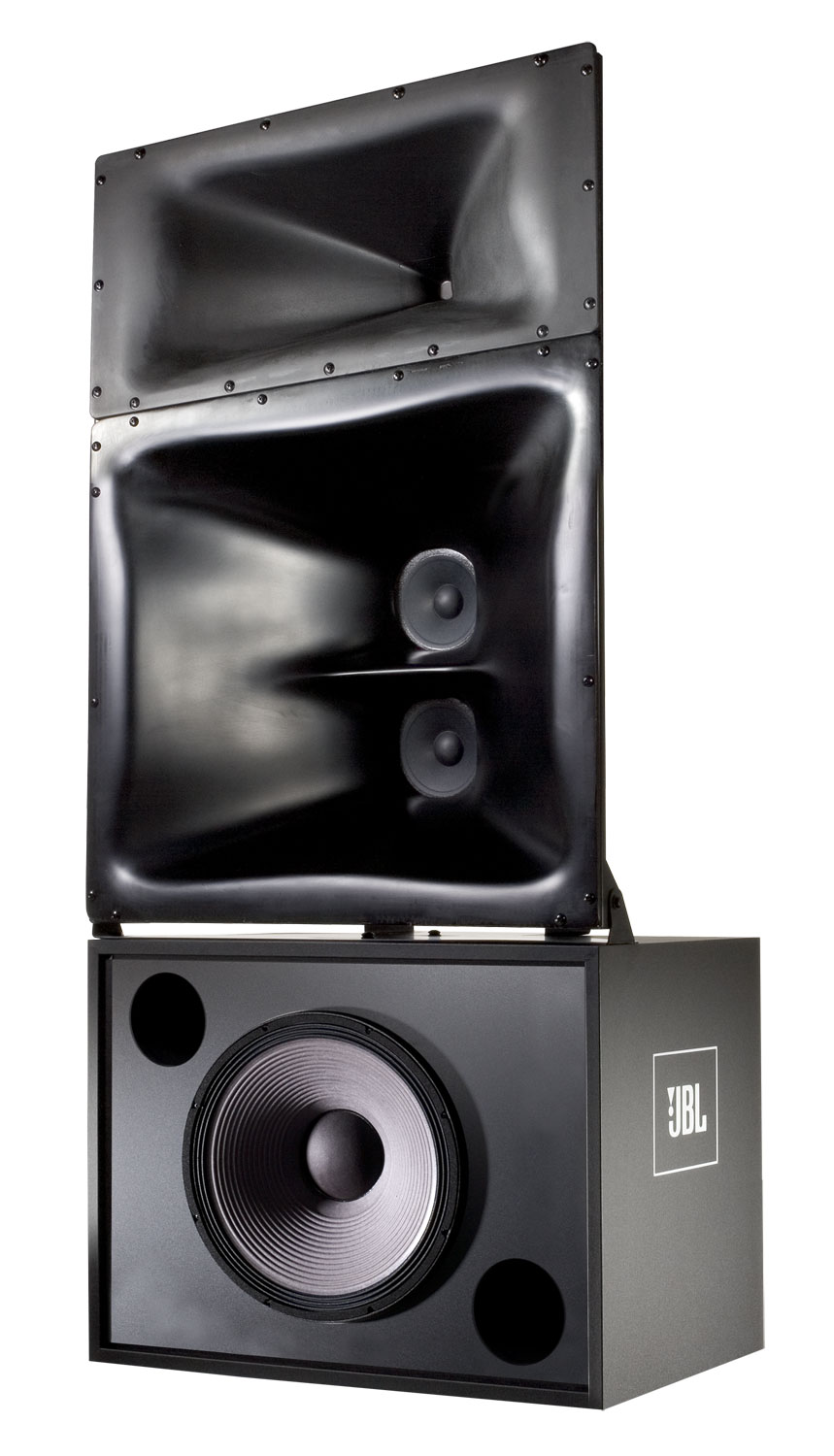

3731 Front Angle 업데이트: 2020년 10월	122KB	2020년 10월

위의 링크 중 하나에서 브라우저에 이상한 문자가 표시되면, 파일을 마우스 오른쪽 버튼으로 클릭하여 컴퓨터에 저장하세요.

Frequency Response (±3 dB)	40 Hz - 19 kHz
Frequency Range (-10dB)	30 Hz - 20 kHz
Sensitivity	103dB @ 2.83V
Maximum SPL (1m)	125 dB @ 1m (3.3 ft), 131 dB peak
System Input Power Rating	LF: 600 watts, M/HF: 150 watts [HF: 85 watts]
Horizontal Coverage Angle (-6dB)	90°
Vertical Coverage Angle (-6dB)	20° up, 30° down
Directivity Factor (Q)	10.0
Directivity Index (DI)	10 dB
Crossover Frequencies	350 Hz [1.2 kHz]
Dimensions (HxWxD)	1600 mm x 762 mm x 450 mm (63 in x 30 in x 17.75 in)
Net Weight (each)	114 lbs (51.8 kg)
Shipping Weight	64.0 kg (141 lbs)
Nominal Impedance	8Ω
Power Handling (2Hr AES Rating)	600W
