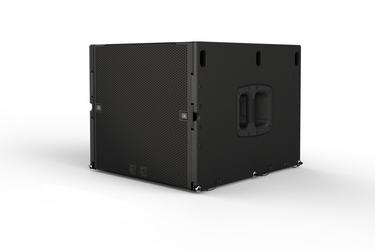

Compact Arrayable 15-inch Subwoofer
The VTX B15 Compact Arrayable 15-inch Subwoofer extends the low-end performance of VTX full-range sound-reinforcement systems, including the VTX A6 Subcompact Dual 6.5-inch Line Array Element. The B15 is a versatile solution for production companies, touring acts, rental houses, theaters, houses of worship or anyone who demands superior sound reinforcement when space is at a premium.

The B15 joins the VTX B Series subwoofer family in harnessing VTX acoustic innovations such as SlipStream™ double-flared expo¬nential ports and Differential Drive® dual-voice coil woofer design. The B15 has the same width and suspension hardware as the A6, allowing the two products to be combined in a range of flown and ground-stacked configurations.

Together with the A6, the B15 brings flagship VTX sound quality and performance to a compact footprint, whether supporting small and midsize applications or supplement¬ing large VTX systems. It’s never been easier to deliver impactful, VTX-quality sound at any scale.

ព័ត៌មានលម្អិត

  • New JBL 2285H 15-inch woofer offers low distortion and improved linearity
  • SlipStream double-flared ports reduce noise and air turbulence
  • Differential Drive dual-voicecoil, dual-gap woofer design delivers superior low-frequency performance in a compact footprint
  • Two models are available: the arrayable B15 and the B15G, designed without rigging hardware
  • Integrates seamlessly with JBL LAC-3, Array Link and Performance Manager software applications
  • Standard VTX rigging and suspension features allow fast, accurate deployment in both ground-stacked and flown configurations
  • Support for omnidirectional and cardioid array configurations
  • Available accessories include mini frame, suspension bar, ground stack accessory and transportation accessories
  • Neutrik STX speakON NL4 connectors
  • Rugged, exterior-grade birch plywood enclosure with black Duraflex™ finish and recessed handholds
  • Powder-coated, hex-perforated stainless steel grille with acoustically transparent cloth backing

ការទាញយក

Specifications
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon VTX B15 Spec Sheet
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2022
en  379 KB កក្កដា 2022
file type icon VTX B15 Spec Sheet
zh កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2023
zh  442 KB កុម្ភៈ 2023
Manuals
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon VTX B15 User Manual
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2023
en  11.3 MB កក្កដា 2023
file type icon VTX B15 Rigging Manual
en កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2023
en  17.6 MB កក្កដា 2023
CAD Drawings
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon VTX B15 Customer Drawings
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2022
en  2.82 MB កក្កដា 2022
file type icon VTX A6/B15 Revit/BIM Files
កំណែ 1.0, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2024
1.0    34.9 MB កក្កដា 2024
file type icon VTX A6/B15 Sketchup Files
កំណែ 1.0, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2022
1.0    2.44 MB កក្កដា 2022
Software
  ទំហំ បានផ្ទុកឡើង
download icon for Venue Synthesis Venue Synthesis
ចេញផ្សាយ: មករា 2025
មករា 2025
download icon for Performance Manager 3 Performance Manager 3
ចេញផ្សាយ: កក្កដា 2024
កក្កដា 2024
Declaration of Conformity
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon VTX A6/B15 EU Declaration of Conformity
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: តុលា 2022
en  125 KB តុលា 2022
file type icon VTX A6/B15 UK Declaration of Conformity
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: តុលា 2022
en  112 KB តុលា 2022
Preset Libraries
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon VTX B15 iTech HD Preset Library
កំណែ 1.2.0, បានធ្វើបច្ចុប្បន្នភាព: សីហា 2022
1.2.0  1.73 MB សីហា 2022
Ease Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon VTX A6/B15 EASE GLL
កំណែ 1.1, បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2022
1.1  13 MB ធ្នូ 2022
Service Notes
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon VTX B15 Spare Parts
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មេសា 2026
en  70.2 KB មេសា 2026

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB) 35 Hz-95 Hz (Preset: 80 Hz)
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL (1m) 132 dB (Preset: 80 Hz)
System Processing Crown iTech 9000HD, Crown iTech 12000HD
Crown iTech 4x3500HD
Nominal Impedance 8 ohms
LF Driver (1) JBL 2285H, 15 in diameter, dual 4 in diameter voice coil, neodymium Differential Drive®
Enclosure 15 mm, 18 mm and 24 mm exterior grade birch plywood, black DuraFlexTM finish, two integral recessed handles
Dimensions (H x W x D) 446 mm x 536 mm x 586 mm
18.3 in x 21.1 in x 23.1 in
Net Weight 41.5 kg (91.5 lbs)

គ្រឿងបន្លាស់

VTX A6 MF | Mini Frame for A6 and B15
VTX A6 MF Main photo
រូបភាពធំជាង
VTX A6 MF detail thumbnail #1 VTX A6 MF detail thumbnail #2 VTX A6 MF detail thumbnail #3 VTX A6 MF detail thumbnail #4

Highlights:

  • Compact and lightweight design
  • Compatible with VTX A6 and VTX B15
  • Maximum Limit: (24) VTX A6/(12) VTX B15
  • Single-point and side-by-side pick-point options
  • 0.5° pick-point resolution
  • Three-part collapsible design
  • Compatible shackle size: 1/2 in

Included:

  • (2) Side arms
  • (1) Spreader bar
  • (1) 1/2-inch Shackle

ឯកសារ
VTX A6 SB | Suspension Bar for A6 and B15
VTX A6 SB Main photo
រូបភាពធំជាង
VTX A6 SB detail thumbnail #1 VTX A6 SB detail thumbnail #2 VTX A6 SB detail thumbnail #3 VTX A6 SB detail thumbnail #4

Highlights:

  • Versatile suspension bar accessory
  • Compatible with VTX A6 and VTX B15
  • Used for suspension or pull-back applications
  • Maximum Limit: (24) VTX A6/(15) VTX B15
  • Lightweight design
  • Shackle Size: 1/2 in

Included:

  • (1) Suspension bar
  • (1) 1/2-inch Shackle #5118578

ឯកសារ
VTX A6 CM | ឧបករណ៍ម៉ោនតលើពិដាននៃ A6 និង B15
VTX A6 CM Main photo
រូបភាពធំជាង
VTX A6 CM detail thumbnail #1 VTX A6 CM detail thumbnail #2 VTX A6 CM detail thumbnail #3 VTX A6 CM detail thumbnail #4

លក្ខណៈពិសេស:

  • ដំណោះស្រាយការដំឡើងអារេដែលបង្រុំ
  • ឆបគ្នាជាមួយ VTX A6 និង VTX B15
  • ប្រវែងទាប

រួមបញ្ចូល:

  • (2) ចានការដំឡើង
  • (1) ឯកសារគ្រោងនៃការចាក់រន្ធ

ឯកសារ
VTX B15 ACC | Accessory Cover & Caster Board
VTX B15 ACC Main photo
រូបភាពធំជាង
VTX B15 ACC detail thumbnail #1 VTX B15 ACC detail thumbnail #2 VTX B15 ACC detail thumbnail #3 VTX B15 ACC detail thumbnail #4

Highlights:

  • Front-face dolly and cover for VTX B15
  • Cover includes handle cutouts and rear panel access flap
  • Tour grade casters
  • Stackable for convenient storage
  • Spring-loaded release mechanisms for secure attachment to B15 enclosures
  • Compatible with B15 and B15G

Included:

  • (1) Caster board
    (1) VTX B15 CVR

ឯកសារ
VTX B1 GND | Universal Ground Stack Accessory
VTX B1 GND Main photo
រូបភាពធំជាង
VTX B1 GND detail thumbnail #1 VTX B1 GND detail thumbnail #2 VTX B1 GND detail thumbnail #3 VTX B1 GND detail thumbnail #4

Highlights:

  • Ground stack accessory for VTX subwoofers
  • Improves stability
  • Attaches directly to the integral rigging
  • Compatible with VTX B15 and VTX B18

Included:

  • (4) Ground stack plates

ឯកសារ
