SRX912M

អាកប្រឹក្សាយោងដែលមានថាមពល ៩ អ៊ីញ្ច ឯកសារ Actually, let me provide the correct translation: អាកប្រឹក្សាយោងដែលមានថាមពល ១២ អ៊ីញ្ច

SRX912M
រូបភាពធំជាង

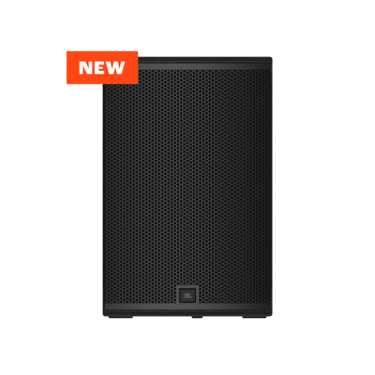

The SRX912M is an exceptionally compact, multi-purpose, two-way 12-inch powered point-source loudspeaker that delivers remarkably high output for its size. It is designed for a wide range of applications, including use as a main PA, stage monitor, or front fill. When deployed as a stage monitor, the enclosure’s multi-purpose design provides a 42-degree monitor angle in an ultra-low-profile package.

Multiple M10 QuickLink™ suspension points support quick and secure integration with a variety of accessories for both portable and installed sound applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world.

JBL transducers and proprietary Progressive Transition™ waveguides deliver outstanding fidelity and best-in-class SPL from an enclosure of this size. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

លក្ខណៈពិសេស

  • Includes single 12-inch low-frequency driver and neodymium 1.5-inch annular-diaphragm compression driver
  • 272F woofer employs JBL’s patented Differential Drive® technology
  • Dual 2-inch voice coils and a ferrite magnet provide ideal balance of output, weight, and thermal performance
  • 90° × 60° Progressive Transition™ waveguide ensures smooth, predictable coverage
  • LF extension reaches down to 50 Hz
  • 80 Hz high-pass preset available for applications using SRX900 subwoofers
  • 42-degree monitor angle for use as a high-performance, full-range stage monitor
  • Voicing and phase response optimized to match SRX900 line-source products
  • Integrated amplification delivers plug-and-play operation
  • Rear LCD enables fast configuration
  • DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
  • Six M10 Quick-Link™ attachment points are provided for suspension using standard M10 eye bolts
  • Constructed from outdoor-grade Baltic birch plywood for excellent durability

ការទាញយក

Specifications
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX912M Spec Sheet
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  928 KB មករា 2026
Manuals
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series User Manual
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  12 MB មករា 2026
file type icon SRX900LA Rigging Manual
en កំណែ F, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  48.3 MB កុម្ភៈ 2026
file type icon SRX900PS Rigging Manual
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  8.28 MB មករា 2026
file type icon Assembly Instructions - powerCON TRUE1
en កំណែ 4.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2025
4.0  en  8.64 MB មករា 2025
CAD Drawings
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX912M Customer Drawings
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  3.81 MB មករា 2026
file type icon SRX900 Series Revit/BIM Files
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
3.0    74.2 MB កុម្ភៈ 2026
file type icon SRX900 Series Sketchup Files
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
3.0    10 MB កុម្ភៈ 2026
Software
  កំណែ ទំហំ បានផ្ទុកឡើង
download icon for Venue Synthesis Venue Synthesis
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for ArrayLink ArrayLink
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for Performance Software Performance Software
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
កំណែ 1.2.0.0, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
1.2.0.0   4.15 MB មិនា 2026
Firmware
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series Firmware Changelog
en កំណែ 2.0.1, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
2.0.1  en  123 KB មិនា 2026
Simulation Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon SRX900LA - EASE GLL
កំណែ 2.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
2.0  20.6 MB មករា 2026
file type icon SRX900PS - EASE GLL
កំណែ 1.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
1.0  10.2 MB មករា 2026
Declaration of Conformity
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series - EU Declaration of Conformity
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  512 KB មិនា 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  441 KB មិនា 2026
file type icon SRX900 Series - CB Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  699 KB កុម្ភៈ 2026
file type icon SRX900 Series - UL Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  1.55 MB កុម្ភៈ 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh កំណែ C, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
zh  2.11 MB កុម្ភៈ 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko កំណែ C, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
ko  2.56 MB មិនា 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: មិថុនា 2025
zh  137 KB មិថុនា 2025
Service Notes
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX912M Spare Parts
en កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  83.9 KB មករា 2026

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB) 50 Hz-20 kHz
Coverage Pattern 90° x 60°
Maximum SPL 133 dB
System Type Multi-purpose point-source, two-way powered
Amplifier Design Class-D
Continuous Power Rating 600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver (1) JBL 272F, 12 in diameter, dual 2.0 in diameter voice coil, ferrite Differential Drive®
HF Driver (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
Enclosure Exterior grade birch plywood, DuraFlex finish, one integral handhold
Suspension (6) JBL QuickLink M10 points
Dimensions (H x W x D) 585 mm x 380 mm x 341 mm
(23.0 in x 15.0 in x 13.4 in)
Net Weight (each) 20.6 kg (45 lbs)

គ្រឿងបន្លាស់

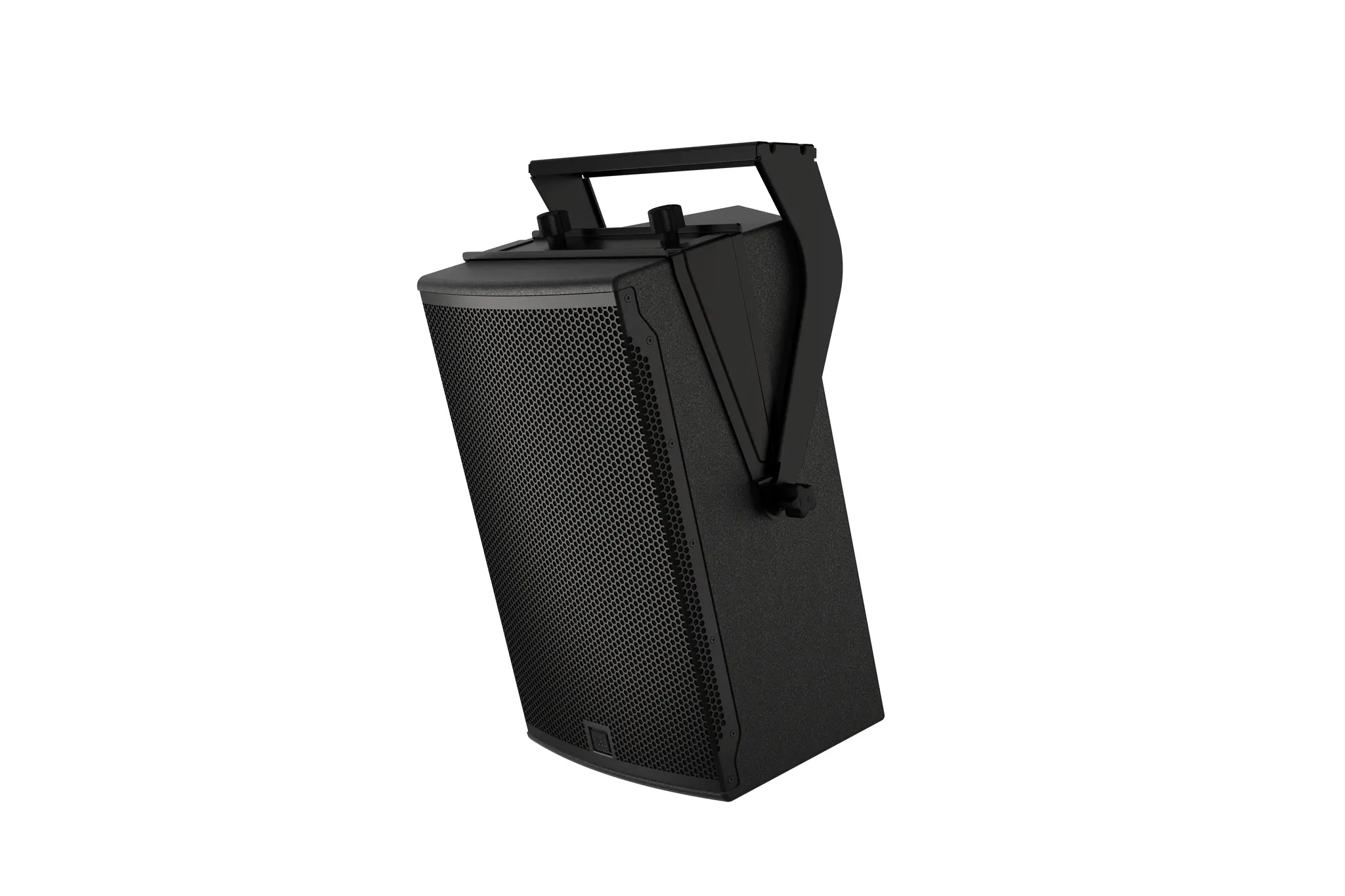

SRX912M UBV | Vertical U-Bracket for the SRX912M
SRX912M UBV Main photo
រូបភាពធំជាង
SRX912M UBV detail thumbnail #1 SRX912M UBV detail thumbnail #2 SRX912M UBV detail thumbnail #3 SRX912M UBV detail thumbnail #4

Highlights:

  • Versatile vertical U-Bracket for SRX912M
  • Compatible with the RC100 rotating clamp
  • Support for third-party clamps
  • Support for M10 suspension points
  • Compatible with the Pole Mount adapter

Included:

  • (1) U-Bracket

ឯកសារ
SRX912M UBH | Horizontal U-Bracket for the SRX912M
SRX912M UBH Main photo
រូបភាពធំជាង
SRX912M UBH detail thumbnail #1 SRX912M UBH detail thumbnail #2 SRX912M UBH detail thumbnail #3 SRX912M UBH detail thumbnail #4

Highlights:

  • Versatile Horizontal U-Bracket for SRX912M
  • Compatible with the RC100 rotating clamp
  • Support for third-party clamps
  • Support for M10 suspension points
  • Compatible with the Pole Mount adapter

Included:

  • (1) U-Bracket

ឯកសារ
SRX900 RC2 | ឈុតកម្របាំង មានលក្ខណៈឆបគ្នាជាមួយផលិតផលប្រភពសម្លេង
SRX900 RC2 Main photo
រូបភាពធំជាង
SRX900 RC2 detail thumbnail #1 SRX900 RC2 detail thumbnail #2 SRX900 RC2 detail thumbnail #3 SRX900 RC2 detail thumbnail #4

ការគូសបង្ហាញ៖

  • គម្របភ្លៀងសកលសម្រាប់ផលិតផល SRX900
  • ដ្ឋាន័យសម្ភារៈដែលបត់បែនសម្រាប់ការលៃតម្រូវទៅនឹងខ្សែកាប
  • គម្របអេក្រង់ LCD ការតភ្ជាប់អូឌីយូ និងទិន្នន័យ
  • ពង្រីកសម្រាប់ការទទួលបានលទ្ធភាពងាយស្រួលទៅកាន់ខ្សែកាប និងអេក្រង់ LCD
  • រចនាដើម្បីជាប់ជាប់ឯង

ភាពឆបគ្នា៖

  • SRX912M
  • SRX915M
  • SRX922

រួមបញ្ចូល៖

  • (1) គម្របភ្លៀង
  • (7) ខ្ចៀលលង្ក T15 M4

ឯកសារ
RC100 | ឧបករណ៍ភ្ជាប់បង្វិលសាលរួម
RC100 Main photo
រូបភាពធំជាង
RC100 detail thumbnail #1 RC100 detail thumbnail #2 RC100 detail thumbnail #3 RC100 detail thumbnail #4

ចំណុចលក្ខណៈពិសេស៖

  • ឧបករណ៍ភ្ជាប់បង្វិលសាលទូទៅ
  • ឆបគ្នាជាមួយ SPIGOT ទូរទស្សន៍ស្តង់ដារ
  • យន្តការដោះលែងលឿនងាយស្វាគម្ន
  • WLL៖ 100 kg (220 lbs)

រួមបញ្ចូល៖

  • (1) RC100

ឯកសារ
TV SPIGOT T | Universal TV Spigot adapter សម្រាប់ប្រើប្រាស់ជាមួយ RC100
TV SPIGOT T Main photo
រូបភាពធំជាង
TV SPIGOT T detail thumbnail #1 TV SPIGOT T detail thumbnail #2 TV SPIGOT T detail thumbnail #3 TV SPIGOT T detail thumbnail #4

ពិសេษ:

  • អាដាប់ធ័រ TV-SPIGOT សកលលោក
  • ផលិតតាមលក្ខណៈបទប្បញ្ញត្តិស្តង់ដារ
  • រួមបញ្ចូលម្ជុលគូស M10 និង垫圈
  • ឆ្លើយតបទៅនឹង RC100
  • តភ្ជាប់ទៅនឹងតង្កៀប U របស់ JBL ដែលឆ្លើយតប

រាប់បញ្ចូល:

  • (1) SPIGOT
  • (2) ម្ជុលគូស M10
  • (2) 垫圈 M10

ភាពឆ្លើយតប:

  • SRX912M UBV
  • SRX912M UBH
  • SRX915M UBV
  • SRX915M UBH

ឯកសារ
EBK4 M10-20 | ឧបករណ៍ចង M10 សកលលោក
EBK4 M10-20 Main photo
រូបភាពធំជាង
EBK4 M10-20 detail thumbnail #1 EBK4 M10-20 detail thumbnail #2 EBK4 M10-20 detail thumbnail #3 EBK4 M10-20 detail thumbnail #4

ចំណាំសំខាន់:

  • ឧបករណ៍ភ្ជាប់ភ្នែកជ្រើសរើស
  • ឆបគ្នាជាមួយផលិតផល QuickLinkTM ដែលបានដំឡើង
  • ខ្សែស្ព័ន្ធ: M10
  • ប្រវែងរបាំង: 20 មម

រួមបញ្ចូល:

  • (4) ឧបករណ៍ភ្ជាប់ភ្នែក M10
  • (4) ឧបករណ៍សម្ពាធ

ឯកសារ
VTX PM | ឧបករណ៍ភ្ជាប់បង្គោលជ្រើសរើស 35 ម។ម រចនាប័ទ្ម T-Bar
VTX PM Main photo
រូបភាពធំជាង
VTX PM detail thumbnail #1 VTX PM detail thumbnail #2 VTX PM detail thumbnail #3 VTX PM detail thumbnail #4 VTX PM detail thumbnail #5

ចំណុចសំខាន់:

  • សមតัម្ភៅរបារសកល
  • ឆបគ្នាជាមួយរបារ 35 មម
  • រួមបញ្ចូល M10 ដងថ្នាក់ប្រកបដោយលcomfort grip

រួមបញ្ចូល:

  • (1) សមតัម្ភៅរបារ
  • (1) ដងថ្នាក់ M8 x 1.25 ដែលមាន Comfort Grip
  • (2)垫圈ចាក M10
  • (2) ដងថ្នាក់ M10 x 1.5 ដែលមាន Comfort Grip

ឯកសារ
