SRX910LA

Dual 10-inch Powered Line Array Loudspeaker

SRX910LA
រូបភាពធំជាង

Dual 10-inch Powered Line Array Loudspeaker
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.

JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 10-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.

An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

លក្ខណៈពិសេស

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides complete access to control features
  • Reinforced composite loudspeaker enclosures
  • Innovative three-point rigging system

ការទាញយក

Specifications
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX910LA Spec Sheet
en កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: មករា 2025
en  683 KB មករា 2025
Manuals
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series User Manual
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  12 MB មករា 2026
file type icon SRX900LA Rigging Manual
en កំណែ F, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  48.3 MB កុម្ភៈ 2026
file type icon SRX900PS Rigging Manual
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
en  8.28 MB មករា 2026
file type icon Assembly Instructions - powerCON TRUE1
en កំណែ 4.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2025
4.0  en  8.64 MB មករា 2025
CAD Drawings
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX910LA Customer Drawings
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2022
en  5.23 MB ឧសភា 2022
file type icon SRX900 Series Revit/BIM Files
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
3.0    74.2 MB កុម្ភៈ 2026
file type icon SRX900 Series Sketchup Files
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
3.0    10 MB កុម្ភៈ 2026
Software
  កំណែ ទំហំ បានផ្ទុកឡើង
download icon for Venue Synthesis Venue Synthesis
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for ArrayLink ArrayLink
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for Performance Software Performance Software
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for SRX900 Module for AMX SRX900 Module for AMX
ចេញផ្សាយ: មករា 2025
  មករា 2025
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
កំណែ 1.2.0.0, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
1.2.0.0   4.15 MB មិនា 2026
Firmware
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series Firmware Changelog
en កំណែ 2.0.1, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
2.0.1  en  123 KB មិនា 2026
Simulation Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon SRX900LA - EASE GLL
កំណែ 2.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
2.0  20.6 MB មករា 2026
file type icon SRX900PS - EASE GLL
កំណែ 1.0, បានធ្វើបច្ចុប្បន្នភាព: មករា 2026
1.0  10.2 MB មករា 2026
Declaration of Conformity
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX900 Series - EU Declaration of Conformity
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  512 KB មិនា 2026
file type icon SRX900 Series - UKCA Declaration of Conformity
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  441 KB មិនា 2026
file type icon SRX900 Series - CB Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  699 KB កុម្ភៈ 2026
file type icon SRX900 Series - UL Certificate of Compliance
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  1.55 MB កុម្ភៈ 2026
file type icon SRX900 Series - CQC Certificate of Compliance
zh កំណែ C, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
zh  2.11 MB កុម្ភៈ 2026
file type icon SRX900 Series - KC Certificate of Compliance
ko កំណែ C, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
ko  2.56 MB មិនា 2026
file type icon SRX900 Series - Taiwan RoHS Documentation
zh កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: មិថុនា 2025
zh  137 KB មិថុនា 2025
Service Notes
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon SRX910LA Spare Parts
en កំណែ B, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2026
en  49.7 KB កុម្ភៈ 2026

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB) 53 Hz-19 kHz (array preset)
Coverage Pattern 105 degrees nominal (400 Hz-16 kHz)
Maximum SPL

135 dB

System Type Line Array, two-way active
Amplifier Design Class-D
Continuous Power Rating 600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®
HF Driver (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
Enclosure Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds
Inter-Enclosure Angles 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Dimensions (H x W x D) 305 mm x 716 mm x 519 mm
(12.0 in x 28.2 in x 20.5 in)
Net Weight (each) 26.7 kg (59 lbs)

គ្រឿងបន្លាស់

SRX910LA AF | Array Frame for SRX910LA and SRX918SF
SRX910LA AF Main photo
រូបភាពធំជាង
SRX910LA AF detail thumbnail #1 SRX910LA AF detail thumbnail #2 SRX910LA AF detail thumbnail #3 SRX910LA AF detail thumbnail #4

Highlights:

  • Compact and lightweight design
  • Compatible with SRX910LA and SRX918SF
  • Precision pick-point resolution
  • Two-part collapsible design
  • Support for third-party laser inclinometers
  • Compatible shackle size: 1/2 in

Included:

  • (1) Spreader Bar
  • (1) Extension Bar
  • (1) 1/2-inch Shackle
  • (1) Laser Bracket and Hardware

ឯកសារ
SRX910LA BP | Base Plate for SRX910LA
SRX910LA BP Main photo
រូបភាពធំជាង
SRX910LA BP detail thumbnail #1 SRX910LA BP detail thumbnail #2 SRX910LA BP detail thumbnail #3 SRX910LA BP detail thumbnail #4

Highlights:

  • Enables ground stacking SRX910LA arrays
  • Allows attaching arrays to subwoofers
  • Universal M20 threaded pole mount
  • Angle range: -15 degrees to +5 degrees
  • Support for up to (4) SRX910LA

Included:

  • (1) Base Plate
  • (1) M20 Thumb Screw

ឯកសារ
SRX900LA PB | Pull Back accessory, compatible with all SRX900 LA models
SRX900LA PB Main photo
រូបភាពធំជាង
SRX900LA PB detail thumbnail #1 SRX900LA PB detail thumbnail #2 SRX900LA PB detail thumbnail #3 SRX900LA PB detail thumbnail #4

Highlights:

  • Versatile pull-back accessory
  • Compatible with SRX906LA and SRX910LA
  • Support for up to 16 cabinets
  • Lightweight design
  • Shackle Size: 1/2 in

Included:

  • (1) Pull-Back Adapter
  • (1) 1/2-inch Black Shackle

ឯកសារ
SRX910LA VT | Vertical Transporter for (4) SRX910LA
SRX910LA VT Main photo
រូបភាពធំជាង
SRX910LA VT detail thumbnail #1 SRX910LA VT detail thumbnail #2 SRX910LA VT detail thumbnail #3 SRX910LA VT detail thumbnail #4

Highlights:

  • Vertical transport cart for (4) SRX910LA
  • Truck-friendly dimensions
  • Includes a hard top (VT TOP)
  • Built-in stacking features for easy storage
  • Lightweight design
  • Heavy-duty casters

Included:

  • (1) SRX910LA VT BOTTOM
  • (1) SRX910LA VT TOP

ឯកសារ

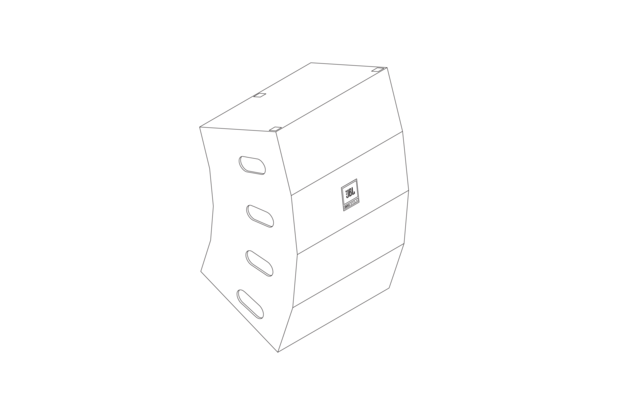

SRX910LA VT CVR | Vertical Transporter Cover for (4) SRX910LA
SRX910LA VT CVR Main photo
រូបភាពធំជាង
SRX910LA VT CVR detail thumbnail #1 SRX910LA VT CVR detail thumbnail #2 SRX910LA VT CVR detail thumbnail #3

Highlights:

  • Heavy-duty soft cover for SRX910LA enclosures
  • Covers four SRX910LA on a Vertical Transporter
  • Includes input panel flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy-duty industrial-grade zippers

Included:

  • (1) Cover

ឯកសារ
SRX900 RC1 | Rain Cover, compatible with all SRX900 models
SRX900 RC1 Main photo
រូបភាពធំជាង
SRX900 RC1 detail thumbnail #1 SRX900 RC1 detail thumbnail #2 SRX900 RC1 detail thumbnail #3 SRX900 RC1 detail thumbnail #4

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

Included:

  • (1) Rain Cover
  • (5) T15 M3.5 Screws

ឯកសារ
RC500 | ឧបករណ៍សង្ស្របបង្វិល
RC500 Main photo
រូបភាពធំជាង
RC500 detail thumbnail #1 RC500 detail thumbnail #2 RC500 detail thumbnail #3 RC500 detail thumbnail #4

លក្ខណៈពិសេស៖

  • អាដាប់ទ័រសង្វាក់/បំពង់សកល
  • ការគាំទ្របាន់ដល់ 500 គីឡូក្រាម (1100 ផោន)
  • យន្តការសង្ខាប់ដែលអាចលៃតម្រូវបាន
  • ជួរបំពង់៖ 0.5 អ៊ីញ – 2 អ៊ីញ
  • រួមបញ្ចូលតម្លាប់សម្រាប់ការបង្វិល 360° រលូន
  • សញ្ញាបង្វិល 10 ដឺក្រេសម្រាប់ការ�ាក់ស្តីពីអារេផ្តេក

រួមបញ្ចូល៖

  • (1) VTX RC500 Rotating Clamp

ភាពឆបគ្នា៖

  • VTX A6 MF
  • VTX A8 MF
  • SRX906LA AF
  • SRX910LA AF
  • SRX922 AF

ឯកសារ
