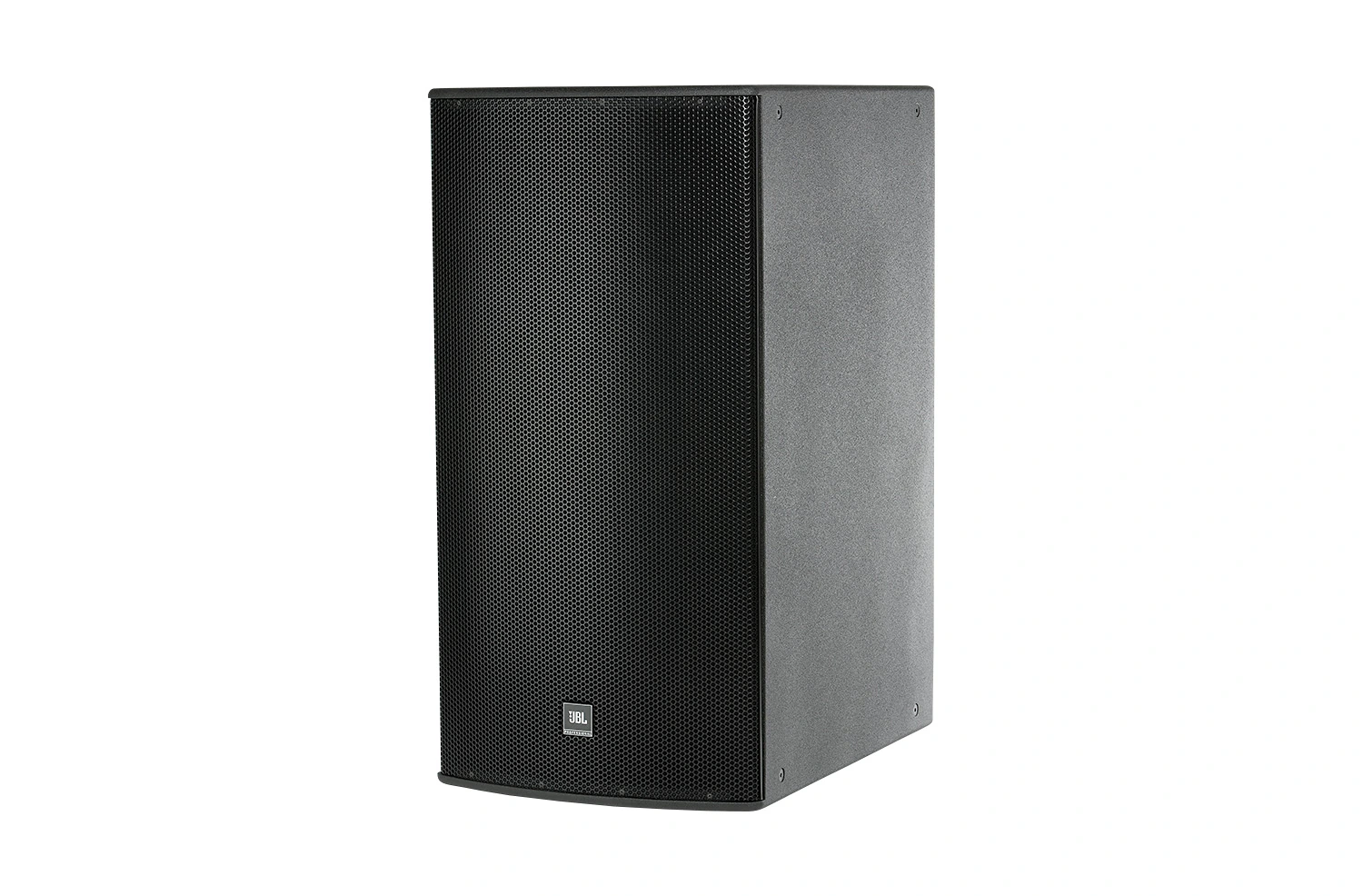

ASB7128

សាប វូហ្វែរ ពីរ 18 អ៊ីញ ថាមពល ខ្ពស់

ASB7128
រូបភាពធំជាង

ឧបករណ៍បង្កើតសម្លេងបាសថាមពលខ្ពស់ដែលមានឌីផេរ៉ង់ស្យែល 18 អ៊ីഞ୍ଚ ពីរគ្រឿង

ASB7128 គឺជាឧបករណ៍ផលិតសម្លេងបាសដែលមានថាមពលខ្ពស់ ស្រាល ផ្ទុកខាងមុខលូតាង ដែលផ្ទុកឧបករណ៍បង្កើតសម្លេងបាស 18 អ៊ីஞ୍ଚ Differential Drive® 2269H ធម្មជាតិដែលមានលក្ខណៈអនন្យ របស់ JBL ពីរគ្រឿង។ ឧបករណ៍បង្កើតសម្លេងនេះមានលក្ខណៈពិសេស ដូចជា មេដែកនាណូម៉ែត្រ ឧបករណ៍ខ្ពស់តម្លៃពីរ និងគម្លាតពីរ ប្រព័ន្ធត្រជាក់គម្លាតលូតាង Vented Gap Cooling™ របស់ JBL ដែលមានលក្ខណៈអនន្យ និងកោណផ្សំដ៏រឹងមាំបន្ថែមទៀត ដែលមានលក្ខណៈអនន្យសម្រាប់ការលូតាងខ្ពស់ និងអាយុកាលប្រើប្រាស់វែង។ ឧបករណ៍បង្កើតសម្លេងបាសមាន សមត្ថភាពលូតាងបង្គោលទាំងពីរអតិបរិមាណ 89 ម.ម (3.5 អ៊ីஞ୍ଚ)។



លក្ខណៈពិសេស

  • ២ x 2269H 18" ឧបករណ៍ផ្លាស់ប្តូរ Differential Drive® ដែលមាន dual voice coil dual gap ដែលមានមេដែក neodymium
  • 4000 វ៉ាត់ ថាមពលបន្ត pink noise,
    16000 វ៉ាត់ សមត្ថភាពដោះស្របកម្លាំងកំពូល
  • Ultra Long Excursion
  • តំបន់បង្ហោះធំសម្រាប់ទិន្នផលខ្ពស់ដែលមានការបង្ខូចទ្រង់ទ្រាយទាប
  • របៀបបញ្ចូលដែលអាចប្តូរបានរវាង Parallel/Discrete
  • សម្រុង FIR ដែលរលេវាងព្រីផ្សេងគ្នាដើម្បីដូច Full-Range Models
  • សម្រាប់ការប្រើប្រាស់ក្នុងលក្ខខណ្ឌដែលដាក់នៅលើដី ឬព្យួរក្នុងអារេឯករាយ ឬផ្សំដូងផ្សេងទៀត
    ផលិតផល AE Series

ដើម្បីកែលម្អភាពជឿreliable ក្នុងលក្ខខណ្ឌអាកាសធាតុ និងកាត់បន្ថយការចូលទឹក វិមាត្របង្អួច របស់ម៉ូដែល WRC & WRX អាចខុសគ្នាលើសពីវិមាត្របង្អួចម៉ូដែលស្តង់ដារ។ សូមលទ្ធផលទាក់ទងរំលឹក CustomAudio@harman.com ដើម្បីរកបង្ហាញ និង/ឬព័ត៌មានលម្អិតវិមាត្របង្អួច របស់ម៉ូដែល WRC & WRX ។



ការទាញយក

Specifications
  ទំហំ បានផ្ទុកឡើង
file type icon ASB7128 Spec Sheet
បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2020
386 KB ធ្នូ 2020
Manuals
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon Weather Resistant Configurations
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023
en  86.1 KB ឧសភា 2023
file type icon AE/PD Connector Pinout Guide
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
    8.25 KB តុលា 2019
Brochures
  ទំហំ បានផ្ទុកឡើង
file type icon AE Series Brochure
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
4.05 MB តុលា 2020
file type icon AM Brochure
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
1.54 MB តុលា 2020
CAD Drawings
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon AE Series - Revit/BIM Files
កំណែ 11.0, បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2024
11.0  730 KB កក្កដា 2024
file type icon AE Series - Customer Drawings
កំណែ 2.0, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2024
2.0  2.69 MB ឧសភា 2024
file type icon AE Series - WR Models Customer Drawings
កំណែ 3.0, បានធ្វើបច្ចុប្បន្នភាព: មេសា 2026
3.0  3.8 MB មេសា 2026
Compliances
  ទំហំ បានផ្ទុកឡើង
file type icon AE Series ASB - Declaration of Conformity
បានធ្វើបច្ចុប្បន្នភាព: កក្កដា 2024
93.5 KB កក្កដា 2024
Preset Libraries
  ទំហំ បានផ្ទុកឡើង
file type icon AE Series DCi Series Preset Library
បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2024
471 KB ឧសភា 2024
Application Guides
  ភាសា ទំហំ បានផ្ទុកឡើង
file type icon Directional Bass Using 3-Element Arrays
en បានធ្វើបច្ចុប្បន្នភាព: សីហា 2021
en  570 KB សីហា 2021

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range (-10dB) 20 Hz - 1 kHz
Frequency Response (±3 dB) 25 Hz - 1 kHz
Transducer Power Rating (AES) 4000 W (16000 W peak), 2 hrs.
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 2400 W (9600 W peak), 100 hrs.
Maximum SPL (1m) 25 Hz - 200 Hz: 135 dB-SPL cont avg. (141 dB peak)
System Sensitivity 25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
LF Driver 2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Finish Black DuraFlex™ finish.White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 1092 x 560 x 815 mm(43.0 x 22.0 x 32.1 in)
Net Weight (each) 71.9 kg (158.5 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance 4 ohms in parallel-drive mode
2 x 8 ohms in discrete-drive mode
