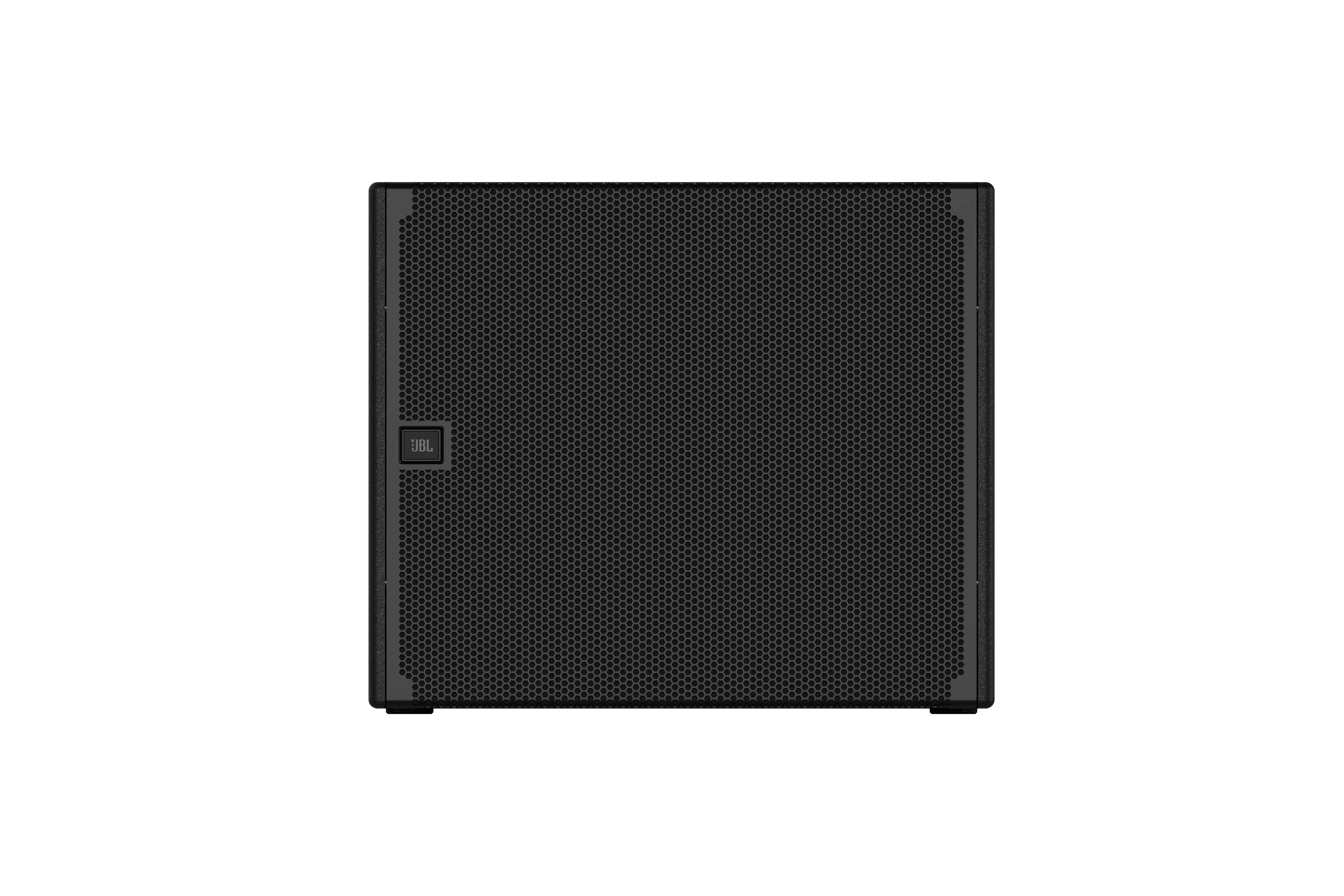

SRX918S

18-inch Powered Subwoofer

SRX918S

18-inch Powered Subwoofer
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

The SRX918S is a single 18-inch active subwoofer designed to complement SRX900 Series full-range sound reinforcement systems. The subwoofer houses a JBL 2279-1 18-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs.

Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world. The SRX918S incorporates a large low frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.

特長

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides complete access to control features
  • Reinforced 18mm plywood enclosures

ダウンロード

Specifications
  バージョン 言語 サイズ アップロード日
file type icon SRX918S Spec Sheet
en バージョン B, 更新: 2025年1月
en  429KB 2025年1月
Manuals
  バージョン 言語 サイズ アップロード日
file type icon SRX900 Series User Manual
en バージョン D, 更新: 2026年1月
en  12MB 2026年1月
file type icon SRX900LA Rigging Manual
en バージョン F, 更新: 2026年2月
en  48.3MB 2026年2月
file type icon SRX900PS Rigging Manual
en バージョン A, 更新: 2026年1月
en  8.28MB 2026年1月
file type icon Assembly Instructions - powerCON TRUE1
en バージョン 4.0, 更新: 2025年1月
4.0  en  8.64MB 2025年1月
CAD Drawings
  バージョン 言語 サイズ アップロード日
file type icon SRX918S Customer Drawings
en バージョン A, 更新: 2022年5月
en  4.55MB 2022年5月
file type icon SRX900 Series Revit/BIM Files
バージョン 3.0, 更新: 2026年2月
3.0    74.2MB 2026年2月
file type icon SRX900 Series Sketchup Files
バージョン 3.0, 更新: 2026年2月
3.0    10MB 2026年2月
Software
  バージョン サイズ アップロード日
download icon for Venue Synthesis Venue Synthesis
リリース日: 2025年1月
  2025年1月
download icon for ArrayLink ArrayLink
リリース日: 2025年1月
  2025年1月
download icon for Performance Software Performance Software
リリース日: 2025年1月
  2025年1月
download icon for SRX900 Module for AMX SRX900 Module for AMX
リリース日: 2025年1月
  2025年1月
download icon for SRX900 Plugin for Q-SYS SRX900 Plugin for Q-SYS
バージョン 1.2.0.0, 更新: 2026年3月
1.2.0.0   4.15MB 2026年3月
Firmware
  バージョン 言語 サイズ アップロード日
file type icon SRX900 Series Firmware Changelog
en バージョン 2.0.1, 更新: 2026年3月
2.0.1  en  123KB 2026年3月
Simulation Data
  バージョン サイズ アップロード日
file type icon SRX900LA - EASE GLL
バージョン 2.0, 更新: 2026年1月
2.0  20.6MB 2026年1月
file type icon SRX900PS - EASE GLL
バージョン 1.0, 更新: 2026年1月
1.0  10.2MB 2026年1月
Declaration of Conformity
  バージョン 言語 サイズ アップロード日
file type icon SRX900 Series - EU Declaration of Conformity
en バージョン D, 更新: 2026年3月
en  512KB 2026年3月
file type icon SRX900 Series - UKCA Declaration of Conformity
en バージョン D, 更新: 2026年3月
en  441KB 2026年3月
file type icon SRX900 Series - CB Certificate of Compliance
en バージョン D, 更新: 2026年2月
en  699KB 2026年2月
file type icon SRX900 Series - UL Certificate of Compliance
en バージョン D, 更新: 2026年2月
en  1.55MB 2026年2月
file type icon SRX900 Series - CQC Certificate of Compliance
zh バージョン C, 更新: 2026年2月
zh  2.11MB 2026年2月
file type icon SRX900 Series - KC Certificate of Compliance
ko バージョン C, 更新: 2026年3月
ko  2.56MB 2026年3月
file type icon SRX900 Series - Taiwan RoHS Documentation
zh バージョン B, 更新: 2025年6月
zh  137KB 2025年6月
Service Notes
  バージョン 言語 サイズ アップロード日
file type icon SRX918S Spare Parts
en バージョン A, 更新: 2026年2月
en  44.1KB 2026年2月

上記のリンクをクリックしてブラウザで文字化けが発生する場合は、ファイルを右クリックしてコンピューターに保存してください。

パーツとサービス

仕様

Frequency Range (-10dB) 35 Hz-90 Hz
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 134 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continous Power Rating 1,100 Watts
LF Driver (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Plywood, Black DuraFlex finish, two integral recessed handles
Dimensions (H x W x D) 575 mm x 684 mm x 683 mm
(22.6 in x 26.9 in x 26.9 in)
Net Weight (each) 44.5 kg (98 lbs)
