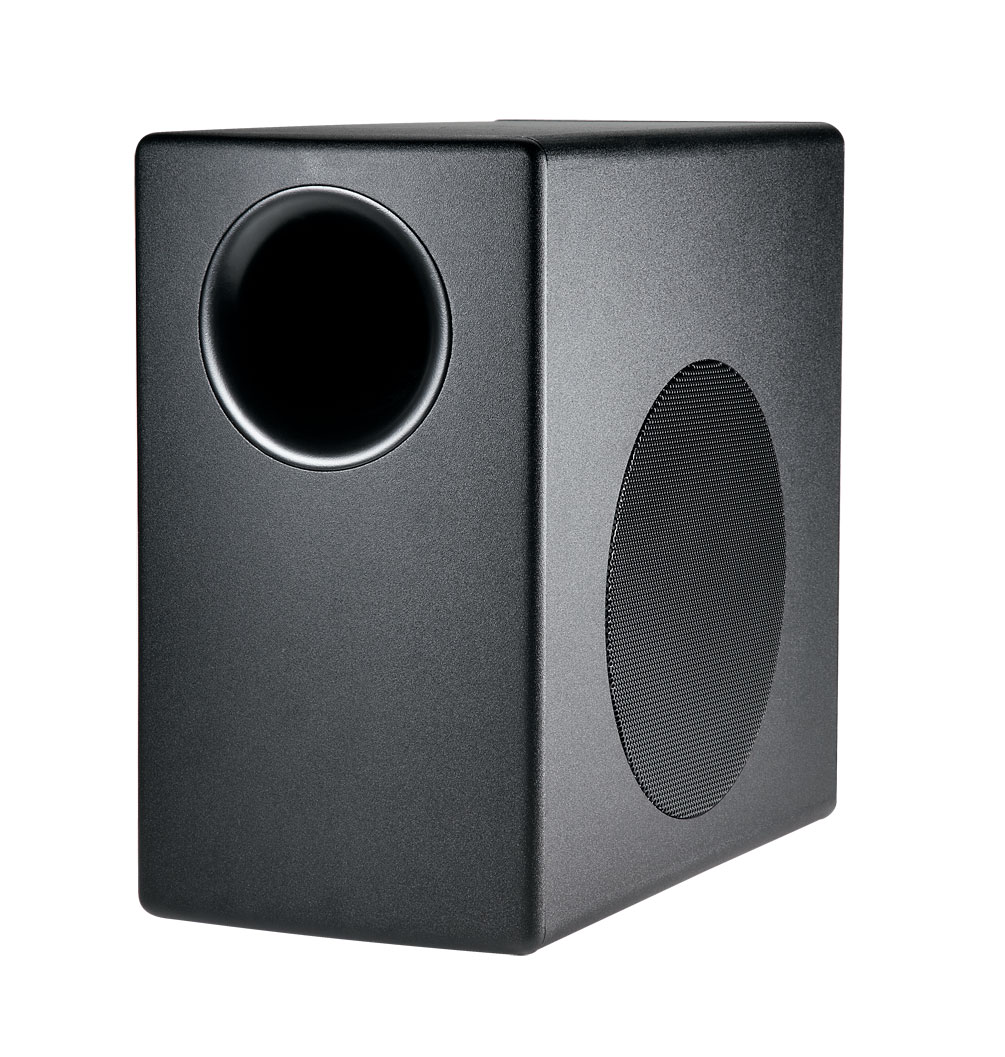

JBL Professional Control 50S/T

Immagini più grandi

Subwoofer a montaggio superficiale per sistema di altoparlanti subwoofer-satellite

Il subwoofer Control 50S/T da 150 Watt (600 Watt di picco) integra un driver da 200 mm (8 pollici) ad alta potenza e a lunga escursione, caratterizzato da un cono ad alta massa estremamente robusto per una risposta estesa alle basse frequenze, una bobina mobile in rame a 4 strati da 38 mm (1,5 pollici) per un'elevata forza motrice, un supporto in alluminio per un'eccellente risposta ai transienti e una sospensione in gomma a mezzo rullo per prestazioni dei bassi migliorate.

Caratteristiche

Full bandwidth 32 Hz – 20 kHz high fidelity sound
Selectable 70V/100V for distributed lines, or low impedance
Versatility for either two or four satellite speakers per system
Available in black or white

Download

Specifications

	Dimensione	Caricato
Control 50S/T Spec Sheet aggiornato: apr 2019	1,28 MB	apr 2019

Brochures

	Versione	Lingua	Dimensione	Caricato
Control Contractor Brochure (2025) versione A, aggiornato: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2024) versione D, aggiornato: feb 2024	D		14 MB	feb 2024
Control Contractor Brochure (2026) aggiornato: mar 2026			21 MB	mar 2026

BIM Objects

	Dimensione	Caricato
CONTROL 50S/T BIM Object aggiornato: ago 2019		ago 2019

Compliances

	Dimensione	Caricato
JBL Control Series Passive Speakers DoC aggiornato: dic 2019	179 KB	dic 2019
Control 50 Series Declaration of Conformity aggiornato: ott 2019	90,6 KB	ott 2019

Speaker Tunings

	Versione	Dimensione	Caricato
Commercial, CBT, and AWC Tunings 220616 versione A, aggiornato: mag 2023	A	557 KB	mag 2023

Images

	Dimensione	Caricato
Control 50ST Hi Res Photo aggiornato: apr 2019	179 KB	apr 2019

FAQs

	Dimensione	Caricato
Control 50 FAQ aggiornato: apr 2019	159 KB	apr 2019

Install Guides

	Dimensione	Caricato
Control 50S/T Install Sheet aggiornato: apr 2019	382 KB	apr 2019

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Frequency Range (-10dB)	32 Hz – 200 Hz
Frequency Response (±3 dB)	50 Hz – 150 Hz
Power Capacity	300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
Sensitivity	95 dB (near corner), 89 dB (center of wall)
Maximum SPL (1m)	115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
Impedance	8 ohms (in bypass/thru mode)
Transformer Taps	80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
Drivers	200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
Input Connectors	Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Enclosure	Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
Dimensions (H x W x D)	Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
Mounting Hardware	2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
Net Weight (each)	9.0 kg (20 lbs)
Shipping Weight	10.2 kg (23 lbs)
Included Accessories	Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
Grille	Zinc-plated steel
Coverage Angle	Omnidirectional
