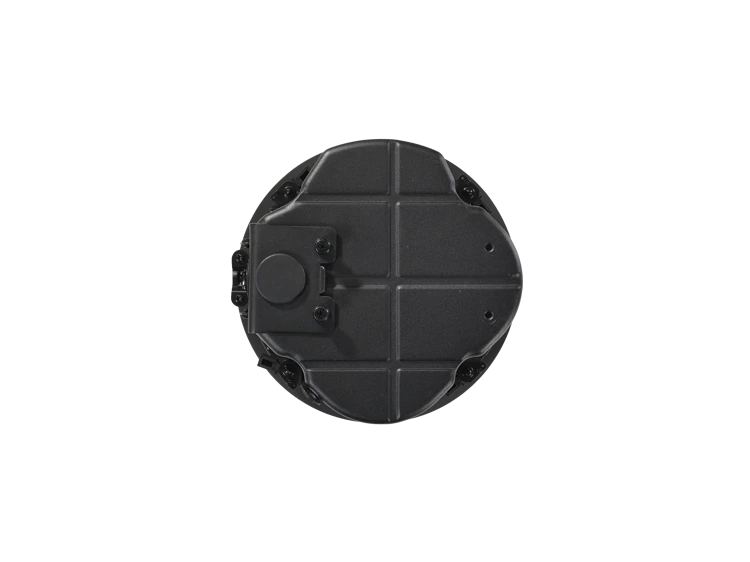

Control 426C/T

Altoparlante Coassiale da Incasso con CRBI™ a Due Vie, 6,5"

Control 426C/T
Immagini più grandi

Il JBL Control 426C/T è un diffusore da soffitto coassiale a due vie, caratterizzato da un woofer da 6,5" e da un involucro integrato ideale per l'installazione nella maggior parte degli spazi plenari dei soffitti. La tecnologia CRBI™ integrata fornisce 110° di suono coerente, completo e ricco all'area di ascolto. Una griglia magnetica a volto intero si integra perfettamente con gli arredamenti moderni e sono disponibili griglie quadrate e nere opzionali. I miglioramenti meccanici includono coperchi terminali riprogettati con porte di ingresso cavi superiori e laterali e un nuovo affidabilissimo design a dogear che funziona con un'ampia gamma di spessori dei soffitti. Il JBL Control 426C/T include un trasformatore per supportare sia applicazioni 70V/100V che ad impedenza ridotta.

  • Prestazioni Soniche Superiori

    Il Coplanar RBI™, o CRBI™ offre un carattere sonoro particolarmente morbido che rimane consistente, nitido e piacevole su un'ampia area di copertura. Riduce i picchi on-axis e i vuoti off-axis e migliora l'esperienza d'ascolto degli utenti mentre si muovono nello spazio. Questa copertura migliorata comporta la necessità di meno altoparlanti, canali di amplificazione e costi di progetto per coprire uno spazio.

  • Efficient, Flexible Installation

    Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • Refined, Modern Aesthetics

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

Prestazioni Soniche Superiori

Il Coplanar RBI™, o CRBI™ offre un carattere sonoro particolarmente morbido che rimane consistente, nitido e piacevole su un'ampia area di copertura. Riduce i picchi on-axis e i vuoti off-axis e migliora l'esperienza d'ascolto degli utenti mentre si muovono nello spazio. Questa copertura migliorata comporta la necessità di meno altoparlanti, canali di amplificazione e costi di progetto per coprire uno spazio.

featured content

Efficient, Flexible Installation

Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Caratteristiche

  • Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • CRBI™ technology for consistent 110° coverage across the listening area
  • Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side exit cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

Download

Specifications
  Dimensione Caricato
file type icon Control 426C/T – Spec Sheet
aggiornato: gen 2025
647 KB gen 2025
Manuals
  Dimensione Caricato
9,99 MB gen 2025
Brochures
  Versione Lingua Dimensione Caricato
file type icon Control Contractor Brochure (2026)
en aggiornato: mar 2026
  en  21 MB mar 2026
file type icon 2025 Control 400 Family Brochure
aggiornato: ago 2025
    3,9 MB ago 2025
file type icon Control Contractor Brochure (2025)
en versione A, aggiornato: mar 2026
en  23 MB mar 2026
CAD Drawings
  Dimensione Caricato
file type icon Control 426C/T - Customer Drawings
aggiornato: gen 2025
12,5 MB gen 2025
BIM Objects
  Dimensione Caricato
file type icon Control 426C/T - BIM Object
aggiornato: mar 2025
mar 2025
Software
  Versione Dimensione Caricato
Windows download icon Distributed System Design (DSD)
versione 3.9, aggiornato: nov 2025
3.9   612 KB nov 2025
Declaration of Conformity
  Dimensione Caricato
143 KB feb 2025
210 KB feb 2025
Technical Papers
  Dimensione Caricato
768 KB nov 2025
Ease Data
  Dimensione Caricato
file type icon Control 426C/T – CLF File
aggiornato: gen 2025
326 KB gen 2025
file type icon Control 426C/T – EASE GLL
aggiornato: gen 2025
719 KB gen 2025
Accessories
  Versione Dimensione Caricato
file type icon Ceiling Speaker Accessory Guide
versione 2026-04, aggiornato: mag 2026
2026-04  570 KB mag 2026

Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.

Parti e assistenza

Specifiche

Frequency Range (-10 dB) 72 Hz – 19 kHz
Power Capacity 110 W (440 W Peak), Continuous Pink Noise (2 hrs)
75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity (1m/1W) 89dB
Coverage Angle 110° conical
Maximum SPL (1m) 109 dB continuous pink noise (115 dB peak)
Nominal Impedance 12Ω
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W
Drivers LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet
HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly
Ceiling Cutout Size 223 mm (8.8 in)
Dimensions 190 mm (7.4 in) H x 253 mm (9.9 in) dia.
181 mm (7.1 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
Environmental IP33 rating per EN/IEC 60529.
Operating temperature 0°C to 45°C
Optional Accessories JBL-MTC-426BG black (RAL9004) round grille
JBL-MTC-426SG white (RAL9003) square grille
JBL-MTC-426NC new construction bracket
JBL-MTC-426MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 4.2 kg (9.3 lbs)
Shipping Weight (pair) 13.48 kg (29.73 lbs)
SKU Numbers JBL-C426C/T

Accessori

MTC-426BG | Griglia rotonda nera per Control 426C/T, 426LP e 424LP
MTC-426BG Main photo
Immagini più grandi
MTC-426BG detail thumbnail #1 MTC-426BG detail thumbnail #2 MTC-426BG detail thumbnail #3
  • Griglia magnetica a protezione totale con cavo di sicurezza
  • Design elegante e raffinato che soddisfa l'estetica richiesta dai progettisti moderni

MTC-426SG | Griglia quadrata per Control 426C/T, 426LP e 424LP
MTC-426SG Main photo
Immagini più grandi
MTC-426SG detail thumbnail #1 MTC-426SG detail thumbnail #2
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
