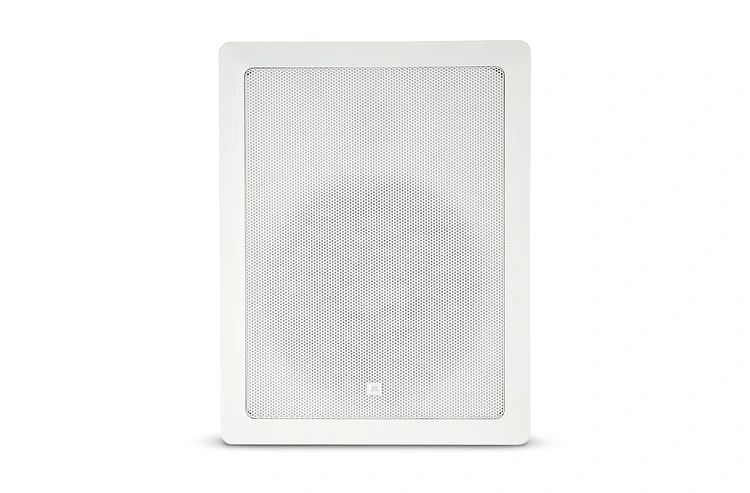

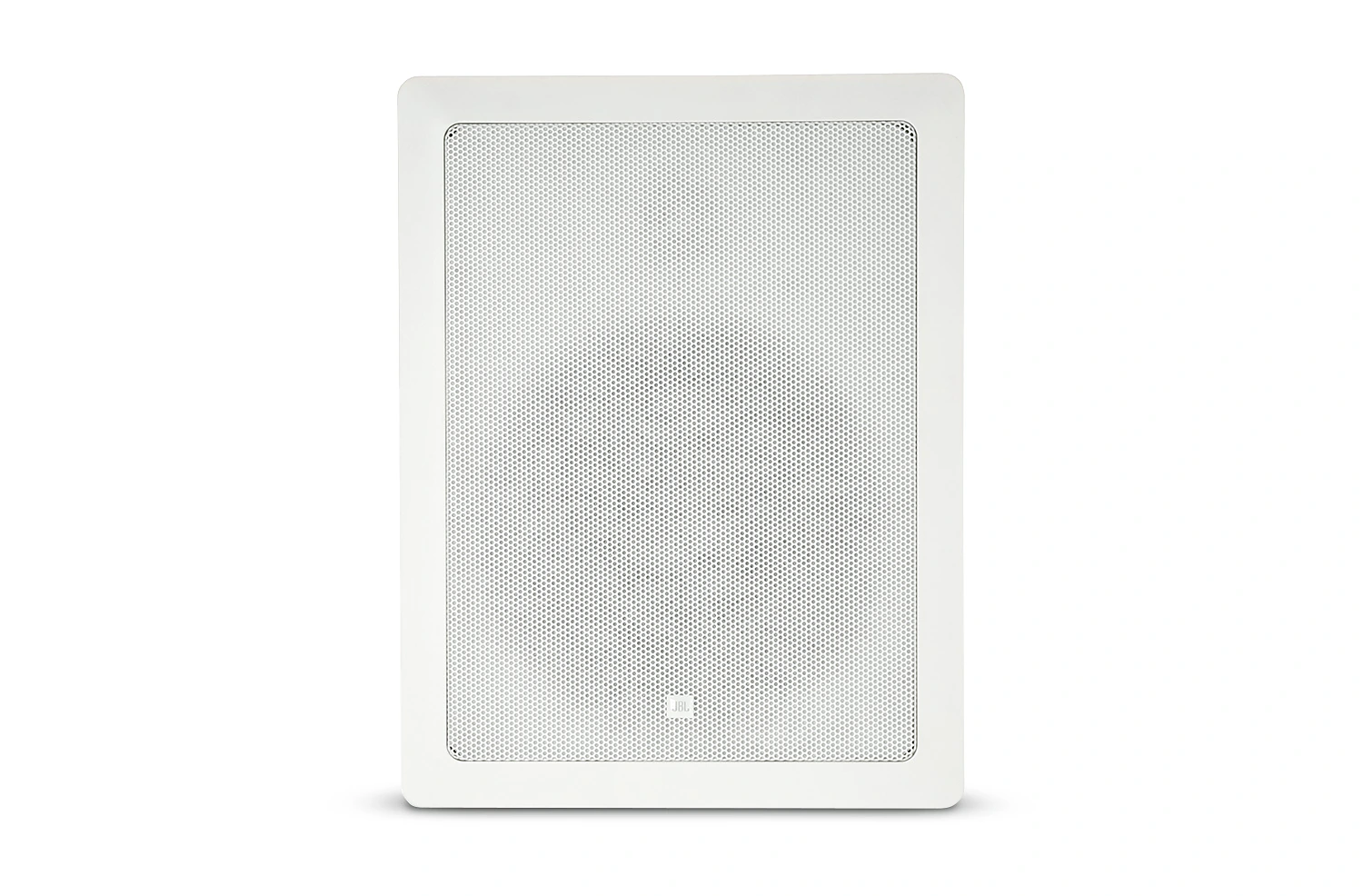

Il Control 128W è un diffusore premium a incasso della linea JBL Professional Control® Contractor progettato per applicazioni quali musica di sottofondo, sale riunioni, aree di ricezione, aeroporti, centri congressi, navi da crociera, negozi al dettaglio, ristoranti, musei, ambienti surround o qualsiasi applicazione di ascolto critico dove è richiesta una prestazione superiore da un diffusore con impatto visivo minimo.
| Dimensione | |
|
|
576 KB |
| Dimensione | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
| Dimensione | |
|
|
751 KB |
| Dimensione | |
|
|
179 KB |
| Dimensione | |
|
|
24 MB |
|
|
21 MB |
| Dimensione | |
|
|
106 KB |
|
|
117 KB |
| Dimensione | |
|
|
61,6 KB |
|
|
65,2 KB |
|
|
82,8 KB |
| Dimensione | |
|
|
557 KB |
| Dimensione | |
|
|
52,4 KB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
| Frequency Range | 30 Hz - 20 kHz (-10 dB) |
| Power Rating | 200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise |
| Sensitivity | 90 dB SPL |
| Coverage Angle | 180°H x 160°V |
| Impedance | 8 ohms |
| Drivers | LF: 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround. HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability. |
| Input Connectors | Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2 |
| Crossover Network | 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter. |
| Optimum Air Cavity Behind Speaker | 40 to 80 liters (1.4 to 2.8 cu ft) |
| Outside Dimensions (H x W x D) | 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker. |
| Maximum Wall Thickness | 32 mm (1.25 in) |
| Cutout Size (H x W) | 300 x 225 mm (11.9 x 8.9 in), Cutout template included. |
| Net Weight (each) | 2.6 kg (5.5 lb) |
| Shipping Weight (ea) | 128 W: 5.9 kg (13.0 lb) |
| Included Accessories | Cutout template & paint shield |
| Optional Accessories | WB8 Rough-In Frame for newconstruction installation to wallstuds |
Commercial audio designers and consultants have many choices when selecting the right manufacturer, product and solution to fulfill the unique requirements of each client’s particular installed audio application. The JBL Control Contactor Series was developed specifically to target these users with purpose-built ceiling, pendant, in-wall,
