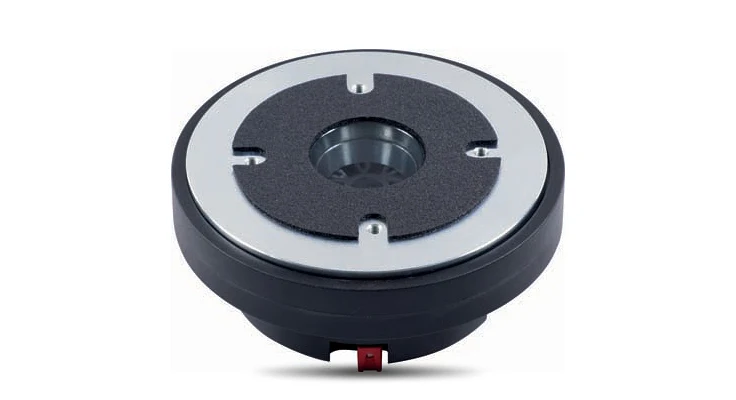

D305
Recommended for use in high performance compact, two-way, multi-way and line array systems. For use in sound reinforcement, side fill and stage monitor loudspeakers. World class drivers with excellent performance.
Immagini più grandi
Download
Data Sheets
| Dimensione | |
|
|
433 KB |
Brochures
| Dimensione | |
|
|
1,32 MB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
Parti e assistenza
Specifiche
| Throat diameter | 2" |
| Impedance (ohms) | 8 |
| RMS (W) | 75 |
| Musical Program (W) | 150 |
| SPL 1W @ 1m (dB) | 110 |
| Frequency Range (-10dB) | 400 to 9,000 |
| Rec. X-over, 12dB/oct min. (Hz) | 500 |
| Voice coil diameter in (mm) | 3 (75) |
| Magnet weight oz. (g) | 1,600 |
| Housing material | Plastic |
| Horn connection | Bolt on |
