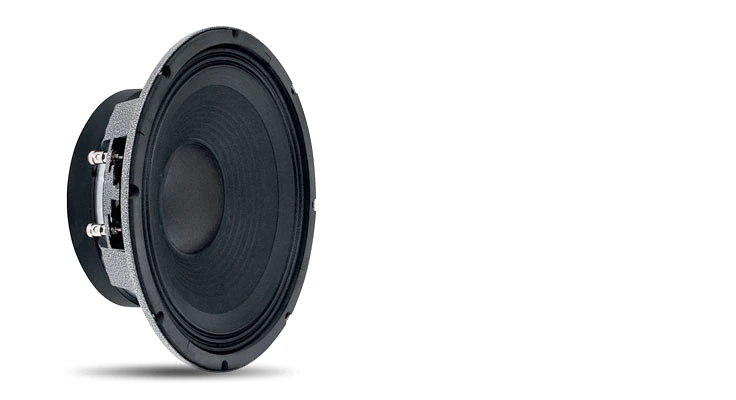

12WS600
12” Woofer for low and mid bass professional sound reinforcement, offering high power capacity, outstanding low end response and exceptionally smooth transition into the vocal range.
Immagini più grandi
Download
Data Sheets
| Dimensione | |
|
|
316 KB |
Brochures
| Dimensione | |
|
|
1,32 MB |
Se uno dei link sopra produce caratteri strani nel tuo browser, fai clic destro sul file per salvarlo sul tuo computer.
Parti e assistenza
Specifiche
| Nominal diameter mm (in) | 305 (12) |
| Nominal Impedance | 8 W |
| Minimum impedance @ 212 Hz | 7.4 W |
| Sensitivity (2.83V@1m) averaged from 100 to 500 Hz | 95 dB SPL |
| Frequency Range (-10dB) | 45 to 3,000 Hz |
| Magnet material | Barium ferrite |
| Magnet weight | 2,640 (94) g (oz) |
| Frame Material | Aluminum |
| Voice coil material | Copper |
