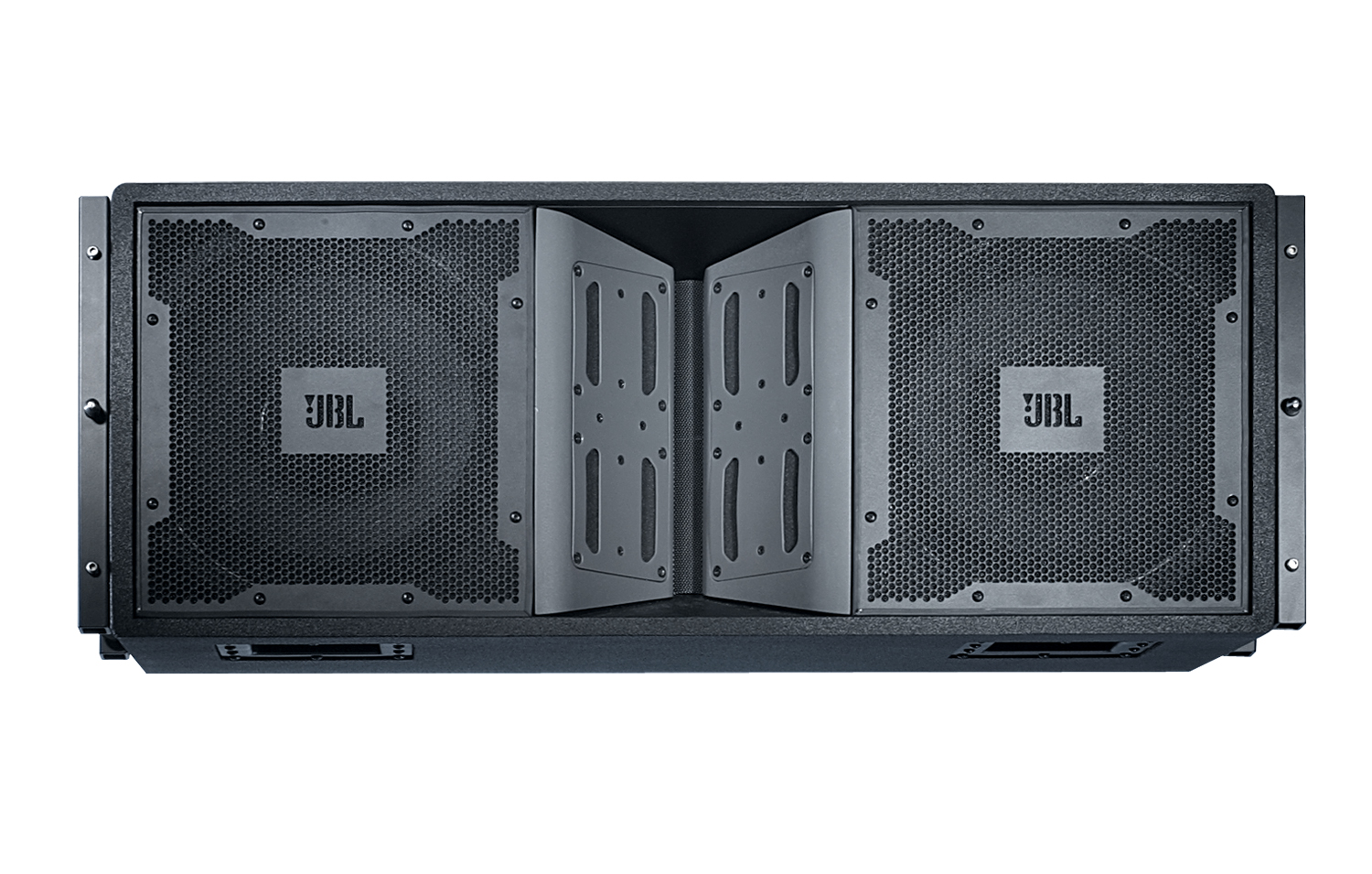

Midsize Tri-Amplified 3-Way High Directivity Line Array Element
The VT4888 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.
Hình ảnh lớn hơn
Tính năng
- Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
- Direct Cooled™ cone transducers for low weight and high output.
- HF Waveguide units couple to create precision vertical slot aperture.
- Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
- Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
- Rugged DuraFlex™ exterior finish; weatherized components.
- Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
- Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
- For use in stand-alone arrays or in combination with other VERTEC® system models.
Tải xuống
Specifications
| Kích thước | |
|
|
1 MB |
Manuals
| Kích thước | |
|
|
1000 KB |
|
|
1 MB |
Brochures
| Kích thước | |
|
|
2 MB |
CAD Drawings
| Kích thước | |
|
|
300 KB |
|
|
800 KB |
|
|
100 KB |
Compliances
| Kích thước | |
|
|
100 KB |
Software
| Kích thước | |
|
|
100 MB |
|
|
20 MB |
Speaker Tunings
| Kích thước | |
|
|
400 KB |
|
|
2 MB |
|
|
2 MB |
|
|
2 MB |
|
|
700 KB |
|
|
1 MB |
|
|
40 MB |
|
|
3 MB |
|
|
1 MB |
|
|
3 MB |
|
|
2 MB |
|
|
2 MB |
|
|
4 MB |
|
|
900 KB |
|
|
4 MB |
|
|
1000 KB |
|
|
3 MB |
|
|
5 MB |
|
|
20 MB |
|
|
100 MB |
|
|
1 MB |
Helpful Links
| Kích thước | |
|
|
900 KB |
|
|
3 MB |
|
|
400 KB |
|
|
500 KB |
|
|
300 KB |
|
|
1 MB |
Ease Data
| Kích thước | |
|
|
1 MB |
User Guides
| Kích thước | |
|
|
2 MB |
Images
| Kích thước | |
|
|
700 KB |
Accessories
| Kích thước | |
|
|
4 MB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
Phụ tùng & Dịch vụ
Thông số kỹ thuật
| Frequency Range | 48 Hz - 18 kHz (-10dB) |
| Frequency Response | 60 Hz - 16 kHz (± 3 dB) |
| Continuous Power Rating | 2000W LF, 600W MF, 150W HF |
| Sensitivity | 98 dB LF, 102 dB MF, 114 dB HF (1W/1m) |
| Nominal Impedances | 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF |
| Horizontal Coverage | 90 degrees nominal, 250 Hz - 16 kHz (-6dB) |
| Dimensions (w x h x d) | 990.6 mm x 355.6 mm x 508 m (39 in x 14 in x 20 in) |
| Weight | 51.3 kg (113 lb) |
