Control 28-1L

High-Output 8-Ohm Indoor/Outdoor Background/Foreground Speaker

Control 28-1L
Larger Images

High-Output 8-Ohm Indoor/Outdoor Background/Foreground Speaker

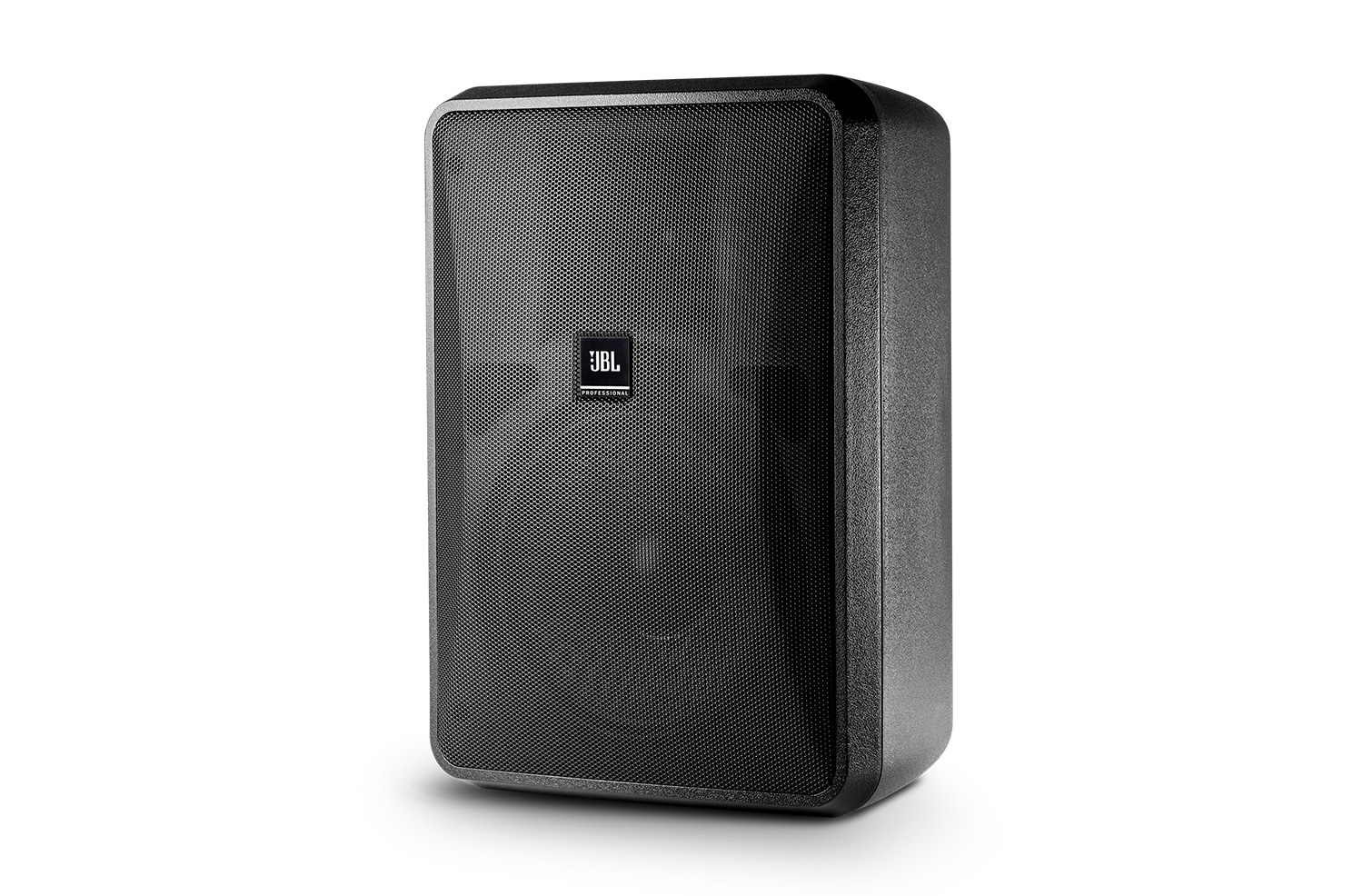

The Control® 28-1L is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Fitur

  • 8” woofer with woven fiberglass cone
  • 1” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 120 Watt power handling (240 Watt program)
  • High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.


Downloads

  Version Language Size Uploaded
Specifications
file type icon Control 28-1L Spec Sheet
version B, updated: Mar 2020
  463 KB Mar 2020
Manuals
file type icon MTC-23UB-1, 25UB-1, 28UB-1 U Bracket Install Guide
updated: Okt 2019
    67,7 KB Okt 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version E, updated: Mar 2024
en  14,2 MB Mar 2024
CAD Drawings
file type icon Control 23-1, 25-1, 28-1 Bracket 2D & 3D CAD, PDF
updated: Okt 2020
    5,81 MB Okt 2020
file type icon Control 28-1/L 2D Drawing
updated: Okt 2020
    485 KB Okt 2020
file type icon Control 28-1/L 3D Drawing
updated: Okt 2020
    3,33 MB Okt 2020
BIM Objects
file type icon Control 28-1 BIM Object
updated: Agu 2019
    Agu 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC
updated: Des 2019
    179 KB Des 2019
file type icon Control Contractor 20-1(L) Declaration of Conformity
updated: Okt 2019
    75,9 KB Okt 2019
file type icon Control Contractor Series Declaration of Conformity
updated: Okt 2019
    131 KB Okt 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1,07 MB Nov 2023
Images
file type icon Control 28-1 Angle
updated: Okt 2020
    330 KB Okt 2020
file type icon Control 28-1 Front White
updated: Okt 2020
    339 KB Okt 2020

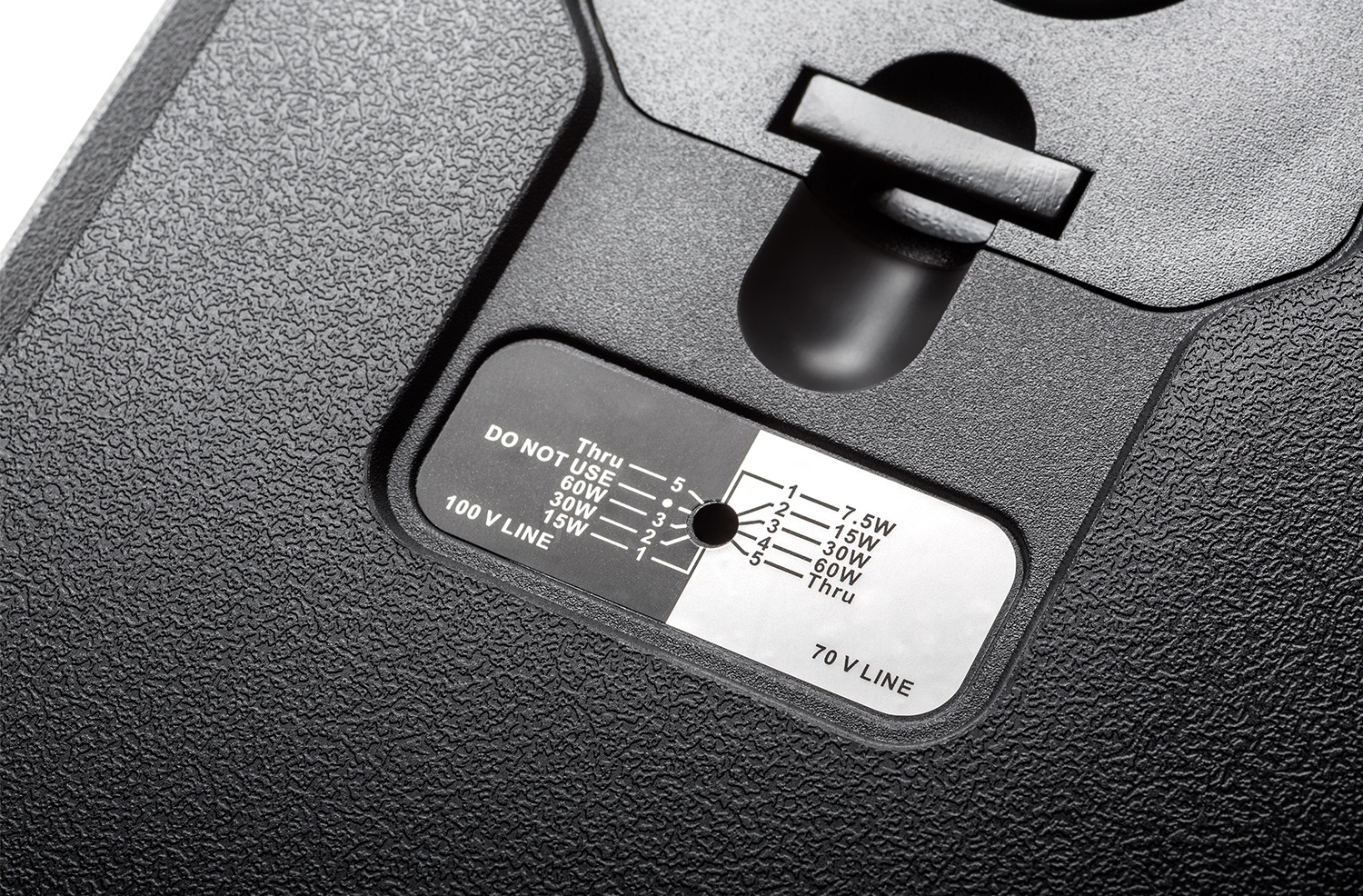

file type icon Control 28-1 Detail
updated: Okt 2020
    806 KB Okt 2020
Accessories
file type icon WeatherMax Grille Photos
updated: Apr 2021
    2,75 MB Apr 2021
file type icon U-Bracket Install guide
updated: Okt 2020
    67,7 KB Okt 2020
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: Mei 2021
  en  5,71 MB Mei 2021
Simulation Data
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: Mei 2023
12-10-21    24 MB Mei 2023
Install Guides
file type icon Painting HIPS Loudspeaker Cabinets
updated: Jun 2023
    377 KB Jun 2023
file type icon Guide to Business Music
updated: Okt 2020
    52,4 KB Okt 2020
file type icon Invisiball™ Installation Instructions
updated: Sep 2019
    227 KB Sep 2019
file type icon Attaching Control Contractor Speakers to Stands
updated: Nov 2019
    76,4 KB Nov 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mei 2023
  557 KB Mei 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 45 Hz to 20 kHz
Frequency Response (±3 dB) 62Hz - 16 kHz
Power Rating 240 W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is conservative expression of the system’s ability to handle normal speech and music program material.
Maximum Input Voltage 27.5 V RMS (2 hrs), 55.0 V peak
Maximum SPL (1m) 112 dB ave. Continuous Pink Noise (118 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression.
Sensitivity 91 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
Coverage Angle 100°H x 100°V
Directivity Factor (Q) 7.3 (averaged 1kHz – 16kHz)
Impedance 8 ohms
Crossover Type 2nd order low-pass, 1st order high-pass, plus conjugate shaping
Recommended Protective High-Pass 45 Hz high-pass (24 dB/oct) *For protection against driving below resonant frequency and to keep transformer out of saturation.
Drivers LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation
Net Weight (each) 6.2 kg (13.5 lbs)
Shipping Weight 13.4 kg (29.5 lbs) pair-packed (for 2 speakers)
Included Accessories InvisiBall™ wall-mounting system, 6 mm x 180 mm hex key
Optional Accessories MTC-28UB-1 – Yolk-type U-bracket (&-WH)
