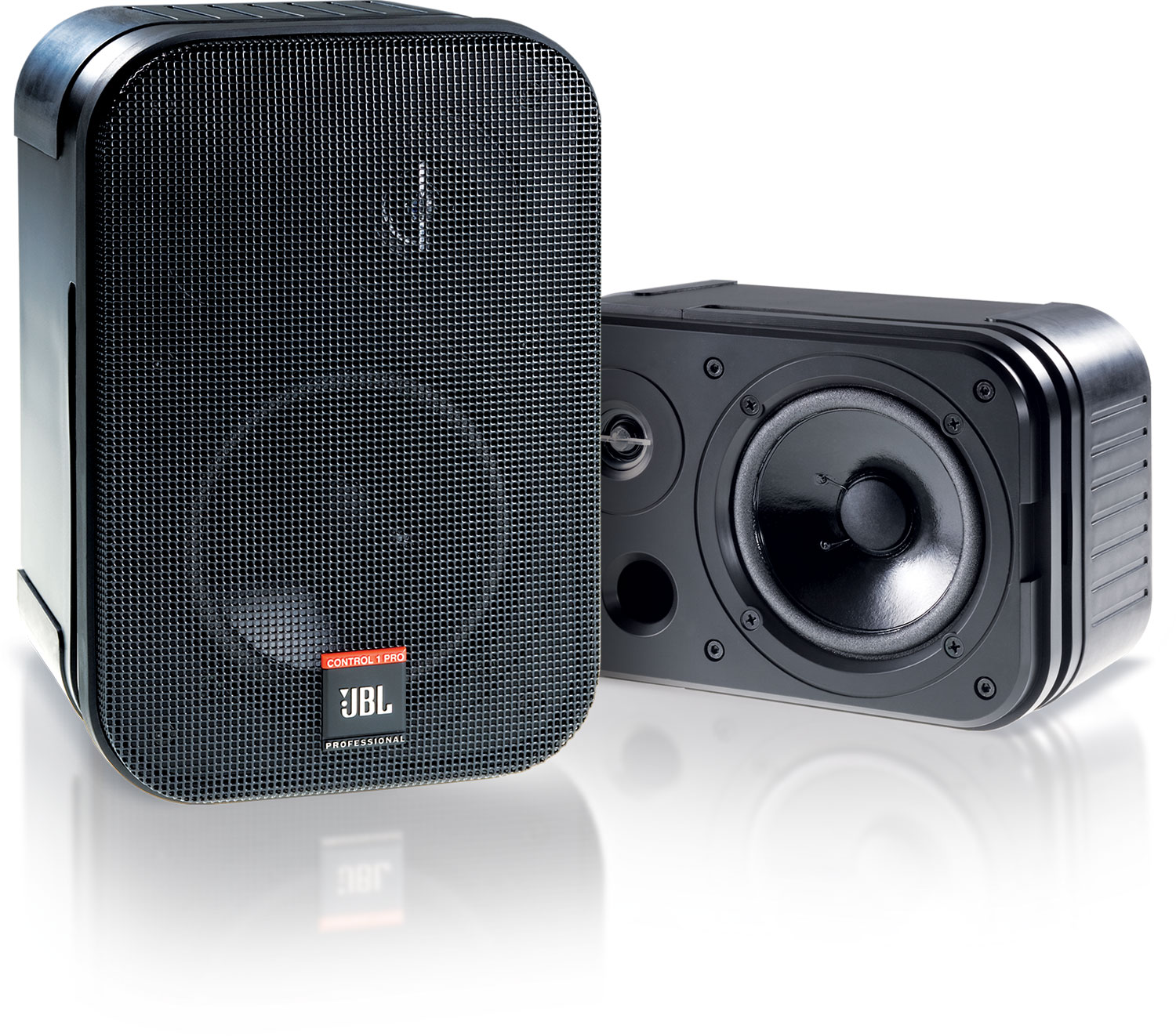

Representing the next-generation in professional high-performance, compact loudspeaker systems,
the Control® 1 Pro builds on its proud heritage while incorporating the latest innovations in JBL Professional loudspeaker systems design.
| Ukuran | |
|
|
557 KB |
| Ukuran | |
|
|
483 KB |
|
|
23 MB |
|
|
21 MB |
| Ukuran | |
|
|
42,5 KB |
| Ukuran | |
|
|
435 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
| Frequency Range (-10dB) | 80 Hz to 20 kHz |
| Frequency Response (±3 dB) | I00 Hz - 18 kHz |
| Power Capacity | I50 W |
| Sensitivity | 87 dB SPL, 1 W, 1 m (3.3 ft) |
| Maximum SPL (1m) | 108 dB continuous, 114 dB peak |
| Directivity Factor (Q) | 6.0 |
| Directivity Index (DI) | 7.8 |
| Nominal Impedance | 4 ohms |
| Crossover Frequency | 4.2 kHz |
| Overload Protection | Full-range SonicGuard™ power limiting to protect network and transducers |
| LF Drivers | 135 mm (5.25 in) low frequency loudspeaker |
| HF Drivers | 19 mm (.75 in) polycarbonate dome tweeter |
| Input Connectors | Spring-loaded terminals |
| Enclosure Material | Polypropylene Structural Foam |
| Finish | Black (C1Pro) or White (C1Pro-WH) |
| Dimensions | 235 mm x 159 mm x 143 mm (9.3 in x 6.3 in x 5.6 in) |
| Net Weight (each) | 1.8 kg (4 lb) |
| Shipping Weight (pair) | 4.6 kg (10 lb) |
| Included Accessories | Mounting Bracket Assembly |
| Optional Accessories | MTC-1A ultra-duty mount bracket MTC-8 heavy-duty mounting bracket |
