VT4882 (arrêté)

Midsize Arrayable 2-15" Subwoofer

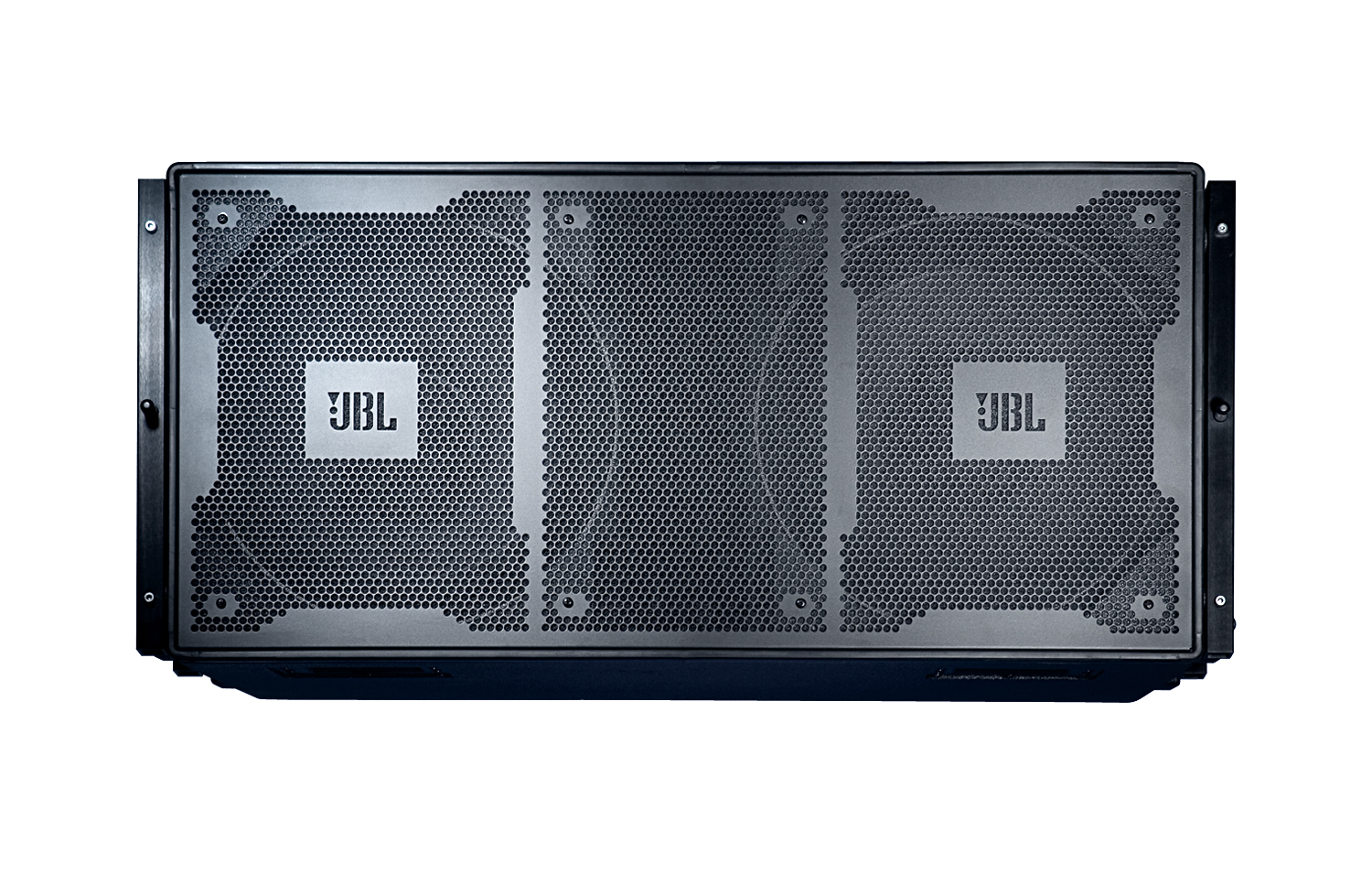

VT4882
Grandes images

Midsize Arrayable 2-15" Subwoofer

The VT4882 is designed to deliver high quality sound reinforcement of sub-low frequencies for live music and a variety of sound reinforcement applications.

Caractéristiques

  • Advanced Technology Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers.
  • Advanced Construction Techniques with PlyMax® provide exceptionally rigid, lightweight enclosure.
  • Rugged DuraFlex™ exterior finish; Weatherized components.
  • Integrated Suspension System, premium aluminum fixtures provide rigid, reliable hanging arrays designed for vertical orientation at various angles.


Téléchargements

  Version Language Size Uploaded
file type icon VerTec Brochure
en updated: sept. 2023
  en  2,09 Mo sept. 2023
file type icon VT4882 Spec Sheet
en updated: sept. 2023
  en  356 ko sept. 2023
Specifications
file type icon VT4882 Spec Sheet
updated: oct. 2020
    356 ko oct. 2020
Brochures
file type icon VerTec Line Brochure
updated: oct. 2020
    2,09 Mo oct. 2020
CAD Drawings
file type icon VT4882 3D DXF
updated: oct. 2020
    85,2 ko oct. 2020
file type icon VT4882 2D DXF
updated: oct. 2020
    780 ko oct. 2020
file type icon VT4882 2D PDF
updated: oct. 2020
    164 ko oct. 2020
Compliances
file type icon VerTec Series Declaration of Conformity
updated: oct. 2019
    144 ko oct. 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: août 2023
1.3.1     18 Mo août 2023
platform icon PerformanceManager
version 2.9.1.5, updated: août 2023
2.9.1.5     117 Mo août 2023
Speaker Tunings
file type icon V5 DPDA DrivePack VT4882
updated: oct. 2019
    407 ko oct. 2019
file type icon Vertec All DSP Platforms
updated: oct. 2020
    96,3 Mo oct. 2020
file type icon BSS Soundweb London All Libraries
updated: oct. 2019
    35,1 Mo oct. 2019
Accessories
file type icon VT Midsize Array Frame and Adapter CAD
updated: oct. 2020
    4,04 Mo oct. 2020
Helpful Links
file type icon Considerations for Deployment of Line Arrays
updated: oct. 2020
    518 ko oct. 2020
file type icon AES Paper: J and Spiral Arrays
updated: oct. 2020
    324 ko oct. 2020
file type icon Directional Radiation Characteristics - Line Array
updated: oct. 2020
    1,12 Mo oct. 2020
file type icon AES Paper: Pressure Response of Line Source
updated: oct. 2020
    388 ko oct. 2020
file type icon High Frequency Components for High Output Line Arrays
updated: oct. 2020
    2,94 Mo oct. 2020
file type icon AES Journal Article: Analysis of Line Arrays
updated: oct. 2020
    856 ko oct. 2020
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: déc. 2020
3.0    1,19 Mo déc. 2020
Images
file type icon VT4882 photo
updated: oct. 2020
    846 ko oct. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range 28 Hz - 120 Hz (-10dB)
Frequency Response 32 Hz - 110 Hz (± 3 dB)
Continuous Power Rating 2000W
Sensitivity 95 dB (1w/1m)
Nominal Impedances 2 x 8 ohms
Dimensions (w x h x d) 1013 mm x 457 mm x 858 mm(39.9" x 18" x 33.8")
Weight 53.5 kg (118 lb)
