VT4880 (arrêté)

Fullsize Arrayable 2-18" Subwoofer

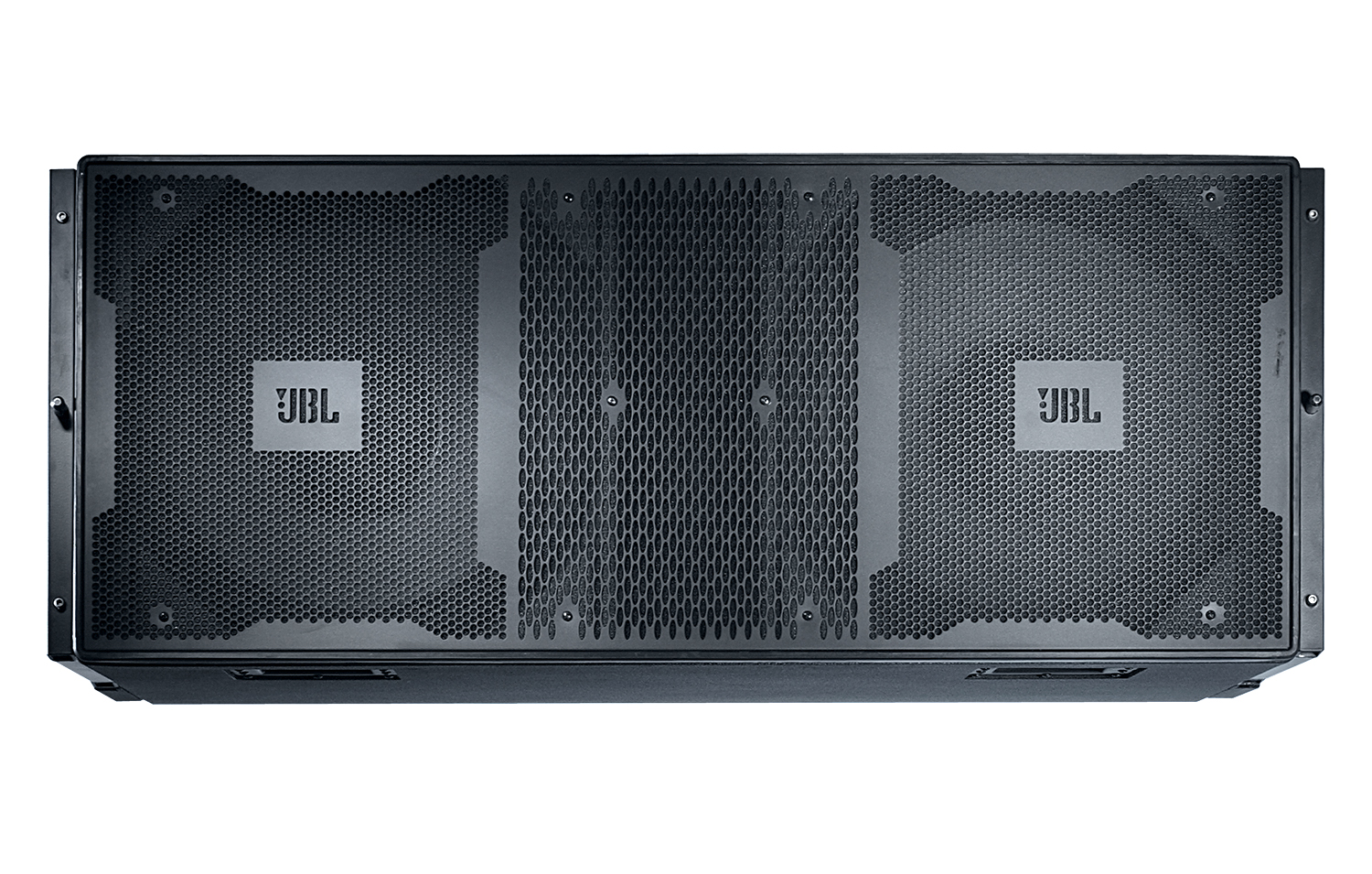

VT4880
Grandes images

Fullsize Arrayable 2-18" Subwoofer

The VT4880 Dual 18" Subwoofer Line Array Element is designed to deliver high quality sound reinforcement of sub-low frequencies for live music and a variety of applications.

Caractéristiques

  • Advanced Technology Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducers.
  • Advanced Construction Techniques and Hybrid Materials provide exceptionally rigid, lightweight enclosure.
  • Rugged DuraFlex™ exterior finish; Weatherized components.
  • Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable
    hanging arrays.

Téléchargements

  Version Language Size Uploaded
Specifications
file type icon VT4880 Spec Sheet
updated: juil. 2019
    244 ko juil. 2019
Manuals
file type icon VerTec/I-Tech System Configuration Manual
updated: oct. 2019
    1,39 Mo oct. 2019
file type icon VerTec Array Application Manual
updated: oct. 2019
    971 ko oct. 2019
Brochures
file type icon VerTec Line Brochure
updated: oct. 2020
    2,09 Mo oct. 2020
CAD Drawings
file type icon VT4880 3D DXF
updated: juil. 2019
    108 ko juil. 2019
file type icon VT4880 2D DXF
updated: juil. 2019
    660 ko juil. 2019
file type icon VT4880 2D PDF
updated: juil. 2019
    153 ko juil. 2019
Compliances
file type icon VerTec Series Declaration of Conformity
updated: oct. 2019
    144 ko oct. 2019
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: août 2023
1.3.1     18 Mo août 2023
platform icon PerformanceManager
version 3.0.0, updated: fév. 2024
3.0.0     124 Mo fév. 2024
Speaker Tunings
file type icon BSS Soundweb London All Libraries
updated: oct. 2019
    35,1 Mo oct. 2019
file type icon DBX 4800 VT4886 VT4883
updated: oct. 2019
    3,19 Mo oct. 2019
file type icon BSS 366 VT4886 VT4883
updated: oct. 2019
    3,96 Mo oct. 2019
file type icon V4 DSP BSS_Soundweb_London_VT4889_VT4887
updated: oct. 2020
    3,72 Mo oct. 2020
Accessories
file type icon VT Fullsize Array Frame and Adapter CAD
updated: oct. 2020
    6,2 Mo oct. 2020
Images
file type icon VT4880 photo
updated: oct. 2020
    912 ko oct. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range 26 Hz - 160 Hz (-10dB)
Frequency Response 29 Hz - 120 Hz (± 3 dB)
Continuous Power Rating 2000W
Sensitivity 98 dB (1 W/m)
Nominal Impedances 2 x 8 ohms
Dimensions (w x h x d) 1229 x 493 x 860 mm(48.4 x 19.4 x 33.9 in)
Weight 71 kg (157 lbs)
