JBL Professional PRX715

Grandes images

Système Principal/Moniteur de Sol Deux Voies 15"

Le modèle deux voies 15" est la forme la plus reconnaissable des enceintes de sonorisation portables et offre un équilibre parfait entre taille et performance. Le PRX715 est véritablement une exception ; il est compact, léger, polyvalent et puissant.

Caractéristiques

136 dB peak SPL
15" Differential Drive® low-frequency driver for low-distortion and higher SPL
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Optimized EQ for monitor or front-of-house applications
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
Multi-angle enclosure for main PA or floor monitor applications
Integrated 36 mm pole mount socket with angle down tilt
Injection molded handle with backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

The 2-way 15" offers the perfect balance between size and performance. The PRX715 truly is an exception; it’s small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX700 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX715 delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX700 sub-woofer the system becomes an efficient, full-range sound system.
The PRX715 is comprised of 15" 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

Téléchargements

Documents

	Langue	Taille	Téléchargé
PRX715 Data Sheet mis à jour : avr. 2026		2,51 Mo	avr. 2026
PRX715 Spec Sheet mis à jour : avr. 2026		907 ko	avr. 2026
PRX715 User's Guide - English mis à jour : avr. 2026		1,95 Mo	avr. 2026
PRX715 User's Guide - French mis à jour : avr. 2026		898 ko	avr. 2026
PRX715 User's Guide - German mis à jour : avr. 2026		906 ko	avr. 2026
PRX715 User's Guide - Spanish mis à jour : avr. 2026		780 ko	avr. 2026

Data Sheets

	Taille	Téléchargé
PRX715 Datasheet mis à jour : oct. 2020	2,51 Mo	oct. 2020

Specifications

	Taille	Téléchargé
PRX715 Spec Sheet mis à jour : oct. 2020	907 ko	oct. 2020

Brochures

	Taille	Téléchargé
Portable Sound Full Line 2015 Catalog mis à jour : oct. 2020	2,54 Mo	oct. 2020

CAD Drawings

	Taille	Téléchargé
PRX700 2D Drawings PDF mis à jour : oct. 2020	704 ko	oct. 2020
PRX700 2D Drawings CAD mis à jour : oct. 2020	6,41 Mo	oct. 2020

Compliances

	Taille	Téléchargé
PRX700 Declaration of Conformity mis à jour : oct. 2020	133 ko	oct. 2020

User Guides

	Taille	Téléchargé
PRX700 Users Guide mis à jour : oct. 2020	1,95 Mo	oct. 2020
PRX700 Users Guide Spanish mis à jour : oct. 2020	780 ko	oct. 2020
PRX700 Users Guide French mis à jour : oct. 2020	898 ko	oct. 2020

Images

	Taille	Téléchargé
PRX715 Back mis à jour : juil. 2019	206 ko	juil. 2019

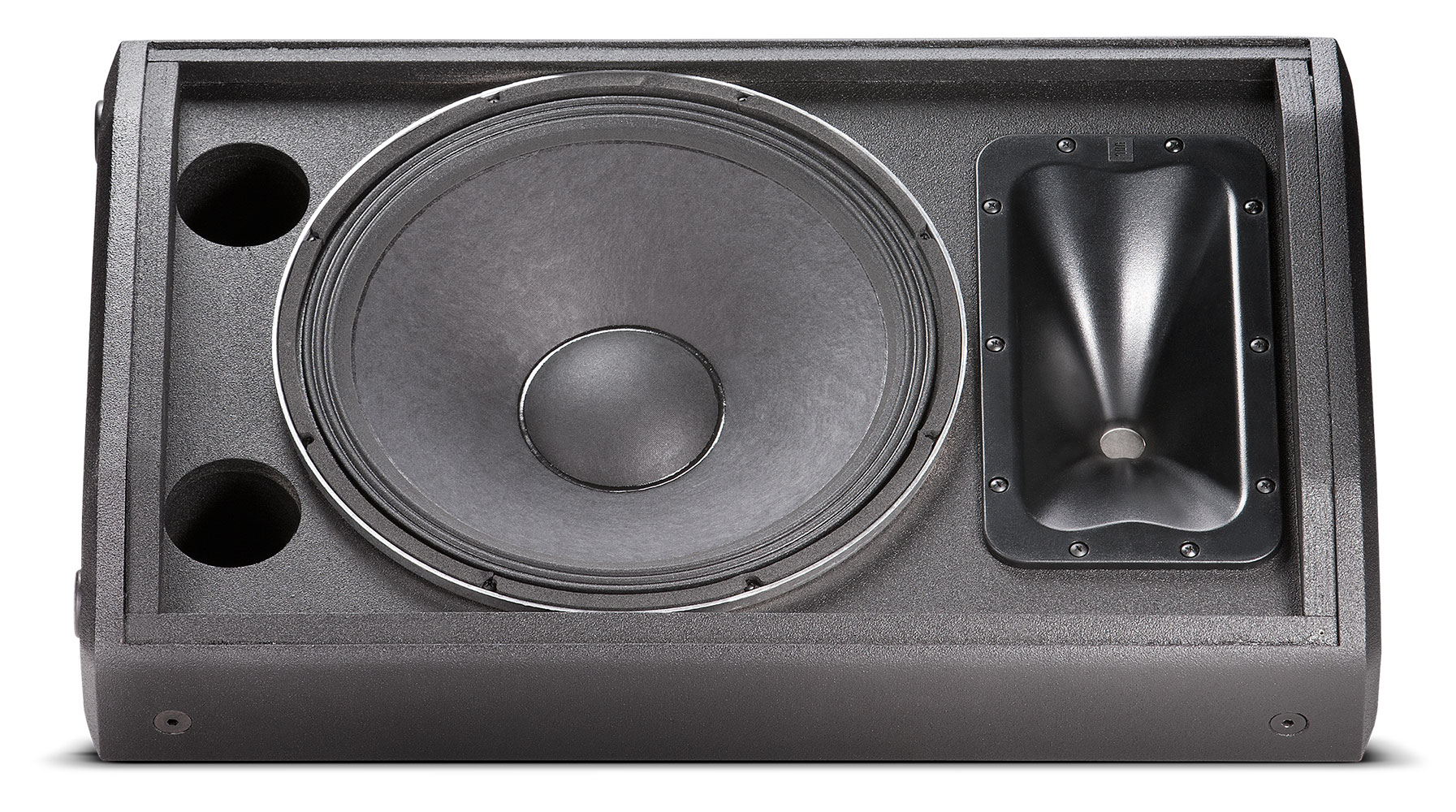

PRX715 Monitor No Grill mis à jour : juil. 2019	498 ko	juil. 2019

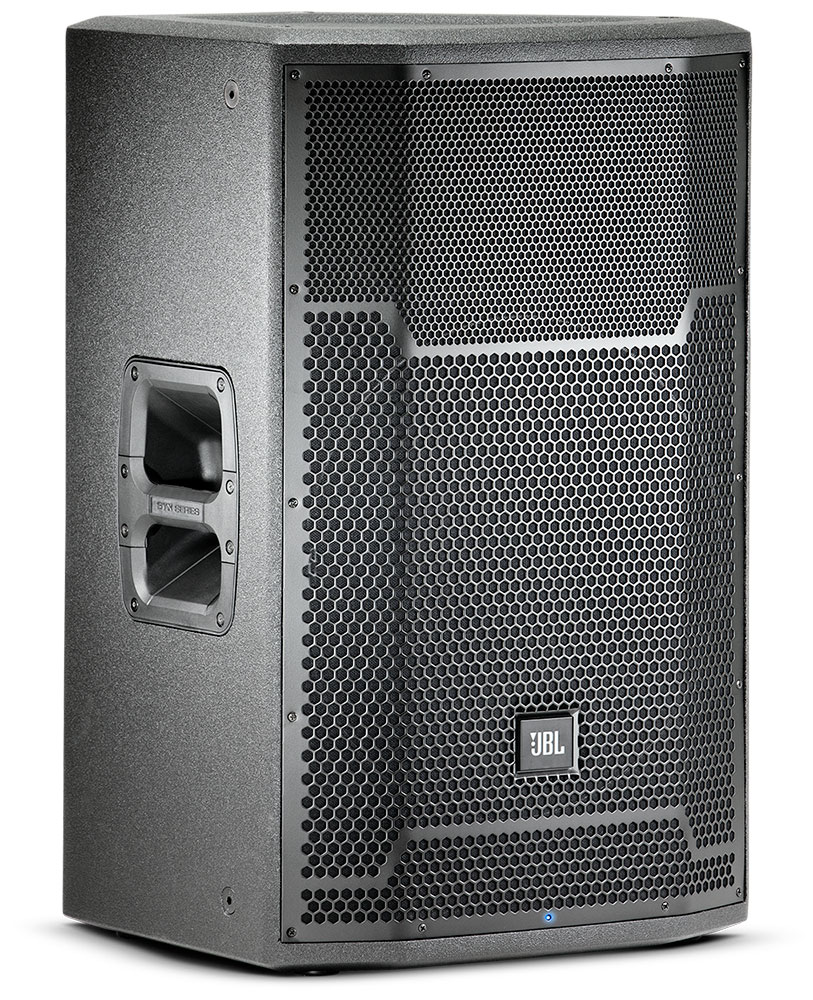

PRX715 Front Angle mis à jour : oct. 2020	313 ko	oct. 2020

Accessories

	Taille	Téléchargé
PRX700 Users Guide German mis à jour : oct. 2020	906 ko	oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Power Rating	1500 W
AC power input	100V - 240V~ 50/60 Hz
Frequency Range (-10dB)	Main: 42.9 Hz - 19.5 kHzMonitor: 43.6 Hz - 19.3 kHz
Frequency Response (±3 dB)	Main: 58.1 Hz - 17.2 kHzMonitor: 60.7 Hz - 16.7 kHz
Coverage Pattern	90° x 50° nominal
Directivity Index (DI)	10.2 dB
Directivity Factor (Q)	10.4
Crossover Frequency	1.7 kHz
Maximum SPL (1m)	Normal: 136 dBBoost: 136 dB
Signal Indicators	Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input)	dbx Type IV™ limiter circuit
Input Impedance	20K Ohms (balanced), 10K Ohms (unbalanced)
LF Driver	1 x JBL 275G (15 in) woofer
HF Driver	1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Enclosure	Asymmetrical, 18 mm, plywood
Suspension / Mounting	Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport	1 x injection molded handles with backing cup
Finish	Obsidian DuraFlex™ finish
Grille	Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors	2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Output Connectors	1 male XLR balanced output
Dimensions (H x W x D)	714.43 mm x 445.13 mm x 358.71 mm(28.13 in x 17.52 in x 14.12 in)
Net Weight	21.6 kg (47.5 lb.)
