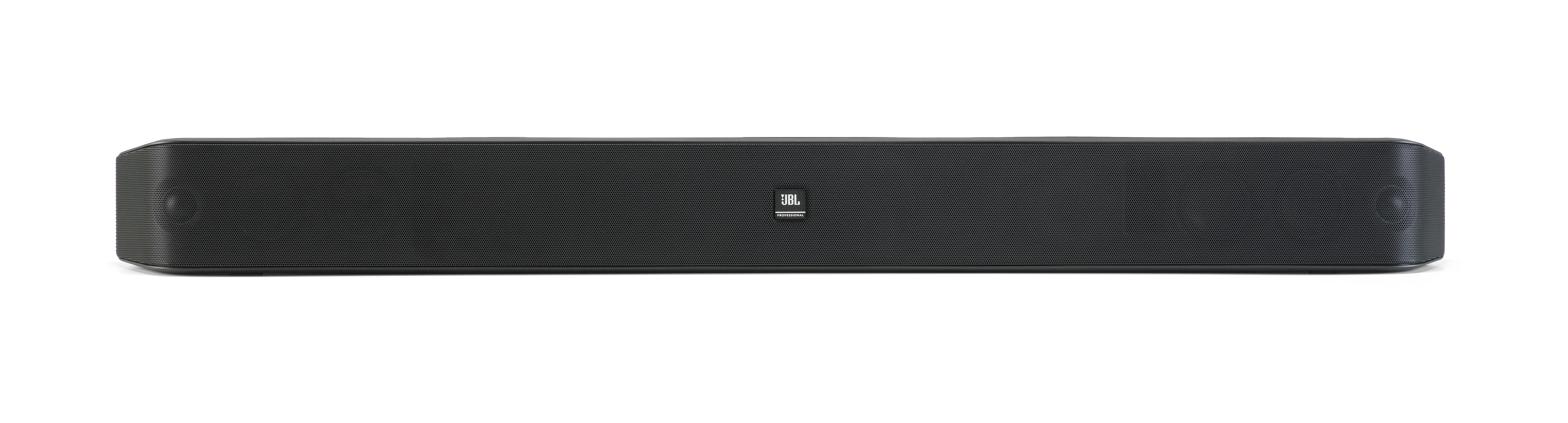

Pro SoundBar PSB-2

Barre de son 2.0 canaux, de qualité commerciale avec HDMI et Bluetooth

Pro SoundBar PSB-2
Grandes images

The JBL Professional Pro SoundBar PSB-2 is a cost-effective, 2.0 channel commercial-grade soundbar, designed specifically for hotel rooms, cruise ship staterooms, meeting spaces, and classrooms. As an evolution in soundbar technology, it is engineered to deliver focused room audio while minimizing sound transfer to neighboring rooms.

Tuned specifically for human speech, the PSB-2’s front-facing speaker delivers significantly-enhanced fidelity over internal television speakers. Improved clarity at low volume levels also ensures users are able to hear clearly without needing to increase volume unnecessarily and possibly disturb other rooms. A 2-position volume limiting switch adds additional volume limiting capability.

To support the most popular sources, HDMI and Bluetooth digital inputs are included and a single source control button on top of the speaker makes switching between sources simple. For applications requiring analog-only input needs, the JBL PSB-1 soundbar is also available. Automatic Bluetooth pairing management and the ability to update the Bluetooth name of each PSB-2 can be helpful when managing multiple PSB-2s. Featuring professional-grade materials and construction, PSB-2’s durable exterior is designed to withstand the rigors of daily commercial use but is also easy to clean. To prevent tampering, a lockout plate is available to conceal an available service port.

With commercial-grade features; room-focused sound, even at low volume levels; and simplified digital connectivity, the JBL PSB-2 creates a cost-effective commercial soundbar solution that is perfect for a wide range of professional hospitality, corporate, and education needs.

Caractéristiques

FOCUSED IN-ROOM AUDIO
The PSB-2’s front-facing speaker delivers enhanced fidelity over internal TV speakers. It explicitly focuses acoustic energy forward into the room and away from the wall it is installed on to avoid sending unwanted audio into adjacent rooms.

CLARITY AT ANY LEVEL
Enhanced sound quality at low volume levels also ensures users are able to hear clearly without needing to increase volume and unnecessarily disturb neighboring rooms and spaces.

EFFORTLESS BLUETOOTH CONNECTIVITY AND CONTROL
Automatic Bluetooth pairing management allows the PSB-2 to unpair and forget devices after a set time for future pairing availability. It also enables customization of the Bluetooth beacon ID to match the room it is installed in.

SIMPLIFIED HDMI INPUT & CEC CONTROL OF SOUNDBAR
The PSB-2 soundbar facilitates configuration for either audio passthrough from the source device to the TV or ARC directly from the TV. It also supports control of TV power, mute, and volume without the need for extra setup.

FLEXIBILITY AND EASE OF USE
The PSB-2 supports volume control through CEC from the TV or directly from the Bluetooth device. A single button allows seamless switching between HDMI and Bluetooth.

BUILT FOR DURABILITY
Featuring professional-grade materials and construction, PSB-2’s durable exterior is designed to withstand the rigors of daily commercial use and is also easy to clean.

plus de détails

The JBL PSB-2 Soundbar is an ideal choice for a range of hospitality, corporate and educational installations, including hotel rooms, cruise ship staterooms, meeting spaces and classrooms.

Téléchargements

Manuals
  Version Langue Taille Téléchargé
file type icon Pro SoundBar PSB-2- User Manual
en version A, mis à jour : sept. 2024
en  1,48 Mo sept. 2024
BIM Objects
  Taille Téléchargé
file type icon PSB-2 - BIM Object
mis à jour : jan. 2025
jan. 2025
Software
  Version Taille Téléchargé
download icon for Bluetooth Beacon Setter Bluetooth Beacon Setter
version 1.0.7, publié : sept. 2024
1.0.7   69,2 Mo sept. 2024
Declaration of Conformity
  Langue Taille Téléchargé
file type icon PSB-2 Declaration of Conformity- UKCA
en mis à jour : déc. 2024
en  143 ko déc. 2024
file type icon PSB-2 Declaration of Conformity- CE
en mis à jour : déc. 2024
en  211 ko déc. 2024
Spec Sheets
  Version Langue Taille Téléchargé
file type icon Pro SoundBar PSB-2- Spec Sheet
en version A, mis à jour : sept. 2024
en  185 ko sept. 2024
Drawings 2D/3Ds
  Version Taille Téléchargé
file type icon PSB-2 3D CUSTOMER DRAWING (.dxf)
version A, mis à jour : sept. 2024
5,67 Mo sept. 2024
file type icon PSB-2 2D CUSTOMER DRAWING (.dxf)
version A, mis à jour : sept. 2024
3,92 Mo sept. 2024
file type icon PSB-2 2D CUSTOMER DRAWING
version A, mis à jour : sept. 2024
102 ko sept. 2024
Configuration Tools
  Version Langue Taille Téléchargé
file type icon Pro SoundBar PSB-2 Configuration Tool
en version A, mis à jour : sept. 2024
en  69,2 Mo sept. 2024
Quick Start Guides
  Version Langue Taille Téléchargé
file type icon Pro SoundBar PSB-2- Quick Start Guide
en version A, mis à jour : sept. 2024
en  1,42 Mo sept. 2024

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10 dB) 62Hz – 20kHz
Frequency Response (±3 dB) 100Hz – 20kHz
Maximum Peak SPL 101 dB-SPL at 1m
Input Connectors HDMI Input (HDMI 2.1), HDMI Output/ARC (HDMI 2.1)
Bluetooth Version 5.3 - Frequency Range 2400 to 2483.5 MHz
Nominal Input Sensitivity -8dBFS for 93 dB-SPL at 1m (Max Volume setting)
HF Driver 2 x 19 mm (0.75”) Soft Dome Tweeter (one per channel)
LF Driver 4 x 51 mm (2.0”) Low-Frequency Driver (two per channel)
Power Amp 20W per Channel, Class D
AC Power Input: 100-240 VAC, 50/60 Hz
Sleep Mode Power

When the HDMI ports are disconnected, the sleep mode power is < 0.5W.
When one of the HDMI port is connected, the sleep mode power is < 2W.

Enclosure Material Injection-Molded ABS + PC
Enclosure Finish Black
Mounting/Installation Two included brackets, desk/table or on-wall mounting
Dimensions (H x W x D) 90mm x 897mm x 63mm (3.54” x 35.3” x 2.48”)
Weight 2.0 kg (4.4 lbs)
Shipping Weight (1pc) 3.2kg (7.1 lbs)
