EON ONE MK2

Colonne de sonorisation tout-en-un rechargeable avec mélangeur intégré et DSP

EON ONE MK2

Colonne PA rechargeable tout-en-un avec mélangeur intégré et DSP

La colonne PA alimentée par batterie JBL EON ONE MK2 intègre un ensemble acoustique de classe supérieure, un mélangeur numérique 5 canaux, les DSP dbx et Lexicon, des fonctions Bluetooth et un contrôle universel par application, le tout dans un boîtier léger et portable qui se porte d'une seule main.

L'EON ONE MK2 offre la fidélité pour laquelle JBL est légendaire, combinant un réseau de 8 tweeters en forme de C géométriquement optimisé avec un woofer de 10" pour offrir une clarté de classe supérieure et une couverture jusqu'à 37 Hz, avec une large dispersion et une puissance maximale de 123 dB.

L'EON ONE MK2 est conçu pour la polyvalence et la facilité d'utilisation : créez votre signature sonore en un instant grâce à une suite complète d'effets et de présets Lexicon et dbx de qualité professionnelle, avec des contrôles adaptés aux utilisateurs débutants comme avancés. La fonction Variable Power Performance optimise automatiquement les performances en fonction du fonctionnement sur secteur ou batterie. La diffusion audio Bluetooth et l'autonomie de six heures complètent les avantages de ce système tout-en-un polyvalent.

L'EON ONE MK2 convient à un large éventail d'utilisateurs : musiciens de rue et auteurs-compositeurs-interprètes en quête d'un son de qualité professionnelle sans secteur, éducateurs et prestataires d'hôtellerie qui privilégient une mise en place rapide et une facilité d'utilisation, lieux de culte et sociétés de location ayant besoin de solutions portables pour des applications intérieures et extérieures. Bref : c'est votre système incontournable en toute occasion et en tout lieu.

Caractéristiques

  • C-shaped array of 8 2” tweeters delivers superior clarity and 140°H x 30°V dispersion for room-filling sound
  • 10” woofer in acoustically optimized cabinet generates natural, smooth low end, down to 37 Hz
  • Variable Power Performance automatically optimizes power performance to provide 4 dB higher output when connected to an AC source: 123 dB peak SPL using AC power, 119 dB peak using battery power
  • Built-in 1,500-watt (peak) amplifier
  • Frequency response: 37 Hz–20 kHz @ -10 dB; 45 Hz–20 kHz @ -3 dB
  • Easily swappable battery provides 6 hours of play time; battery is integrated into a column spacer to improve stability and to optimize the cabinet acoustic volume for superior low-frequency response
  • Built-in 5-channel digital mixer is designed by mix engineers for optimized workflow
  • Three fixed EQ knobs allow fast, hands-on access to onboard EQ
  • Comprehensive suite of professional-grade Lexicon DSP, including reverb, chorus and delay
  • dbx DriveRack Inside technology offers AFS (Automatic Feedback Suppression), 8 bands of parametric EQ, and convenient presets
  • Soundcraft Easy Ducking automatically turns down music when speech is detected
  • Triple-Tier DSP lets users choose beginner, intermediate or advanced control
  • I/Os include 3 Neutrik XLR Combo jacks, 1 Hi-Z input and a summed 3.5mm/BT input
  • ¼” balanced passthrough with independent volume control and speaker delay allows for analog system expansion
  • Two channels of true 48V phantom power expand microphone connectivity
  • Two USB ports allow device charging from onboard battery or AC power
  • Bluetooth 5.0 audio streaming to one device, with control of up 10 units
  • Full-color EasyNav LCD provides access to all control parameters
  • Simple Success LED meters indicate mixer functions such as mute, signal detection and clipping
  • JBL Pro Connect universal app offers control over every function of up to ten systems
  • PA components are stored in the woofer cabinet for easy, one-hand carry
  • Ergonomically optimized carry handle minimizes wrist strain
  • Road-tough, lightweight polypropylene cabinet with steel grille
  • Accessories include dual battery charger, additional batteries
  • Weight: 42.5 pounds (19.3 kg)

plus de détails

  • UNRIVALED ACOUSTIC PERFORMANCE
    The EON ONE MK2 leverages EON family acoustic innovations to deliver higher output, greater clarity and deeper coverage than any PA in its class. Its geometrically-optimized, C-shaped array of eight 2-inch tweeters works in combination with a 10” woofer to deliver smooth, even response down to 37 Hz, with wide horizontal dispersion and deep vertical throw that ensure you sound amazing anywhere in the room. By placing the battery in the column, the woofer cabinet is acoustically optimized to provide the deepest, most natural low end.

  • POWER THAT WORKS SMARTER, NOT HARDER
    EON ONE MK2’s robust 1,500-watt (peak) amplifier ensures clean, distortion-free sound at any volume level. Variable Power Performance technology automatically optimizes performance for either AC or battery power, providing 4 dB extra headroom when connected to AC power. You’ll be heard loud and clear, no matter where you play.

  • SOUND YOUR BEST WITH PRO FX
    EON ONE MK2 features a full suite of professional DSP, including Lexicon reverb, chorus and delay and dbx DriveRack Inside technology, including AFS (Automatic Feedback Suppression) and 8-band EQ . Presenters, fitness instructors and emcees will appreciate the Soundcraft Easy Ducking feature, which lowers background music volume anytime you speak. DSP presets and onboard hardware EQ with 3 fixed knobs make it even easier to hone your signature sound, fast.

  • TOTAL CONTROL, AT YOUR FINGERTIPS
    EON ONE MK2 can be controlled by the universal JBL Pro Connect app, which provides remote access to every function and preset, right from your phone or tablet; JBL’s ActiveSync technology ensures the app and system LCD are always in perfect sync. The EON ONE MK2 offers Bluetooth 5.0 audio streaming to one device, with control of up 10 units.

  • PORTABLE AND RELIABLE
    Weighing just 42.5 pounds, the EON ONE MK2 is designed to be carried in one hand and features an ergonomic handle that’s engineered for maximum comfort. The system is encased in a durable polypropylene shell that’s rugged enough to handle your toughest gigs; like every JBL speaker, the EON ONE MK2 undergoes 100 hours of stress testing to ensure that it’ll perform flawlessly in real-world conditions.

Téléchargements

Specifications
  Taille Téléchargé
file type icon JBL-EON One MK2 Spec Sheet
mis à jour : mai 2022
417 ko mai 2022
Brochures
  Version Langue Taille Téléchargé
file type icon JBL 2025 PPA Brochure
en version B, mis à jour : août 2025
en  8,45 Mo août 2025
Software
  Version Taille Téléchargé
Android download icon Pro Connect - Alternate Android Download
version 2, publié : mars 2024
2   57,5 Mo mars 2024
Android download icon Pro Connect
version 2.4, publié : nov. 2025
2.4   nov. 2025
iOS download icon Pro Connect
version 2.4, publié : nov. 2025
2.4   nov. 2025
download icon for Pro Connect Pro Connect
version 2.4, mis à jour : nov. 2025
2.4   59,5 Mo nov. 2025
User Guides
  Langue Taille Téléchargé
file type icon JBL-EON One MK2 User Guide- CN
zh mis à jour : jan. 2023
zh  7,71 Mo jan. 2023
file type icon JBL-EON One MK2 User Guide - DE
de mis à jour : fév. 2022
de  5,96 Mo fév. 2022
file type icon JBL-EON One MK2 User Guide - RU
ru mis à jour : fév. 2022
ru  5,96 Mo fév. 2022
file type icon JBL-EON One MK2 User Guide - PT
pt mis à jour : fév. 2022
pt  5,97 Mo fév. 2022
file type icon JBL-EON One MK2 User Guide - FR
fr mis à jour : fév. 2022
fr  5,95 Mo fév. 2022
file type icon JBL-EON One MK2 User Guide - ES
es mis à jour : fév. 2022
es  5,95 Mo fév. 2022
file type icon JBL-EON One MK2 User Guide - EN
en mis à jour : fév. 2022
en  4,5 Mo fév. 2022
Quick Start Guides
  Version Langue Taille Téléchargé
file type icon JBL-EON ONE MK2 Quick Start Guide
en mis à jour : mars 2022
  en  1,21 Mo mars 2022
file type icon JBL-EON ONE MK2 Quick Start Guide
it version 1.2, mis à jour : mars 2022
1.2  it  2 Mo mars 2022

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

System Type Powered Column PA Speaker
Woofer Size 10”
Tweeter Size 2”
Tweeter Count 8
Max SPL 123 db/119 dB AC/Battery
Freq Range -10 37-20 kHz
Freq Range -3 45-20 kHz
Hor Dispersion 140°
Vert Dispersion 30°
Power Rating 1500W Peak
400W RMS
AC power input 300W 100-120V or 220-240V
Input Impedance 4kΩ balanced Combo
2MΩ balanced Hi-Z Jack
10kΩ 3.5mm single ended 2 channel
Crossover Frequency 230 Hz
I/O 3 - XLR Combo Jacks
1 - 1/4” Hi-Z
1 - 1/8”/BT Summed
1 - X1/4” balanced
Cabinet PP
Weight 19.3kg (42.5 lbs.)
Gross Weight 22.38kg (49.3 lbs.)
Dims 452 x 627 x 730mm(WxDxH)
(17.8 x 24.7 x 28.7 in.(WxDxH))
Battery 97.2 WH, 36V, Lithium Ion

Accessoires

JBL EON ONE MK2 Dual-battery charger
JBL EON ONE MK2  Dual-battery charger Main photo
Grandes images
JBL EON ONE MK2  Dual-battery charger detail thumbnail #1

Charge time: 1 battery  <3hours  or 2 batteries  <  6 hours

Charging voltage: 40.7V

Charging current: 1.2A

Power rating: 48.84W

Position: vertical

Operating voltage: 100-240V

Net weight: 1468g

Dimensions(D x W x H): 160x230x135.4mm


Documentation

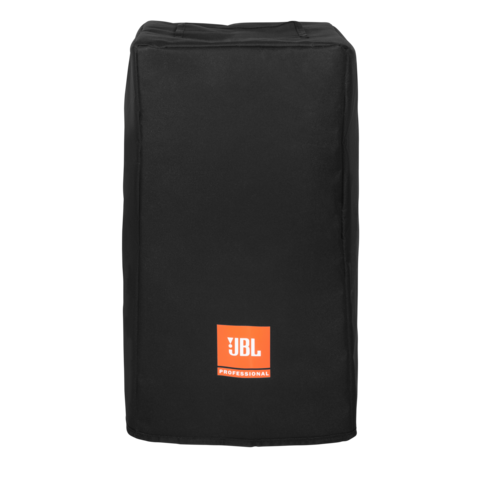

JBL-EONONEMK2CVR | JBL EON ONE MK2 Slip On Cover
JBL-EONONEMK2CVR Main photo
Grandes images
JBL-EONONEMK2CVR detail thumbnail #1 JBL-EONONEMK2CVR detail thumbnail #2 JBL-EONONEMK2CVR detail thumbnail #3 JBL-EONONEMK2CVR detail thumbnail #4 JBL-EONONEMK2CVR detail thumbnail #5 JBL-EONONEMK2CVR detail thumbnail #6 JBL-EONONEMK2CVR detail thumbnail #7

Speaker Slipcover Designed for JBL EON ONE MKII All-in-One Linear Array PA System

  • 600D Polyester Exterior Fabric: Provides tough, water-resistant protection from the elements
  • 210D Polyester Interior Fabric: Provides a soft inner lining with 5mm foam padding for superior protection
  • Top Handle Cutout: With hook-and-loop flap closure for easy transport

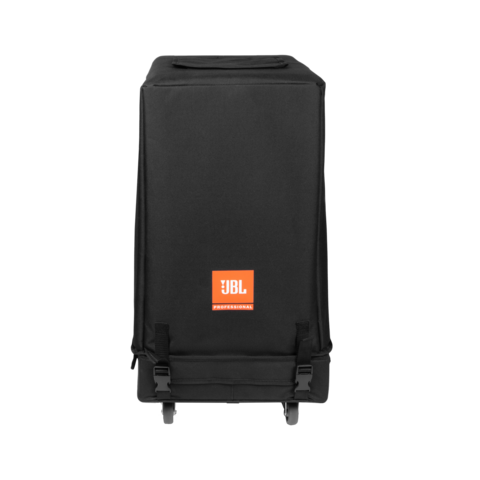

JBL-EONONEMK2TPR | JBL EON ONE MK2 Transporter
JBL-EONONEMK2TPR Main photo
Grandes images
JBL-EONONEMK2TPR detail thumbnail #1 JBL-EONONEMK2TPR detail thumbnail #2 JBL-EONONEMK2TPR detail thumbnail #3 JBL-EONONEMK2TPR detail thumbnail #4 JBL-EONONEMK2TPR detail thumbnail #5 JBL-EONONEMK2TPR detail thumbnail #6 JBL-EONONEMK2TPR detail thumbnail #7 JBL-EONONEMK2TPR detail thumbnail #8 JBL-EONONEMK2TPR detail thumbnail #9

Rolling Base Speaker Transporter for JBL EON ONE MKII PA System

  • Rolling Base Speaker Transporter: Keeps subwoofer & array speaker column together & protected during transport
  • Deluxe Subwoofer Cover: With durable polyester exterior & soft, tricot interior attaches to caster board via buckles
  • 10mm-Thick, Integrated Caster Board: Stands up to the rigors of the road
  • Convenient Tow Handle: For easy travel
  • Handle Cutout: With hook-and-loop flap closure for easy transport
  • Accessory Pocket on Cover: For storing cables, mics, & similar accessories
