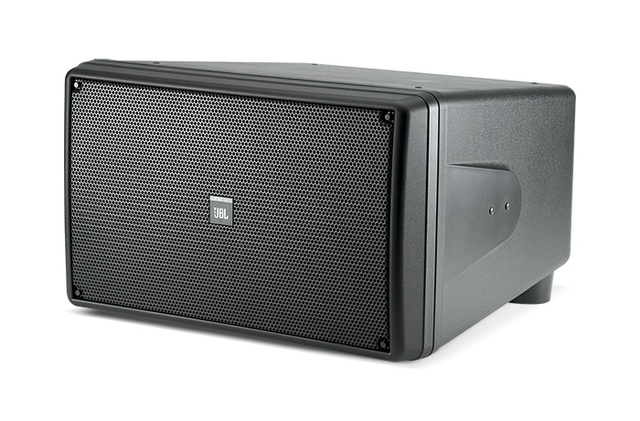

JBL Professional Control SB210

Grandes images

Dual 10 in. Indoor/Outdoor High Output Compact Subwoofer

The Control SB210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.

Caractéristiques

2 x 250 mm (10 in ) Aluminum/ Ceramic Composite Cone Drivers.
400 W Power Handling.
Fully Outdoor Capable Design.
SonicGuard™ Overload Protection.
13 x M6 Suspension Inserts for Optional U-Bracket.
AV Shielded.
Compact, Low Profile Design.

Téléchargements

Documents

	Langue	Taille	Téléchargé
SB210 FSA App Guide mis à jour : avr. 2026		312 ko	avr. 2026
Sub-Sat Application Guide mis à jour : avr. 2026		5,12 Mo	avr. 2026
Control Contractor Brochure mis à jour : avr. 2026		1,71 Mo	avr. 2026
Control SB210 Spec Sheet mis à jour : avr. 2026		169 ko	avr. 2026
SB210 Input modules mis à jour : avr. 2026		512 ko	avr. 2026

Specifications

	Taille	Téléchargé
Control SB210 Spec Sheet mis à jour : oct. 2020	169 ko	oct. 2020

Manuals

	Taille	Téléchargé
JBL Installed Sound Configuration Guide mis à jour : oct. 2020	160 ko	oct. 2020

Brochures

	Version	Langue	Taille	Téléchargé
Control Contractor Brochure (2025) version A, mis à jour : mars 2026	A		23 Mo	mars 2026
Control Contractor Brochure (2026) mis à jour : mars 2026			21 Mo	mars 2026

CAD Drawings

	Taille	Téléchargé
Control and Control Contractor Series mis à jour : oct. 2019	2,36 Mo	oct. 2019

Compliances

	Taille	Téléchargé
JBL Control Series Passive Speakers DoC mis à jour : déc. 2019	179 ko	déc. 2019
Control Contractor Series Declaration of Conformity mis à jour : oct. 2019	131 ko	oct. 2019

Software

	Taille	Téléchargé
CSC Ceiling Speaker Configurator Operating Instruction mis à jour : oct. 2019	134 ko	oct. 2019

Simulation Data

	Taille	Téléchargé
Ease SPK/DLL Files - Full JBL Pro Line mis à jour : mai 2024	21 Mo	mai 2024

Install Guides

	Taille	Téléchargé
Control Contractor Weather Resistance Testing mis à jour : oct. 2020	37,6 ko	oct. 2020
Eyebolt application for Control SB-210 mis à jour : sept. 2019	84,5 ko	sept. 2019
Subwoofer - Satellite Application Guide mis à jour : oct. 2020	5,12 Mo	oct. 2020
Directional Array mis à jour : oct. 2020	312 ko	oct. 2020
Input Modules mis à jour : oct. 2020	512 ko	oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range	42 Hz - 200 Hz (-10 dB)
Power Capacity	800 W Continuous Program Power; 400 W Continuous Pink Noise
Nominal Sensitivity	95 dB, 1 W @ 1 M in half space (2 in loading)
Frequency Response	48 Hz - 120 Hz ( ± 3 dB)
Maximum SPL (1m)	122 dB (in half - space)
Nominal Impedance	8 Ohms
Minimum Impedance	7 Ohms at 100 Hz
Low Frequency	2 x 250 mm (10 in) dia., 50 mm (2 in) edge wound ribbon voice coil, Aluminum/Ceramic Composite cone.
Enclosure Material	High Impact PolyStyrene (HIPS) w / internal 8 mm polyurethane co-mold.
Grille	Thermoset composite coated steel, multi-layer.
Overload Protection	SonicGuard™
Environmental	IEC 529 IP-X% rating. Exceeds MilSpec 810 for humidity, salt spray, temperature& UV. Passes Mil-STd-202F for salt spray.
Terminations	Screw-down terminal strips, zinc plated copper base, nickel-plated metal screw/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to AWG/2.5mm2).
Colors	Black or White (-WH)
Dimensions (H x W x D)	356 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight (each)	17.1 kg (38 lb)
Shipping Weight (ea)	19.4 kg (43 lb)
Included Accessories	1 pc MTC-PC4 input panel cover, 4 pcs MTC-210FT floor standing foot,4pcs MTC-210RT foot receptacle for stacking.
Optional Accessories	MTC-210UB U-Bracket
Accessories	4MTTC-210-SAT stereo / mono high passing network with Satellite outputs MTC-210T mono network with transformers for 70.7/100V distributed line systems. Taps at 250 W, 125 W, 62 W (plus 31 W for 70.7V only). MTC-210T-SAT stereo/mono passing network with Satellite outputs and transformers for 70.7/100-Volt distributed line systems. Taps at 125 W, 62 W, 31 W (plus 15W for 70.7V only).
