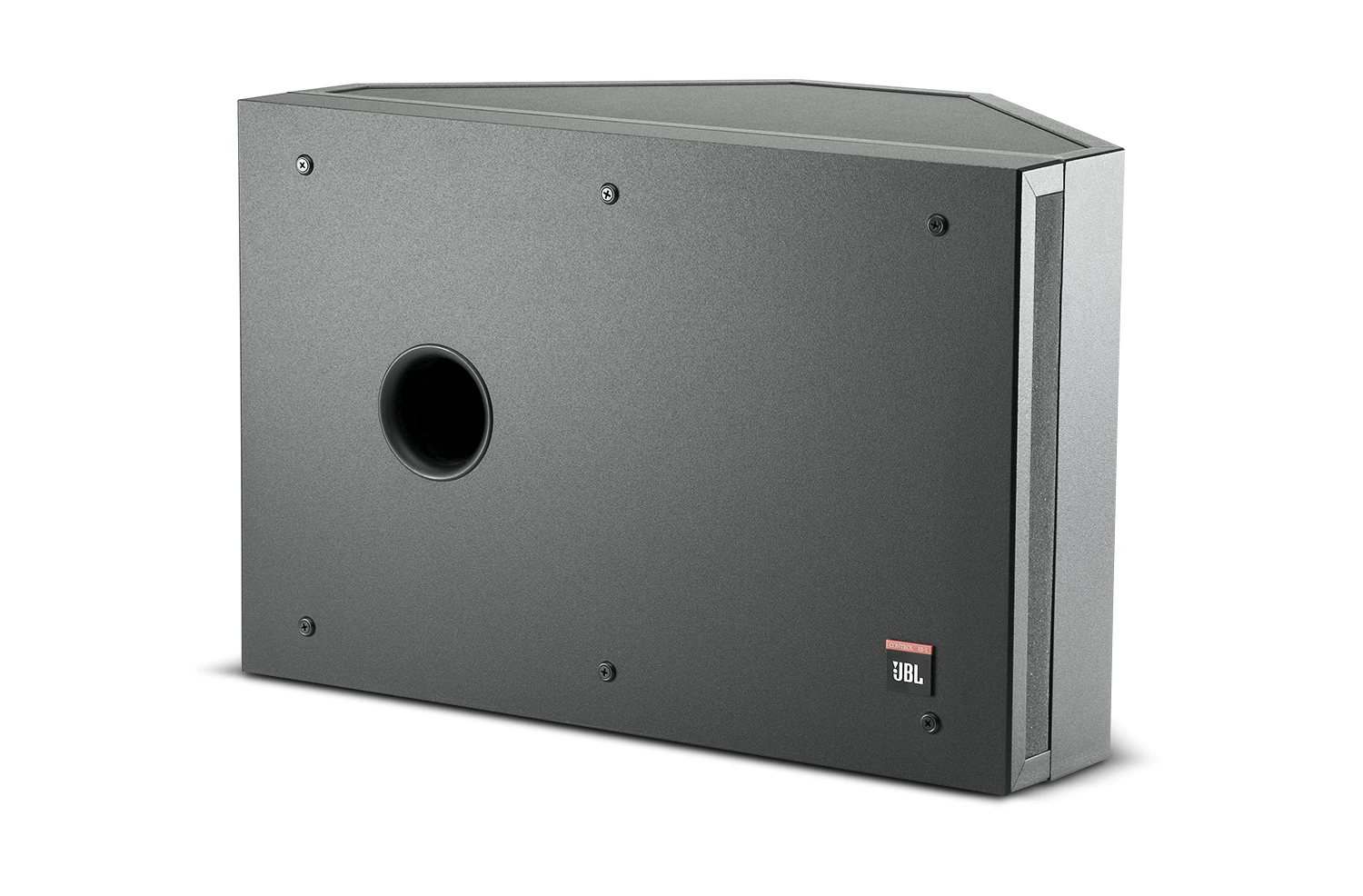

The Control SB-2 provides low frequency reinforcement in subwoofer/satellite systems. The Control SB-2 is ideal for foreground music and music/paging systems in restaurants, retail establishments, theme bars, music cafes, health clubs, and other indoor applications.
| Taille | |
|
|
263 ko |
| Taille | |
|
|
65 ko |
| Taille | |
|
|
110 ko |
| Taille | |
|
|
179 ko |
|
|
131 ko |
| Taille | |
|
|
55 ko |
|
|
52,4 ko |
|
|
5,12 Mo |
|
|
44,2 ko |
| Taille | |
|
|
557 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
| Frequency Range | 38 Hz - 160 Hz (-10 dB) |
| Power Capacity | 340 W (both inputs driven) |
| Sensitivity | 100 dB (1W, 1m) at corner |
| Impedance | 8 ohms per input; 4 ohms total |
| Network Filter to Subwoofer | 12 dB / oct low-pass (per input), 160 Hz. |
| Acoustic Filtering | 6 dB/ oct lo-pass filtering via slot load design, 80 Hz |
| Network Filter Satellite Outputs | 6 dB/ oct high-pass (per output). |
| Drivers | 250 mm (10 inn) long throw with dual voice coils. |
| Enclosure | Particle Board |
| Input Connectors | Spring terminals, accepts banana plugs. Left In, Right In, Left Satellite Out, and Right Satellite Out. |
| Mounting Hardware | MTC_SB2W for installing SB-2 onto a wall or into a corner. MTC-SB2C for suspending SB-2 from a ceiling. |
| Dimensions (H x W x D) | 394 x 585 x 343mm (15.5 x 23.0 x 13.5 in.) |
| Net Weight (each) | 19.1 kg (42 lb) |
| Shipping Weight (ea) | 22.7 kg (50 lb) |
| Maximum SPL (1m) | 122 dB (1 W, 1 m) at corner junction, 119 dB, at two boundary junction |
| Optional Accessories | MTC-SB2W for installing SB-2 onto a wall or into a corner MTC-SB2C for suspending SB-2 from ceiling |
