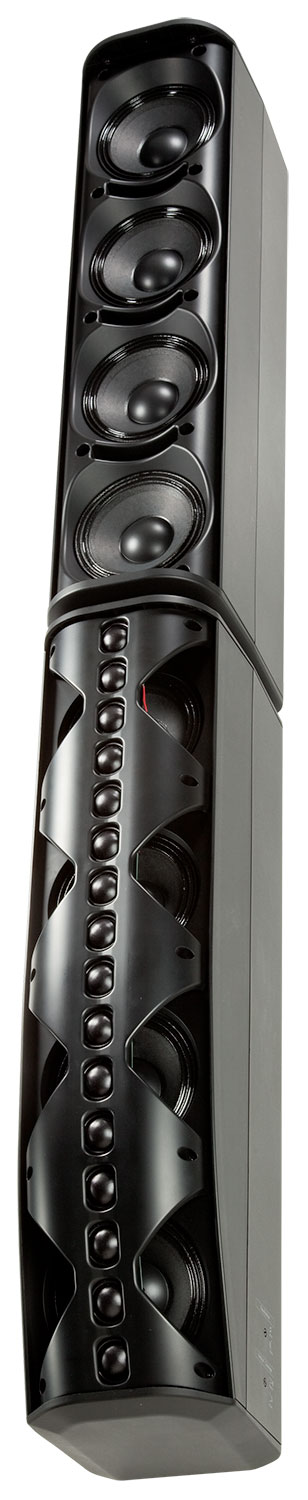

CBT 70J-1 + 70JE-1 System

Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker. With stronger grille.

CBT 70J-1 + 70JE-1 System
Grandes images

Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker. With stronger grille.

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Caractéristiques

  • Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
  • 500 Watt power handling (70JE-1)
  • Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
  • Coupler plate included (70JE-1)
  • Extended pattern control (to 400 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation)
  • Extended bass response to 45 Hz.
  • Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers.
  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
    long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard
    third-party brackets)

Téléchargements

  Version Language Size Uploaded
Specifications
file type icon CBT 70J-1 + 70JE-1 Spec Sheet
updated: oct. 2020
    2,1 Mo oct. 2020
file type icon MTC-CBT-70T Spec Sheet
updated: oct. 2020
    1,74 Mo oct. 2020
Brochures
file type icon CBT Brochure
updated: oct. 2020
    973 ko oct. 2020
CAD Drawings
file type icon CBT 3D DXF Drawings
updated: oct. 2020
    8,14 Mo oct. 2020
file type icon CBT 2D DXF/PDF Drawing
updated: oct. 2020
    1,23 Mo oct. 2020
Compliances
file type icon CBT-1 Series Declaration of Conformity
updated: oct. 2019
    144 ko oct. 2019
Software
platform icon CBT Calculator
version 1.3.0.1, updated: août 2023
1.3.0.1     3,66 Mo août 2023
Tech Notes
file type icon Tech Note: Volume 1, #35
updated: oct. 2020
    2,23 Mo oct. 2020
Install Guides
file type icon CBT Quick Start Guide
updated: oct. 2020
    1,15 Mo oct. 2020
file type icon MTC-PC2 & MTC-PC3 Installation
updated: sept. 2019
    42,5 ko sept. 2019
file type icon MTC-CBT-FM1/FM2 Flush-Mount Wall Brackets for CBT Speakers
updated: oct. 2020
    297 ko oct. 2020
file type icon CBT70J+70JE Hookup Guide
updated: oct. 2020
    142 ko oct. 2020
file type icon CBT 70J-1/70JE-1 Bracket Installation Guide
updated: oct. 2020
    491 ko oct. 2020
file type icon CBT Stand-Mount Bracket Guide
updated: oct. 2020
    476 ko oct. 2020
file type icon CBT 70J-1 Wall Bracket PDF
updated: oct. 2020
    31,8 ko oct. 2020
file type icon CBT Flush-mount Bracket
updated: oct. 2020
    338 ko oct. 2020
Information documents
file type icon CBT Cabinet Painting Instructions
updated: oct. 2019
    17,2 ko oct. 2019
Images
file type icon CBT Family Hi-Res Image
updated: oct. 2019
    237 ko oct. 2019
file type icon CBT 70J/70JE Hi Res Image
updated: oct. 2020
    71,8 ko oct. 2020
Ease Data
file type icon CBT 70J-1 EASE File
updated: déc. 2020
    1,85 Mo déc. 2020
CLF Files
file type icon CBT 70J CLF Files
updated: déc. 2020
    424 ko déc. 2020
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: mai 2021
  en  5,71 Mo mai 2021
file type icon Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
en updated: oct. 2022
  en  8,48 Mo oct. 2022
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: mai 2023
  557 ko mai 2023
Accessories
file type icon CBT Suspension Bracket
updated: oct. 2020
    305 ko oct. 2020
FAQs
file type icon CBT Frequently Asked Questions
updated: oct. 2020
    193 ko oct. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

Drivers Eight (8) 130 mm (5 in) LF drivers Sixteen (16) 25 mm (1 in) HF drivers
Frequency Range (-10dB) 45 Hz – 20 kHz
Coverage Angle Vertical: Switchable, Narrow Mode: 25° (±10°), Broad Mode: 45° (±10°), Horizontal: 150° (±20°)
Sensitivity Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz – 8 kHz) (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz – 18 kHz) Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 – 8 kHz) (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz – 18 kHz)
Impedance 4 ohms
Power Rating 1000 W (4000 W peak), 2 hrs 700 W (2800 W peak), 100 hrs
Maximum SPL (1m) Narrow: (speech mode) 125 dB cont ave (131 peak) (music mode) 121 dB cont ave (127 peak) Broad: (speech mode) 124 dB cont ave (130 peak) (music mode) 120 dB cont ave (126 peak)
Low Frequency Drivers 8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
High Frequency Drivers 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
Enclosure Fiberglass-reinforced ABS cabinet, painted aluminum grille.
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or white (-WH)
Insert Points 20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
Mounting Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
Dimensions (H x W x D) 1388 x 170 x 237 mm(54.8 x 6.7 x 9.3 in)
Net Weight 20.4 kg (45 lb)
Included Accessories Coupler plate (included with 70JE-1) Swivel (pan) / tilt wall bracket (included with 70J-1)
Optional Accessories MTC-PC2 terminal panel cover MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array) MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
Components - 70JE-1 Four (4) 130 mm (5 in) LF drivers
Frequency Range (-10 dB) - 70JE-1 45 Hz – 700 Hz
Sensitivity (2.83V @ 1m) - 70JE-1 90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
Nominal Impedance - 70JE-1 8 ohms
Power Capacity - 70JE-1 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs
Max SPL - 70JE-1 117 dB
Net Weight - 70JE-1 8.2 kg (18 lb)
