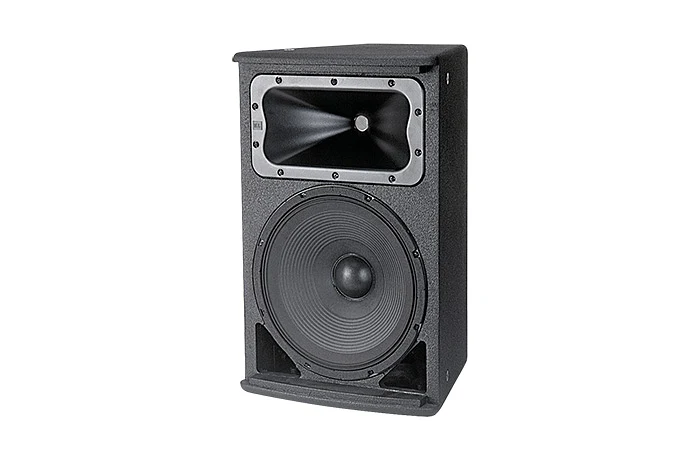

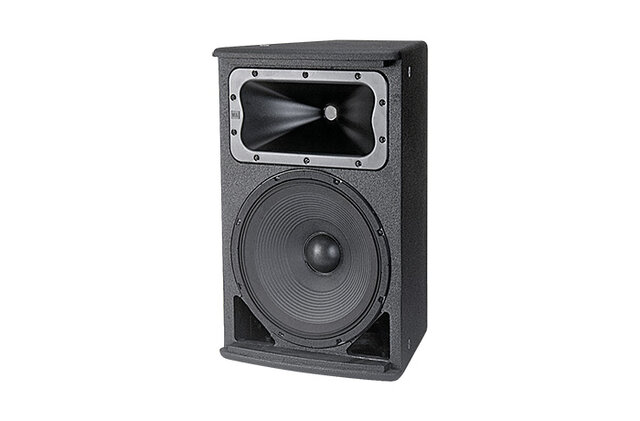

Compact 2-Way Loudspeaker with 1 x 12" LF
AC2212 speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver.
Grandes images
Caractéristiques
- PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
- Bi-Amp / Passive Switchable.
- Optional U-Bracket Model MTU-4.
- For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed
entertainment venues.
Téléchargements
Specifications
| Taille | |
|
|
573 ko |
Manuals
| Taille | |
|
|
597 ko |
|
|
8,25 ko |
|
|
160 ko |
mis à jour : juil. 2024
Brochures
| Taille | |
|
|
4,05 Mo |
|
|
5,71 Mo |
CAD Drawings
| Taille | |
|
|
2,69 Mo |
|
|
3,8 Mo |
Compliances
| Taille | |
|
|
91,7 ko |
Simulation Data
| Taille | |
|
|
24 Mo |
|
|
21 Mo |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range | 50 Hz - 19 kHz (-10 dB) |
| Frequency Response | 55 Hz - 17 kHz ( ± 3 dB) |
| Coverage Pattern | /64: 60°x 40°/95: 90°x 50°/00: 100°x 100° |
| Directivity Factor (Q) | 7.1 |
| Directivity Index (DI) | 8.5 dB |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Slopes | 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz |
| Transducer Power Rating (AES) | LF: 300 W (1200 W peak), 2 hrs250 W (1000 W peak), 100 hrsHF: 50 W (200 W peak), 2hrs |
| System Power Rating | Passive mode: 250 W (1000 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 120 dB-SPL cont avg (126 dB peak) |
| System Sensitivity | Passive mode: 95 dB SPL (1W @ 1m) |
