SRX815P

Enceinte amplifiée polyvalente 2 voies 15 pouces

SRX815P
Grandes images

Enceinte Amplifiée Multipurpose 2 Voies 15 Pouces

La Série SRX800 est la nouvelle génération de système d'enceinte amplifiée haute performance, composée de trois modèles large bande et deux modèles de caisson de basses, offrant un ensemble de caractéristiques qui élèvent la Série SRX800 au meilleur de sa catégorie parmi tous les systèmes concurrents. L'enceinte large bande 2 voies 15", SRX815P, est dotée des légendaires Drivers JBL, d'une amplification Crown propriétaire de 2 000 Watts, de la technologie DriveCore Front-End de Crown, d'un DSP JBL premium configurable par l'utilisateur, des Accordages V5 compatibles avec les systèmes de tournée Vertec et VTX, et d'options de contrôle réseau HiQnet via des applications iOS et Android. S'appuyant sur la longue histoire de JBL en matière de technologie révolutionnaire et de conception d'enceintes, la Série SRX800 répond aux besoins des tourneurs, des installations et des applications de sonorisation live les plus exigeantes, leur permettant de déployer une solution complète sans compromis, dotée du légendaire son et des performances JBL, d'un large éventail de possibilités de configuration et de compatibilité avec les systèmes de tournée phares de JBL.



Caractéristiques

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup
  • Feet for Monitor Angle

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


plus de détails

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Téléchargements

Data Sheets
  Taille Téléchargé
file type icon SRX815P Data Sheet
mis à jour : avr. 2019
1,8 Mo avr. 2019
Specifications
  Taille Téléchargé
file type icon SRX815P Spec Sheet
mis à jour : avr. 2019
713 ko avr. 2019
Manuals
  Taille Téléchargé
file type icon SRX Connect Presets HelpGuide
mis à jour : oct. 2020
286 ko oct. 2020
file type icon SRX Connect NormalView HelpGuide
mis à jour : oct. 2020
427 ko oct. 2020
Brochures
  Version Langue Taille Téléchargé
file type icon JBL 2025 PPA Brochure
en version B, mis à jour : août 2025
en  8,45 Mo août 2025
Compliances
  Taille Téléchargé
file type icon SRX800 Series Declaration of Conformity
mis à jour : oct. 2020
154 ko oct. 2020
Software
  Taille Téléchargé
file type icon Software Support
mis à jour : avr. 2019
114 ko avr. 2019
Android download icon SRX Connect
publié : août 2023
août 2023
Windows download icon HiQnet Audio Architect
publié : nov. 2020
nov. 2020
iOS download icon SRX Connect
publié : août 2023
août 2023
User Guides
  Taille Téléchargé
file type icon SRX 812P/815P/835P QuickStart Guide
mis à jour : nov. 2020
1,75 Mo nov. 2020
file type icon SRX800 User Guide
mis à jour : avr. 2019
7,41 Mo avr. 2019
Images
  Taille Téléchargé
file type icon SRX800 Driver
mis à jour : avr. 2019
158 ko avr. 2019
file type icon SRX800 Handle
mis à jour : avr. 2019
208 ko avr. 2019

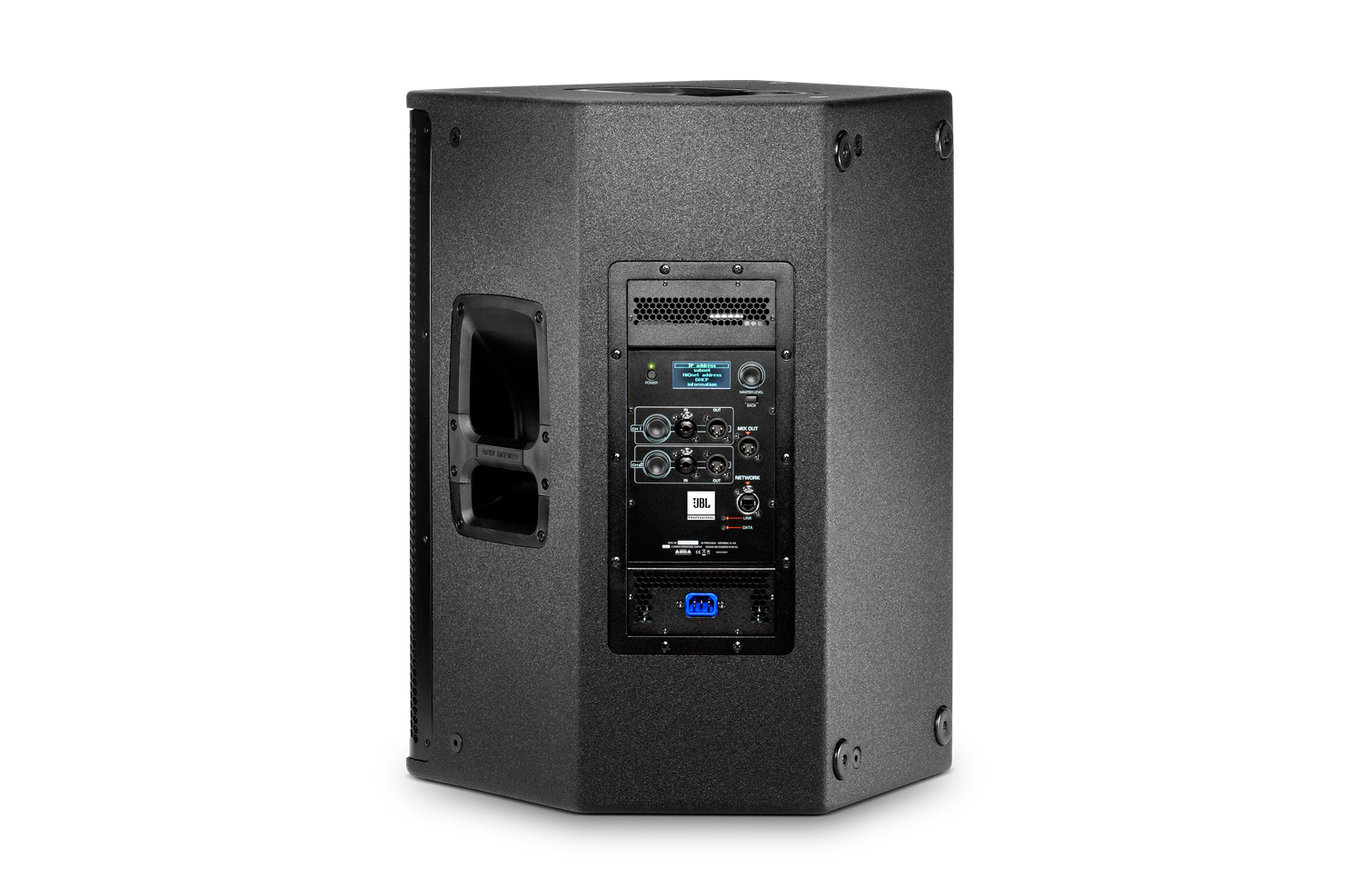

file type icon SRX815P Back
mis à jour : avr. 2019
253 ko avr. 2019
file type icon SRX815P Angle No-Grill
mis à jour : avr. 2019
232 ko avr. 2019

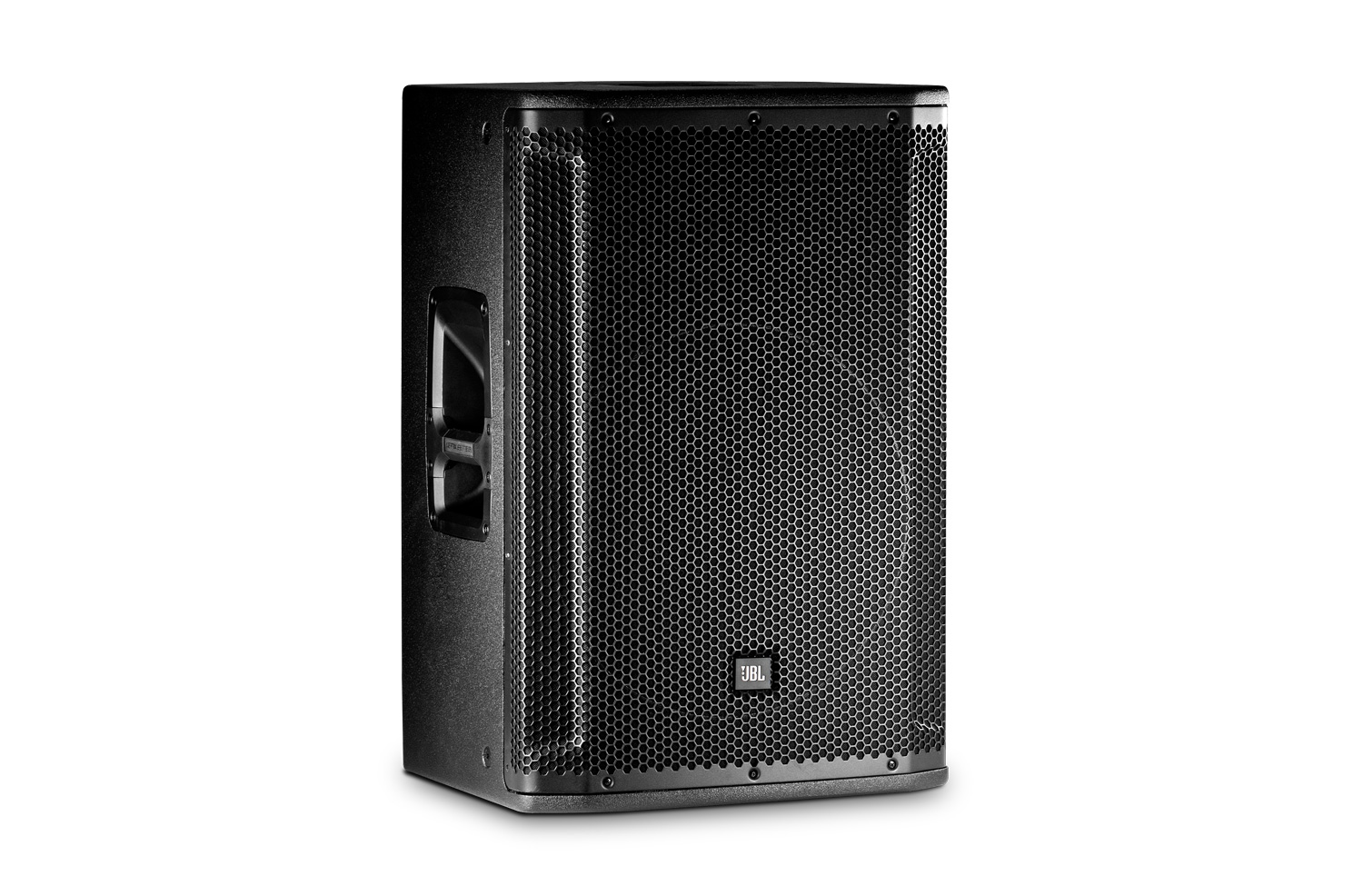

file type icon SRX815P Angle
mis à jour : avr. 2019
322 ko avr. 2019
file type icon SRX815P Front
mis à jour : avr. 2019
338 ko avr. 2019

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

System Type Self powered 15”, two-way, bass-reflex
Maximum SPL (1m) 137 dB
Frequency Range (-10dB) 36 Hz - 21 kHz
Frequency Response (±3 dB) 44 Hz - 20 kHz
Coverage Pattern 90° x 50°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in)
Net Weight (each) 28.6 kg (63 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2275F, Differential Drive®, 15" diameter
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 suspension points

Accessoires

SRX815P-CVR-DLX | Deluxe padded cover for SRX815P
SRX815P-CVR-DLX Main photo
Grandes images
SRX815P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX815P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
