PRX415M

Moniteur de scène et système d'enceintes deux voies de 15 pouces

Grandes images

15" Two-Way Stage Monitor and Loudspeaker System

PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.



Caractéristiques

  • Couverture 90° x 50°
  • Douille de pôle à double angle pour les applications nécessitant un montage sur trépied
  • Grille en acier robuste calibre 16 doublée d'un écran de protection
  • Finition de boîtier DuraFlex™ résistante
  • SonicGuard™ protège le haut-parleur haute fréquence contre une puissance excessive sans interrompre les performances.

Applications

  • Renforcement de la musique et de la parole dans les applications de divertissement, en direct ou pré-enregistrées
  • Haut-parleur satellite haute performance pour utilisation avec des subwoofers


Téléchargements

Specifications
  Taille Téléchargé
file type icon PRX415M Spec Sheet
mis à jour : avr. 2019
1,26 Mo avr. 2019
Brochures
  Version Langue Taille Téléchargé
file type icon PRX400 Brochure
mis à jour : jan. 2021
    991 ko jan. 2021
file type icon Portable Sound Full Line 2015 Catalog
mis à jour : oct. 2020
    2,54 Mo oct. 2020
file type icon JBL 2025 PPA Brochure
en version B, mis à jour : août 2025
en  8,45 Mo août 2025
Compliances
  Taille Téléchargé
file type icon PRX400 Series Declaration of Conformity
mis à jour : oct. 2020
144 ko oct. 2020
Images
  Taille Téléchargé

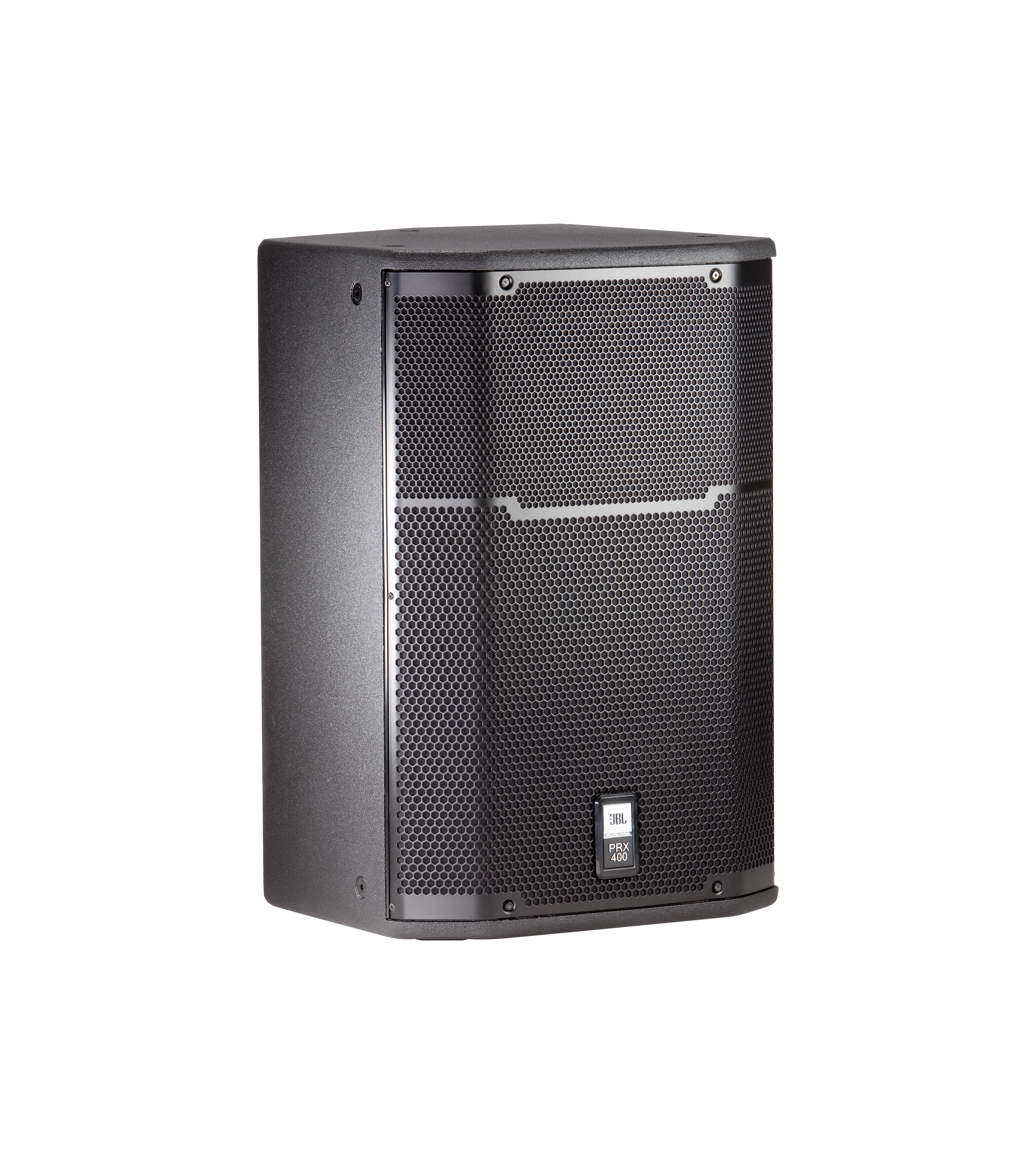

file type icon PRX415 Front Angle
mis à jour : avr. 2019
2,94 Mo avr. 2019

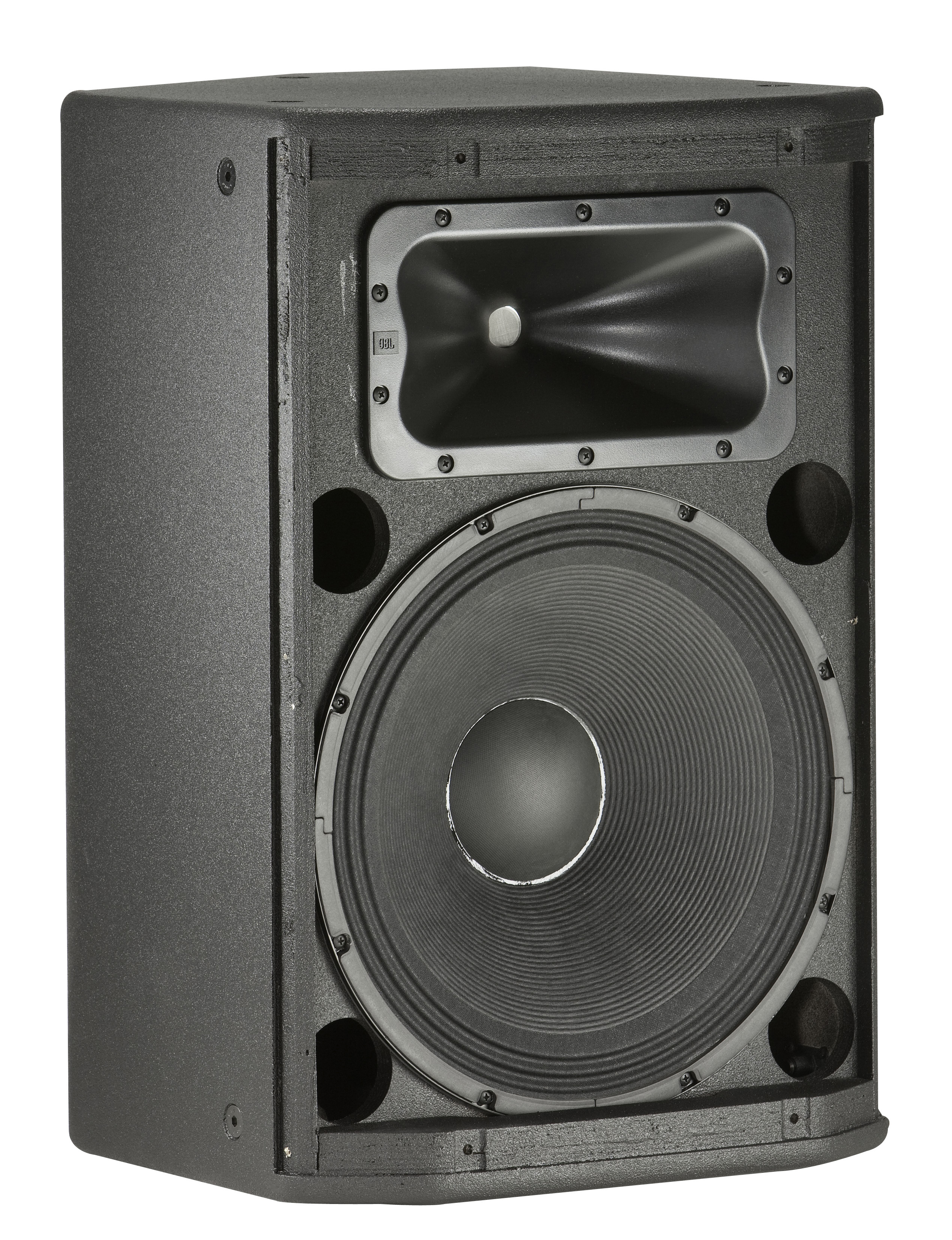

file type icon PRX415 fr Angle No Grill
mis à jour : avr. 2019
2,5 Mo avr. 2019
Speaker Tunings
  Taille Téléchargé
file type icon PRX400 Series Tunings
mis à jour : oct. 2020
41,2 ko oct. 2020

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB) 55 Hz – 19 kHz
Frequency Response (±3 dB) 66 Hz – 16 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 98 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 122 dB SPL cont. (129 dB SPL peak)
Nominal Impedance 8 ohms
Dimensions (H x W x D) 650 mm x 429 mm x 457 mm (25.6" x 16.9" x 18")
Net Weight 21 kg (46 lbs.)
Inputs Parallel Neutrik® Speakon® NL-2 / ¼" phone combo jacks
Enclosure Duraflex coated plywood

Accessoires

PRX415M-CVR | Housse matelassée pour PRX415M
PRX415M-CVR Main photo
Grandes images
PRX415M-CVR detail thumbnail #1 PRX415M-CVR detail thumbnail #2 PRX415M-CVR detail thumbnail #3 PRX415M-CVR detail thumbnail #4

Padded Cover for PRX415M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.


JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Grandes images
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products

Documentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Grandes images
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Grandes images
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Réglable de 4'2" (1270MM) à 6'5" (1956MM)
  • Trépied de haut-parleur à réglage manuel
  • Conçu pour une utilisation avec les modèles JBL suivants : JRX200, PRX400, STX800, EON, PRX700, VRX900

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Grandes images
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Pied d'enceinte à réglage manuel avec extrémité filetée M20, tube de 38 mm et 35 mm. Le JBLPOLE-MA est doté d'un remarquable collier de réglage de hauteur avec un bouton ergonomique en « Z » qui permet un réglage confortable. Offrant l'assemblage le plus robuste, le collier de réglage de hauteur prévient le serrage excessif et les problèmes de casse associés à tous les modèles en plastique.

  • Léger
  • Colliers en alliage moulé
  • Douille filetée M20
  • Compatible avec tous les caissons de basses dotés d'un filetage de tige M20 standard (JBL PRX, VRX, STX et SRX818) - Veuillez consulter les fiches produit individuelles pour confirmation

Documentation
