High Power Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)

9410
Grandes images

High Power Cinema Surround Loudspeaker 2-Way Passive 1" HF, 10" Woofer (2" VC)

The 9410 Cinema Surround offers high 350 Watt power handling capability, high sensitivity, and extended base response in a groundbreaking design. The two-way 9410 features new transducer technologies, waveguide and horn designs developed specifically to produce studio quality performance with pattern control tailored to modern theatre geometries. Combining JBL’s Image Control Technology and new asymmetric wave-shaping techniques, the 9410 surround features a Wave Shaping Vane, integral to the design, to distribute acoustic energy in proper proportion to the room. This technique provides a wave-front that is sculpted to the room geometry and provides very precise coverage capability. The 9410 features a high power, long throw 250mm (10 inch) low frequency driver for smooth extended bass response. The high frequency section utilizes a 25mm (1 inch) composite diaphragm compression driver with high output capability. Distribution of the drivers and construction of the cabinet is carefully calculated and rigorously tested in order to realize optimized resonance and accurate coverage. Two venting ports are designed at the bottom which further improves the low frequency response. The unique, high tech, molded, black textured enclosure with open high frequency horn and black grill will enhance any décor. Built to traditional JBL quality standards, the 9410 will stand up to long term use, even under adverse conditions while delivering excellent performance.

Caractéristiques

  • 350 Watt Power handling capability
  • High Frequency Horn features JBL Image Control Technology and Wave Shaping Vane for precise pattern control
  • Three uniquely-designed mounting planes provides a 15° angle toward the screen for optimized coverage
  • Input terminals on top of cabinet for easy access
  • Lightweight, Rigid molded enclosure
  • Two venting ports at the bottom for improved low frequency response
  • Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
  • Acoustic Theory blends with Low Frequency Gain Technology for improved low frequency response

Téléchargements

  Version Language Size Uploaded
Compliances
file type icon Cinema Sound 9400 Series - EU Declaration of Conformity
updated: oct. 2019
    277 ko oct. 2019
Spec Sheets
file type icon 9410 Spec Sheet EN
updated: oct. 2020
    729 ko oct. 2020
file type icon 9410 Spec Sheet CN
updated: oct. 2020
    829 ko oct. 2020
HI-RES IMAGEs

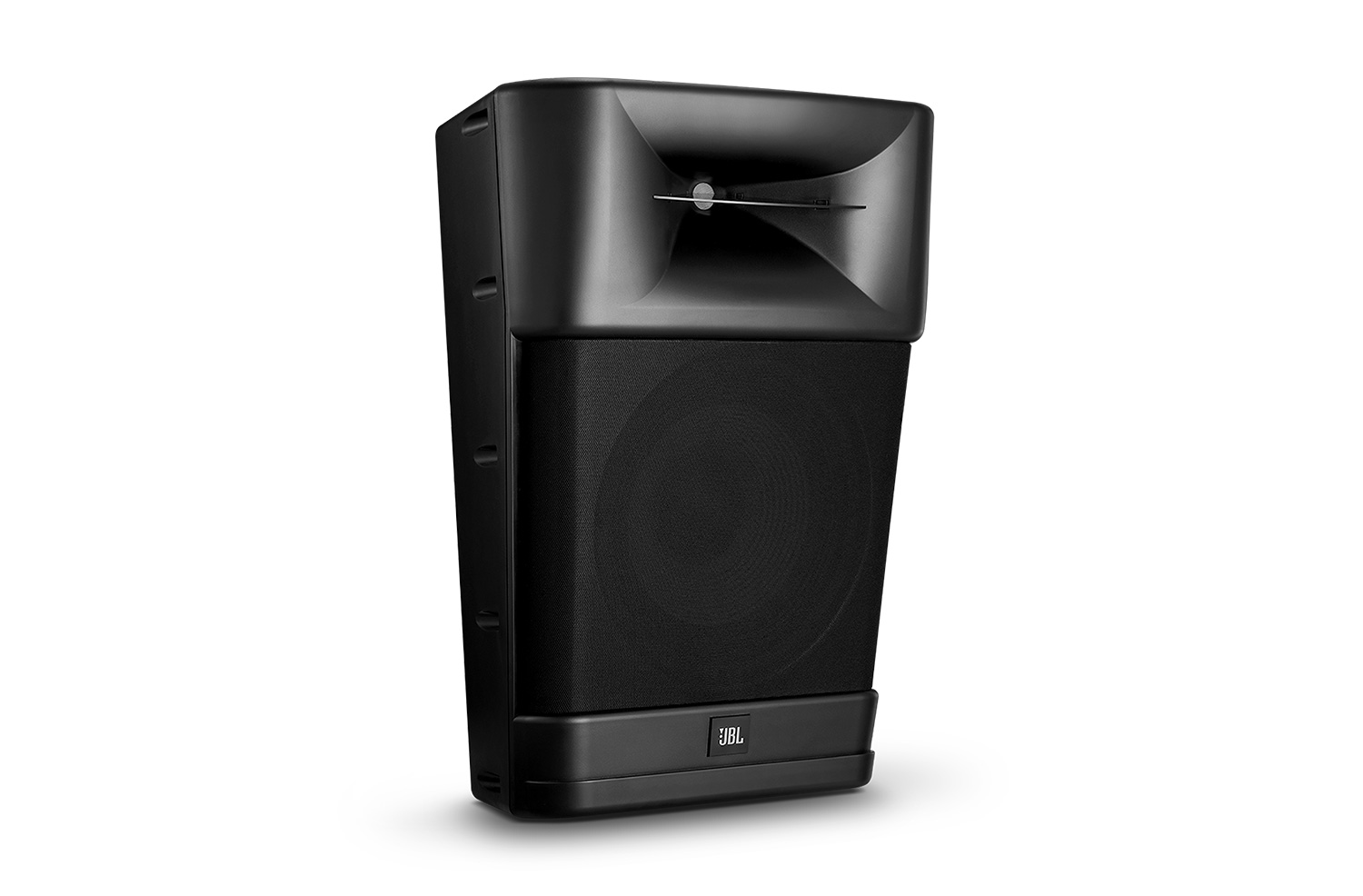

file type icon 9410 Right-Facing
updated: oct. 2020
    126 ko oct. 2020

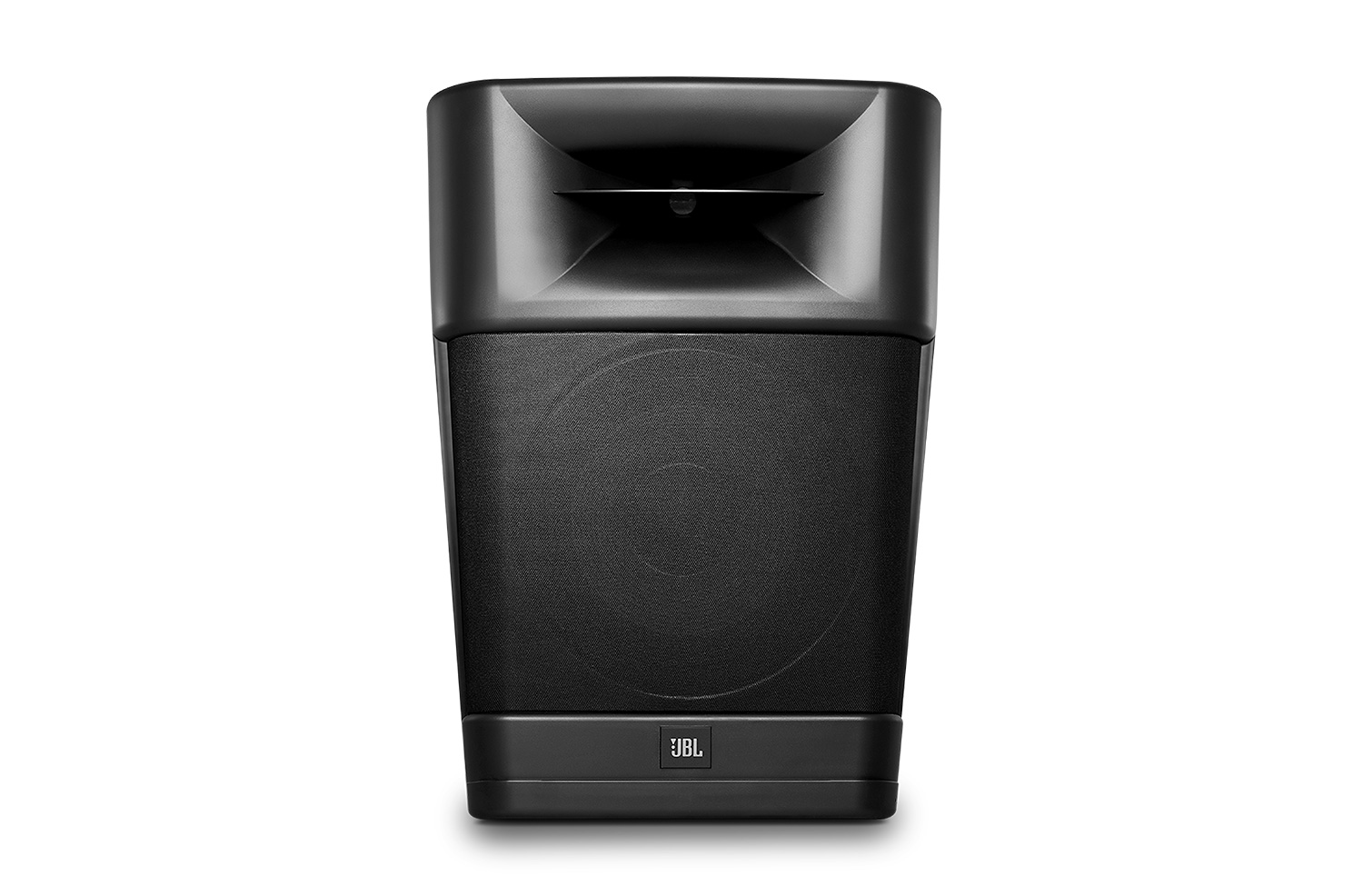

file type icon 9410 Front
updated: oct. 2020
    184 ko oct. 2020

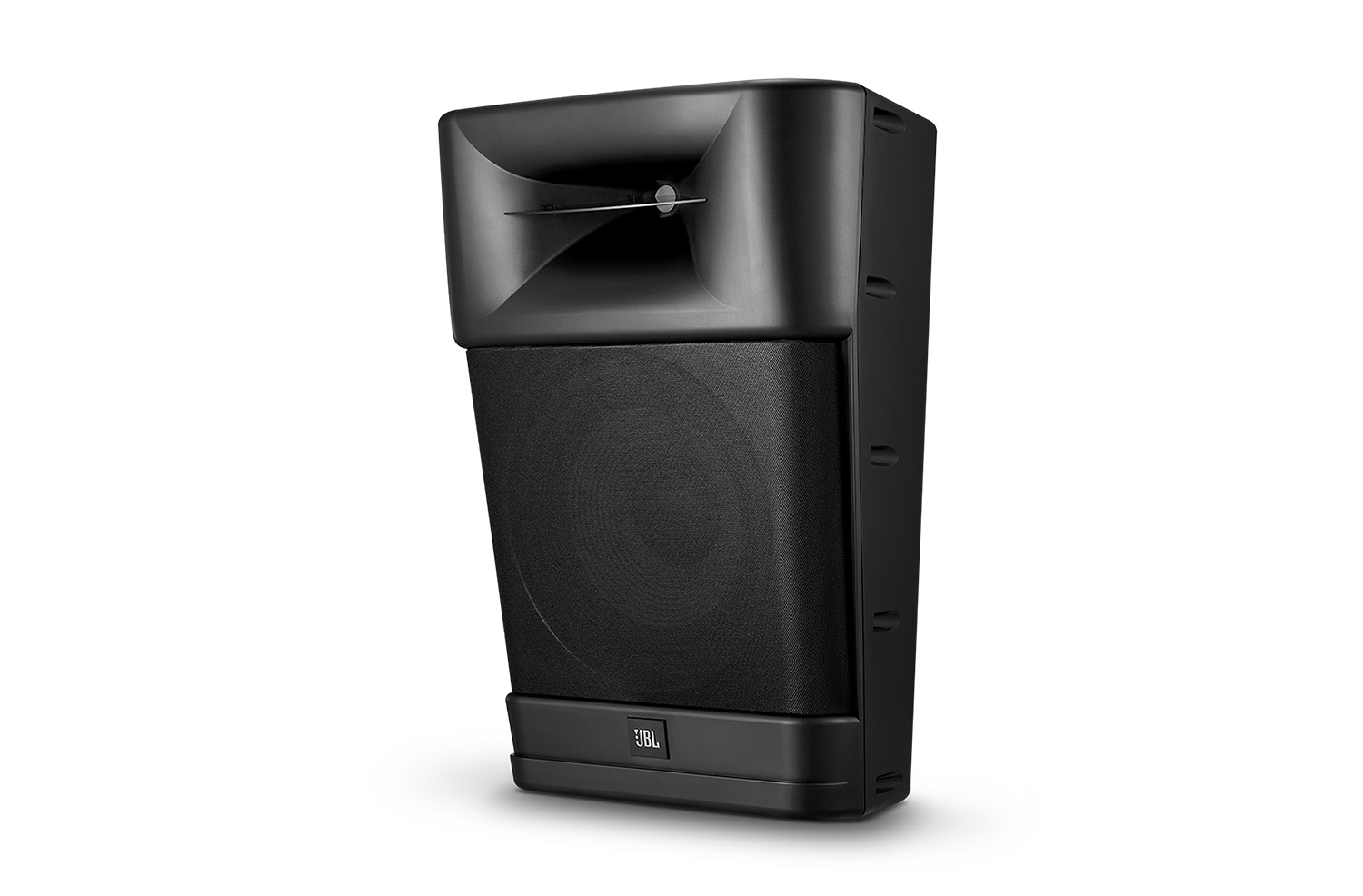

file type icon 9410 Left-Facing
updated: oct. 2020
    136 ko oct. 2020

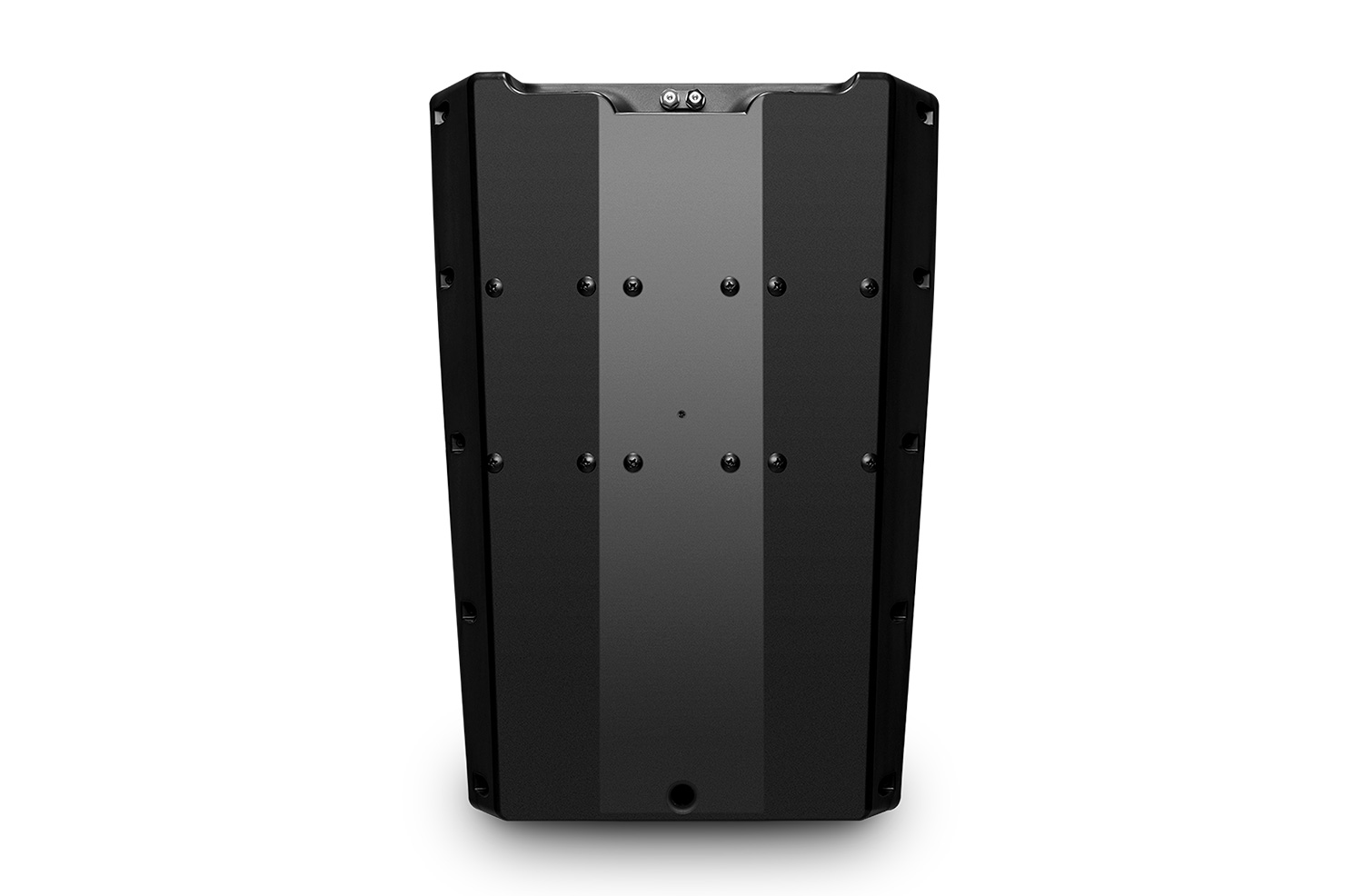

file type icon 9410 Back
updated: oct. 2020
    120 ko oct. 2020
file type icon 9410 Float
updated: oct. 2020
    113 ko oct. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Pièces détachées et réparations

Caractéristiques techniques

System Type 10", 2-way, bass-reflex
Frequency Range (-10dB) 60Hz – 20kHz (4π)
Frequency Range (±3 dB) 75Hz – 18kHz (4π)
Coverage Pattern 110º × 60º (H×V)
Power Rating:(continuous / program / peak ) 350W / 700W / 1400 W(IEC Pink Noise, 6dB CF, 2hrs)
Sensitivity 99 dB (1W@1m)
Maximum dB SPL(@1m) 125 dB continuous (131 dB peak)
Rated Impedance 8 Ohms
Polarity EIA
Low Frequency 1× M110-8
High Frequency 1× 2408H-2
Enclosure Textured black HIPS
Grille HIPS, covered with black cloth
Input Connector Binding posts
Dimensions (H x W x D) 22.0” x 16.1” x 11.0”(559 x 410 x 279 mm)
Weight 23.8 lbs (10.8 kg)
