SLP14/T

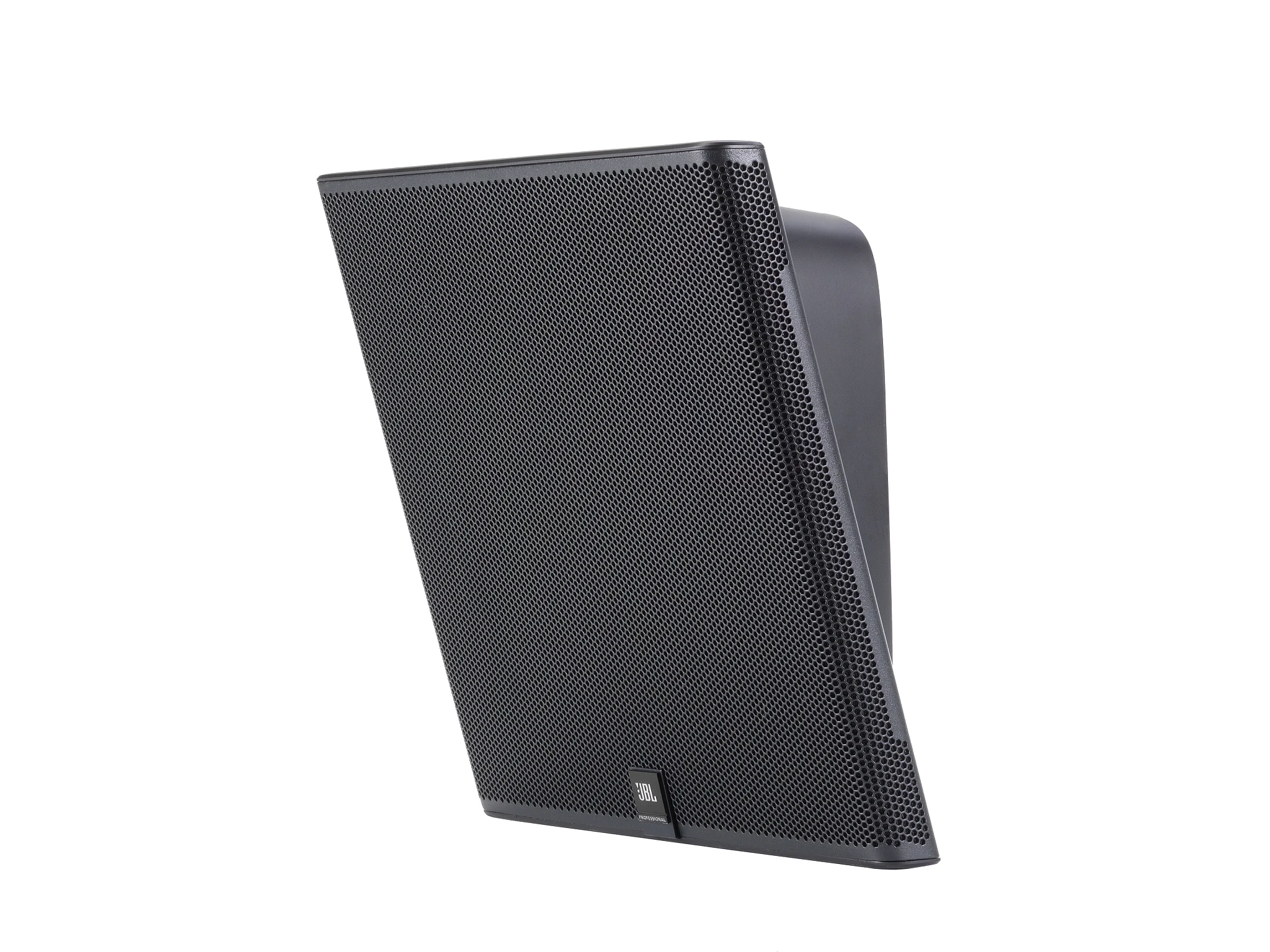

Sleek, Low-Profile On-Wall Loudspeaker

Grandes images

Sleek, Low-Profile On-Wall Loudspeaker
The SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Caractéristiques

  • Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
  • Power handling: 50W continuous pink noise, 100W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Available in black or white finishes

Téléchargements

Specifications
  Langue Taille Téléchargé
file type icon SLP14/T Spec Sheet
en mis à jour : mars 2025
en  1,88 Mo mars 2025
Manuals
  Version Taille Téléchargé
file type icon SLP Installation Guide
version A, mis à jour : mai 2026
424 ko mai 2026
Brochures
  Version Langue Taille Téléchargé
file type icon Control Contractor Brochure (2024)
en version D, mis à jour : fév. 2024
en  14 Mo fév. 2024
CAD Drawings
  Langue Taille Téléchargé
file type icon SLP Wall Bracket 2D and 3D Drawings
en mis à jour : juil. 2023
en  174 ko juil. 2023
file type icon SLP Dimensional & CAD Drawings
mis à jour : déc. 2022
  3,02 Mo déc. 2022
Declaration of Conformity
  Langue Taille Téléchargé
file type icon SLP Series Declaration of Conformity
en mis à jour : juil. 2023
en  124 ko juil. 2023
Certifications
  Langue Taille Téléchargé
file type icon SLP 14/T HETMA Approval
en mis à jour : juin 2024
en  353 ko juin 2024
Speaker Tunings
  Version Taille Téléchargé
file type icon Commercial, CBT, and AWC Tunings 220616
version A, mis à jour : mai 2023
557 ko mai 2023
  63,6 ko oct. 2025
SLP EASE Files
  Taille Téléchargé
file type icon SLP14/T - SLP EASE File
mis à jour : jan. 2023
1,35 Mo jan. 2023
SLP CLF Files
  Taille Téléchargé
file type icon SLP14/T - SLP CLF File
mis à jour : jan. 2023
326 ko jan. 2023

Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.

Pièces détachées et réparations

Caractéristiques techniques

Frequency Range (-10dB) 70 Hz - 20 kHz (on wall)
Frequency Response (+/-3 dB) 80 Hz - 18 kHz (on wall)
Power Rating 100W Continuous Program (2 hrs)
50W (200W peak) Continous Pink Noise (2 hrs)
30W (120W peak) Continuous Pink Noise (100 hrs)
Sensitivity 85 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 108 dB peak (102 dB continuous, 2 hr) @ 1m
Coverage Angle 140°H x 120°V
Directivity Factor (Q) 6.9
Directivity Index (DI) 8.4 dB
Nominal Impedance 8Ω (at 8Ω tap setting)
Transformer Taps 70V: 25 W, 12.5 W, 6.3 W, 3.2W
100V: 25 W, 12.5 W, 6.3 W
Driver 120 mm (4.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 20 mm (0.79 in) titanium dome tweeter with neodymium magnet with aluminum former.
Terminals 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm)
Enclosure Material Polycarbonate + ABS Fireproof, UL94V-0 flammability rated
Color Available in black or white (-WH). Paintable.
Dimensions 286mm W x 263mm H x H100mm D (11.3 x 10.4 x 3.9 in)
Net Weight 2.8kg (6.2 lbs)
Included Accessories Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
