VTX LZ V25 MB (discontinued)

Mount Bracket

VTX LZ V25 MB
Larger Images

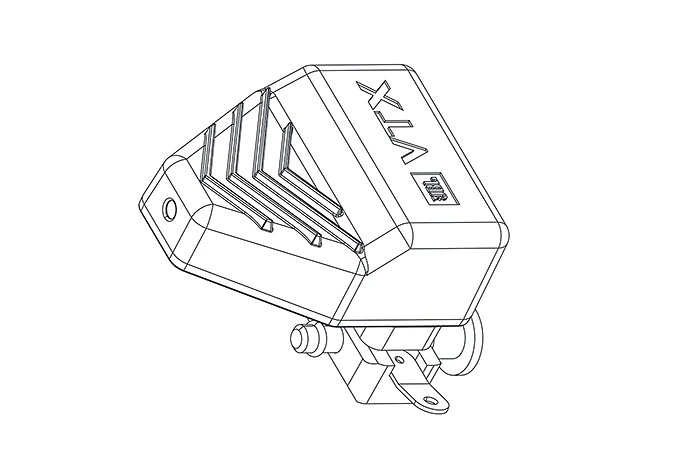

The VTX-LZ-V25-MB mount bracket has been designed to securely attach VTX-LZ units to VTX V25, VTX V25-II or VTX V25-II-CS line array systems. When properly mounted on a VTX line array system, the VTX-LZ laser provides a visual reference to confirm on-axis vertical site angle aiming (focus) of the array. Coverage simulations based on JBL Line Array Calculator II software (LAC-II) indicate the desired location where the laser should aim and the VTX-LZ laser provides visual confirmation to assist with actual installation in the field. The VTX-LZ-V25-MB can be attached to either the left or right side of a V25 enclosure.
Features:
  • Mount Bracket to attach VTX-LZ to VTX V25
  • Compatible with VTX V25, V25-II and V25-II-CS
  • VTX-LZ and VTX-LZ-PS sold separately
Included:
  • 1 x VTX-LZ-V25-MB
  • 1 x Quick Release Pin with lanyard

Downloads

  Version Language Size Uploaded
file type icon VTX LZ V25 MB Spec Sheet
updated: Mär 2024
    428 KB Mär 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
