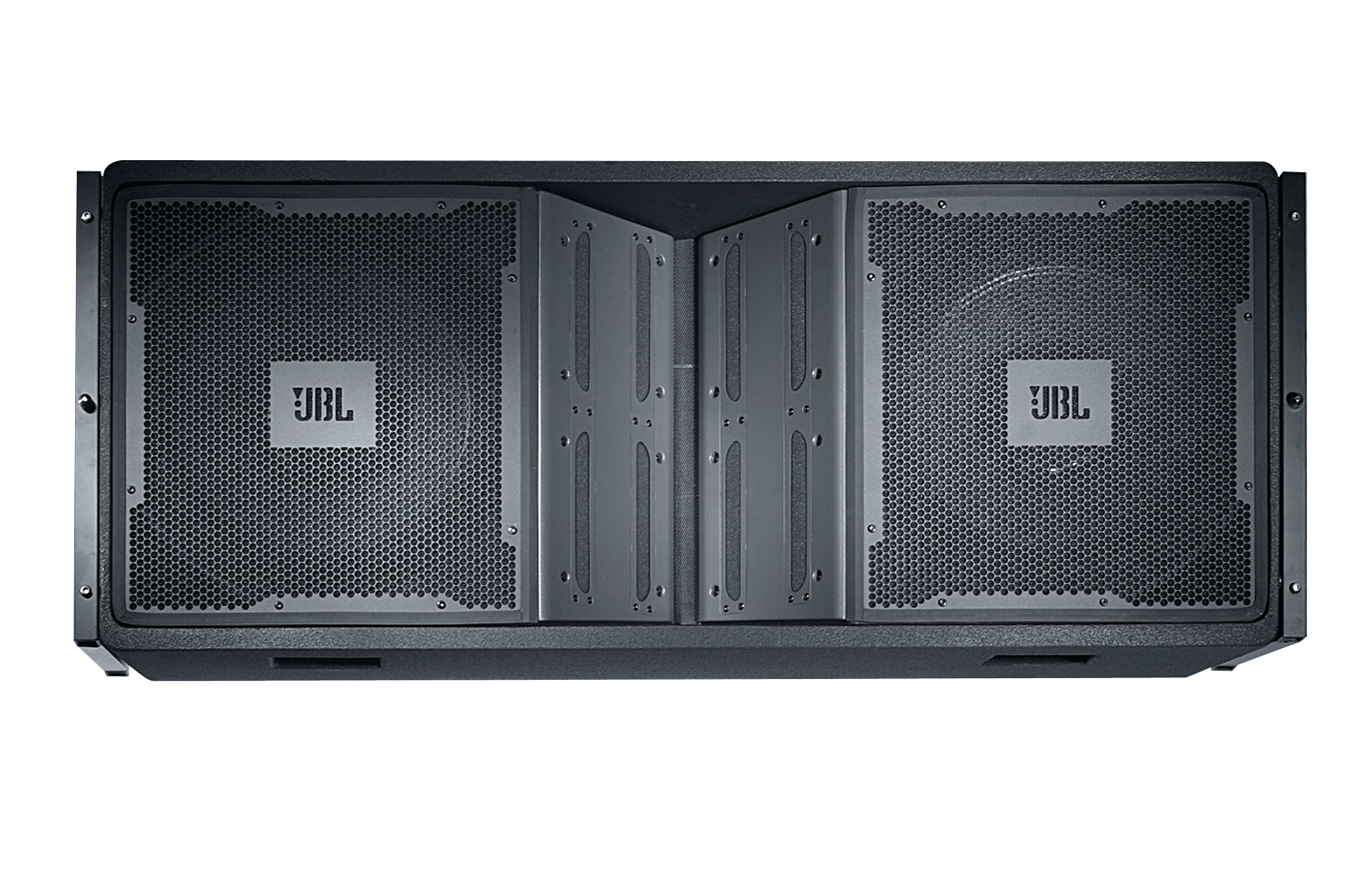

VT4889 (discontinued)

Fullsize 3-Way High Directivity Line Array Element, Composite Enclosure

VT4889
Larger Images

Fullsize 3-Way High Directivity Line Array Element,
Composite Enclosure

The VT4889 Three-Way Line Array Element is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types for both portable users and fixed venue installations.



Features

  • Advanced construction techniques and hybrid materials provide exceptionally rigid, lightweight
    enclosure construction
  • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct CooledTM cone transducers for low weight and high output
  • Industry’s smallest, lightest, most powerful 1.5˝ exit, 3˝ diaphragm high- frequency compression driver
  • Proprietary waveguides couple to create precision HF vertical slot aperture
  • Radiation Boundary Integrator® (R.B.I.): Patented technology integrates output of individual bandpass elements
  • Rugged DuraFlex™ exterior finish; weatherized components
  • Interated S.A.F.E.™ suspension system: premium heat-treated alloys provide rigid, reliable hanging arrays


Downloads

  Version Language Size Uploaded
Specifications
file type icon VT4889 Spec Sheet
updated: 22. Okt
    1,15 MB 22. Okt
Manuals
file type icon VerTec/I-Tech System Configuration Manual
updated: 18. Okt
    1,39 MB 18. Okt
file type icon VerTec Array Application Manual
updated: 18. Okt
    971 KB 18. Okt
file type icon Technical Review from PRODUCTION PARTNER
updated: 18. Okt
    5,15 MB 18. Okt
Brochures
file type icon VerTec Line Brochure
updated: 22. Okt
    2,09 MB 22. Okt
CAD Drawings
file type icon VT4889 3D DXF
updated: 22. Okt
    1,12 MB 22. Okt
file type icon VT4889 2D DXF
updated: 22. Okt
    312 KB 22. Okt
file type icon VT4889 2D PDF
updated: 22. Okt
    81,4 KB 22. Okt
Compliances
file type icon VerTec Series Declaration of Conformity
updated: 18. Okt
    144 KB 18. Okt
Software
platform icon Vertec Line Array Calculator
version 1.3.1, updated: 23. Jan
1.3.1     18 MB 23. Jan
platform icon PerformanceManager
version 2.9.1.5, updated: 2. Dez
2.9.1.5     117 MB 2. Dez
Speaker Tunings
file type icon V5 DSP Crown I-TECH HD V5 VT4889
updated: 22. Okt
    1,08 MB 22. Okt
file type icon BSS Soundweb London All Libraries
updated: 31. Okt
    35,1 MB 31. Okt
file type icon V4 DSP XTA4_VT4889_VT4887A
updated: 5. Okt
    1,88 MB 5. Okt
file type icon V4 DSP XTA4_VT4889_VT4887
updated: 5. Okt
    1,88 MB 5. Okt
file type icon V4 DSP XTA4_All_Libraries
updated: 5. Okt
    1,92 MB 5. Okt
file type icon V4 DSP XTA_DP226_VT4889_VT4887A
updated: 5. Okt
    1,83 MB 5. Okt
file type icon V4 DSP XTA_DP226_VT4889_VT4887
updated: 5. Okt
    1,83 MB 5. Okt
file type icon V4 DSP XTA_DP226_All_Libraries
updated: 5. Okt
    1,89 MB 5. Okt
file type icon V4 Crown I-Tech Library
updated: 22. Okt
    3,93 MB 22. Okt
file type icon V4 DSP BSS_FDS366T_VT4889_VT4887
updated: 22. Okt
    888 KB 22. Okt
file type icon V5 DSP Crown I-TECH HD V5 All Libraries
updated: 22. Okt
    2,97 MB 22. Okt
file type icon V5 DSP Crown IT4x3500HD VT4889
updated: 22. Okt
    1,09 MB 22. Okt
file type icon V5 DSP Crown IT4x3500HD All Libraries
updated: 22. Okt
    3,11 MB 22. Okt
file type icon V4 DSP Crown_I-TECH_VT4889_VT4887A
updated: 22. Okt
    1,96 MB 22. Okt
file type icon V4 DSP Crown_I-TECH_VT4889_VT4887
updated: 22. Okt
    1,58 MB 22. Okt
file type icon V4 DSP Crown I-TECH HD VT4889 VT4887A
updated: 22. Okt
    1,68 MB 22. Okt
file type icon V4 DSP Crown I-TECH HD VT4889 VT4887
updated: 22. Okt
    1,54 MB 22. Okt
file type icon V4 DSP BSS_Soundweb_London_VT4889_VT4887A
updated: 22. Okt
    6,1 MB 22. Okt
file type icon V4 DSP BSS_Soundweb_London_VT4889_VT4887
updated: 22. Okt
    3,72 MB 22. Okt
file type icon V4 DSP BSS_FDS366T_VT4889_VT4887A
updated: 22. Okt
    887 KB 22. Okt
file type icon V4 DSP DLP_Lake Contour_VT4889_VT4887A
updated: 18. Okt
    822 KB 18. Okt
file type icon V4 DSP DLP_Lake Contour_VT4889_VT4887
updated: 18. Okt
    653 KB 18. Okt
file type icon V4 DSP DLP_Lake Contour_All_Libraries
updated: 18. Okt
    1,26 MB 18. Okt
file type icon V4 DSP dbx_4800_VT4889_VT4887A
updated: 18. Okt
    954 KB 18. Okt
file type icon V4 DSP dbx_4800_VT4889_VT4887
updated: 18. Okt
    954 KB 18. Okt
file type icon DBX 4800 All Libraries
updated: 24. Feb
    3,46 MB 24. Feb
file type icon BSS 366 All Libraries
updated: 23. Okt
    4,9 MB 23. Okt
file type icon VT4889/VT4887A All DSP Platforms
updated: 22. Okt
    17,8 MB 22. Okt
file type icon VT4889/VT4887 All DSP Platforms
updated: 22. Okt
    9,65 MB 22. Okt
file type icon Vertec All DSP Platforms
updated: 22. Okt
    96,3 MB 22. Okt
Helpful Links
file type icon Directional Radiation Characteristics - Line Array
updated: 22. Okt
    1,12 MB 22. Okt
file type icon AES Paper: Pressure Response of Line Source
updated: 22. Okt
    388 KB 22. Okt
file type icon High Frequency Components for High Output Line Arrays
updated: 22. Okt
    2,94 MB 22. Okt
file type icon AES Journal Article: Analysis of Line Arrays
updated: 22. Okt
    856 KB 22. Okt
file type icon AES Paper: J and Spiral Arrays
updated: 22. Okt
    324 KB 22. Okt
file type icon Considerations for Deployment of Line Arrays
updated: 22. Okt
    518 KB 22. Okt
Ease Data
file type icon VerTec EASE DLL
version 3.0, updated: 4. Dez
3.0    1,19 MB 4. Dez
Images
file type icon VT4889 photo
updated: 22. Okt
    697 KB 22. Okt
Accessories
file type icon VT Fullsize Array Frame and Adapter CAD
updated: 22. Okt
    6,2 MB 22. Okt

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range 40 Hz - 18 kHz (-10 dB):
Frequency Response 45 Hz - 16 kHz (± 3 dB)
Continuous Power Rating 2000W LF1400W MF, 225W HF
Sensitivity 99 dB LF, 102 dB MF, 116 dB HF (1W/1m)
Nominal Impedances 2 x 8 ohms LF, 8 ohms MF, 16 ohms HF
Dimensions (w x h x d) 1214 mm x 489 mm x 546 mm(47.8" x 19.3" x 21")
Weight 72.6 kg (160 lb)
