JBL Professional MD55

Größere Bilder

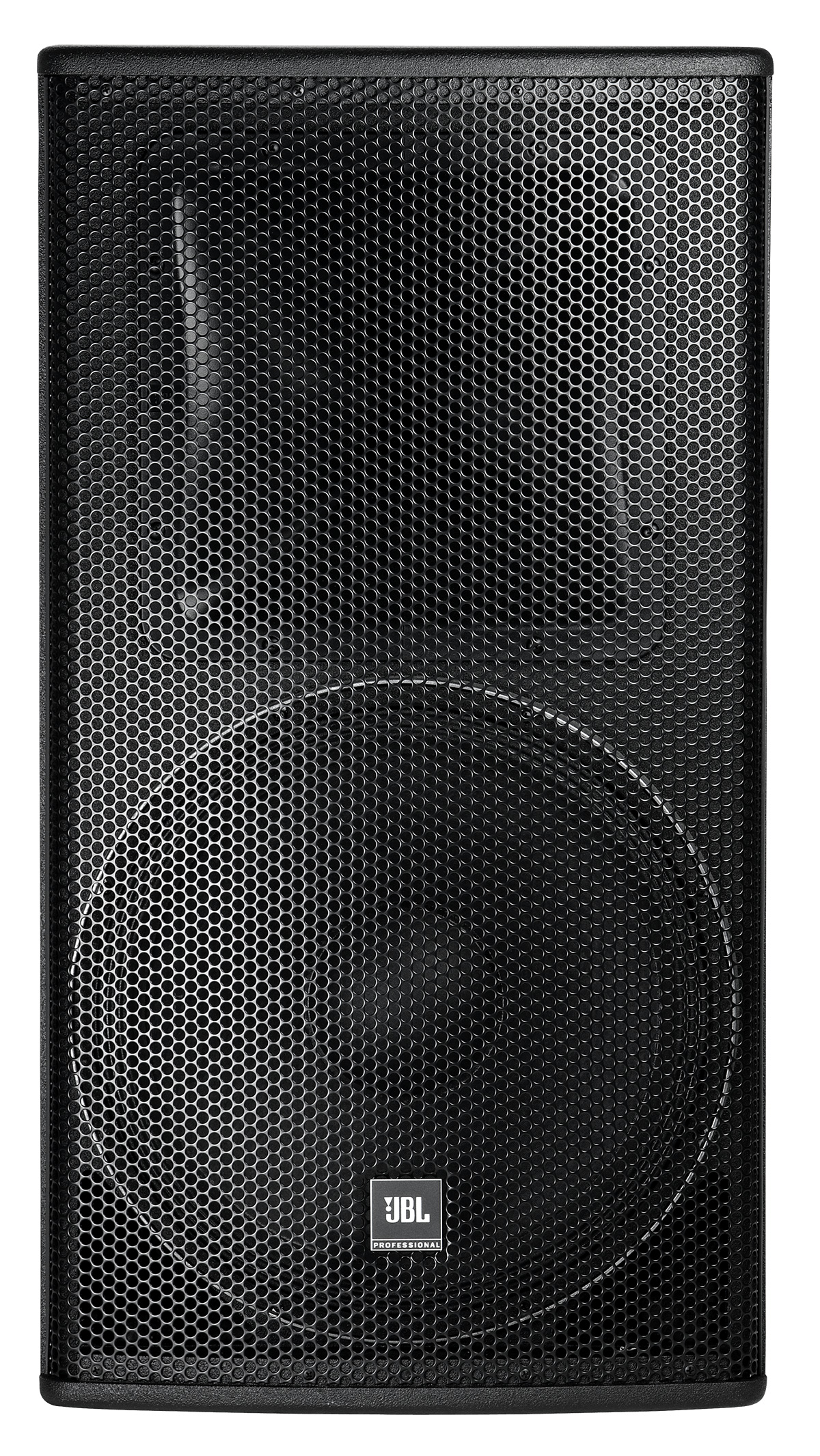

2-Way Full-Range Loudspeaker System with 1 x 15" LF

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. The MD55 is also designed for the mobile DJ requiring a light weight, high fidelity portable system. The multiangle enclosure features a 45° angle on one side for use as a floor monitor in the horizontal orientation and is fitted handles, a pole mount cup on the bottom panel. MD55 is a medium-power 90° x 50°,
15" 2-way fully passive full-range system utilizing a 265H Differential Drive transducers and a 2408H-1 compression driver with a 1.5" diaphragm for smooth low distortion high-frequency response. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.

Eigenschaften

JBL 265H 2" dual voice coil – dual magnetic gap Differential Drive® woofers
JBL 2408H-1 1.5" diaphragm, 1" exit compression driver
90° x 50° rotatable PT™ Progressive Transition waveguide
Pole mount socket for portable applications

Applications

Sophisticated dance clubs
Mobile DJ
Live sound reinforcement

Downloads

Dokumente

	Sprache	Größe	Hochgeladen
Marquis Dance Brochure aktualisiert: Apr 2026		538 KB	Apr 2026
MD55 Spec Sheet aktualisiert: Apr 2026		790 KB	Apr 2026

Data Sheets

	Größe	Hochgeladen
MD55 Spec Sheet aktualisiert: Okt 2019	790 KB	Okt 2019

Specifications

	Größe	Hochgeladen
Marquis Dance Club Series Spec Sheets aktualisiert: Jul 2019	3,97 MB	Jul 2019

Brochures

	Größe	Hochgeladen
Marquis Dance Club Series Brochure aktualisiert: Jul 2019	538 KB	Jul 2019

CAD Drawings

	Größe	Hochgeladen
Marquis Dance Series 2D DXF Drawings aktualisiert: Okt 2019	612 KB	Okt 2019
Marquis Dance Series 3D DXF Drawings aktualisiert: Okt 2019	10,4 MB	Okt 2019
Marquis Dance Series Customer Drawings PDF aktualisiert: Okt 2019	205 KB	Okt 2019

Compliances

	Größe	Hochgeladen
Marquis Dance Club Series Declaration of Conformity aktualisiert: Okt 2019	144 KB	Okt 2019

Images

	Größe	Hochgeladen
MD55 Hi-Res Image aktualisiert: Jul 2019	906 KB	Jul 2019
MD55 Hi-Res Image 2 aktualisiert: Jul 2019	1,25 MB	Jul 2019

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Teile & Service

Spezifikationen

Frequency Range (-10dB)	39 Hz – 20 kHz
Power Rating	550 W (2200 W peak) 2 hrs
Coverage Pattern	90° x 50°, rotatable waveguide
Frequency Response (±3 dB)	51 Hz – 19 kHz
Directivity Factor (Q)	11.6
Directivity Index (DI)	10.6 dB
Passive Crossover Frequency	1.8 kHz
System Power Rating	350 W (1400 W peak), 100 hrs
Maximum SPL (1m)	125 dB-SPL cont avg (131 dB peak)
System Sensitivity	98 dB SPL, 2.83V (1W) @ 1m (3.3 ft)
System Impedance	8 ohms
LF Driver	1 x JBL 265H-1 380 mm (15 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil
HF Driver	1 x JBL 2408H-1, 25.4 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Waveguide	PT-H95HF-1 Progressive Transition Waveguide
Enclosure	Trapezoidal with 7.5° and 45° side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	10 points (2 top, 2 bottom, 2 each side, 2 rear), M10 threaded hardware, 35 mm pole mount socket
Finish	Black DuraFlex™ finish.
Grille	Powder coated 14 gauge perforated steel
Input Connector	Neutrik Speakons NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through).
Environmental	Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation)	781.1 x 419.8 x 457.7 mm(30.8 x 16.5 x 18.0 in)
Net Weight	23.8 kg (52.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
