EON615

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

Buy It Now
EON615
Larger Images

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



Features

  • Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
  • JBL Waveguide Technology
  • Bluetooth integration


Reviews

“We can’t speak highly enough of the new EON 615. They sound phenomenal, they’re built like Soviet tanks, and they offer up a wide array of versatile options. Throw in a street price under $500 and we’re sold.” —Performer Magazine

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

Downloads

  Version Language Size Uploaded
Data Sheets
file type icon EON615 Deluxe Cover
updated: 22. Okt
    88,1 KB 22. Okt
file type icon EON615 WR Deluxe Cover
updated: 22. Okt
    101 KB 22. Okt
file type icon EON 615 Spec Sheet
updated: 31. Okt
    6,14 MB 31. Okt
file type icon EON615 DataSheet
updated: 1. Jul
    1,97 MB 1. Jul
Specifications
file type icon EON615 Spec Sheet
updated: 1. Jul
    6,14 MB 1. Jul
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: 22. Okt
    2,54 MB 22. Okt
CAD Drawings
file type icon EON615 2D DWG drawing
updated: 31. Okt
    1,46 MB 31. Okt
file type icon EON615 CAD Drawing
updated: 1. Jul
    1,46 MB 1. Jul
file type icon EON615 PDF Drawing
updated: 1. Jul
    183 KB 1. Jul
Compliances
file type icon EON G4 Series - Declaration of Conformity
updated: 22. Okt
    154 KB 22. Okt
file type icon EON G4 Series - EU-Declaration of Conformity (DoC)
updated: 23. Jan
    699 KB 23. Jan
Software
platform icon EON Connect
updated: 4. Nov
    4. Nov
platform icon EON Connect
updated: 4. Nov
    4. Nov
Images
file type icon EON615 Carry Bag Front Hi Res Image
updated: 22. Okt
    308 KB 22. Okt
file type icon EON615 Carry Bag with Wheels Angle Hi Res Image
updated: 22. Okt
    263 KB 22. Okt
file type icon EON615 Carry Bag with Wheels Back Hi Res Image
updated: 22. Okt
    125 KB 22. Okt
file type icon EON615 Carry Bag with Wheels Front Hi Res Image
updated: 22. Okt
    300 KB 22. Okt
file type icon EON615 Deluxe Cover Front
updated: 22. Okt
    468 KB 22. Okt
file type icon EON615 WR Deluxe Cover Back
updated: 22. Okt
    182 KB 22. Okt
file type icon EON615 WR Deluxe Cover Front
updated: 22. Okt
    136 KB 22. Okt
file type icon EON615 WR Deluxe Cover Front Open
updated: 22. Okt
    213 KB 22. Okt
file type icon EON615 Carry Bag Back Hi Res Image
updated: 22. Okt
    238 KB 22. Okt
file type icon EON615 Carry Bag Angle Hi Res Image
updated: 22. Okt
    254 KB 22. Okt
file type icon EON615 Hero Front Back
updated: 1. Jul
    6,18 MB 1. Jul
file type icon EON615 Hero noGrill
updated: 1. Jul
    4,41 MB 1. Jul
file type icon EON615 Back Panel
updated: 1. Jul
    6,67 MB 1. Jul
file type icon EON615 Back Panel Closeup
updated: 1. Jul
    8,67 MB 1. Jul
file type icon EON615 Front Beauty
updated: 1. Jul
    4,35 MB 1. Jul
file type icon EON615 Handle
updated: 1. Jul
    10,1 MB 1. Jul
file type icon EON615 Hero Front Back
updated: 22. Okt
    11,3 MB 22. Okt
User Guides
file type icon EON600 Users Guide
version B, updated: 10. Nov
B    3,85 MB 10. Nov
file type icon EON600 Connect User Guide
updated: 22. Okt
    829 KB 22. Okt
file type icon EON600 Connect User Guide - Spanish
es updated: 22. Okt
  es  3,52 MB 22. Okt
file type icon EON600 Connect User Guide - German
de updated: 22. Okt
  de  3,52 MB 22. Okt
file type icon EON600 Connect User Guide - French
fr updated: 22. Okt
  fr  3,52 MB 22. Okt
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 15. Mär
    21 MB 15. Mär

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

System Type Self powered 15", two-way, bass-reflex
Max SPL Output 127 dB
Frequency Range (-10dB) 39 Hz - 20 kHz
Frequency Response (±3 dB) 50 Hz - 20 kHz
Coverage Pattern 90° x 60°
Amplifier Design Class D
Power Rating 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D) 707mm x 439mm x 365mm (27.8in x 17.3in x 14.4in)
Net Weight 17.69 kg (39 lbs)
Mic Inputs 2
Phantom Power No
EQ 3 Parametric EQs + Hi & Lo Shelf
Effects DSP Presets
Inputs 2 x Balanced XLR-1/4” combination inputs
Outputs 1 x male XLR loop thru out
Enclosure Polypropylene

accessories

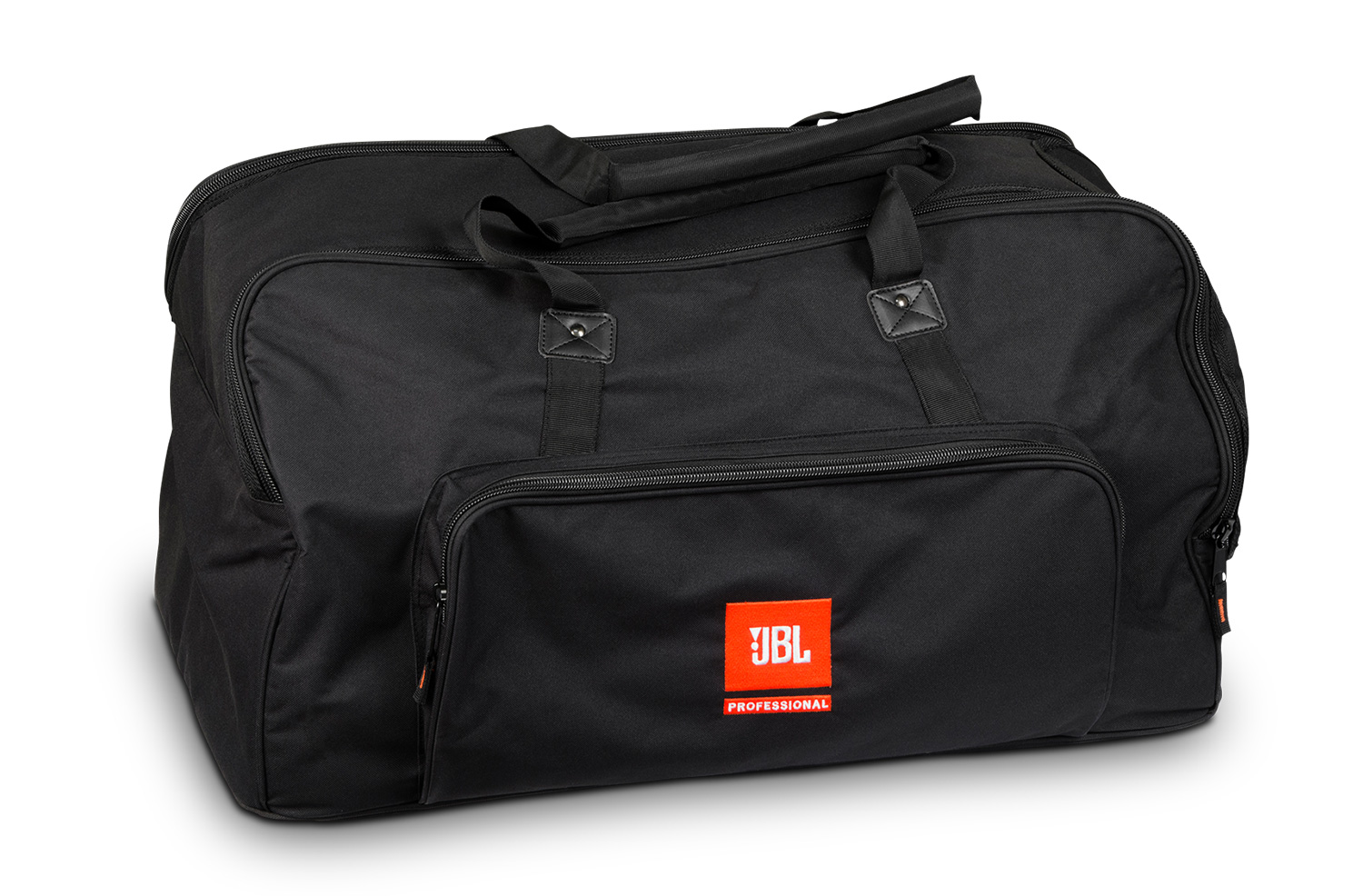

EON615-BAG | Deluxe Padded Cover for the EON615
EON615-BAG Main photo
Larger Images

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.

EON615-BAG-W | EON615 Roller Bag
EON615-BAG-W Main photo
Larger Images

Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON 615

EON615-CVR | Deluxe Padded Protective Cover for EON615
EON615-CVR Main photo
Larger Images

Deluxe padded cover for EON615. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.

EON15-STRETCH-COVER-BK | Stretchy Black Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-BK Main photo
Larger Images

Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

EON15-STRETCH-COVER-WH | Stretchy White Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-WH Main photo
Larger Images

Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

EON615-CVR-WX | Convertible Cover for EON615
EON615-CVR-WX Main photo
Larger Images

Convertible Cover for EON615. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.

JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Larger Images
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800
Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Larger Images

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800
Documentation
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Larger Images

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Larger Images

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)
Documentation
