SRX815

15-inch 2-Way Multipurpose Passive Speaker

SRX815
Større billeder

15-inch 2-Way Multipurpose Passive Speaker

SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD.



Funktioner

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 56Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Flere detaljer

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Downloads

Specifications
  Version Størrelse Uploadet
file type icon SRX815 Spec Sheet
version 11_11_19, opdateret: dec 2019
11_11_19  844 kB dec 2019
Brochures
  Version Sprog Størrelse Uploadet
file type icon JBL 2025 PPA Brochure
en version B, opdateret: aug 2025
en  8,45 MB aug 2025
Compliances
  Størrelse Uploadet
file type icon SRX800 Passive Series Compliance
opdateret: okt 2020
139 kB okt 2020
Software
  Størrelse Uploadet
file type icon Audio Architect
opdateret: apr 2019
9,96 kB apr 2019
Android download icon SRX Connect
udgivet: aug 2023
aug 2023
Windows download icon HiQnet Audio Architect
udgivet: nov 2020
nov 2020
iOS download icon SRX Connect
udgivet: aug 2023
aug 2023
Speaker Tunings
  Størrelse Uploadet
file type icon SRX800 Passive I-Tech HD Tunings
opdateret: okt 2020
23,7 kB okt 2020
41,3 kB okt 2020
file type icon SRX Passive Bi-amp tunings Table
opdateret: okt 2020
2,69 MB okt 2020
Images
  Størrelse Uploadet
file type icon SRX800 Driver
opdateret: apr 2019
158 kB apr 2019

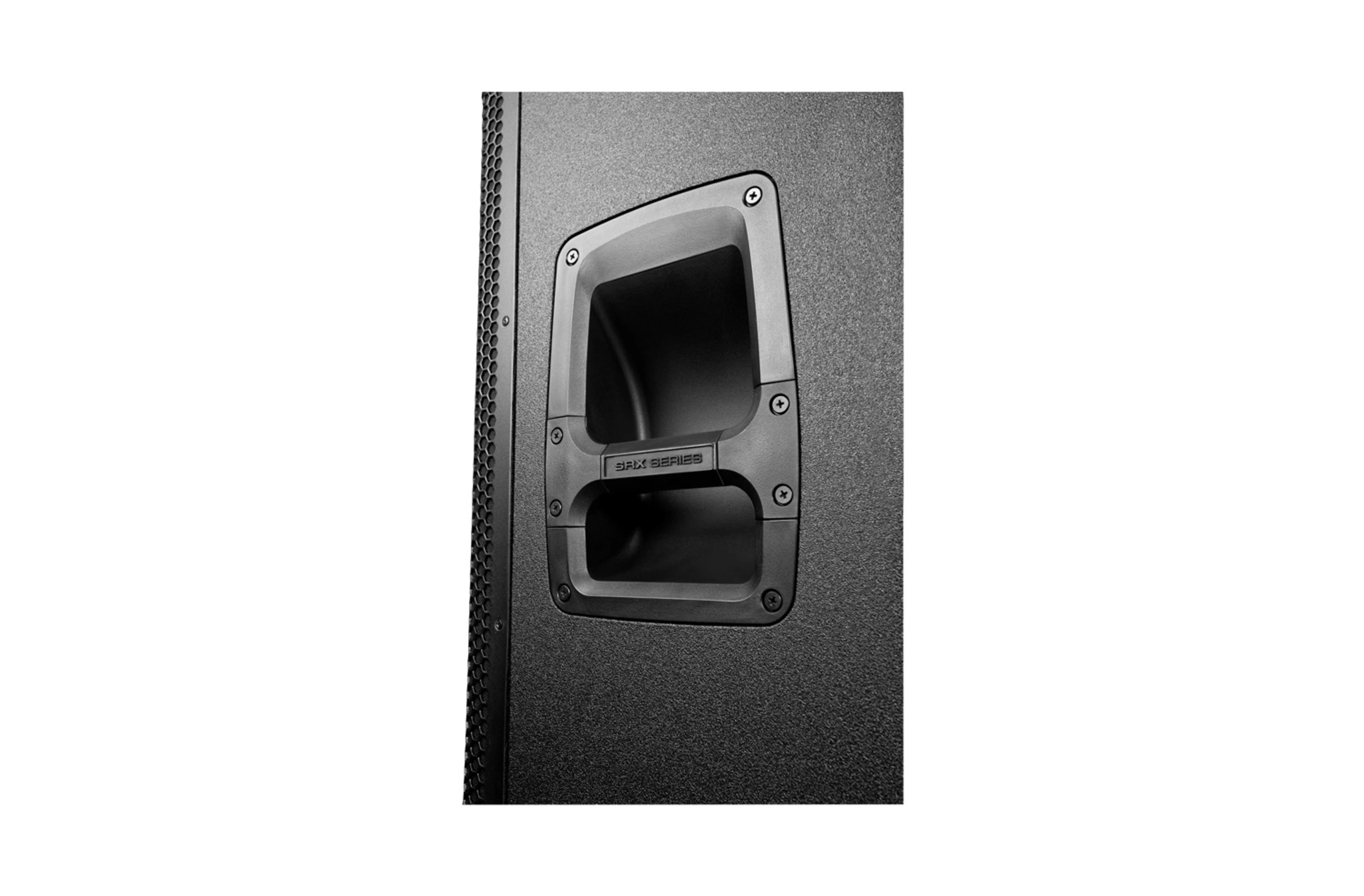

file type icon SRX800 Handle
opdateret: apr 2019
208 kB apr 2019

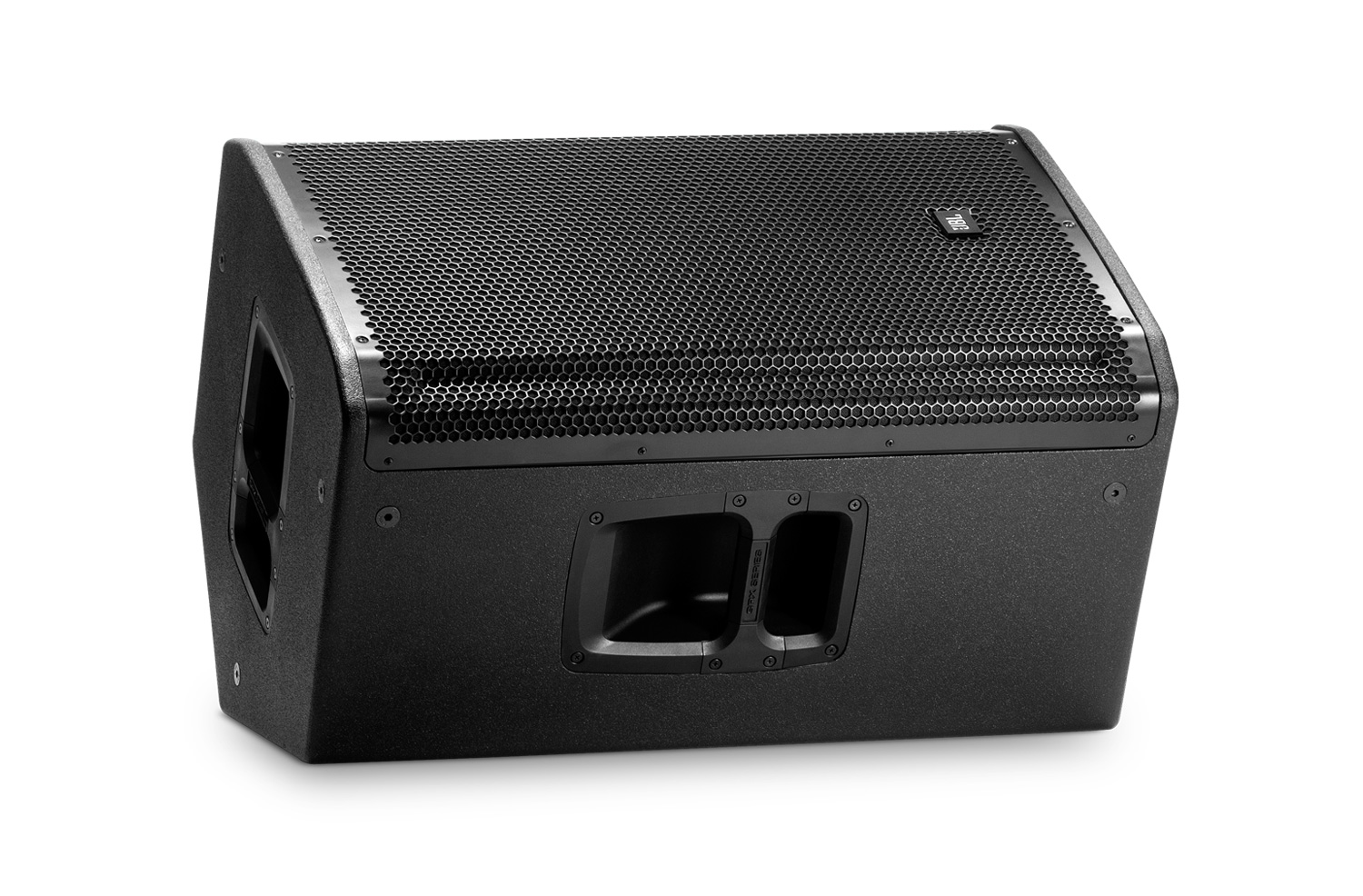

file type icon SRX815 Monitor
opdateret: apr 2019
345 kB apr 2019

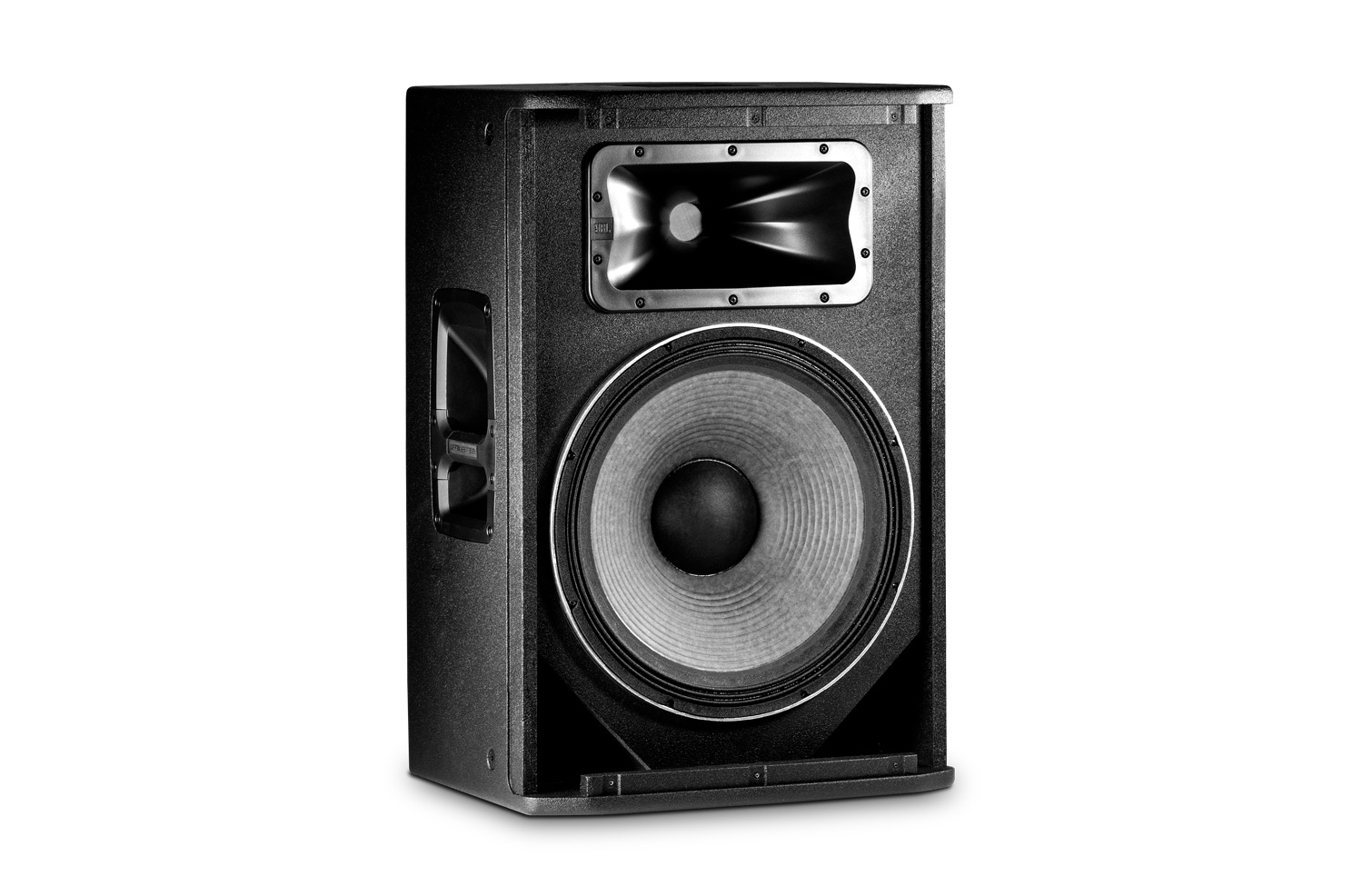

file type icon SRX815 Angle No-Grill
opdateret: apr 2019
232 kB apr 2019

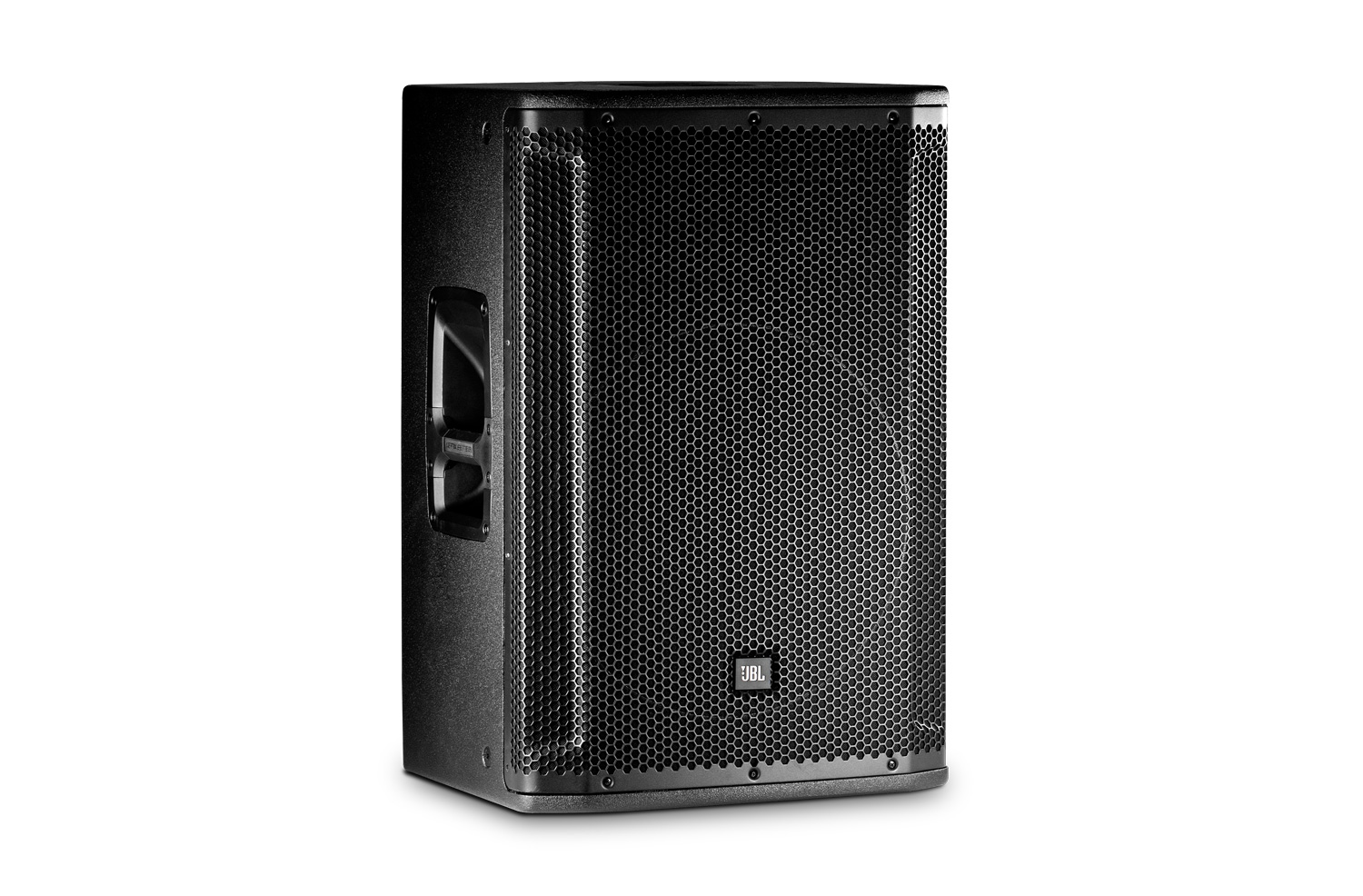

file type icon SRX815 Angle
opdateret: apr 2019
322 kB apr 2019

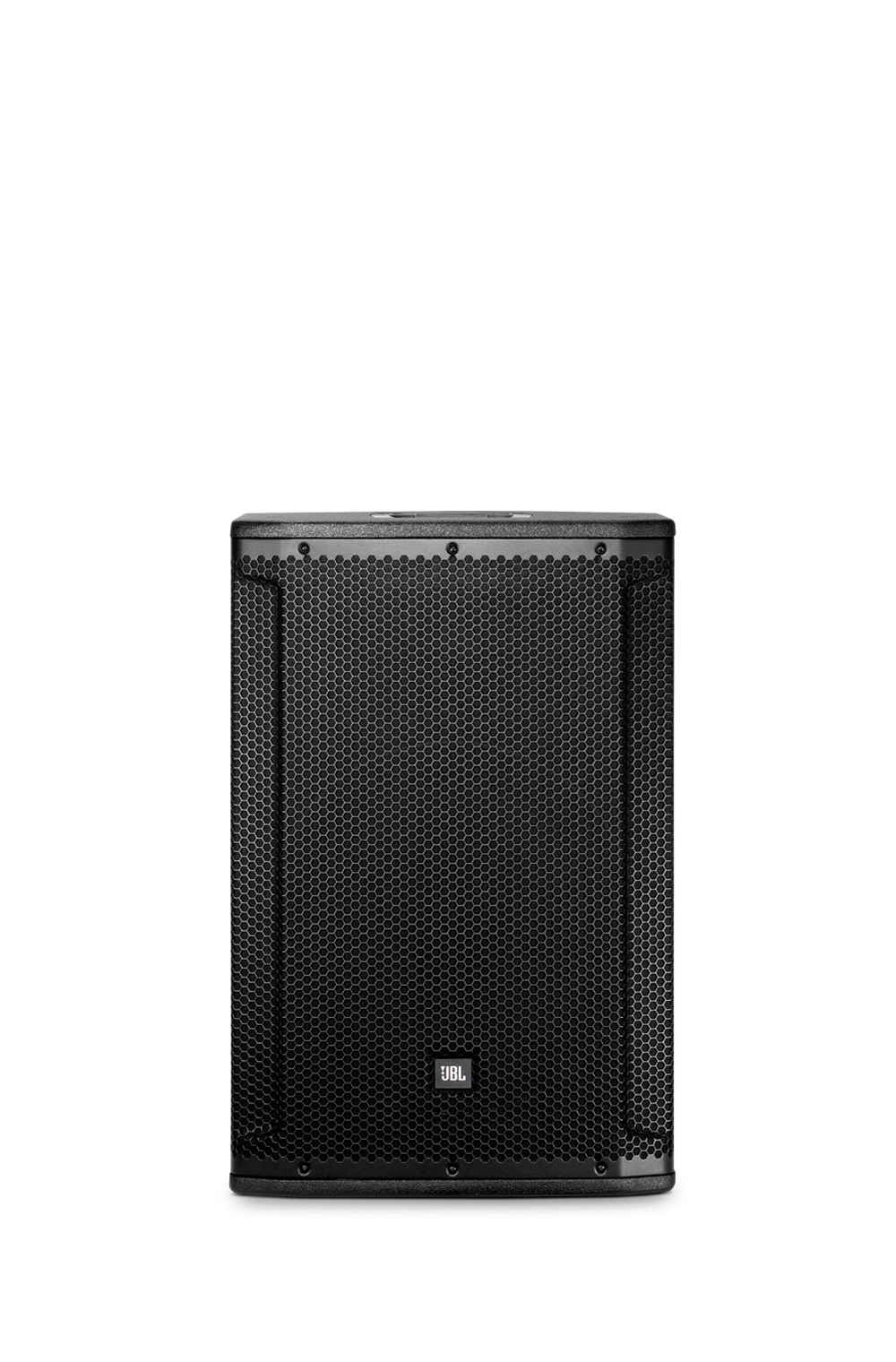

file type icon SRX815 Front
opdateret: apr 2019
338 kB apr 2019

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

System Type Passive 15”, two-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (-3 dB) 56hz - 20khz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2275H
HF Driver 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure 18mm Duraflex coated plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in
Weight 57.0 lbs (25.9kg)
Shipping Weight 67.0 lbs (30.4kg)
