SRX815

Loa Thụ Động Đa Năng 2 Đường 15 Inch

Mua ngay
SRX815
Hình ảnh lớn hơn

15-inch 2-Way Multipurpose Passive Speaker

SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD.



Tính năng

  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 41Hz-20kHz
  • Frequency Response: 56Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 90 x 50
  • Amplification options: Passive/Bi-Amp

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Thêm Chi tiết

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Tải xuống

Specifications
  Phiên bản Kích thước Đã tải lên
file type icon SRX815 Spec Sheet
phiên bản 11_11_19, cập nhật: Thg 12 2019
11_11_19  800 KB Thg 12 2019
Brochures
  Phiên bản Ngôn ngữ Kích thước Đã tải lên
file type icon JBL 2025 PPA Brochure
en phiên bản B, cập nhật: Thg 8 2025
B  en  8 MB Thg 8 2025
Compliances
  Kích thước Đã tải lên
file type icon SRX800 Passive Series Compliance
cập nhật: Thg 10 2020
100 KB Thg 10 2020
Software
  Kích thước Đã tải lên
file type icon Audio Architect
cập nhật: Thg 4 2019
10 KB Thg 4 2019
Android download icon SRX Connect
phát hành: Thg 8 2023
Thg 8 2023
Windows download icon HiQnet Audio Architect
phát hành: Thg 11 2020
Thg 11 2020
iOS download icon SRX Connect
phát hành: Thg 8 2023
Thg 8 2023
Speaker Tunings
  Kích thước Đã tải lên
file type icon SRX800 Passive I-Tech HD Tunings
cập nhật: Thg 10 2020
20 KB Thg 10 2020
file type icon SRX800 Passive I-Tech 4x3500HD Tunings
cập nhật: Thg 10 2020
40 KB Thg 10 2020
file type icon SRX Passive Bi-amp tunings Table
cập nhật: Thg 10 2020
3 MB Thg 10 2020
Images
  Kích thước Đã tải lên
file type icon SRX800 Driver
cập nhật: Thg 4 2019
200 KB Thg 4 2019
file type icon SRX800 Handle
cập nhật: Thg 4 2019
200 KB Thg 4 2019

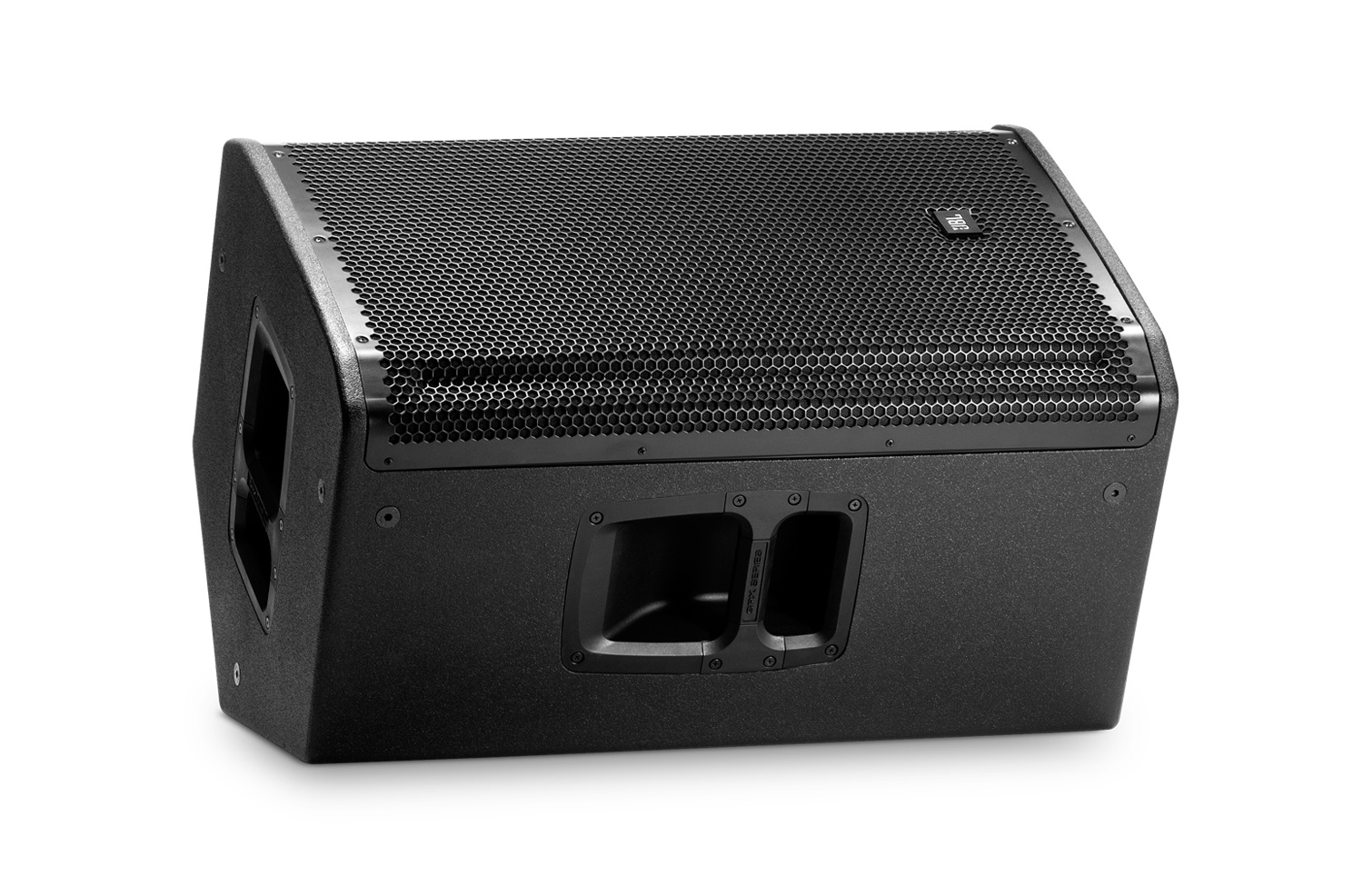

file type icon SRX815 Monitor
cập nhật: Thg 4 2019
300 KB Thg 4 2019

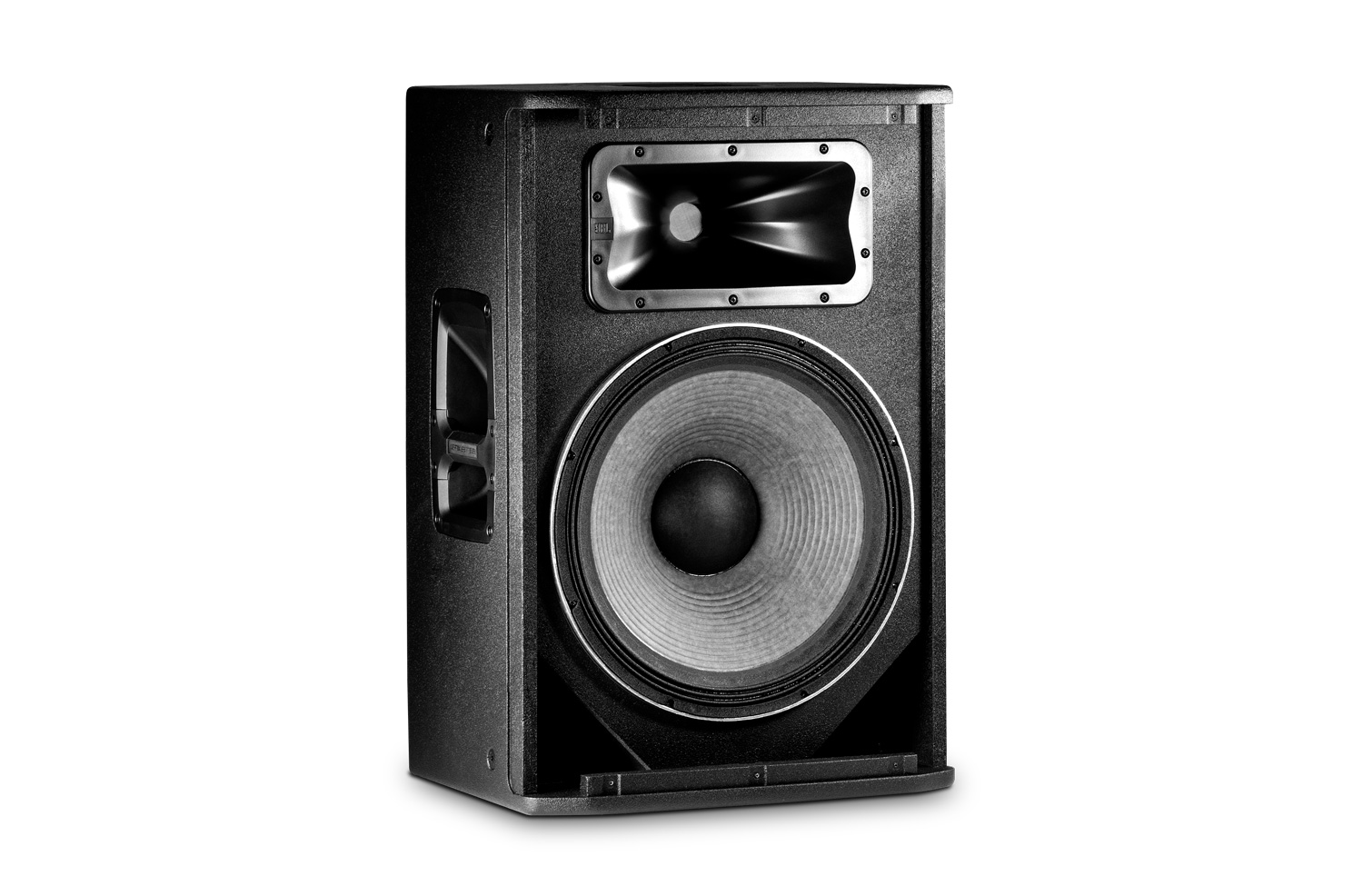

file type icon SRX815 Angle No-Grill
cập nhật: Thg 4 2019
200 KB Thg 4 2019

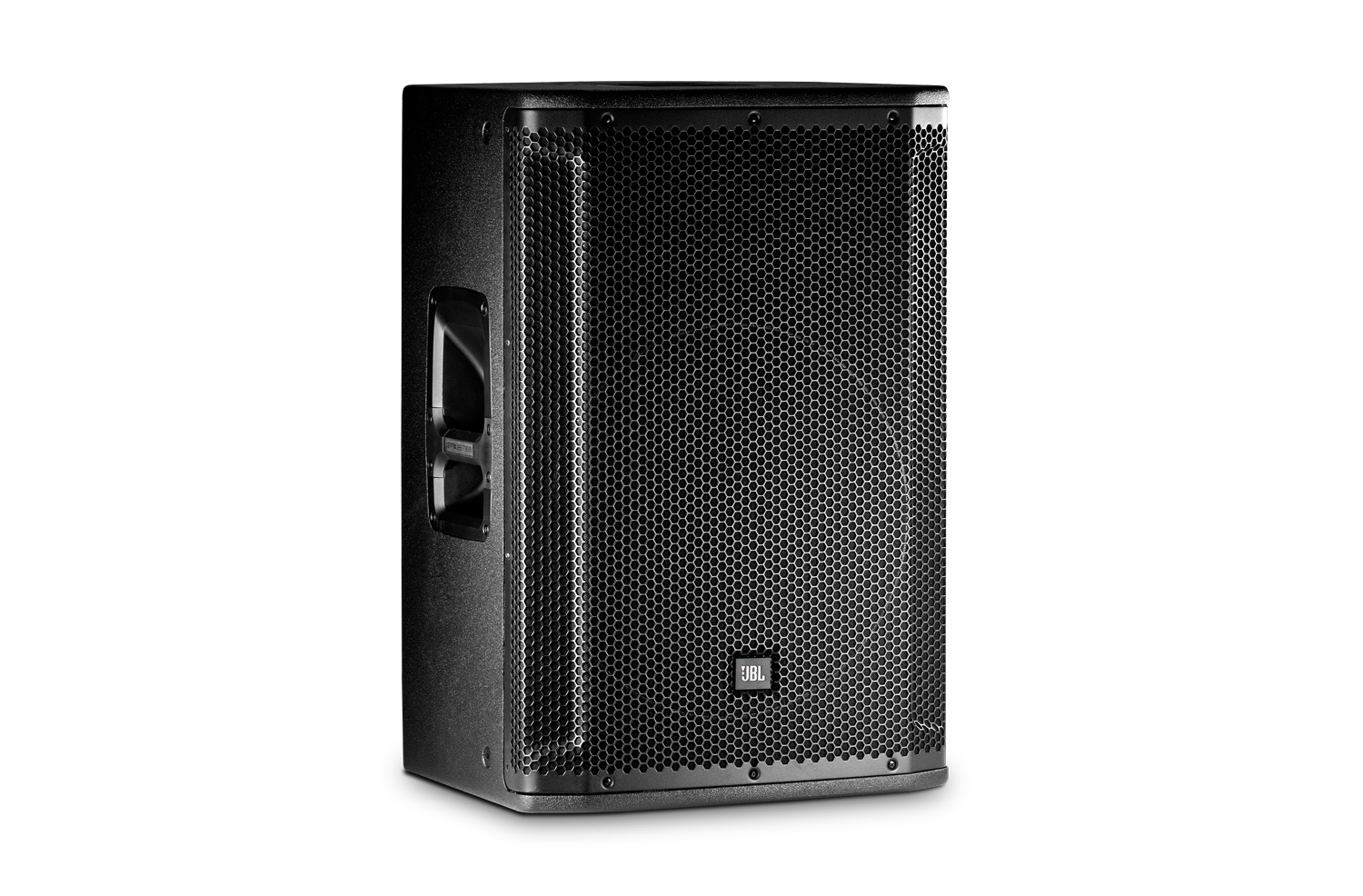

file type icon SRX815 Angle
cập nhật: Thg 4 2019
300 KB Thg 4 2019

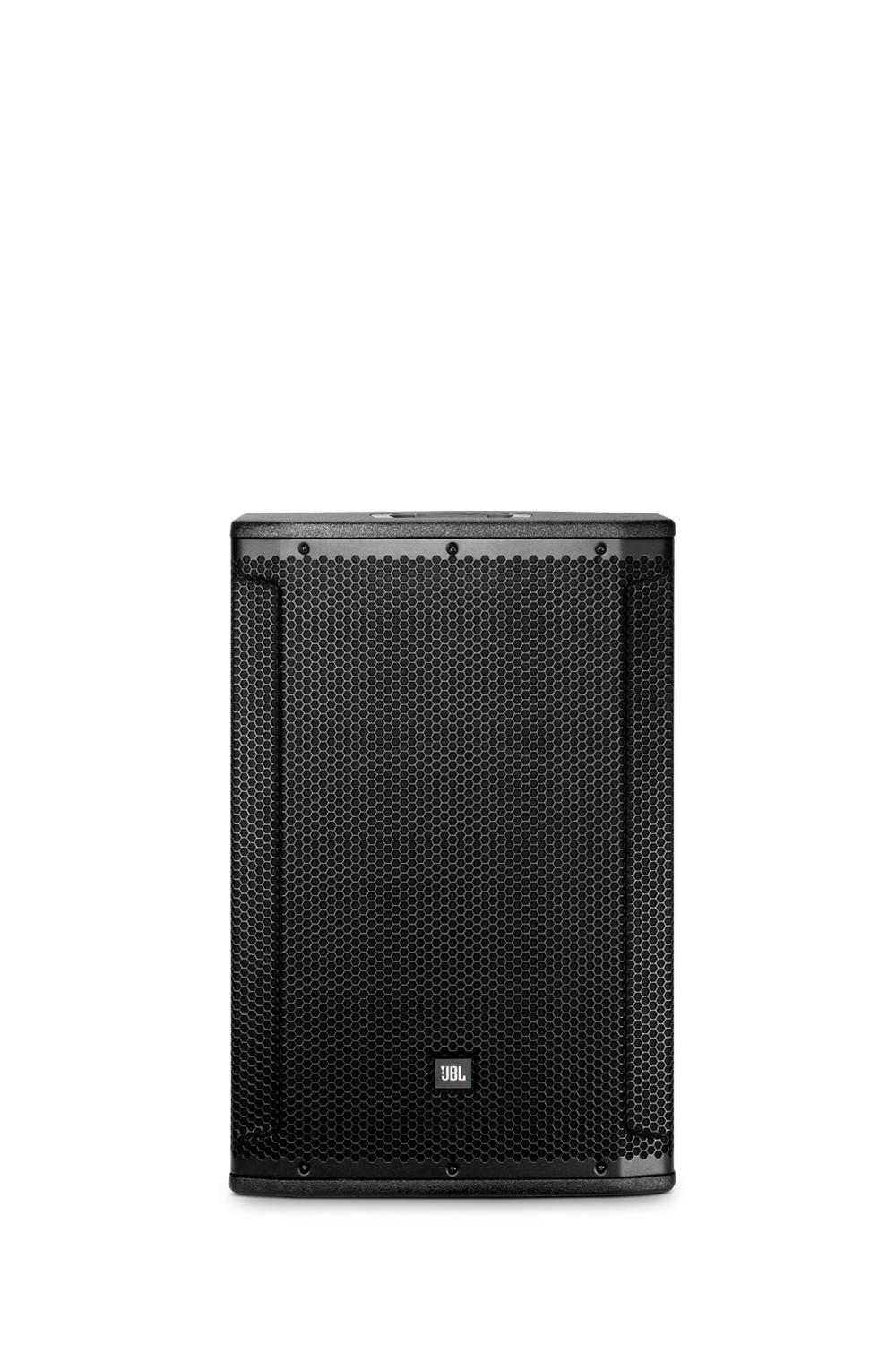

file type icon SRX815 Front
cập nhật: Thg 4 2019
300 KB Thg 4 2019

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Phụ tùng & Dịch vụ

Thông số kỹ thuật

System Type Passive 15”, two-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB) 41hz - 20khz
Frequency Response (-3 dB) 56hz - 20khz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver JBL 2275H
HF Driver JBL 2432H
Coverage Pattern 90 x 50
Crossover Frequency 1.9khz
Enclosure 18mm Duraflex coated plywood
Monitor Angle 50°
Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
Handles 3
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in
Weight 57.0 lbs (25.9kg)
Shipping Weight 67.0 lbs (30.4kg)

Phụ kiện

SRX815P-CVR-DLX | Deluxe padded cover for SRX815P
SRX815P-CVR-DLX Main photo
Hình ảnh lớn hơn
SRX815P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX815P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Hình ảnh lớn hơn
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Cột loa hỗ trợ khí với đầu dưới có ren M20, cột 38mm & bộ chuyển đổi 35mm. JBLPOLE-GA là giá đỡ loa dễ sử dụng nhất nhờ vào cơ chế giảm xóc khí nén bên trong có thể nâng loa cho bạn. Cơ chế giảm xóc bên trong của giá đỡ dễ dàng nâng các loa nặng từ 35 lbs trở xuống mà không cần gì từ người dùng.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Tài liệu
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Hình ảnh lớn hơn
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Tài liệu
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Hình ảnh lớn hơn
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Tài liệu
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Hình ảnh lớn hơn
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Tài liệu
