الميزات

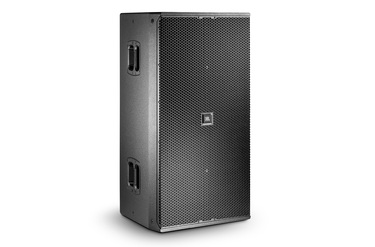

- High output 3-way enclosure featuring the D2 Dual Diaphragm Dual Voice Coil high frequency compression driver in a light-weight trapezoidal enclosure
- Differential Drive™, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ MF and LF cone transducers
- Multiple M10 attachment points facilitate a variety of suspension options
- V5 Processing for use with Crown Audio I-Tech HD series amplifiers
التنزيلات
Specifications
| الحجم | |
|
|
742 KB |
CAD Drawings
| الحجم | |
|
|
3.44 MB |
Software
| الحجم | |
|
|
|
|
|
Ease Data
| الحجم | |
|
|
412 KB |
Preset Libraries
| الحجم | |
|
|
624 KB |
Service Notes
| الحجم | |
|
|
63.5 KB |
الإصدار B,
تم التحديث: أبريل 2026
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
القطع والخدمة
المواصفات
| Frequency Range (-10dB) | 39 Hz - 18 kHz |
| Coverage Pattern (-6dB) | /64: 60° Horizontal x 40°Vertical/95: 90° Horizontal x 50°Vertical |
| System Input Power Rating | LF: 2 x 800 W Continuous (IEC / 100 hour)MF: 270 W Continuous (IEC / 100 hour)HF: 100 W Continuous (IEC / 100 hour) |
| Maximum Peak Output *2 | /64: 143dB (Preset: F35/64 FR)/95: 143dB (Preset: -F35/95 FR) |
| System Processing | Crown Audio I-Tech HD SeriesCrown Audio I-Tech 4x3500HD |
| Nominal Impedance | LF = 2 x 8 ohms MF = 8 ohms HF = 8 ohms |
| LF Driver | 2 x 2265H, 254 mm (15 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™ |
| MF Driver | 1 x 2169H, 203 mm (8 in) dia., 76mm (3 in) Dual Voice Coil, Neodymium Differential Drive®, Direct Cooled™ |
| HF Driver | 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil |
| Enclosure | 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles |
| Grille | Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing |
| Input Connectors | Neutrik® Speakon® NL-8 (2x): LF1: 1± | LF2: 2± | MF: 3± | HF: 4± |
| Dimensions (H x W x D) | 1051.5 mm x 568.9 mm x 528.3 mm (41.4 in x 22.4 in x 20.8 in) |
| Net Weight (each) | 52.6 kg (116 lbs) |
| System Type | High Performance Dual 15” 3-Way Loudspeaker with 60 x 40 degree coverage |
| Suspension / Mounting | Integrated M10 mounting points |
الملحقات

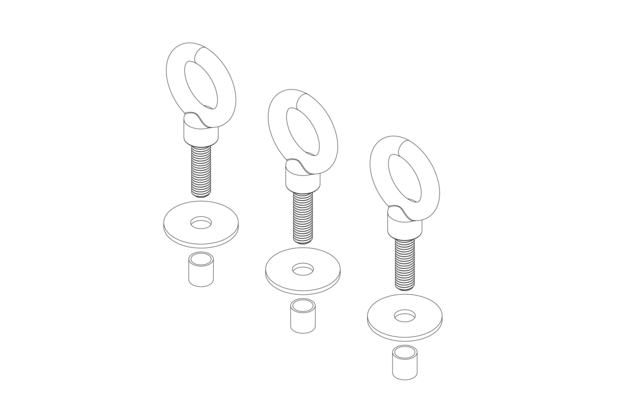

229-00009-01 | مجموعة M10 Eyebolt
صور أكبر
المميزات:
- براغي عينية M10 x 35 ملم
- بناء فولاذي مطاوع بكتف معزز
- يتضمن حلقات غسيل وفواصل
المتضمن:
- (3) براغي عينية M10 x 35 ملم
- (3) حلقات غسيل 38 ملم
- (3) فواصل 13 ملم لسلسلة EON و 300
